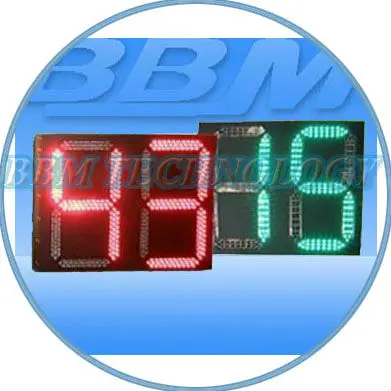

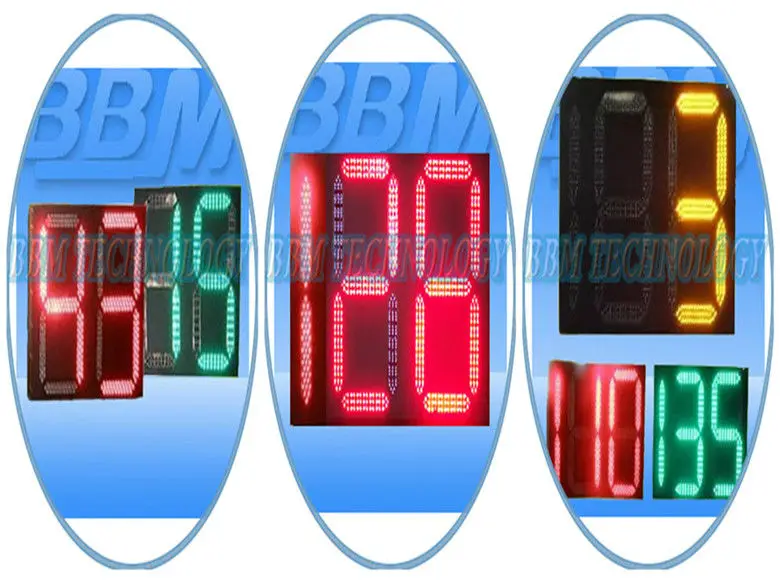

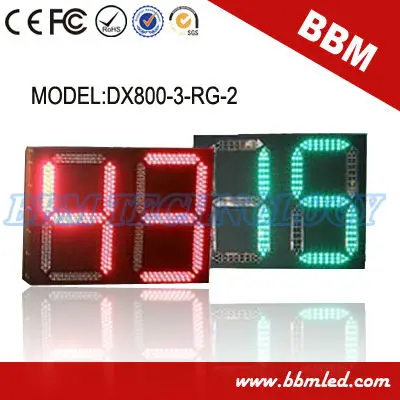

large size RG 2 digit led traffic countdown meter

Product Overview

Description

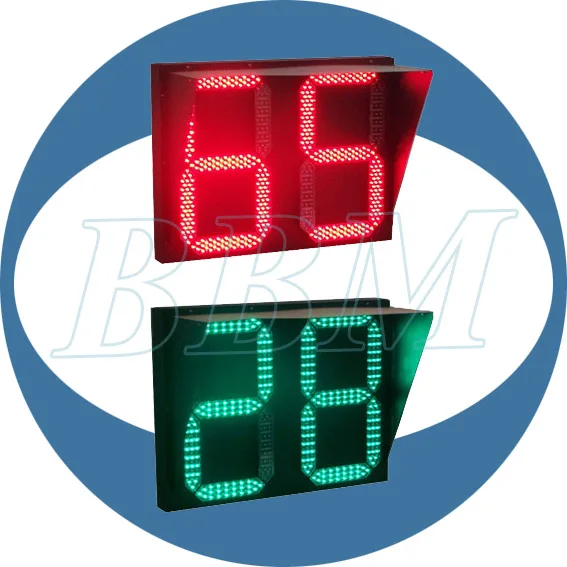

large size RG 2 digit led traffic countdown meter





traffic countdown meter has many advantages, such as

1.Outstanding with good visual angle, equal light intensity, standard chromatogram and long service time.

2.Human-based design, the lamp is easy for dismounting, installation and debugging.

3.It uses high reliable LED ensured by strict aging test.



Technical Parameters:

Color	LED Q.ty	Light Intensity	Wave Length	Power Factor	Viewing Angle	Power	Working Voltage	Housing Material
RED	546pcs	≥1310cd	630±5nm	≤0.9W	30	≤26W	85V-265VAC,50/60HZ; 12/24VDC	Metal with painting/Aluminum/Stainless
GREEN	336pcs	≥1129cd	505±5nm	≤0.9W	30	≤16W



Packing Info:

Carton Size	Q'TY	GW	NW	Wrapper	Volume(CBM)
87*67*18cm	1 pcs /carton box	20.98	15.03	K=K Carton	0.105



Packing List:

Part name	Light	Shade Board	M 12X80 Screw	M4X8 Screw	Using Manual	Certificate
Q'ty.(pcs)	1	3	4	8	1	2

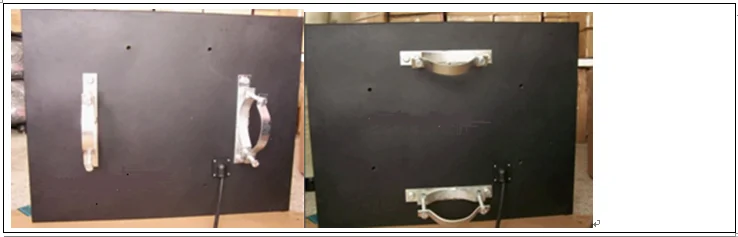

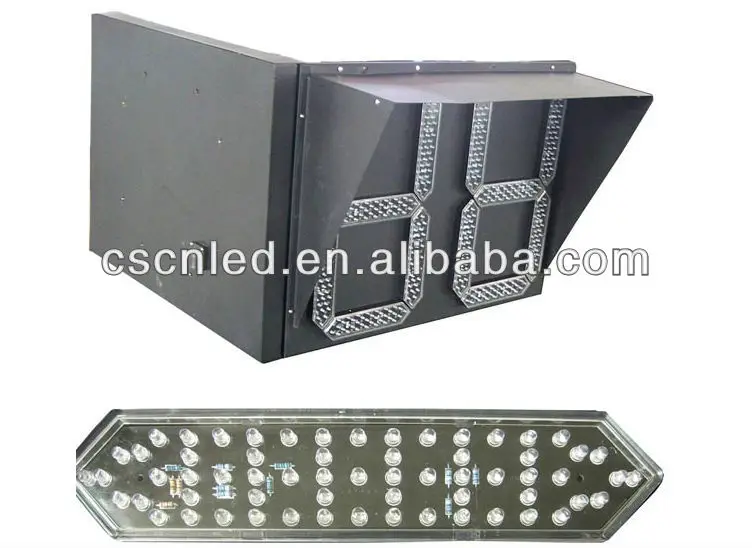

Installation Sketch:

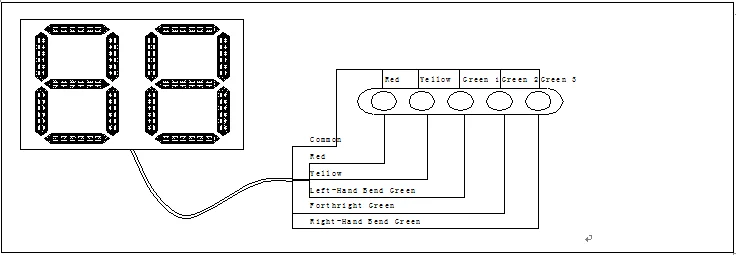

Connection Diagram:













We are Reliable LED Traffic Signals Manufacturer!!!

BBM TECHNOLOGY COMPANY ONLY PRODUCE HIGH QUALITY,RELIABLE,AND ROBUST LED TRAFFIC LIGHTS!

1) Your inquiry related to our products or prices will be replied in 24hrs.

2 ) Well-trained and experienced staffs to answer all your inquires in fluent English.

3 ) OEM&ODM, any your customized lightings we can help you to design and put into product.

4) Protection of your sales area, ideas of design and all your private information.

5) We offer 1 year product warranty.

6) We offer the fast delivery in 1-5days for sample, 10-15 days for bulk order.

7) We offer the fast shipping way such as DHL, UPS, FedEx, EMS etc.

8) We offer the best competitive price, NO MOQ required.

China Professional Traffic Signals Exporter!!!
