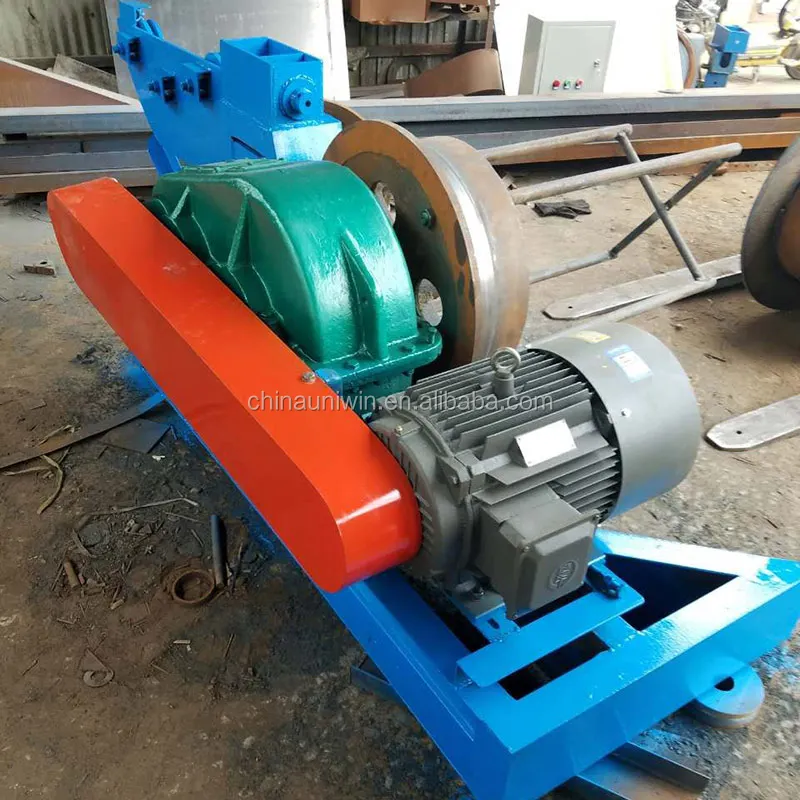

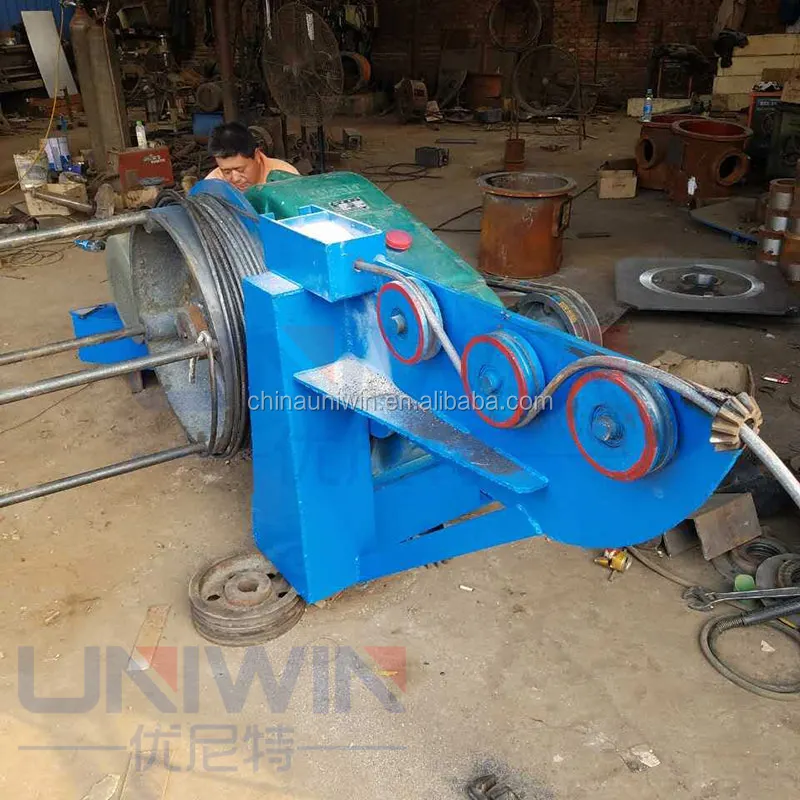

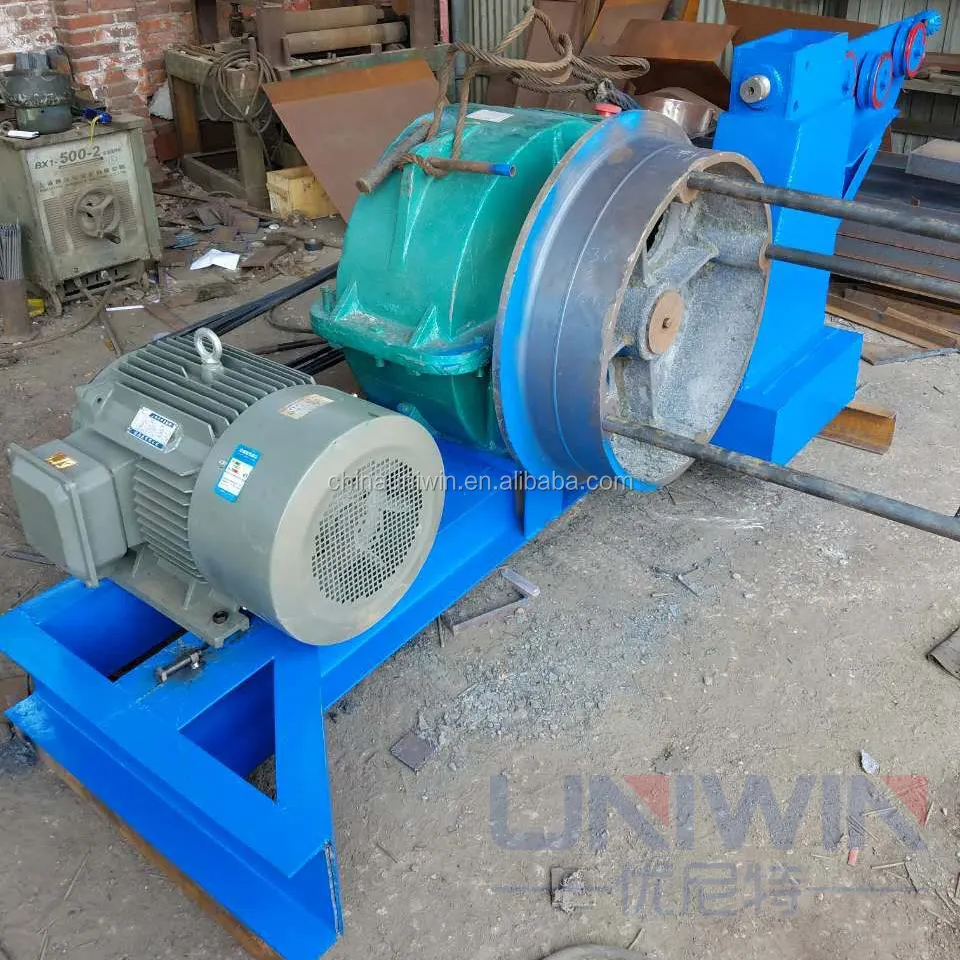

Horizontal wire drawing machine for big diameter 16/12 mm steel wire

 The horizontal wire drawing machine is used for drawing 12mm/10mm/8 mm steel wire to 6mm diameter.there are also bigger models designed for bigger diameter such as 16 mm etc.

Parameters of the horizontal wire drawing machine WLS 550:

• Max wire inlet: 12 mm
• Min wire out: 6 mm
• Diameter of the drawing drum: 550 mm.
• Reducer model: 500
• Speed: 75-100 m/minute
• Output: 1 T/Hour
• Motor: Mengniu brand,18.5 kw, 3 phase ,380v,50HZ.
• Size:1.8*1.8*1.8 m
• Weight: 900KG
