D101Z industrial computer J1900 i3 i5 i7 fanless mini car PC
Product Description
Features
Fanless heat sink structure AIl aluminum alloy chassis, compact structure, flexible installation Adopt celeron 1037U/1.80GHz dual core processor 1*MPCI slots, support WIFI, USB WIFI, 3G module 1*8111E Gigabit Ethernet port ,support Wake On LAN Rich I/O: 1xDC input, 6xCOM, 1xVGA, 1*HDMI, 1xLAN ,2xAduio, 6xUSB
Specification
Chassis
Color
Black

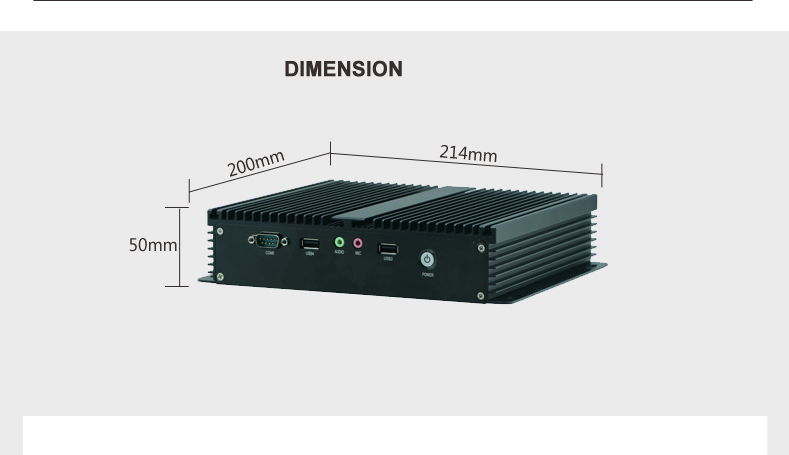

Dimension
214mm*200mm*52mm(L*W*H)
Structure
Full aluminum fanless radiating structure
Material
Full aluminum alloy
Intallation
Desktop or mounted installation
Motherboard
Model
ITX-M100_T25
Processor
Celeron 1037U/1.80GHz dual core processor
Chipset
Adopt Intel® HM65 Express chipset
Graphics
HD Graphics
Integrated Intel®HD Graphics, support single display, double mode, extended mode.
Storage
Memory
1* DDR3 1600/1333 memory, up to 8GB
HDD
Support 1*2.5 inch HDD expansion
CF
N/A
SSD
Support 1*MSATA SSD expansion
Network
Ethernet
1* Realtek RTL8111E Gigabit LAN port, support Wake On LAN / PXE
WiFi
1*MPCIE slot, support WiFi, USB WiFi, 3G module
I/O Port
USB
6* USB2.0
Serial Port
6* RS232 COM port, COM2 support RS485/422
Display
1* VGA, 1*HDMI display output
Audio
2*MIC, 2*Line-out
LAN
1* RJ45 Gigabit Ethernet LAN port
System Control
Power Switch
Antenna
2*WIFI/3G SMA antenna (Optional)
Power Adaptor
Input
AC 110V ~ 220V
Output
DC 12V 5A
Reliability
Operating Temp.
0℃~45℃
Storage Temp.
-20℃~70℃
Relative Humidity
5%-95%, no condensing
Vibration
0.5g rms/5-500HZ/random/operating
Operating System
Support Windows 7, Windows 8, Windows XP, Linux OS
Order Information
No.
Model
Processor
Motherboard
Memory
Storage
LAN
COM
USB
WIFI
Adaptor
System
1
D101Z
1037U/1.80GHz
M100_618
/
/
1*RTL8111E
6
6
N/A
12V/5A
/
2
D103Z
3217U/1.80GHz
M100_i3
/
/
1*RTL8111E
6
6
N/A
12V/5A
/
3
D105Z
3317U/1.70GHz
M100_i5
/
/
1*RTL8111E
6
6
N/A
12V/5A
/
4
D107Z
3537U/2.00GHz
M100_i7
/
/
1*RTL8111E
6
6
N/A
12V/5A
/
