HUAFEI Cnc 5 Aixs Pipe Tube Intersecting Line Plasma Cutting Machine
- Category: >>>
- Supplier: Jinan Huafei Cnc Machine Co. Ltd.
Share on (60750369971):
Product Overview
Description
Products Description

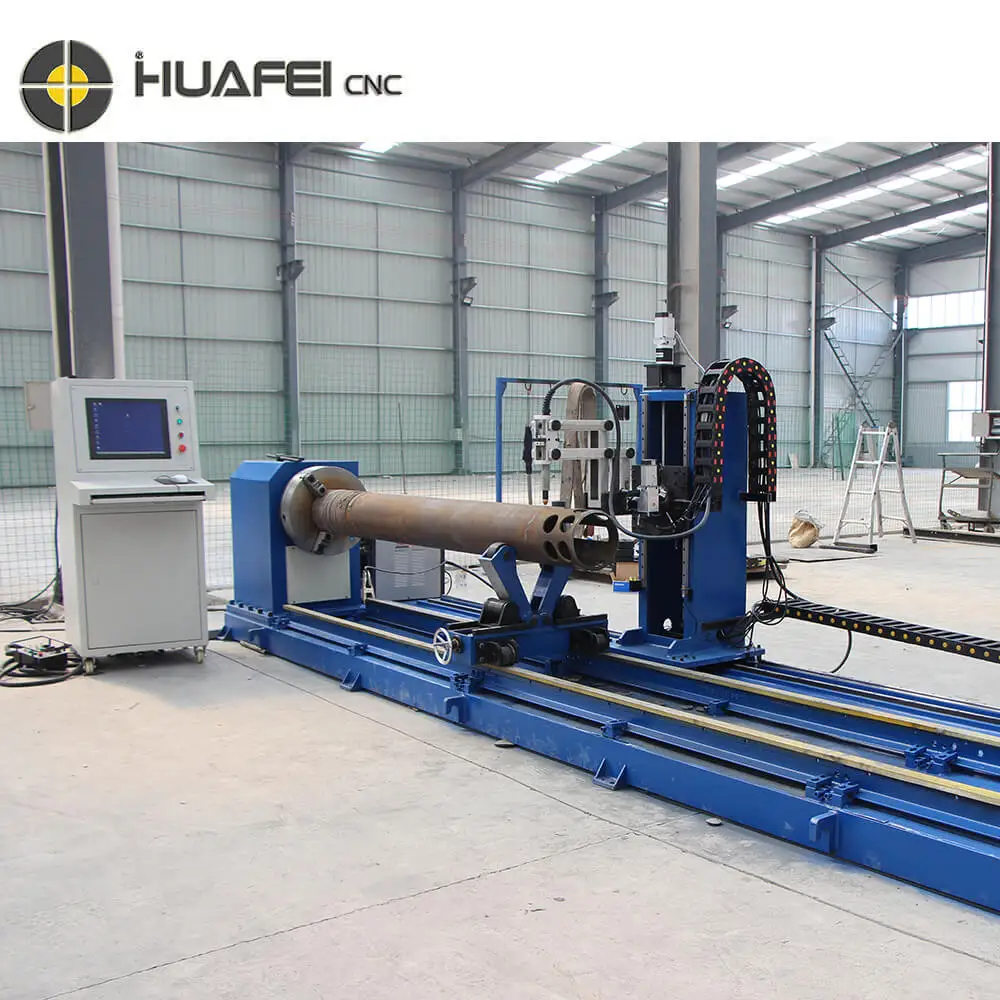

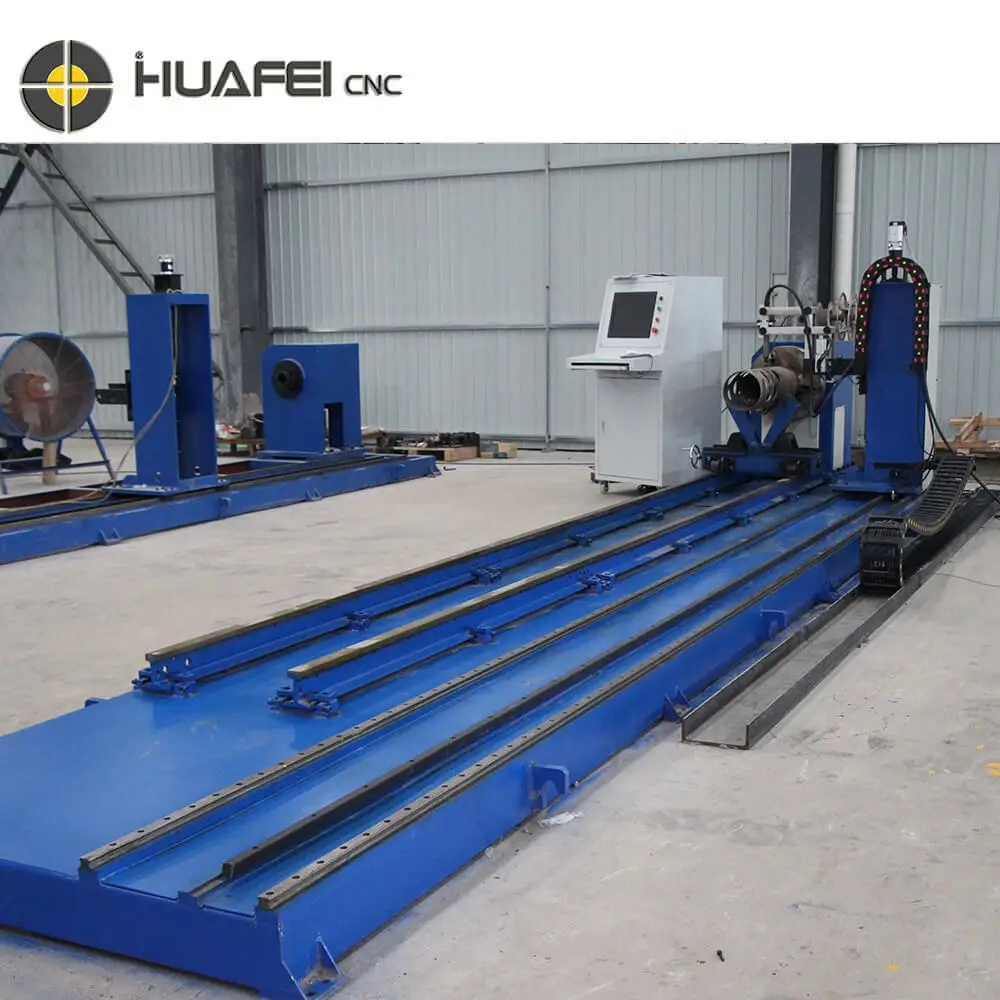

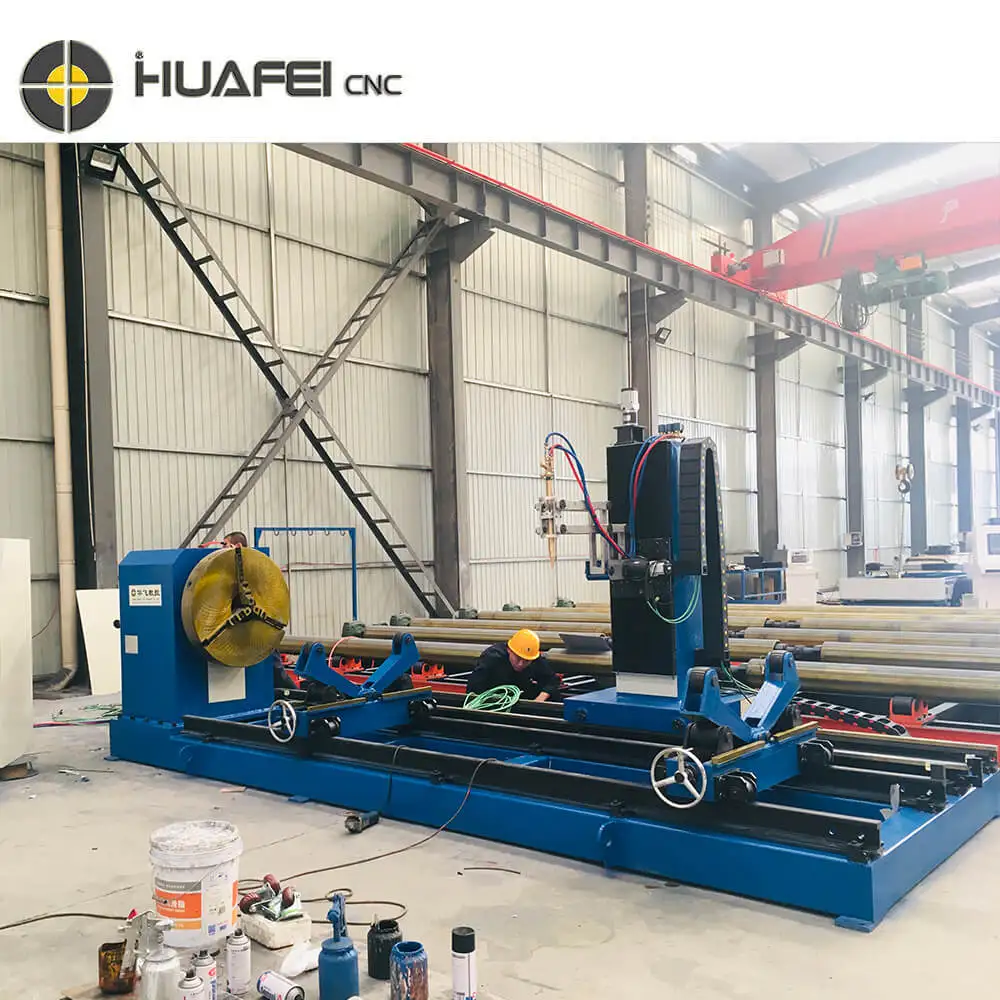

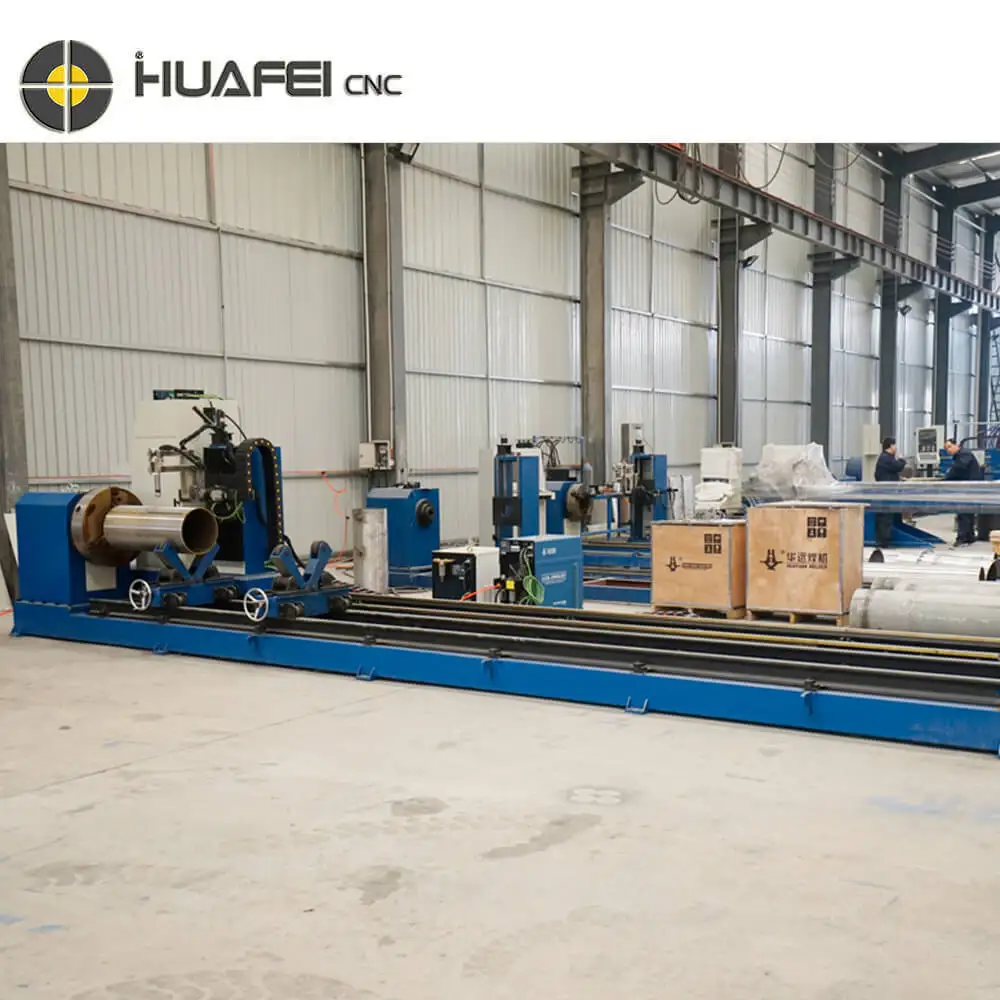

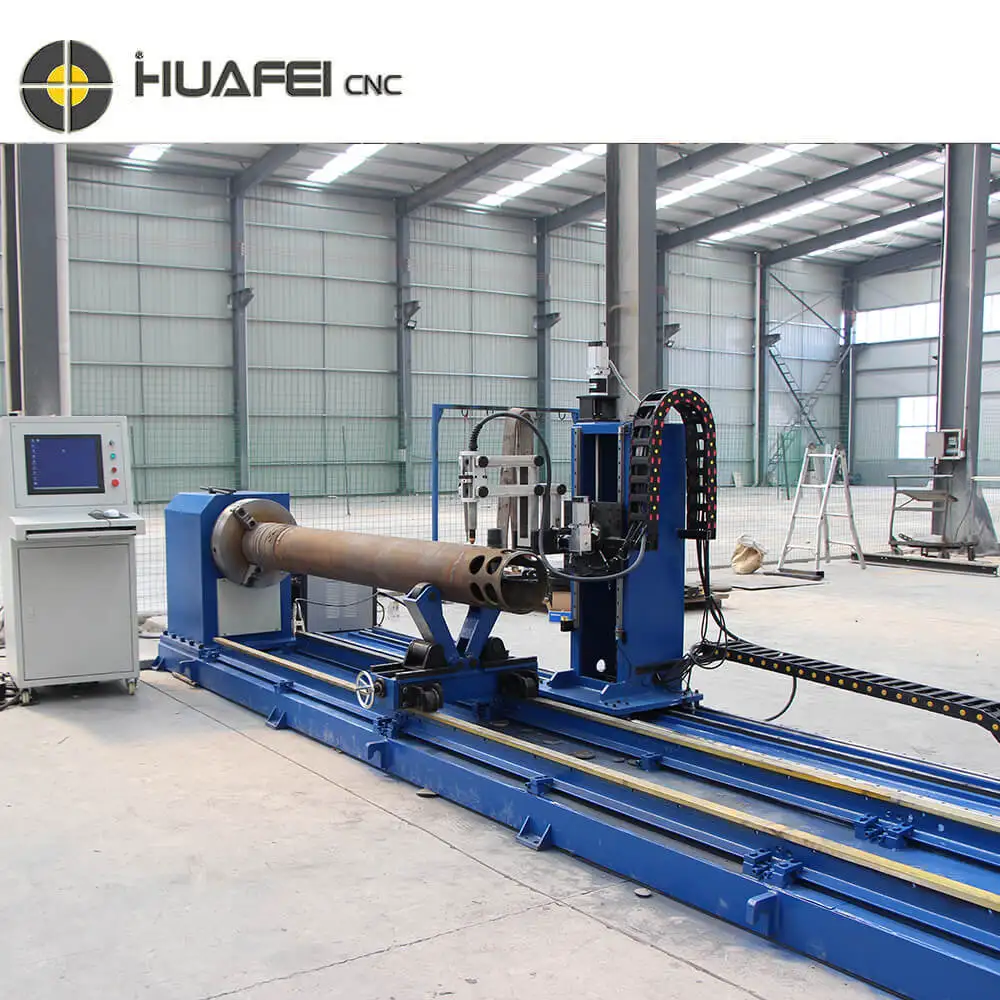

CNC plasma pipe cutting machine
The CNC plasma pipe cutting machine is widely used in cutting pipeline structural parts in construction, chemical industry, shipbuilding, mechanical engineering, metallurgy, electric power, and other industries. CNC plasma pipe cutting machine is very convenient for cutting and processing such workpieces. It does not need an operator's calculation and programming. It only needs to input parameters such as pipe radius and intersecting angle of the pipeline intersecting system. The CNC plasma pipe cutting machine can automatically cut intersecting lines, intersecting line hole, and welding groove of the pipeline. The numerical control CNC plasma pipe cutting machine adopts digital control. The number of control axes of the machine is two to six axes. Each type of machine has the functions of cutting various intersecting lines and holes, cutting fixed-angle grooves, fixed-point grooves, variable-angle grooves, non-circularity, and eccentricity compensation of pipes.
Product Paramenters
Product Model | QGVI-500 | QGVI-B500 | |||||
Number of CNC Control Axis | Three Axis and Two Linkages | Five Axis and Four Linkages | |||||
Spindle rotation (axis code A) | Free Rotation | ||||||
Move The Torch Left and Right (axle code X) | Optional (depending on pipe length) | ||||||
The Cutting Torch Swings Left and Right (axle code U) | / | ±60° | |||||
Swing Before and After Cutting Torch (axle code V) | / | ±60° | |||||
Cutting Diameter | 50-500mm | ||||||
Cutting Pipe Length | 500-12000mm | ||||||
Flame Cutting Tube Thickness | 5-50mm | ||||||
Plasma Cutting Tube Thickness | According to The Selected Plasma Power Supply | ||||||
Cutting Speed | 50-1500mm/min | ||||||
Moving Speed | 50-1500mm/min | ||||||
Motion Accuracy | 6000mm/min | ||||||
Memory Function of Various Cutting Programs
Cutting Data Track Holding Function
Automatic Demonstration Function of Trajectory
Copying Tracking Function
Visual and Concise Display Interface
Cutting Function of Slot Surface with Fixed Angle and Variable Angle
High Cutting Accuracy
Various Speed Control Functions
Cutting Item
The max angle of bevel: Vertical and horizontal direction ± 60 ° Minimum cross-cutting angle: ± 30 ° Cutting speed automatic stepless variable speed regulation\tContinuous Cutting Set Fixed-point and fixed-angle bevel settings Vertical pipe and slope-side cutting\tHome bias pipe opening face cut\tHome bias pipe opening eccentric cutting surface\tMother pipe rectangular cutting surface Mother trough control center, cutting eccentric Orthogonal mother riding a tube-type cutting openings Orthogonal mother tube insertion opening-cutting Orthogonal and oblique cut-side branch pipe Orthogonal and oblique eccentric mother pipe cutting Orthogonal and oblique eccentric cutting branches Multi-tube mother intersection pipe opening face cut Multi-pipe intersection cut-side branch pipe Possession of ocean engineering at both ends of the tube cutting bias Tube welding elbow, "shrimp" oblique section cutting pipe ovality error automatic tra.
Serial number | Key Component Name | Company | Control system |
1 | Number | Set | 1 |
2 | Arm system | Set | 1 |
3 | Driving device | Set | 3/5 |
4 | Clamping device | Set | 1 |
5 | Supporting device | Set | 3 |
6 | Guide | Set | 1 |
7 | Pneumatic system | Set | 1 |
8 | Control cabinet | Set | 1 |
9 | Operator | Set | 1 |
Related Products
Company Profile
Huafei CNC Machinery Co., Ltd. factory
Since established, Jinan Huafei CNC Machine Co., Ltd. has focused on introducing and cultivating high-tech talents and takes it as a development strategy. at present, many professionals have been brought together who specialize in researching and developing of uncoiling and leveling machines, CNC welding, and cutting equipment. technical strength is always cherished as the core competitiveness of our company.
Product packaging
FAQ
1.Does your company accept customized offer, we have special need.
HUAFEI CNC is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
2.What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
3.Does your company accept CIF price?
CIF price includes shipping cost of cnc machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such need.
CIF price also includes marine premium which is 2‰ of 1.1*total amount.
4.What’s your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.
5.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
6.Does MC have maintenance manual and operation manual?
Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotaty table, oil cooler)
