Pressure Calibration Instrument Hydraulic Pressure Hand Pump

Share on:

Price:$255.00 - $269.00
Price in USD:Details


Product Overview


Pressure Calibration Instrument Hydraulic Pressure Hand Pump

Description Pressure Calibration Hydraulic Pressure Hand Pump

Hand-Held Pressure Calibrator Pumps is a portable pressure pump.For field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.Can also provide pressure source correction table for pressure measuring instrument manufacturer.All kinds of pressure transmitter within every 60 M pa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pump.

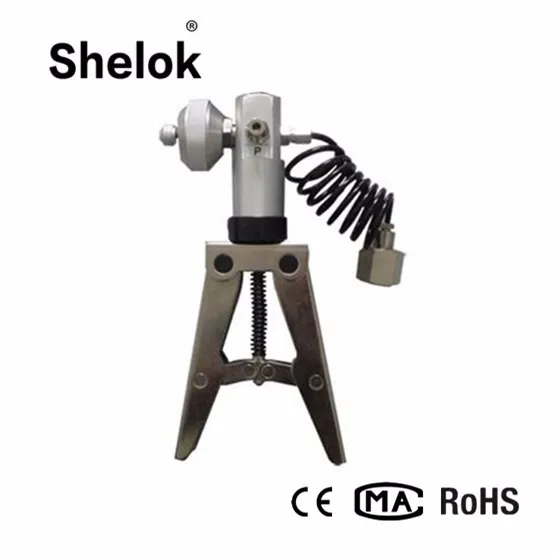

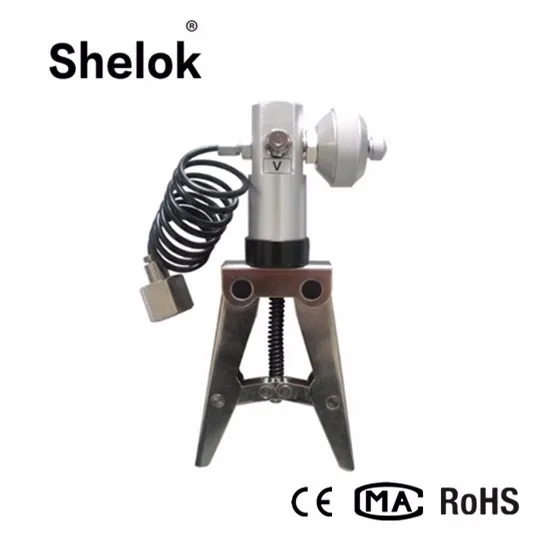

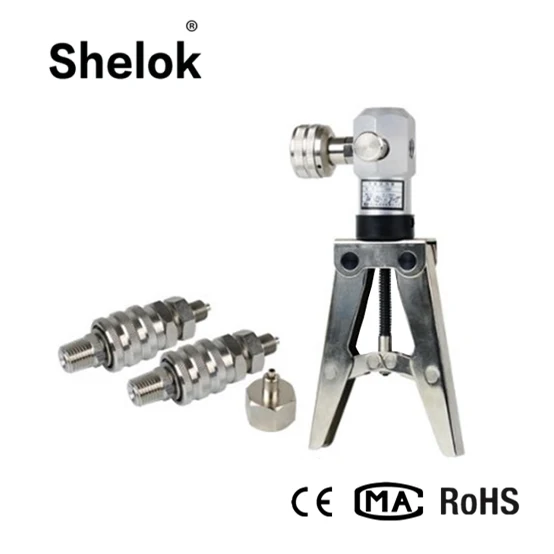

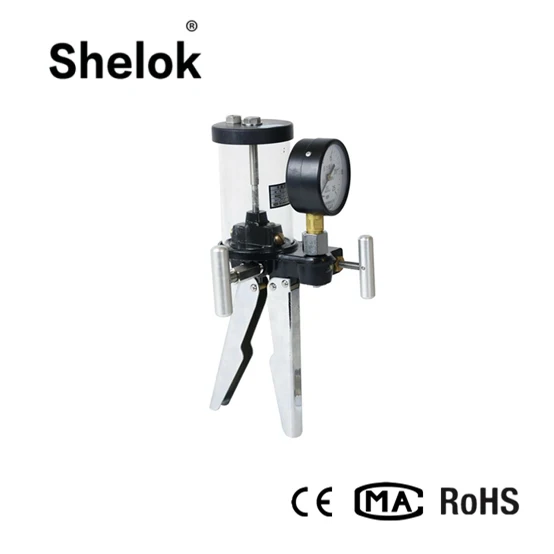

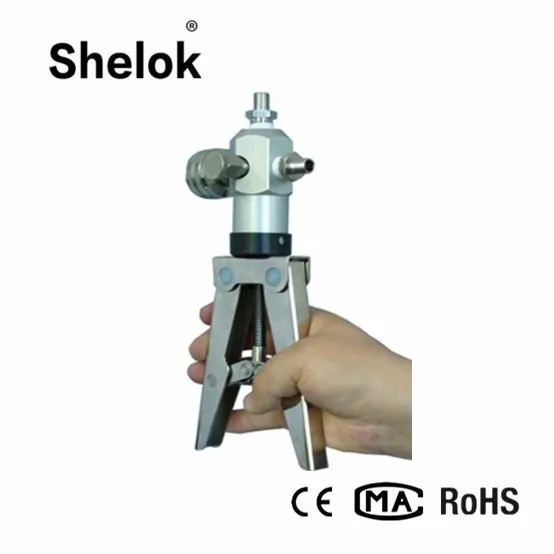

Detailed Images Hydraulic Pressure Hand Pump

Y-060 Pressure Gauge3.jpgPressure Gauge Package.jpg

Selection Range Optional Guide




Y039 hand pump calibrator

Y039: 0~1.6MPa
Stability :0.05%
Type :Pneumatic pressure

Price: USD180.00/pc

Y060 hand pump calibrator

Y060: 0~25MPa
Stability :0.05%
Type :Hydraulic pressure

Price: USD269.00/pc

Y061 hand pump calibrator

Y061: -0.08~0MPa
Stability :0.05%
Type :Pneumatic pressure

Price: USD180.00/pc




YFP-16 hand pump calibrator

YFP-16: -0.088~1.6MPa
Stability :0.05%
Type :Pneumatic pressure

Price: USD353.00/pc

YFP-20 hand pump calibrator

YFP-16: -0.088~2.0MPa
Stability :0.05%
Type :Pneumatic pressure

Price: USD353.00/pc

YFP-25 hand pump calibrator

YFP-16: -0.088~2.5MPa
Stability :0.05%
Type :Pneumatic pressure

Price: USD353.00/pc

Specification Hydraulic Pressure Hand Pump


output pressure range

Y039: 0-1.6MPa

Y061: -0.1-0MPa

Y060: -25MPa

YFP-16: -0.088~1.6MPa(-0.88~16bar)

YFP-20: -0.088~2.0MPa(-0.88~20bar)

YFP-25: -0.088~2.5MPa(-0.88~25bar)

operating temperature


operating relative humidity


flexible hose connector

M20*1.5 female

master gage connector

1/4NPT male


235×120×65 230 x 110 x 60


0.6kg 0.5kg


500 mm long plastic hose and a leatherette carrying bag

Outlet threads

1/4 NPT, or to custom request


micro-adjustable, volume control


Features Pressure Calibration Hydraulic Pressure Hand Pump

1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing
,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.

 Related products

2088 pressure Meter.jpg2088 pressure Meter5.jpg


Q:How long will you reply me?

A:We will contact you as soon as possible but within 12 hours

Q: Can I get some samples?

A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?

A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?

A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q:How do you control your quality ?

A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?

A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q:Could I visit your factory?

A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?

A: We offer 12 months warranty time.

Q:can you provide OEM & Customized service?

A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.

Company Information

Shelok considers itself not only a manufacture but more  conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.


Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.

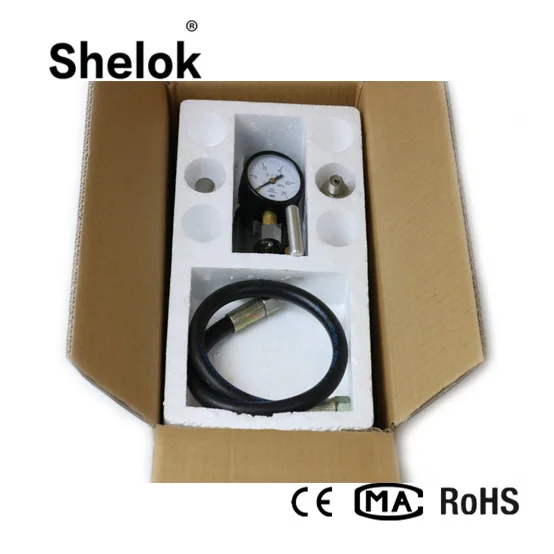

Packing & Shipping
