Alcohol ethanol copper alembic column gin distillation for sale
- Category: >>>
- Supplier: Daeyoo Tech. Co. Ltd. Wenzhou
Share on (60750422237):
Product Overview
Description
Related Products
Product Description
dye 500L alcohol destilador distiller 96 plant

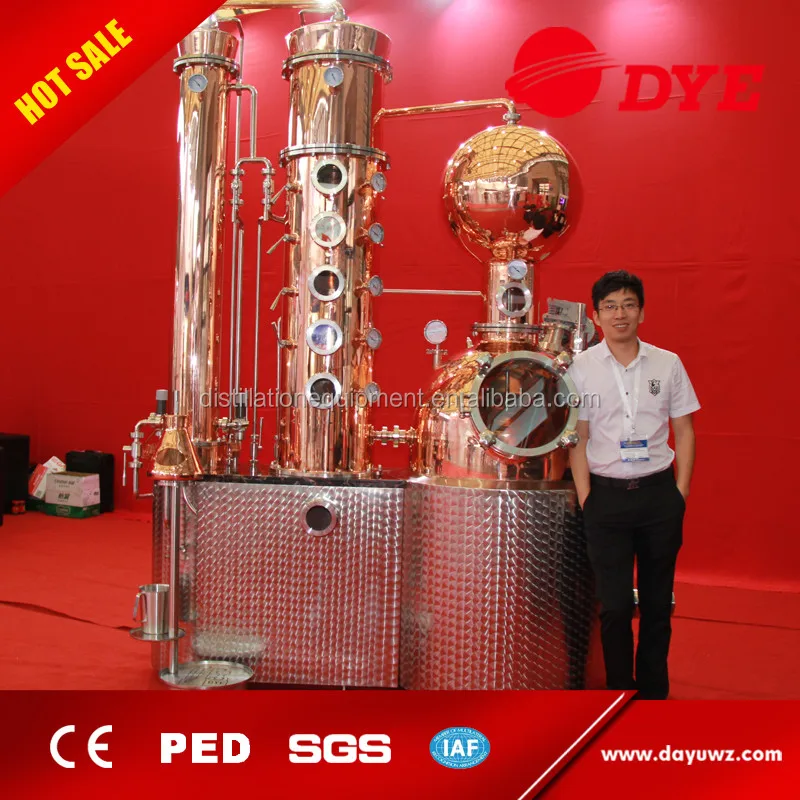

A brief introduction of distillery equipment
We are a still maker from China. We don't profess to know much about owning a distillery, but we can make equipment for you and your needs.We offer a still that can give you the full flavor and sulphide reduction properties only a copper still can offer.Our "modular" columns can be configured to allow you to make a full bodied earthy rum in the morning and make a high quality gin in a single pass in the afternoon. Below are our standard Models. If you have a specific idea on how a product should be made, then maybe you might want to have a chat...We are embracing new ideas all the time.
Below are the four(4) standard distiller Models we usually make.
Model | Distilled spirit | Usage |
DYE I | Alcohol content 70%±10% Eg.whiskey,brandy,rum | Suitable for low alcohol concentration Getting high quality taste spirits. ( jacketed & insulated, explosion proof mixer,4 plates copper column+SS condenser column) |
DYE II | Alcohol content 70%±10% Eg.(whiskey,brandy,rum)+ spices | Suitable for low alcohol concentration Available for fruitful flavor with spices. Getting high quality taste spirits. (jacketed & insulated, explosion proof mixer,gin basket+4 plates copper column+ SS condenser column) |
DYE III | Alcohol content 90%±5% Eg.whiskey,brandy,rum,gin,vodka | Multi function for both low& high alcohol concentration. Getting high quality taste spirits. Available for fruitful flavor with spices. ( jacketed & insulated, explosion proof mixer,gin basket+4 plates copper column+ 16plates SS column+SS condenser column) |
DYE IV | Alcohol content 90%±5% Eg.whiskey,brandy,rum,vodka | Powerful function for both low and high alcohol concentration. Getting high quality taste spirits. (jacketed & insulated, explosion proof mixer included,4 plates copper column+16plates SS column+SS condenser column) |
We can also customerize the distillery according to your demand.
whisky helmet
We have different shapes for your option
Gin basket(BOTANICAL BASKET)
Enhance flavor and extended the range of your system.
It is for making Gin, Schnapps, etc.
Material:stainless steel/red copper
Inside with removable filter basket.We have different shape opition
Enhance flavor and extended the range of your system.
It is for making Gin, Schnapps, etc.
Material:stainless steel/red copper
Inside with removable filter basket.We have different shape opition
Distillation column
It consist of red copper/Stainless steel column,bubble cap,down comers,bubble plate,red copper screw.We can tailor the height and plate number for your specific application.the max.height of column can reach 2000mm;up to 10paltes with a pair of flanges;all bubble plates integrated within a tightly embedded inner shell;all features so the surface appearance looks smooth and attractive,yet simple and generous.
Condenser
A heat exchanger in which hot vapors are cooled and condensed into liquid.
Material:red copper/stainless steel 304,flange connection;
Structural tube type heat exchanger;with cooling water inlet and outlet.
With a thermometer.
Material:red copper/stainless steel 304,flange connection;
Structural tube type heat exchanger;with cooling water inlet and outlet.
With a thermometer.

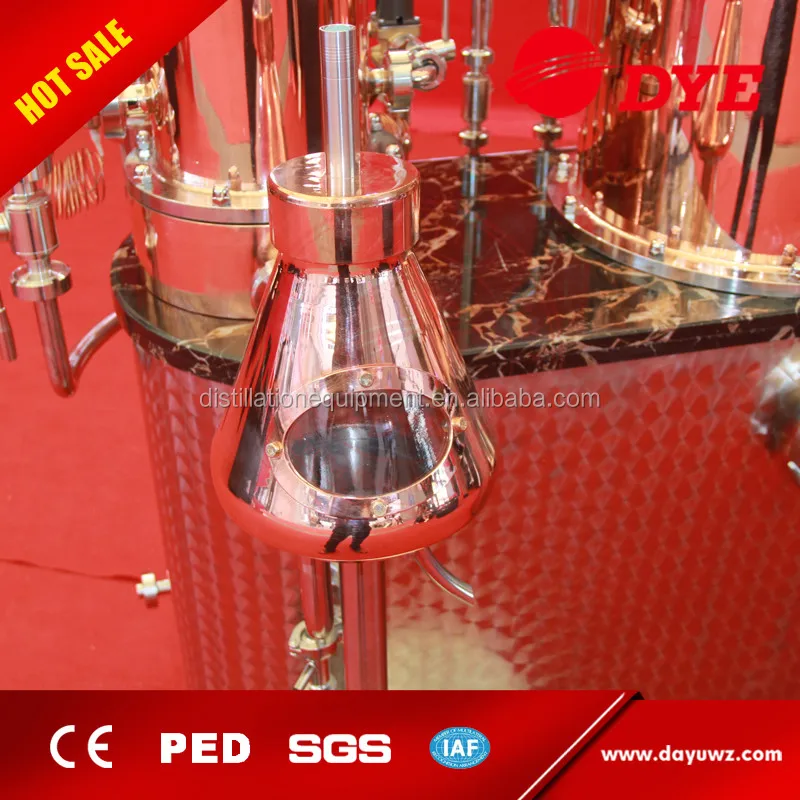

Parrot/Spirit safe/Spirit spout
A device looks a bit like a bird that attaches to the still or is at the point of collection that floats the alcometer.
Material:stainless steel 304/glass/red copper,tri-clamp connection;
Material:stainless steel 304/glass/red copper,tri-clamp connection;
We can customerize it according to your demand.
Distilleries we installed.
Our advantage
DYE company,one of white hair for Brewing and distilling equipment business in China since 1986,wish you good luck and hope you can find suitable product here.
Quality
Quality is the soil of an enterprise. We can offer you competitive advantage products.With us,your money in safe and your business in safe.
Delivery
Time is gold for you and for us,so we have professional team work and production line and can make nice quality in short time.
Certificate
Our equipment is coming with certifications of PED and our company is TUV approved.We use CE approved components for Europe customers,and CSA or UL approved motor for North American customers.
We are ready to sign a contract with you in case you need to ensure our quality.
Quality
Quality is the soil of an enterprise. We can offer you competitive advantage products.With us,your money in safe and your business in safe.
Delivery
Time is gold for you and for us,so we have professional team work and production line and can make nice quality in short time.
Certificate
Our equipment is coming with certifications of PED and our company is TUV approved.We use CE approved components for Europe customers,and CSA or UL approved motor for North American customers.
We are ready to sign a contract with you in case you need to ensure our quality.
Certifications
Packing & Delivery
Packaging | ||
Size | Customization | |
Weight | Customization | |
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | Customization | |
Weight | Customization | |
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Quality control:
Spectrometer
We have the Spectrometer(from Germany.) and CMM, which ensures the raw and furnace material elements testing, and the precision of machining products. The company has passed the ISO9001.
surface roughometer
Strictly manufacture in accordance with standards Roughness is less than 0.22 μm
Adopt international standards of high quality stainless steel tanks tank 304 stainless steel material, high pressure polyurethane foam insulation, sheath according to customer requirements, can adopt stainless steel polishing, inferior smooth, carbon steel, such as spray form.
thickness measuring meter
thickness of steel plates
super quality with competitive price, adopt the SUS304 as material, CE certificate and ISO certificate.equipment 3 year's warranty, all life service.
Customer Visit
FAQ:
Which is better and more productive – a Reflux Still or a Pot Still?
Both types of Still will remove the alcohol from a wash or mash, therefore the productivity is basically the same.
A Reflux Still refines the distillate to a high degree, producing a distillate of very high alcohol content with very little of the 'character' of the wash or mash coming through. A Reflux Still is a must for producing neutral spirit or Vodka.
A Pot Still produces a distillate with much lower alcohol content but with a correspondingly increased level of the 'character' coming through. This is important for distilleries producing Spirits such as Whisky, Tequila and Rum etc. where the character of the base ingredients is required in the final product.
Why do I need coppper?
Copper provides an essential chemical reaction, especially at lower proofs, that removes sulfides while the alcohol is in vapor form.
Copper has the ability to react with many sulfide compounds, such as sulfides or mercaptans, which are normally present in fermented mash, making them insoluble and removing them from the high wine vapor. As this chemical reaction proceeds within the still, a bright copper surface becomes very dark in color. For continuation of effective scavenging, it is necessary periodically to clean the still to remove these black deposits.
How much copper is really needed?
a. Copper provides an essential chemical reaction, especially at lower proofs, that removes sulfides while the alcohol is in vapor form.
b. Our systems are designed to give you the needed amount of copper for any distilled product. We can always add more copper to your system for a premium,if you require it.
Do I need Permits?
a. Yes there are many permits required to start a new distillery depending on where you are located. Besides the federal permitting with the Alcohol and Tobacco Tax and Trade Bureau (TTB), most states and local jurisdictions require permitting of some sort. Please consult with an industry consultant or your legal counsel.
Will someone from DYE train me on how to operate the equipment?
Because we specialize in equipment design and manufacturing, we recommend contacting a consultant regarding your particular product line. While we offer general guidelines, a consultant will be able to offer a more specific set of instructions, often tailored to the product(s) you plan on producing.
Which is better and more productive – a Reflux Still or a Pot Still?
Both types of Still will remove the alcohol from a wash or mash, therefore the productivity is basically the same.
A Reflux Still refines the distillate to a high degree, producing a distillate of very high alcohol content with very little of the 'character' of the wash or mash coming through. A Reflux Still is a must for producing neutral spirit or Vodka.
A Pot Still produces a distillate with much lower alcohol content but with a correspondingly increased level of the 'character' coming through. This is important for distilleries producing Spirits such as Whisky, Tequila and Rum etc. where the character of the base ingredients is required in the final product.
Why do I need coppper?
Copper provides an essential chemical reaction, especially at lower proofs, that removes sulfides while the alcohol is in vapor form.
Copper has the ability to react with many sulfide compounds, such as sulfides or mercaptans, which are normally present in fermented mash, making them insoluble and removing them from the high wine vapor. As this chemical reaction proceeds within the still, a bright copper surface becomes very dark in color. For continuation of effective scavenging, it is necessary periodically to clean the still to remove these black deposits.
How much copper is really needed?
a. Copper provides an essential chemical reaction, especially at lower proofs, that removes sulfides while the alcohol is in vapor form.
b. Our systems are designed to give you the needed amount of copper for any distilled product. We can always add more copper to your system for a premium,if you require it.
Do I need Permits?
a. Yes there are many permits required to start a new distillery depending on where you are located. Besides the federal permitting with the Alcohol and Tobacco Tax and Trade Bureau (TTB), most states and local jurisdictions require permitting of some sort. Please consult with an industry consultant or your legal counsel.
Will someone from DYE train me on how to operate the equipment?
Because we specialize in equipment design and manufacturing, we recommend contacting a consultant regarding your particular product line. While we offer general guidelines, a consultant will be able to offer a more specific set of instructions, often tailored to the product(s) you plan on producing.
