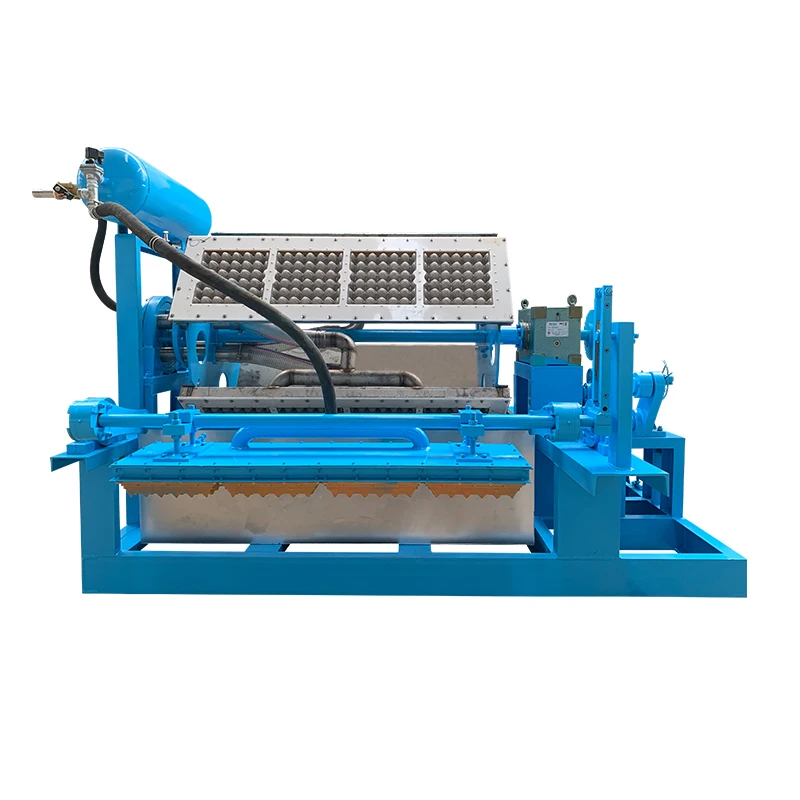

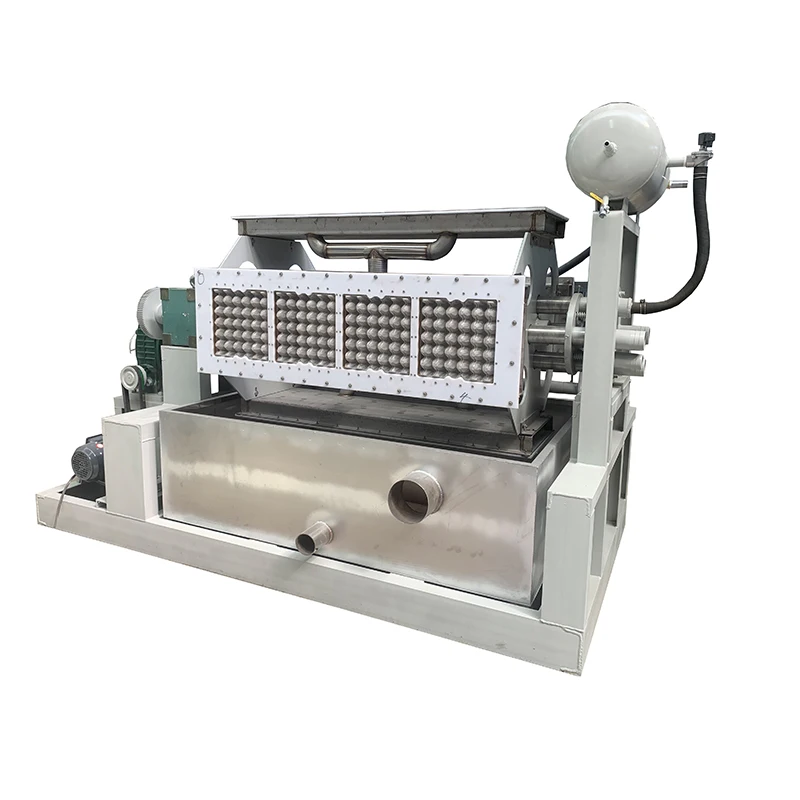

Paper Pulp Egg Box Machine with dryer
- Category: >>>
- Supplier: Hebei Wongs Machinery Equipment Co. Ltd.
Share on (60750422669):
Product Overview
Description
Product Description
Model | WS-3000 |
Mold | 16 forming and 4 transfer |
side | 4 sieds |
capascity | 3000 pcs/hour |
water consumption | 525-620 kg/hr |
paper consumption | 250-300 kg/hr |
electricity consumption | 80 kw/hr |
Egg Tray Forming Machine
Egg tray forming machine is a kind of pulping molding machine .It uses waste paper,waste newspaper,waste cardboard etc to product egg trays.You can also product egg tray,shoe trays,fruit trays,seeding trays etc by changing different molds.It is environmental protection equipment.
Recommend Products
Specification of other products
SPECIFICATIONS OF EGG TRAY FORMING MACHINE | ||||||
Model | Mold | Capacity (pcs/h) | Drying Type | |||
WS-1000 | 3 pcs forming plus 3 pcs transfer | 1000 | sun dry/single metal dryer | |||
WS-1500 | 4 pcs forming plus 4 pcs transfer | 1500 | metal dryer/brick dryer | |||
WS-2000 | 12 pcs forming plus 3 pcs transfer | 2000 | metal dryer/brick dryer | |||
WS-3000 | 16 pcs forming plus 4 pcs transfer | 3000 | metal dryer/brick dryer | |||
WS-4000 | 32 pcs forming plus 4 pcs transfer | 4000-5000 | metal dryer/brick dryer | |||
WS-6000 | 40 pcs forming plus 5 pcs transfer | 6000 | metal dryer/brick dryer | |||
WS-7000 | 48 pcs forming plus 6 pcs transfer | 6000-7000 | metal dryer/brick dryer | |||
Product Display
There are various types and output of egg tray forming machine supplied by our company.You only can tell me what capacity machine do you need, we will recommend the most suitable machine for you with best price.
WS-1000
WS-1500
WS-2000
WS-3000
WS-4000
WS-6000
WS-7000
WS-8000

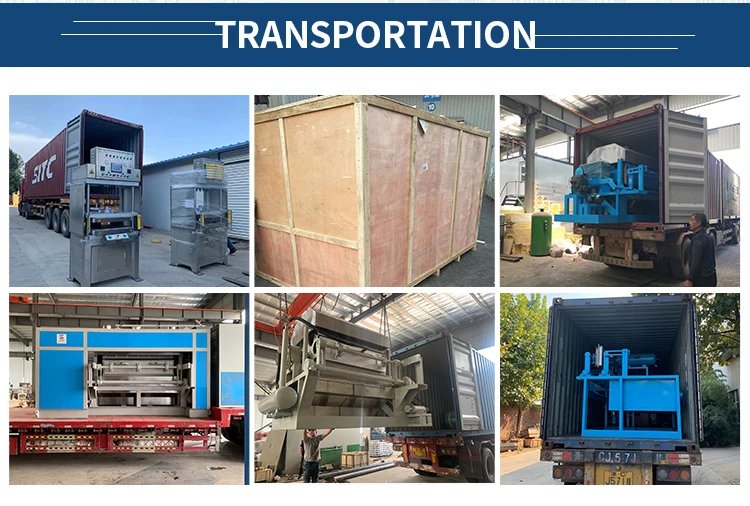

Industrial package
Product Process
1.Pulping System
Put the raw materials into the pulper and add an appropriate amount of water to stir the waste paper into pulp.
2.Forming System
The forming system is the process to produce the wet egg tray by forming machine. When the above forming moulds sink into the pulp tank, the negative-pressure vacuum pump will work on the the back of the forming mould, the pulp will be sucked and gathered on the mould surface to form the wet egg tray.
3.Drying System
Then the wet trays are ready for sending to the metal dryer for drying.The metal dryer is six-layer.It occupies a small area; It saves about 30% energy than brick dryer.It can be designed to multi layer according to your requirements.
4.Packing System
This is automatic counting machine.Count the number of dried products ,separate them and stack them up ,

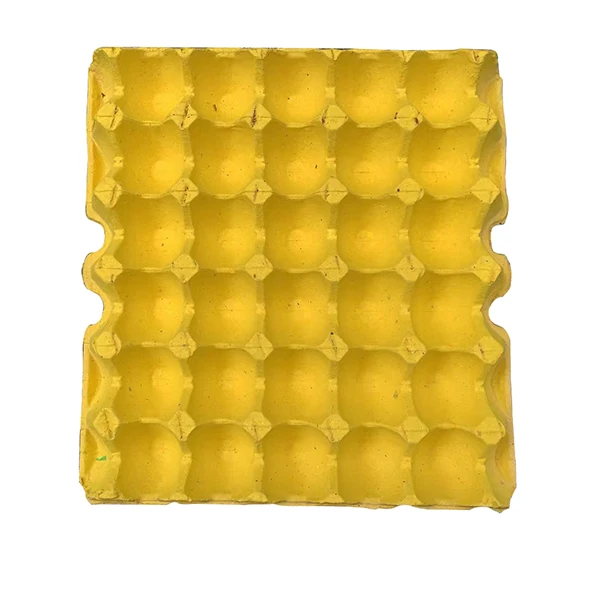

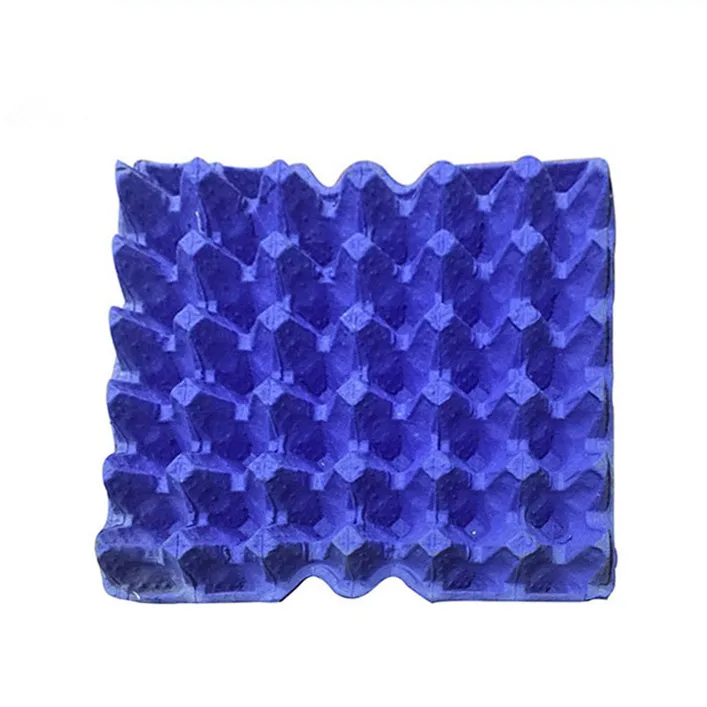

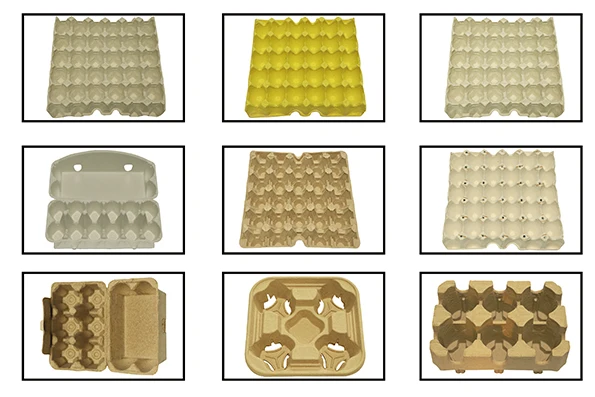

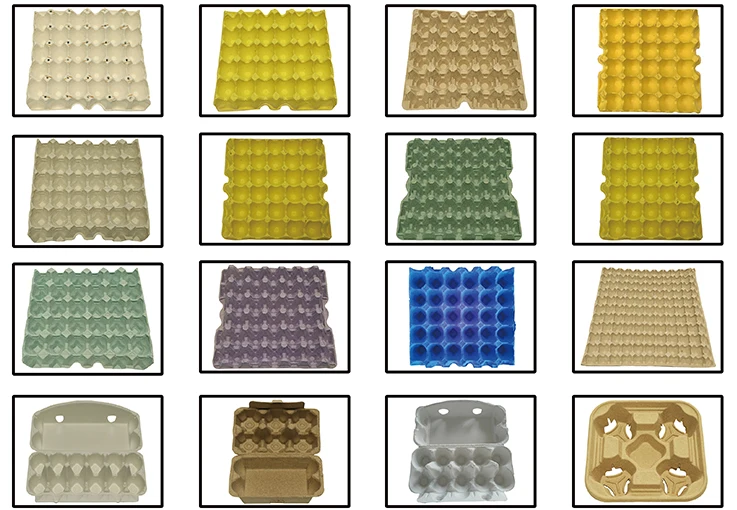

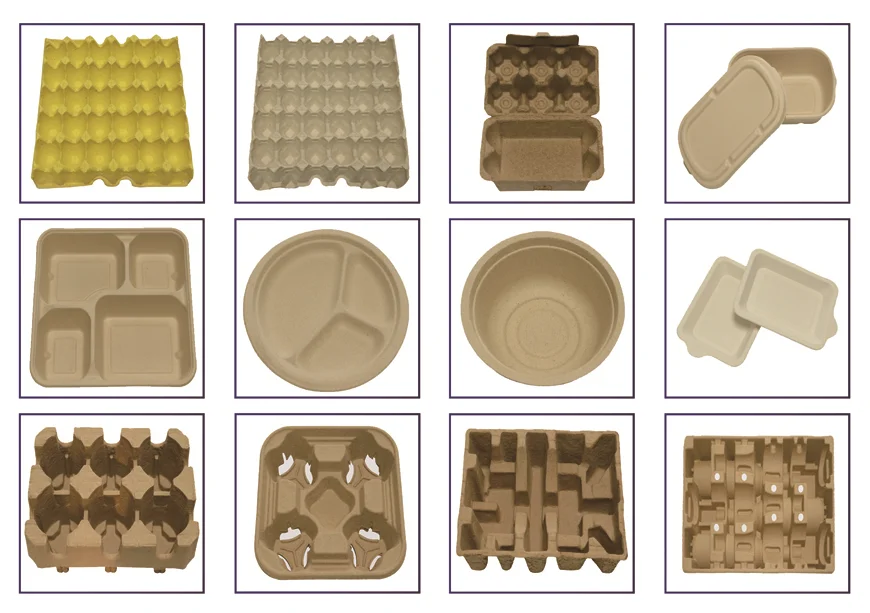

Finished product

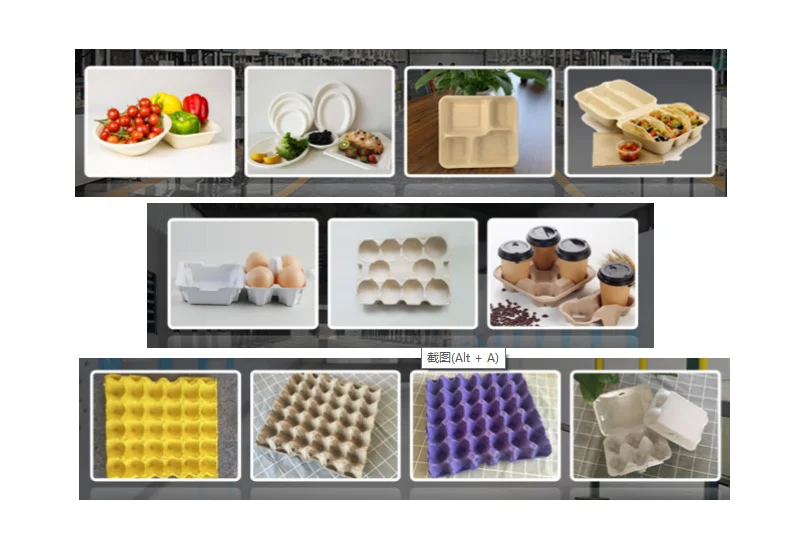

The egg tray forming machine can produce egg cartons, egg box, egg tray, bottle holder, agricultural culture fruit tray, coffee cup tray.You can product different products by changing different molds.
Product packaging

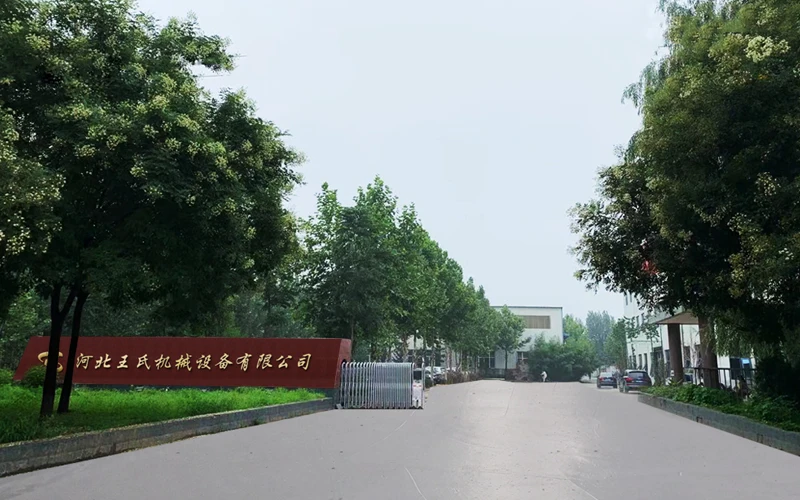

Company Profile
Hebei Wongs Machinery Equipment Co., Ltd. supplies various types of egg tray machines, egg tray production lines, complete sets of equipment and egg tray production technology. It integrates machine manufacturing, sales, production line assembly and technical services. The egg tray equipment of our factory is well-equipped with advanced technology and strong technical force. The machines that leave the factory implement strict scientific management and testing methods, and meet the needs of users to the greatest extent. We have always served our customers with the tenet of "excellent quality, prompt delivery, reasonable price and thoughtful service", and have won praise from new and old customers.
The main products are: various large, medium and small egg tray machines, assembly lines, complete sets of equipment; pulp molding machines, packaging machines, setting machines; various mold egg tray products, drying iron trays, drying bead trays and various egg tray machines accessories. The product specifications are complete and the quality is excellent. They are sold all over the country and exported to the United States, Russia and some countries and regions in Southeast Asia, and are deeply trusted by domestic and foreign users.
