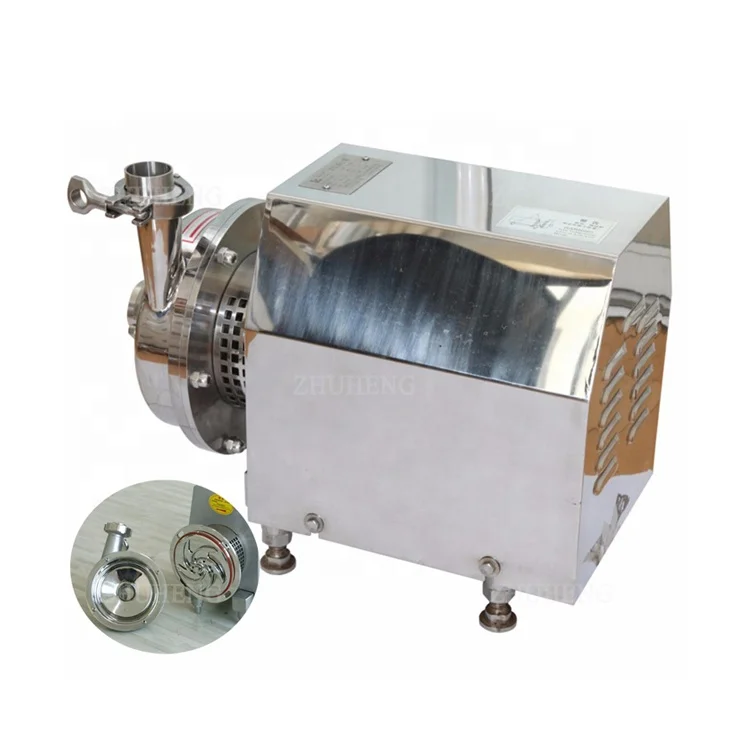

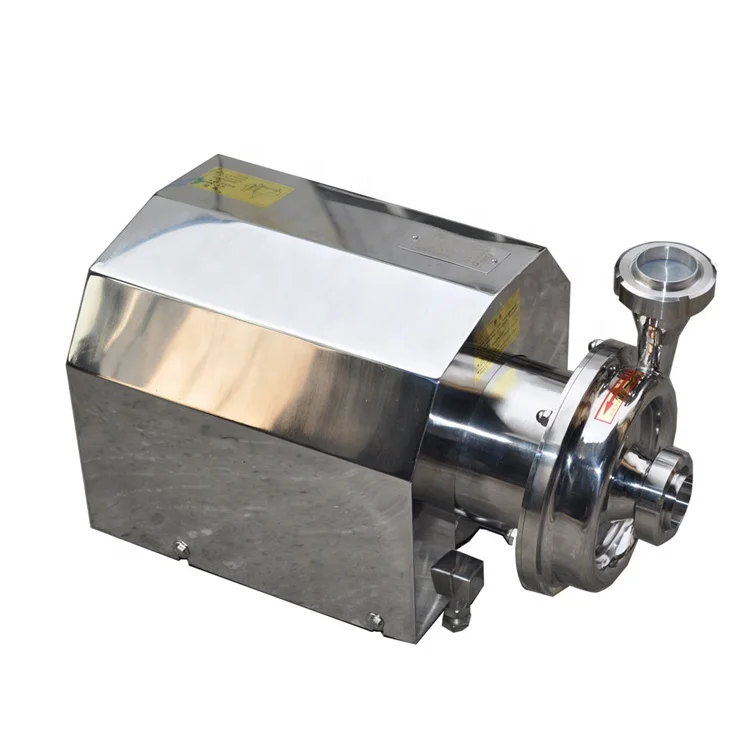

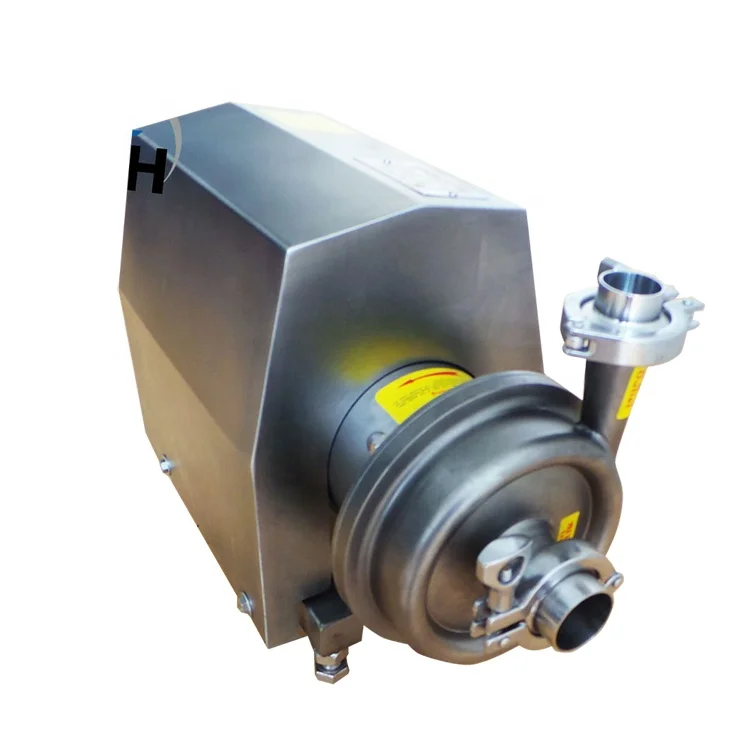

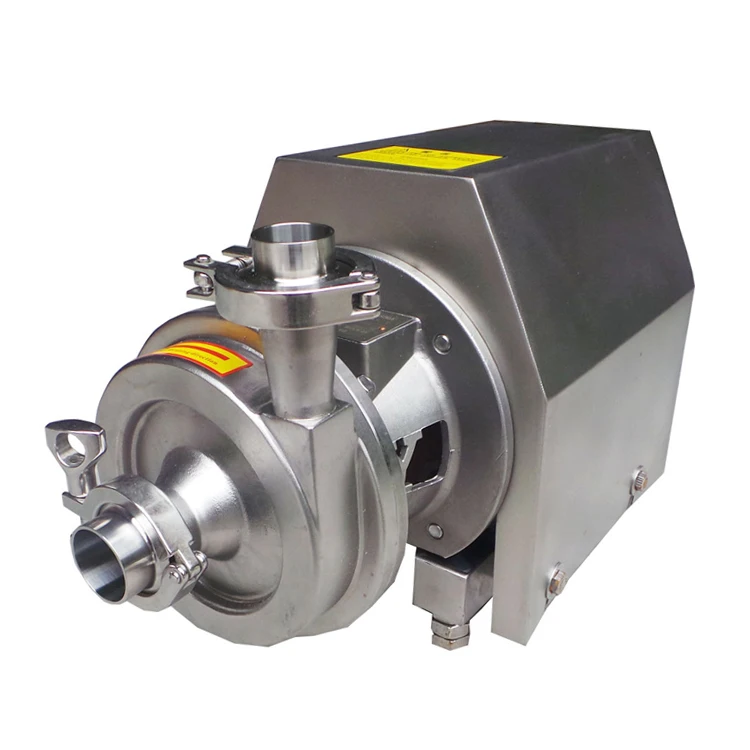

Stainless steel high pressure high volume sanitary milk centrifugal pump for wine beer
Stainless steel high pressure high volume sanitary milk centrifugal pump for wine beer
Stainless steel high pressure high volume sanitary milk centrifugal pump for wine beer
Stainless steel high pressure high volume sanitary milk centrifugal pump for wine beer
Stainless steel high pressure high volume sanitary milk centrifugal pump for wine beer
Stainless steel high pressure high volume sanitary milk centrifugal pump for wine beer
Stainless steel high pressure high volume sanitary milk centrifugal pump for wine beer

Stainless steel high pressure high volume sanitary milk centrifugal pump for wine beer

Share on (60750449316):


Price:$500.00 - $523.00

Quantity:


Product Overview

Description



Description




Electric motor drives the Impeller to rotate, so that the liquid centrifugal force, due to centrifugal force, the liquid is thrown into the side of the pump, or into the next level impeller, so that the impeller inlet pressure is reduced, and the role of pressure in the suction liquid pressure difference, pressure difference between the liquid suction pump, the centrifugal pump does not stop the rotation, the liquid flowing into the suction or discharge.




Technical Parameter
Materials
SUS304, SUS316L
Spec
3T-180T, 0.55KW-75KW
Standard
DIN, SMS, 3A, IDF, ISO.
Surface
Polished, glass painted, sand blasted
Max inlet pressure
0.5Mpa
Temperature
-10℃~+140℃(EPDM)
Water pressure
Max 0.1Mpa
Lift
0.25~0.5L/min




Detailed Image


Materials

304, 316L stainless steel material, sanitary and long life, widely used in industry, food, and other industries.



Connection

Three types of connection, clamp, thread, flange. Usually use clamp, easy to install and remove, convenient for cleaning.

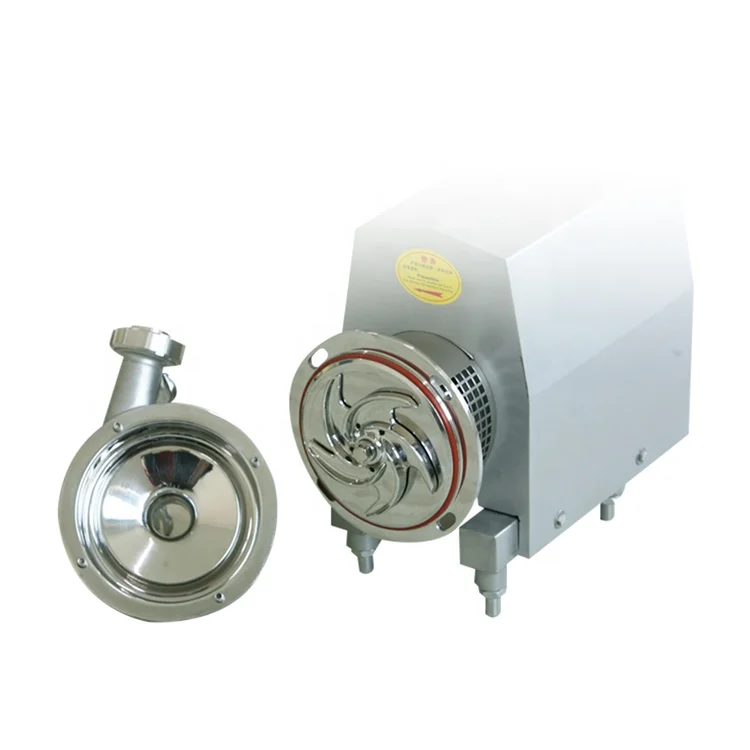

Impeller

Open type impeller, there is no dead end.



Package

Wooden box, strong and difficult to damage.



Product Show








How To Choose


Model
Flow(t/h)
Head(m)
Power(kw)
Inlet/Outlet(mm)
BAW1-12-0.55
1
12
0.55
32/25
BAW3-15-0.75
3
15
0.75
38/32
BAW3-20-1.1
3
20
1.1
38/32
BAW5-24-1.5
5
24
1.5
51/38
BAW5-32-2.2
5
32
2.2
51/38
BAW10-24-2.2
10
24
2.2
51/38
BAW10-32-3
10
32
3
51/38
BAW15-24-3
15
24
3
51/51
BAW20-24-4
20
24
4
51/51
Please contact us for more details.


Related Products


Lobe pump

Single screw pump

Double screw pump



Centrifugal pump

Self-priming pump

Sine pump



Main Products


Tank

Pump



Mixer

Valve



Pipe Fitting

Filter



About Us












FAQ


How long have you worked in this field?
Over 15 years.
Can your factory supply samples with free if we need?
Yes, we can.
Can your factory produce products according to our drawings or samples?
Yes, of course we can
What is your factory's biggest advantage?
Technology is our core competitiveness.
How about the delivery time ?
Standard products will be 10-15 days after receive your down payment or full payment.
Are you manufacturer or trading company?
We are a professional manufacturer.
