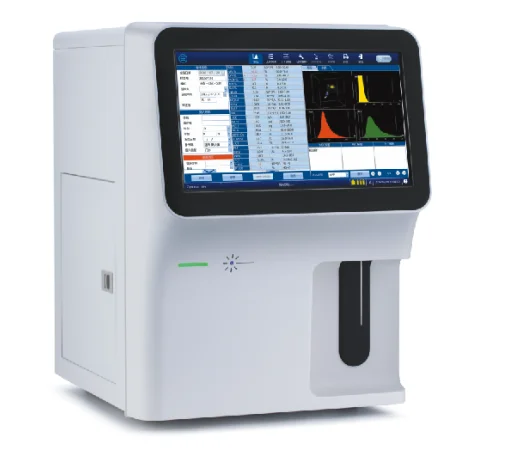

Veterinary Blood Analyzer 5 Parts Hematology Analyzer

Product  Show

TECHNICAL PARAMTERS

Principles

Impedance method for RBC and PLT counting

Cyanide free reagent for hemoglobin test

Flow Cytometry (FCM) + Tri-angle laser scatter method for

WBC 5-part differential analysis and WBC counting

Parameters

27 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%,

Lym#,Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH,

MCHC,RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, LIC%, LIC#, ALY%, ALY#

3 histograms for WBC, RBC and PLT

3 DIFF scattergrams and 1 BASO scattergram

Linearity Range

WBC (0.00-300.00)×10⁹/L

RBC (0.00-8.50)×10¹²/L

PLT (0-3000)×10⁹/L

HGB (0-250)g/L

HCT 0.0-67.0%

Repeatability

WBC≤2.0%

RBC≤1.5%

PLT≤4.0%

HGB≤1.5%

MCV≤1.0%

Display

10.4 inch TFT Touch Screen

Throughput

60 samples per hour

Multi-language

Chinese, English available

Spanish, Portuguese, Russia, French under planning

Data Storage Capacity

Up to 50,000 results including numeric and graphical

Communication & Interface

LAN port supports HL7 protocol

4 USB Ports,1LAN port

Certificate

Why choose us?

1.Key parts of our products are made of imported equipments. Some key parts are made in Germany and Japan.

2.We offer one year warranty, Provide spare parts with shipping for free within one year and just Charge the cost of accessories once after the warranty period.

3.Our company is certified company by SGS.

4.Our company is senior member of China Medical Device Industry Association.
