Description

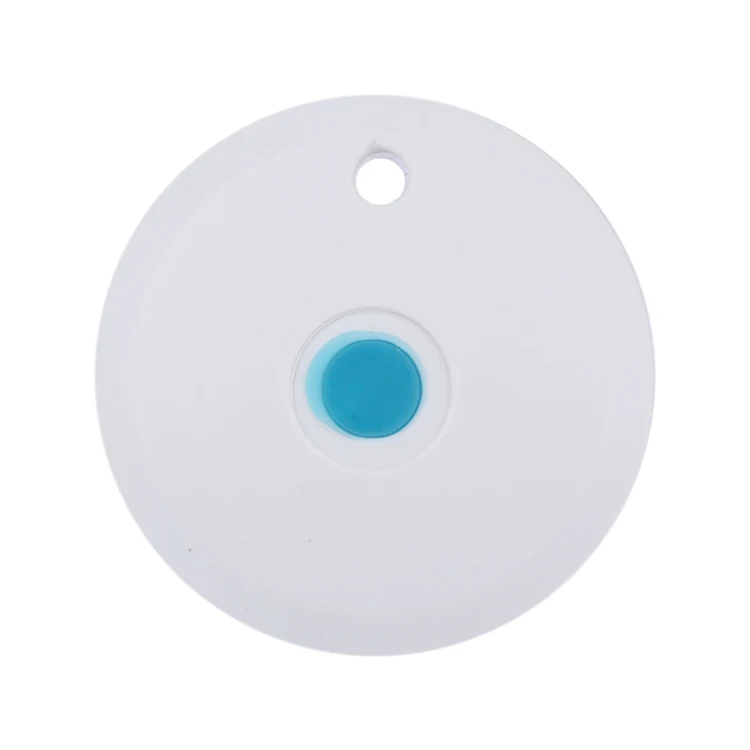

CR2032 BLE5.0 wearable proximity BLE nRF52832 beacon tag provide sdk for Android/IOS



Description:

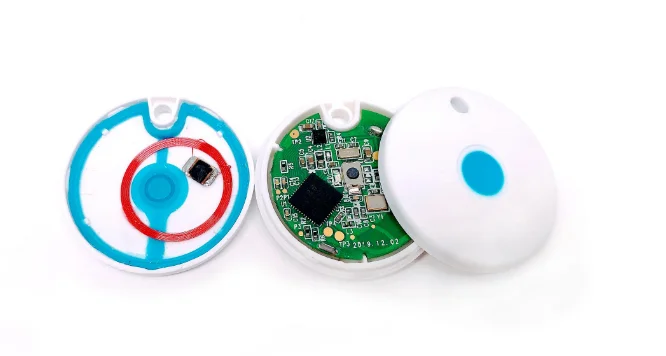

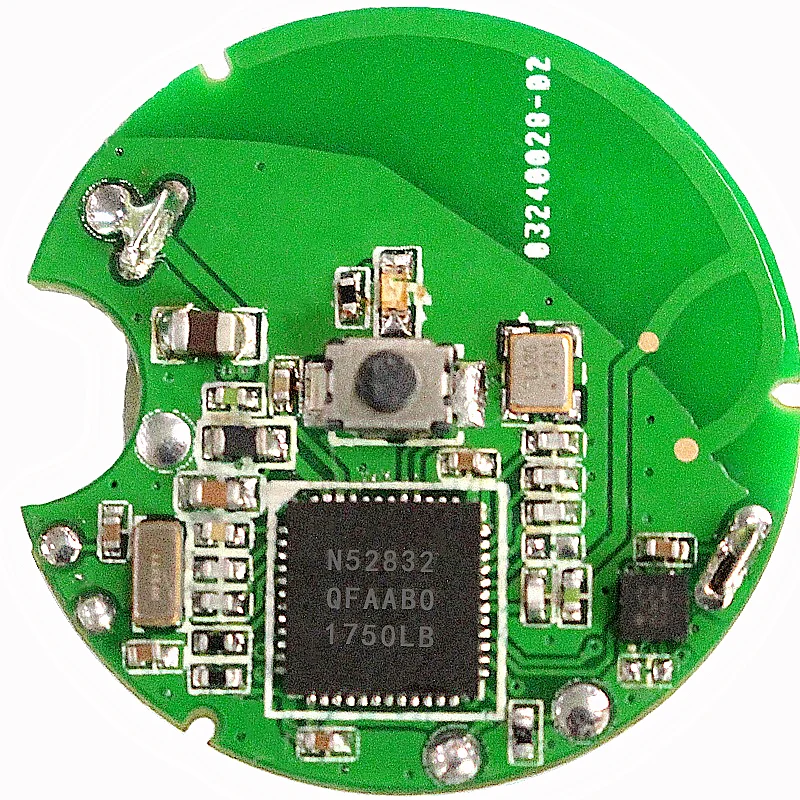

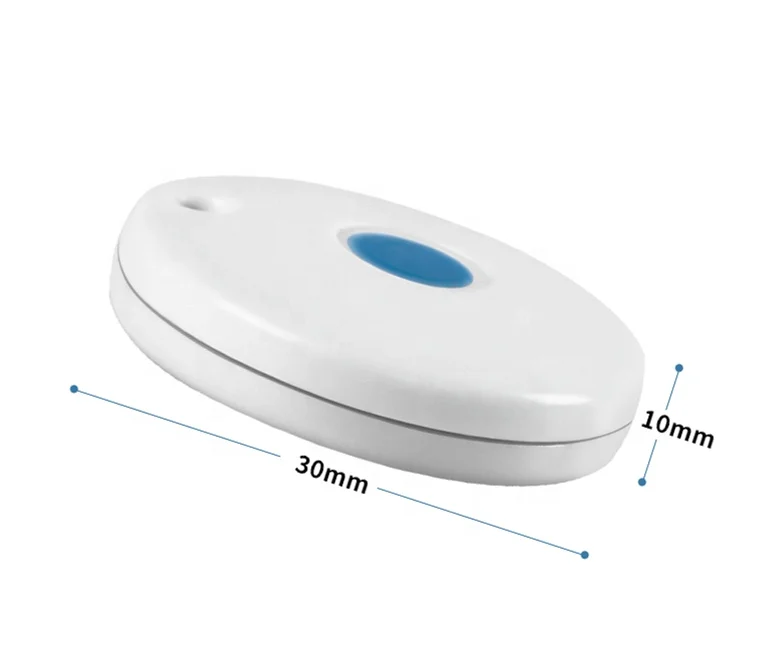

        The NRF52832 beacon module is a portable iBeacon tag with ultra low power chipset NRF52832 and leverage BLE5.0 technology.It has a portable case size, accurate hardware and robust firmware. It is designed for the commercial advertising and in-door location-based service. NRF52832 beacon broadcast 2.4GHz radio signals at regular and adjustable intervals. You can use S132 Soft Device to development your products.





Characteristics:

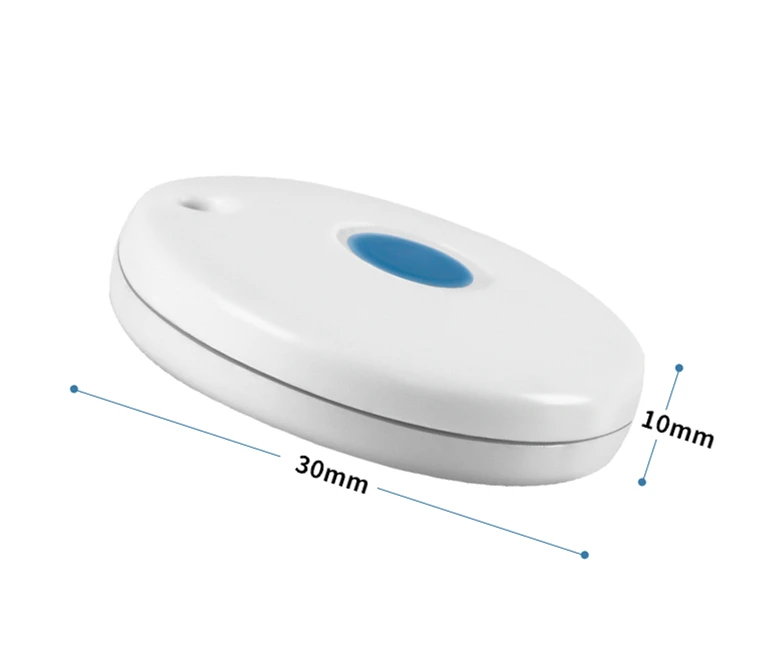

1. Easy and rapidly to customize a casing in very low cost;
2. UUID, Major, Minor and other parameters can be changed by customer;

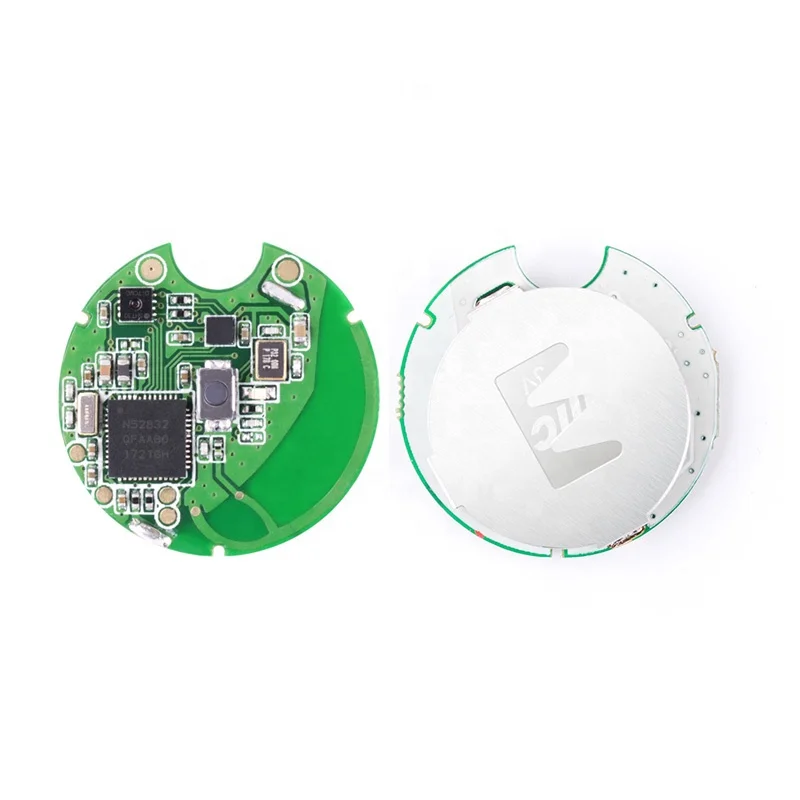

3. iBeacon with battery holder,easy test and use.

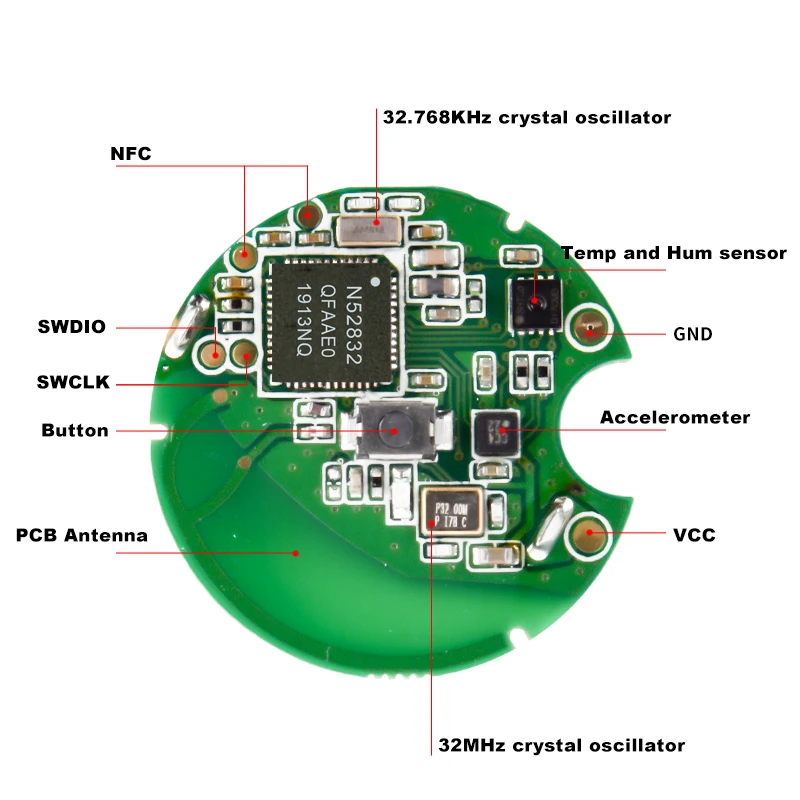

4. Based on Nordic NRF52832 & CR2032 battery ,BLE low energy module;
5. Support for IOS7.0 / Android 4.3 / or above;

6.Transmission range : 50M;
7. Low energy module for battery life one years;

ITEM	TEST REQUIREMENT	REMARKS
Voltage supply	1.7-3.6V	DC-DC
Center frequency	2402-2483.5MHz	Programmable
Flash	512/256
Output Power	-20dBm-4dBm	Programmable
Tx Current	6mA/6.5mA	Programmable
Rx Current	5.4mA	High gain mode
Standby current	2.5uA	OFF Mode
Transmit distance	>50M	0dBm
Antenna Form	PCB Antena
Interval	1S
Power	4dBm
Sensor	Option	SHT30 / LIS2DH





Feature

1.Single chip, highly flexible, 2.4 GHz multi-protocol SoC

2.32-bit ARM Cortex-M4F Processor

3.AES HW encryption

4.512kB flash + 64kB RAM

5.Supports concurrent BLE low energy/ANT protocol operation

6.On-chip NFC tag for Out-of-Band (OOB) pairing

7.Up to +4dBm output power

8.-96dBm sensitivity, BLE low energy

9.3 SPI 2 I2C 1 UART 3 PWM

10.2 data rates (2Mbps/1Mbps)

11.Real Time Counter (RTC)

12.Operating voltage: 1.7 V ~ 3.6 V



Applications



1.SmartHome sensors
2.Anti- lost
3.In-store promotions specialist
4.Building automation and sensor networks

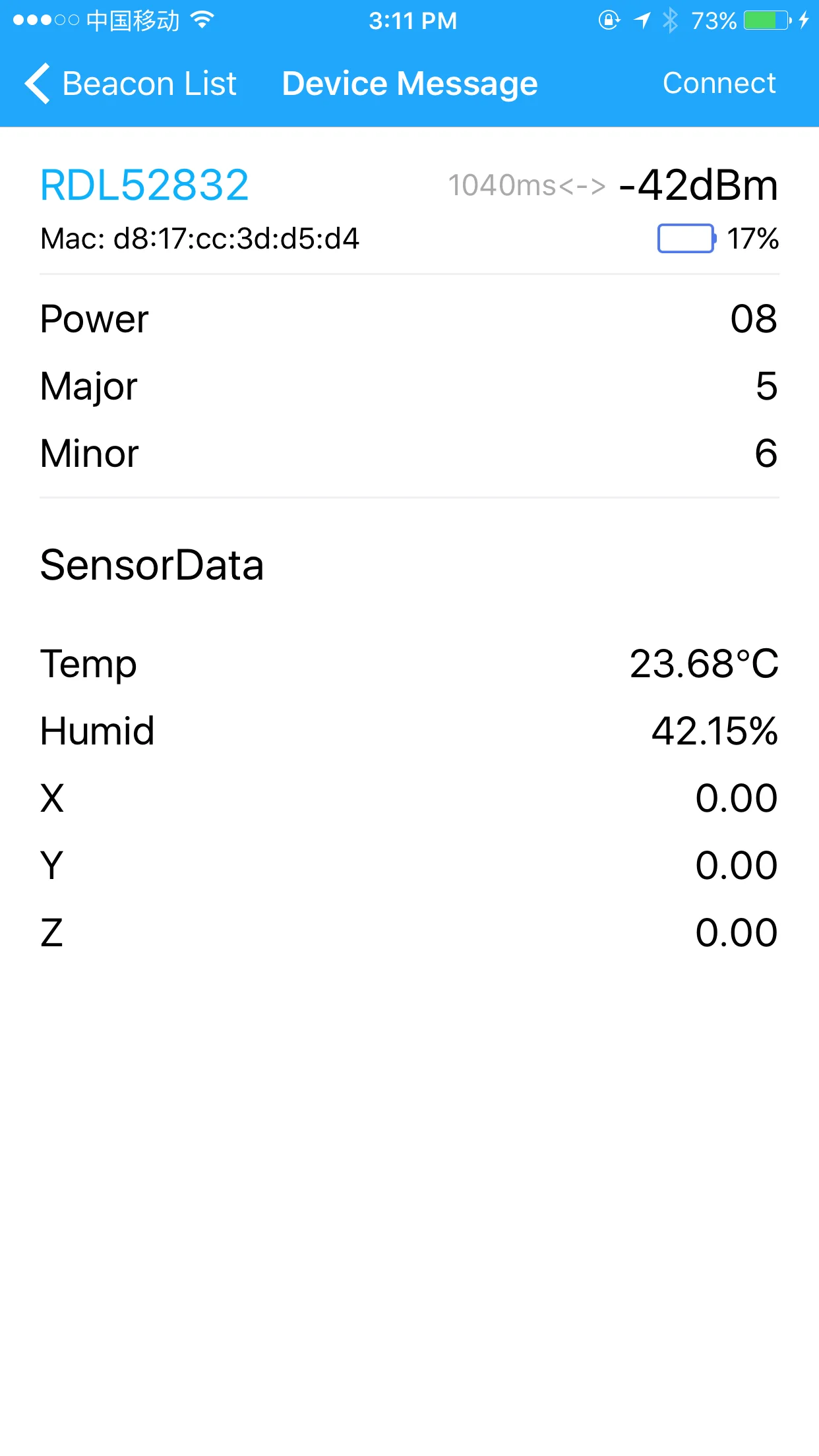

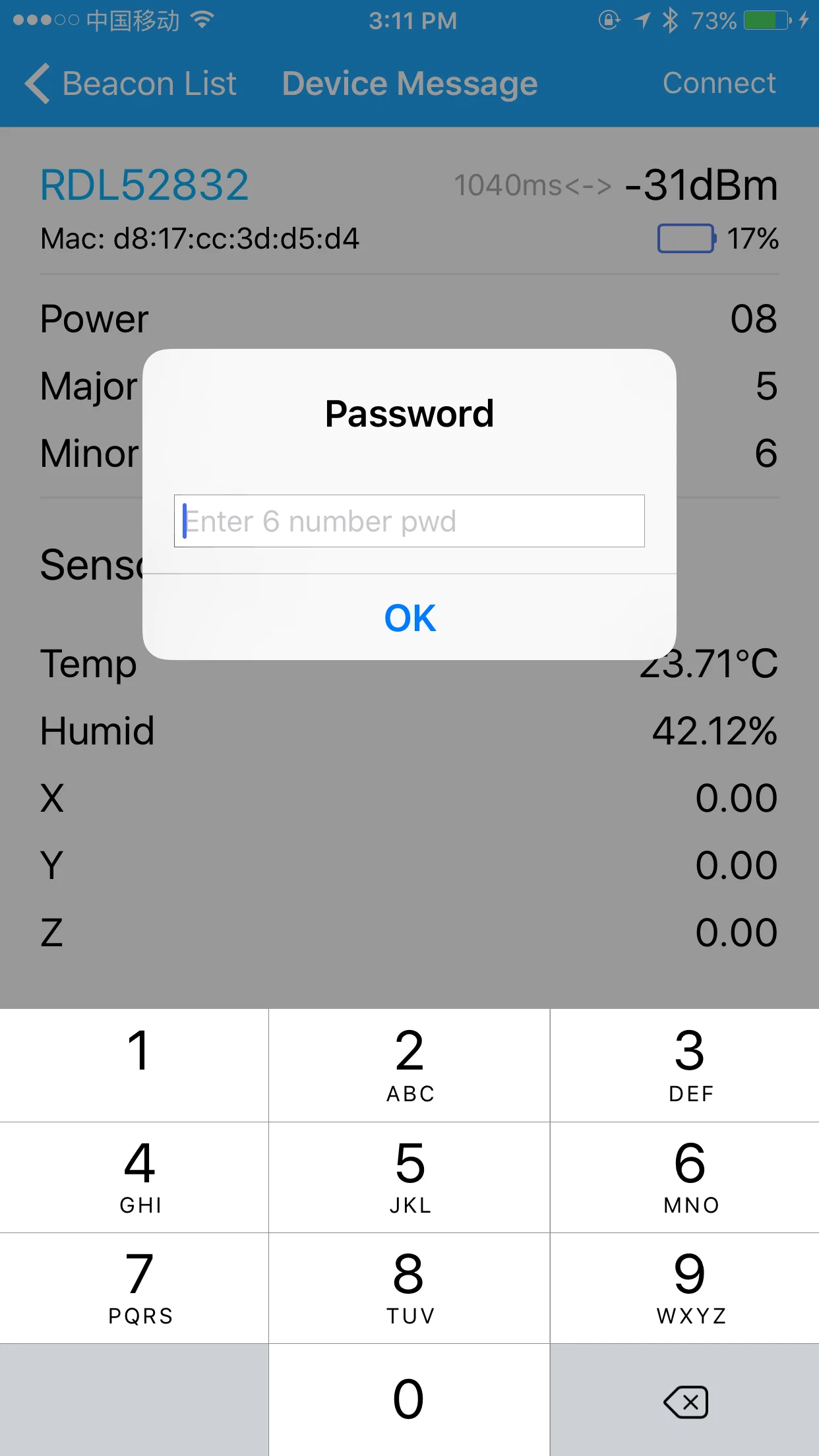

App And Interface



 You can through this app to change these paraments when this beacon is adversting.

 Press and hold for 3 seconds. The indicator flashes three times to indicate that it is broadcasting. Press and hold for 3 seconds again The indicator flashes one time to indicate that it is no broadcasting.





Our services



- Print your logo on the case;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.

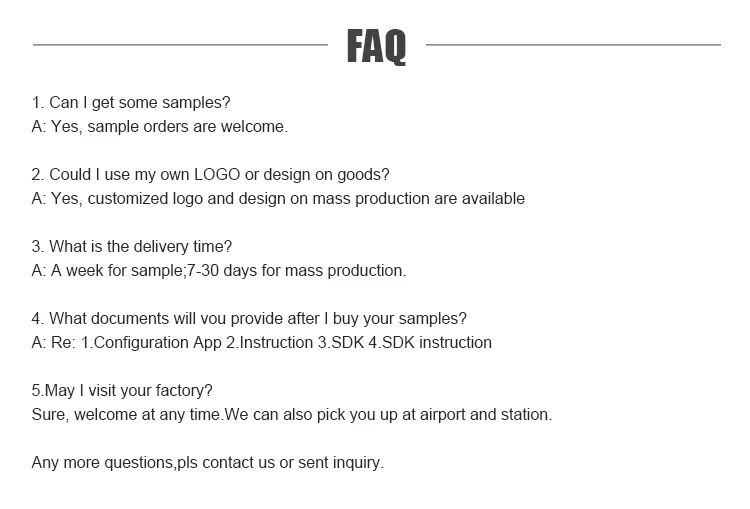

FAQ



1,Do you have configure app and instruction?

Yes,we will provide you after you buy our sample.

2,Can I change the password?

Yes,you can change what you want to set.

3,Do you have API or the source code?

Yes,we will provide you after sample was arrived.



Any other more questions,pls contact us to know more.
