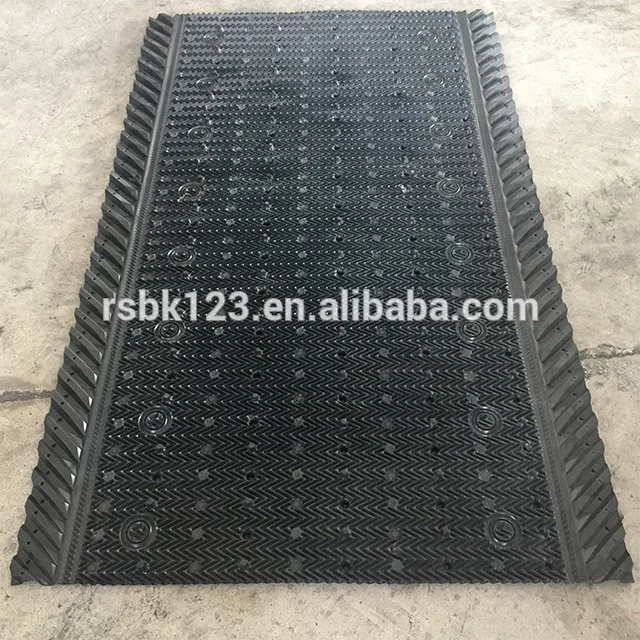

Детали башенки с водяным охлаждением, наполнитель из ПВХ для охлаждающей башены, наполнитель башены shinwa
- Category: >>>
- Supplier: Wuxi Respect Trade Co. Ltd.
Share on (60750474194):
Product Overview
Description
Products Description

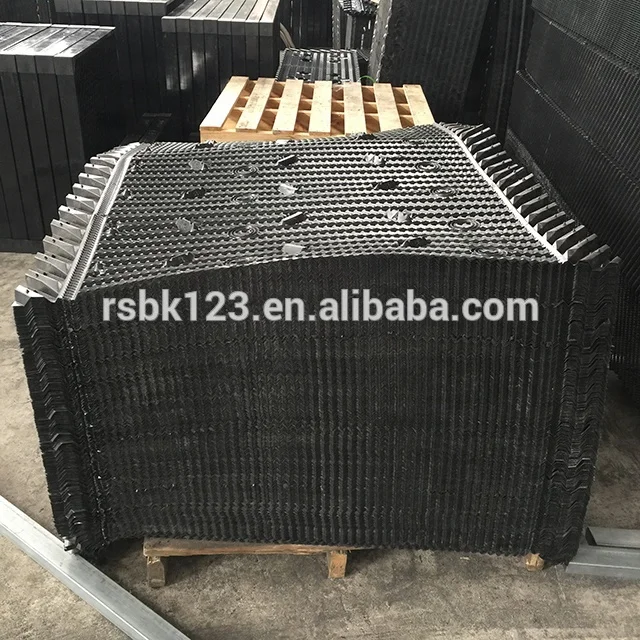

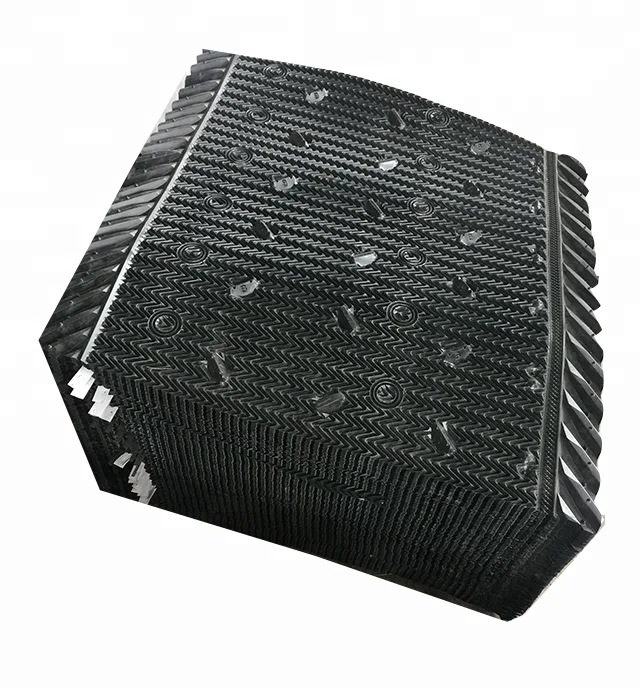

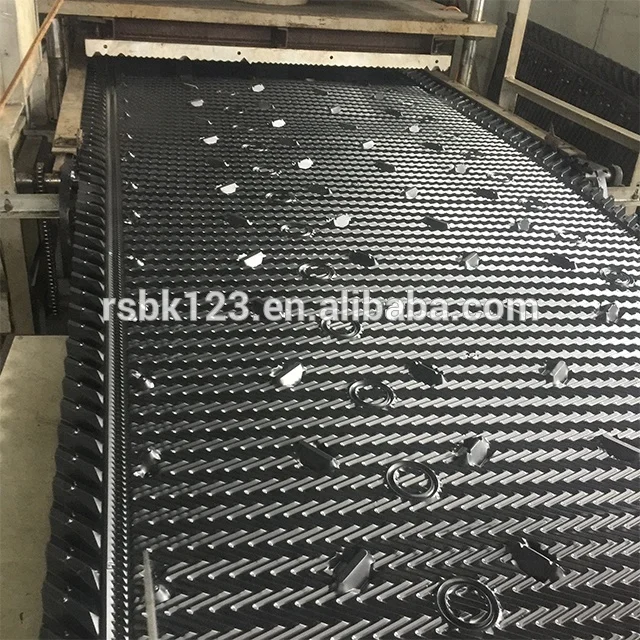

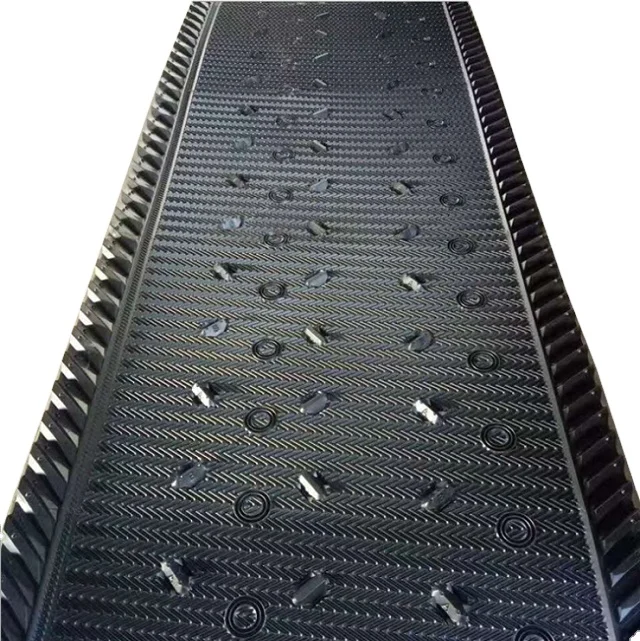

Water Cooling Tower Parts PVC Infill for Cooling Tower/ shinwa cooling tower fill
MX Fill is available in MX75 configuration and higher-performing MX625 configuration. MX is a hanging film type cooling tower fill
which spreads the water into a thin film, flowing over large vertical surfaces, promoting maximum exposure to air flow. This type
of fill provides much more water surface exposure per cubic foot than splash type fill.

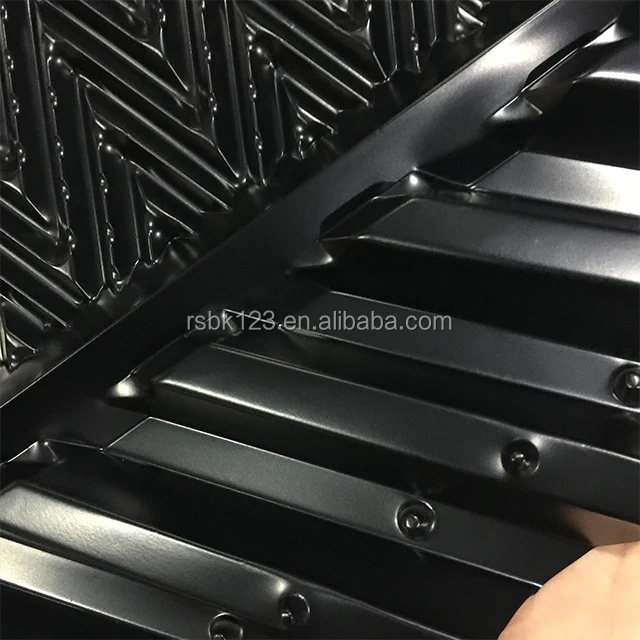

MX fill incorporates highly efficient cellular drift eliminators, integrally molded within the fill sheets. Compared with previous
designs, these eliminators reduce drift emissions from the tower by a factor of ten or more! Less drift means tower owners save
water bills and water treatment chemical expenses.
MX Fill is available in MX75 configuration and higher-performing MX625 configuration. MX is a hanging film type cooling tower fill
which spreads the water into a thin film, flowing over large vertical surfaces, promoting maximum exposure to air flow. This type
of fill provides much more water surface exposure per cubic foot than splash type fill.
MX fill incorporates highly efficient cellular drift eliminators, integrally molded within the fill sheets. Compared with previous
designs, these eliminators reduce drift emissions from the tower by a factor of ten or more! Less drift means tower owners save
water bills and water treatment chemical expenses.
Cooling Tower Fill fetures:
1. Improved water distribution
2. High thermal performance
3. Material meets Cooling Tower Institute
4.Mainly apply to Counterflow fill.

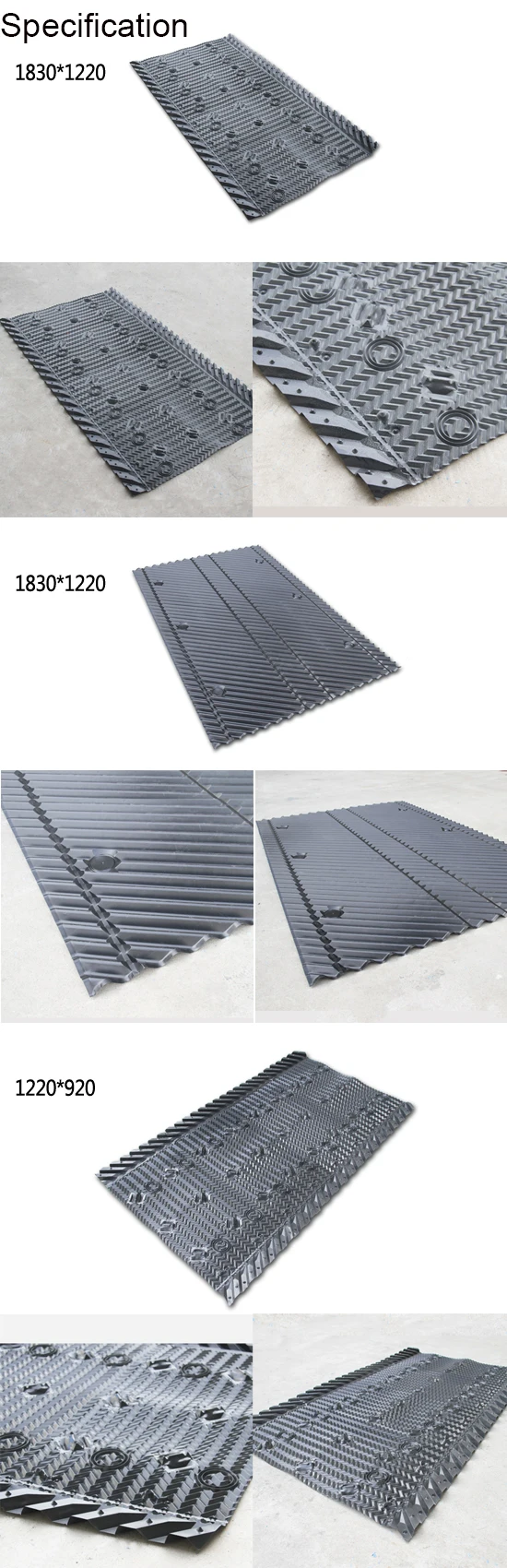

Cooling Tower Fill Specification:
Size: Any length*915 width, Any length*1000 width , Any length*1220 width
sheet space:19 mm
Thickness:0.35-0.35mm
Application temperature: 75°C~35°C
Scope of application: square cross-flow cooling towers
cooling tower fill technical data
1. Improved water distribution
2. High thermal performance
3. Material meets Cooling Tower Institute
4.Mainly apply to Counterflow fill.
Cooling Tower Fill Specification:
Size: Any length*915 width, Any length*1000 width , Any length*1220 width
sheet space:19 mm
Thickness:0.35-0.35mm
Application temperature: 75°C~35°C
Scope of application: square cross-flow cooling towers
cooling tower fill technical data
SURFACE AREA | SHEET SPACING | FLUTE ANGLE | SHEETS PER FT. | MEDIA PACK SIZES: Depth (D), Width (W), Length (L) | ||||||
Minimum | Maximum | Standard | ||||||||
48 ft2/ft3 (157.5 m2/m3) | 19 mm | 30° | 16 | D: 12 in (305 mm) W: 6 in (153 mm) L: 1 ft (305 mm) | D: 24 in (610 mm) W: 24 in (610 mm) L: 10 ft (3050 mm) | D: 12 in (305 mm) or 24 in (610 mm) W: 12 in (305 mm) or 24 in (610 mm) L: 4 ft (1220 mm), 6 ft (1829 mm), 8 ft (2439 mm) or 10 ft (3048 mm) | ||||

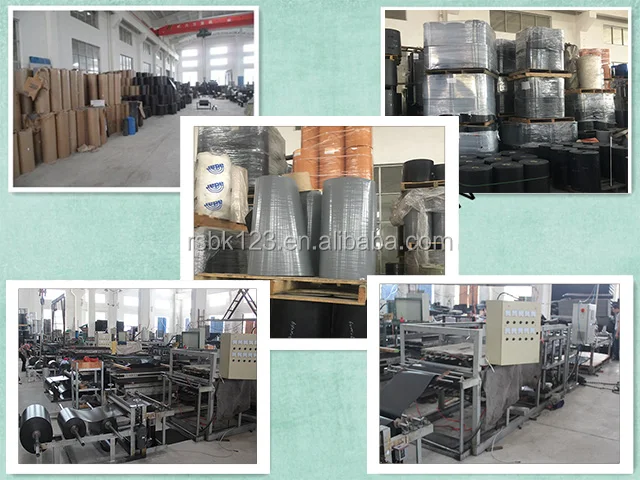

our services
Cooling Tower Fill is one of our most popular products,we have been exported many such products every year.With the competitive
price,excellent quality,quick delivery,as well as the heart and soul service,we enjoyed high reputation home and aboard.
•Low Cost
Most China prices are far lower, but hebei sinta is even lower than many,because we are the real manufacturer.
•Superior Quality
All our engineers are constantly trained to world standards of quality controls
•Strong Confidentially
Your Intellectual Property is safe with us, and we will provide you with full security
•Good Communication
All our key contacts have good communication skills
•Expert Technical Assistance
Our designers and engineers will work with you through every step
•Fast Service
Flexible production,quick delivery.
Wechat/whatsapp:8618761578489
skype:tang.yaling
Click here"send"
price,excellent quality,quick delivery,as well as the heart and soul service,we enjoyed high reputation home and aboard.
•Low Cost
Most China prices are far lower, but hebei sinta is even lower than many,because we are the real manufacturer.
•Superior Quality
All our engineers are constantly trained to world standards of quality controls
•Strong Confidentially
Your Intellectual Property is safe with us, and we will provide you with full security
•Good Communication
All our key contacts have good communication skills
•Expert Technical Assistance
Our designers and engineers will work with you through every step
•Fast Service
Flexible production,quick delivery.
Wechat/whatsapp:8618761578489
skype:tang.yaling
Click here"send"
