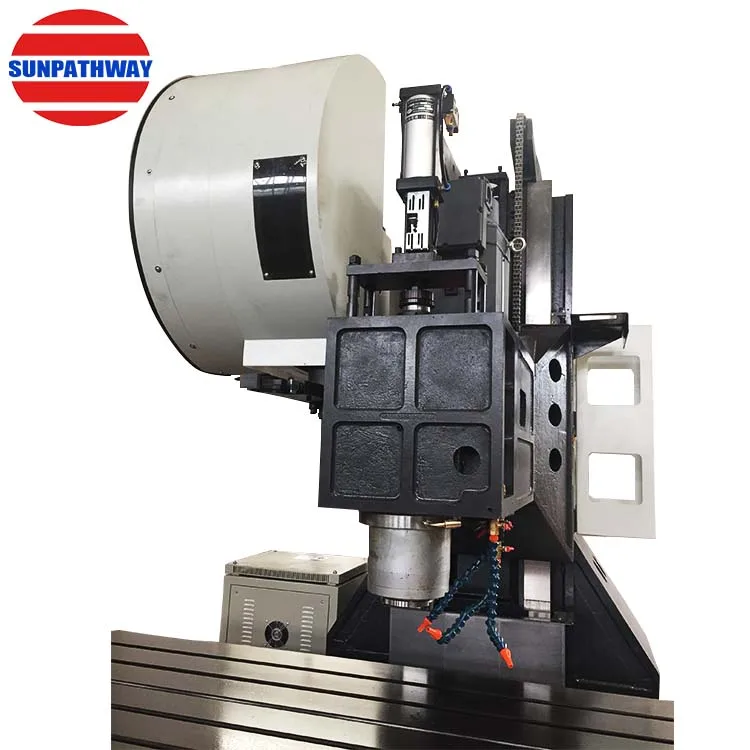

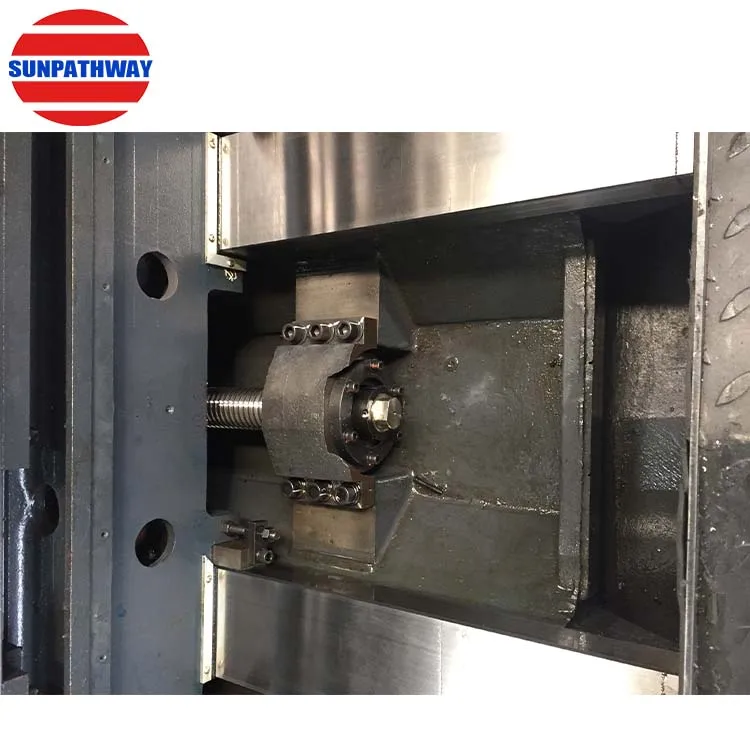

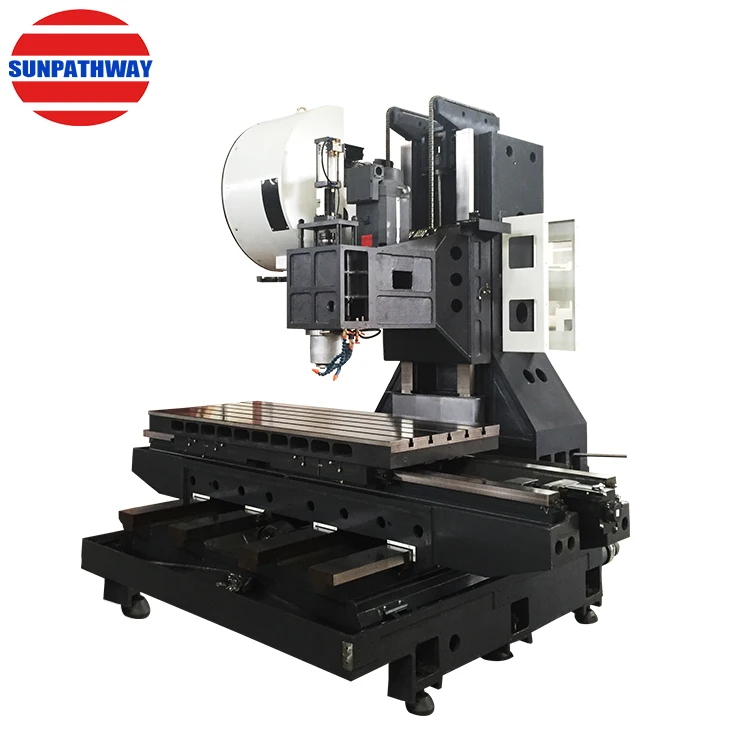

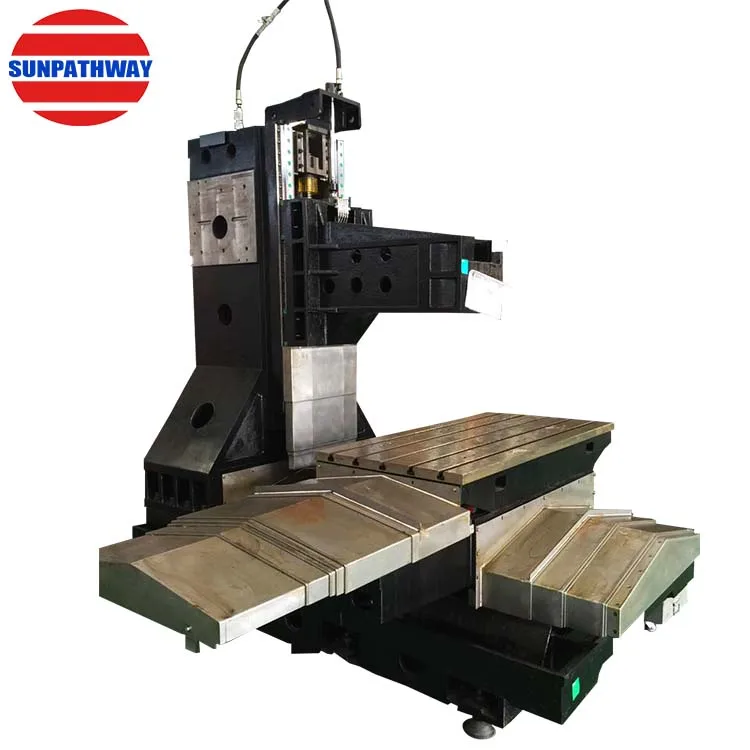

Chinese machine vertical machining center frame high regidity

Machine Type

Unit

VMC1580(hard rail)

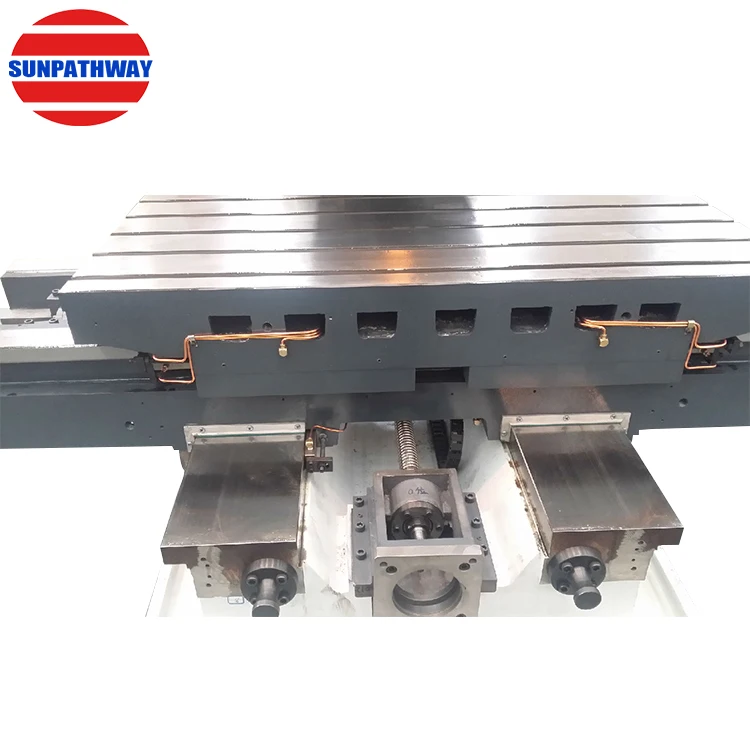

Worktable

Worktable(length×width)

mm

1700×800

Maximum load of table

kg

1500

T-slot(number of slot × slot width × pitch)

mm

5-22×150

Triaxial itinerary

Travel for X/Y/Z axes

mm

1500/800/750

Distance from spindle nose to table surface

mm

150-900

Distance from spindle center to column guide surface

mm

880

Feed system

CNC system

Mitsubishi M70/FANUC-Oi MF

Rapid shift of axes of X/Y/Z

m/min

15

Maximum cutting feed speed

m/min

7
