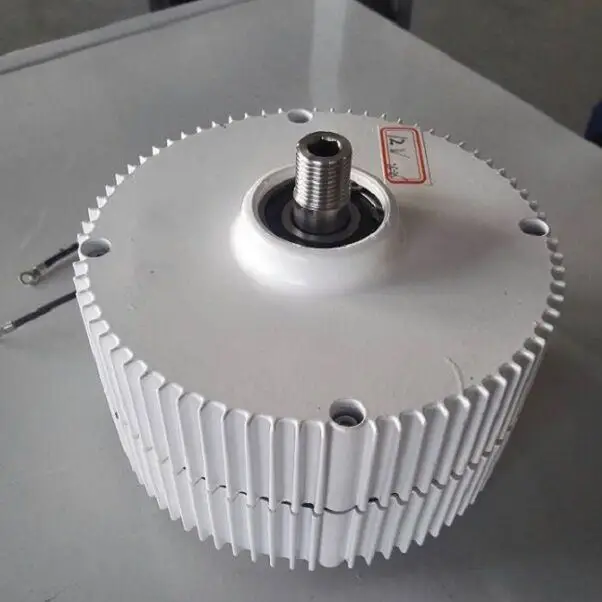

300W permanent magnet alternator
- Category: >>>
- Supplier: Shanghai Laisa New Energy Technology Co. Ltd.
Share on (60750498653):
Product Overview
Description
Product Introduction
Features:
1. Our products adopt NdFeB as magnets, to ensure the product is effective in 20 years
2. High electric conductivity coil: low capacity
3. Swirl vane design: peaceful, exquisite, light and handy
Product Parameters
| Model | PMG-300 |
| Rated power | 300W |
| Rated voltage | 12-24V |
| Rated RPM | 600r/m |
| Generator | Three phase permanent magnet AC generator |
| Insulation grade | F |
| Protection grade | IP55 |
| Life | > 20 years |
| Surface treatment | Spray treatment |
| Permanent magnetic material | NdFeB |
| Net weight | 4.3kg |
| Generator height | 70/81mm |
| Generator diameter | 150mm |
| Start Torque(N*M): | 0.28Nm |
| Working temperature | -40℃ - 80 ℃ |
