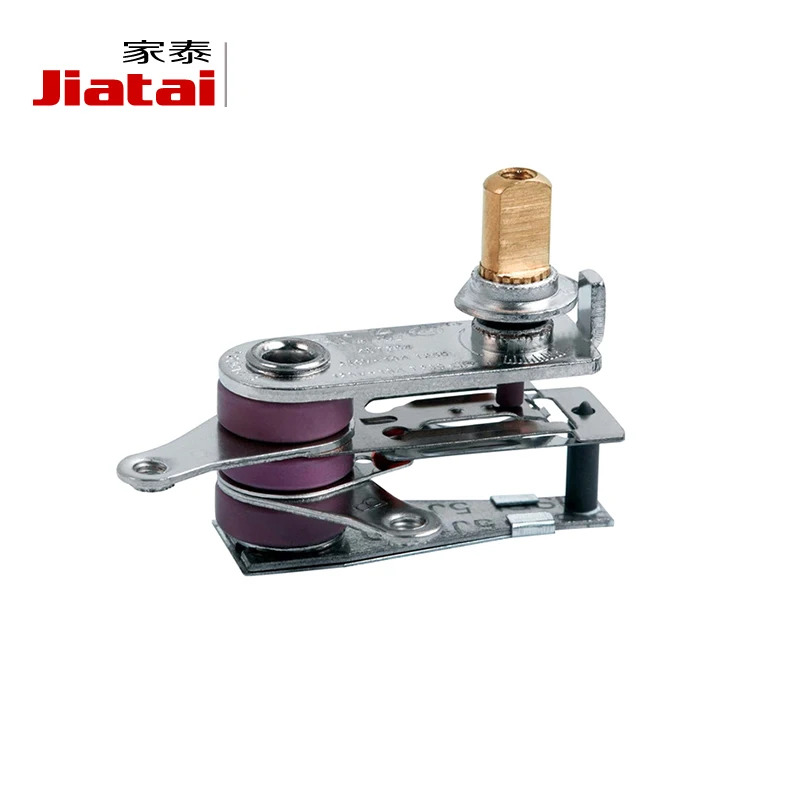

Home appliance parts JIATAI KST254-D adjustable sandwich toaster thermostat for brooder

KST SERIES Specification  KSD254-D:

Standard rating:

TUV

250V AC 10A

CQC

250V AC 10A

Operating Life:

TUV

100000cycle

CQC

100000cycle

Max.Ambient Temperature

T250 ^oC

Temperature Control Range

60~250 ^oC

Temperature Control Precision

+- 10 ^oC

ON~OFF Difference

10~30 ^oC, depending on mounting and design

Terminal Type and Connection Range

C1~C8 optional

Type of tune up shaft

D1~D9Optional,candesign depending on demand

Center Distance C

15/18/20mm

length of tune up shaft

can design depending on demand

Hi-pot

2000V AC 1 minute

Approval

CU&CUL TUV  CQC RoHS

Applicaton

1)Widely applied for temperature control of dry and steam electric iron etc .

2)Bimetal cling to the heat parts ,sensitive feel ,steady control and low differential

3)Firm configuration ,abundant types and flexible fixing position

4)Contacts act quickly and little electromagnetism infection
