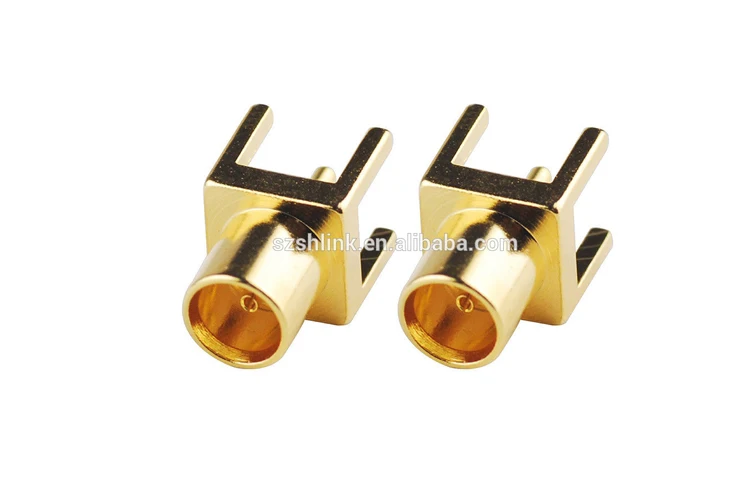

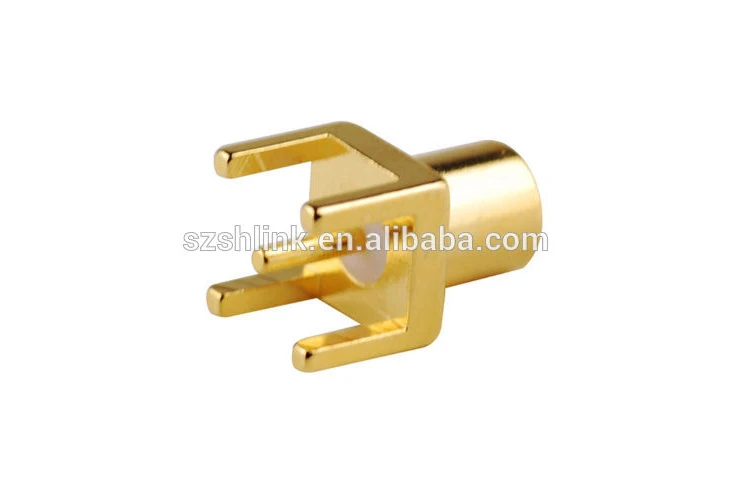

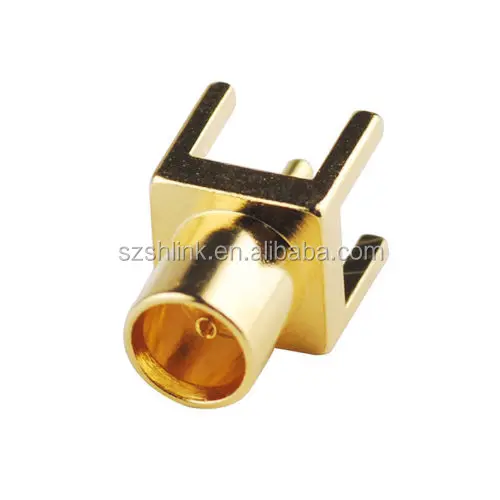

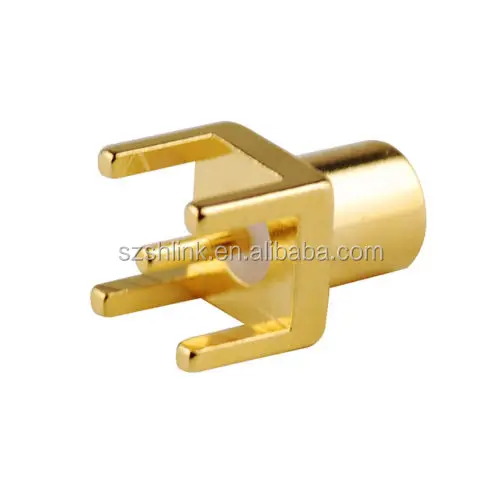

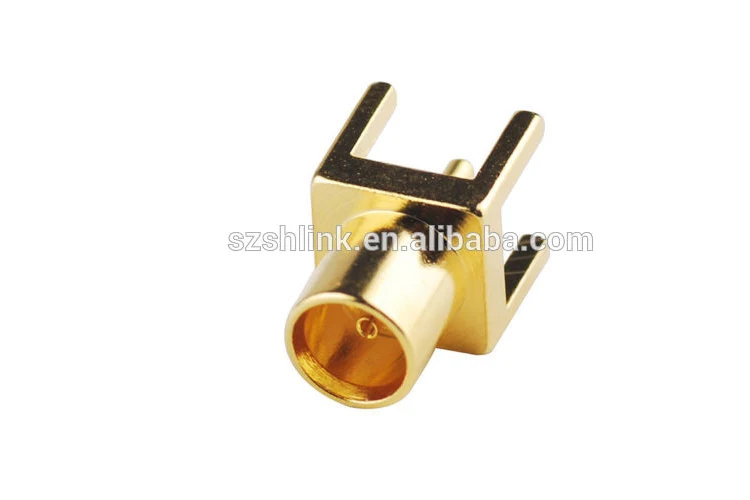

MCX Female PCB Board Straight RF Connector Adapter

Product Overview

Description

MAJOR TECHNICAL CHARACTERISTICS
Temperature range	-55—+155℃(PE Cable -40—+85℃)
Impedance	50Ω,75Ω
Frequency range	DC-6GHz
Working voltage	250V(50Ω) 170V(75Ω) at sea level
Withstanding voltage	250V(50Ω) 170V(75Ω) at sea level
Contact resistance
Center contact	≤5mΩ
Outer contact	≤2.5mΩ
Insulation resistance	≥1000MΩ
Center conductor retention force	≥0.28N
Insertion loss	0.18dB/1GHz
Engagement force	≤20N
Disengagement force	≥8N
Voltage Standing Wave Ratio
Straight	≤1.20/1GHz
Right angle	≤1.45/1GHz
Durability(mating)	≥500(Cycles)
Material & Plating
body	brass	gold plated
pin contact	tin bronze	gold plated
socket contact	beryllium-copper	gold plated
resilient contact	beryllium-copper	gold plated
insulator	PTFE
crimp ferrule	copper alloy	nickel or gold plated
O-ring sealing	6146 silicone rubber
Applicable standard	CECC 22220
	IEC 61169-36
