Product Description


Model
DMB-8916 Plus
Video compression
H.265/HEVC, H.264/AVC High/Main/Baseline Profile Level 4.0
Video input
16*HDMI in/loopout


Resolution
Main stream:
1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, auto
Sub-stream:
1280x720, 800X450, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x300, 352x288, 320x240, 320x180, auto
Bit-rate
16kbps~12Mbps, CBR/VBR
Video pre-processing
Noise reduction, Sharpen, Filtering
Audio Encoding
Audio compression
AAC, MP3
Sampling rate
Adaptive, selectable of re-sample
Sampling accuracy
 24-bit
Re-sample
32KHz,44.1KHz
Audio bit-rate
48Kbps, 64Kbps, 96Kbps, 128Kbps, 160Kbps, 192Kbps, 256Kbps, 384Kbps
IP Streaming output
Transport protocol
TS over IP output, RTSP/HTTP/HLS/UDP or RTMP protocol
Each HDMI in/loopout to IP
4*TS over IP stream out(HTTP/HLS/RTSP/UDP or RTMP protocol) 2 Channels with higher resolution(up to 1080P) for large screen application,  2 channels with lower resolution(up to 720P) for small screen application)
Connector
RJ45, 1000M
Physical And Power
Voltage
AC220V±10%, 50/60 Hz
Consumption
80 W
Operating temperature
-20~80°C
Dimensions
484mm(W)*365mm(D)*148mm(H)
Weight
8Kg/pc

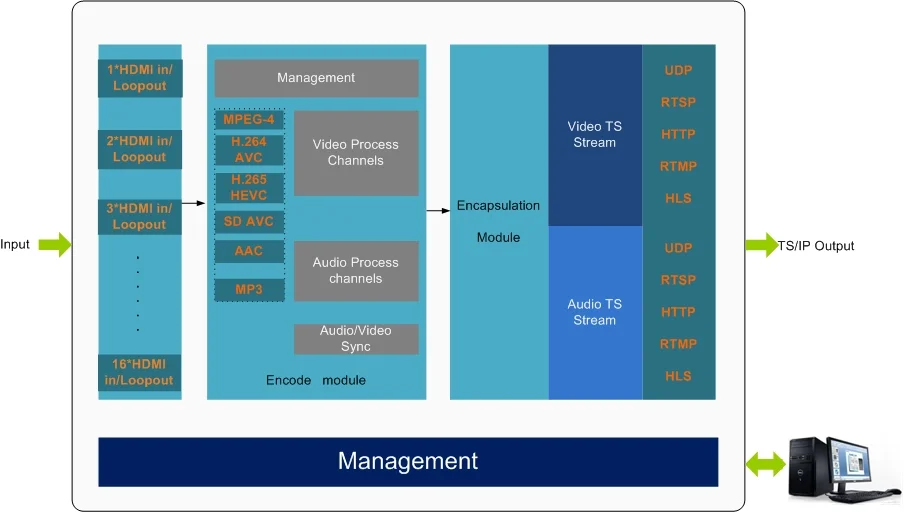

DMB-8916 Plus H.265 HD 16-Channel IPTV Encoder features high performance, low latency and ultra-low bit rate for IPTV/OTT systems, realize Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of h.265/MPEG-4 AVC, which realizes its resolution to be up to full HD 1080P high quality image. Moreover, with powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate compare with traditional broadcast Encoder.

DMB-8916 Plus H.265 HD 16-Channel IPTV Encoder is equipped with 16 plug-in module card, every module support 1*HDMI in/Loopout streaming at the same time, and output up to 4 different streams with different resolution or protocols, which makes it suitable for multi-screen(PC, TV, Mobile) service. Also it is highly compatible with IPTV server like Wowza server, FMS server etc. Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.

DMB-8916 Plus h.265 HD 16-Channel IPTV Encoder owns 3U structure, perfect designing, adding fully supporting VLC decoding functions, can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.


* Video Input: 16-Channels HDMI in/loopout
* Support up to 1080P HD video input
* Support h.265 Main/High/Baseline Profile and MP3 & AAC audio compression
* Bitrate mode: CBR/VBR16Kbit/s~12Mbit/s
* Support streaming resolution settings
* GOP frame rate settings supported
* Capable of image parameter settings
* Insertable of logo and Scroll Caption; Adjustable of audio gain
* Video Output: Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT,
Mobile/ web, Set Top Box applications
* Support up to 4* TS over IP stream out
* Switchable of audio output mode: Left, right and Stereo
* Configurable of Multi-rate, Multi-resolution, Multi-protocol
* Providing HLS/RTSP/HTTP/UDP or RTMP protocol
* Support HDCP protocol, ONVIF Network Video Protocol
* Support multiple equipments display at the same time on a computer
* System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
* Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode
* Web-based management
* Full-duplex mode 1000M

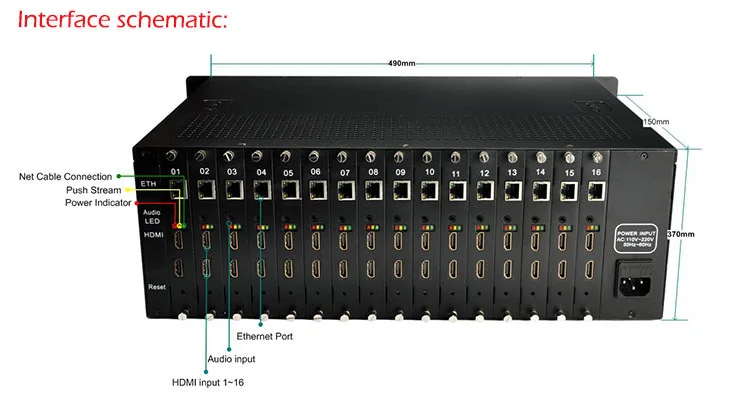

Detailed Image

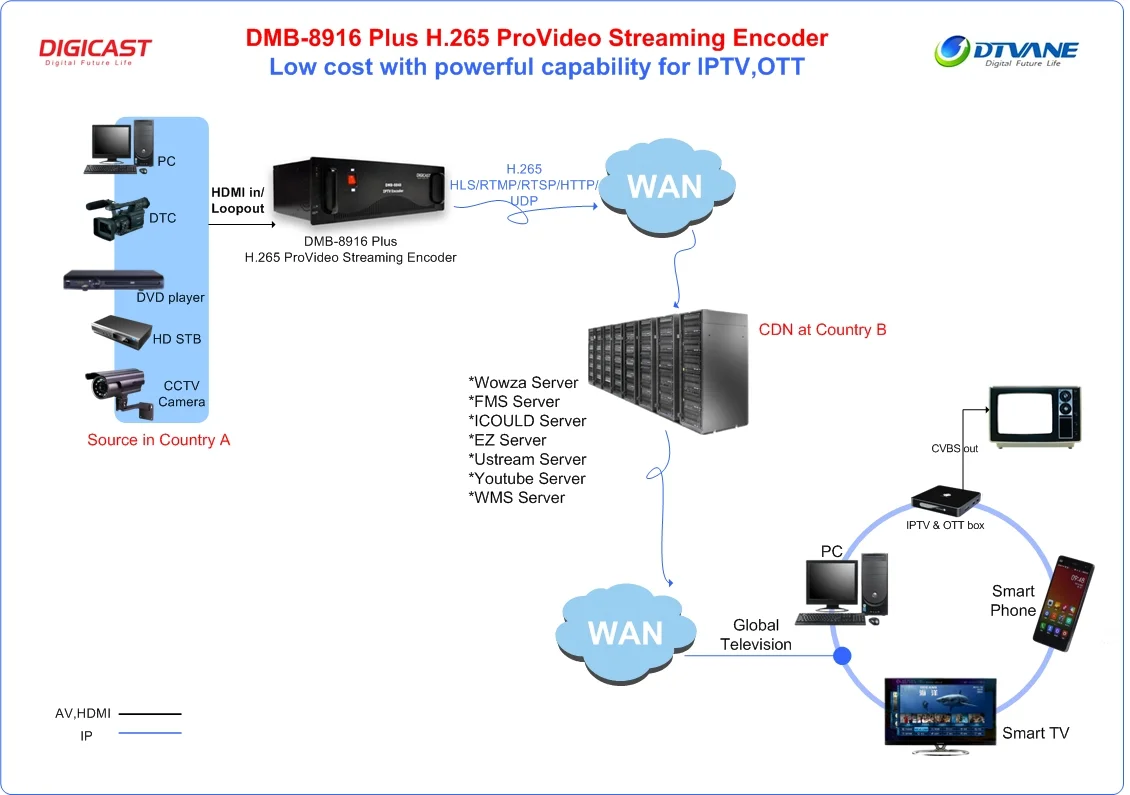

Applications






Support Protocols

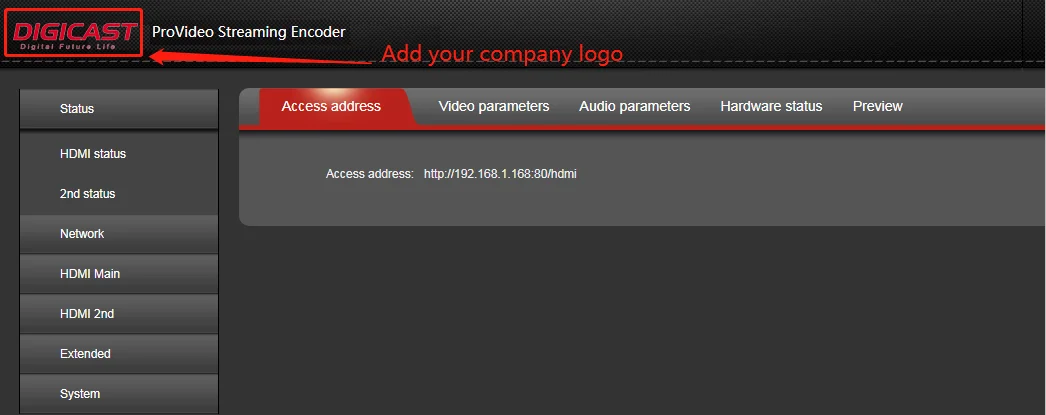

Web management




HDMI Input Settings

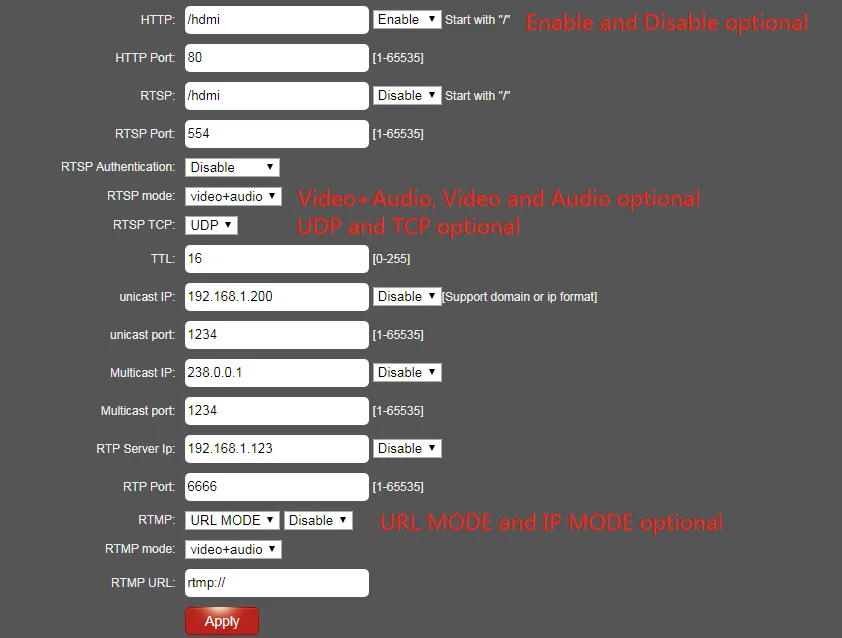

Protocols Settings

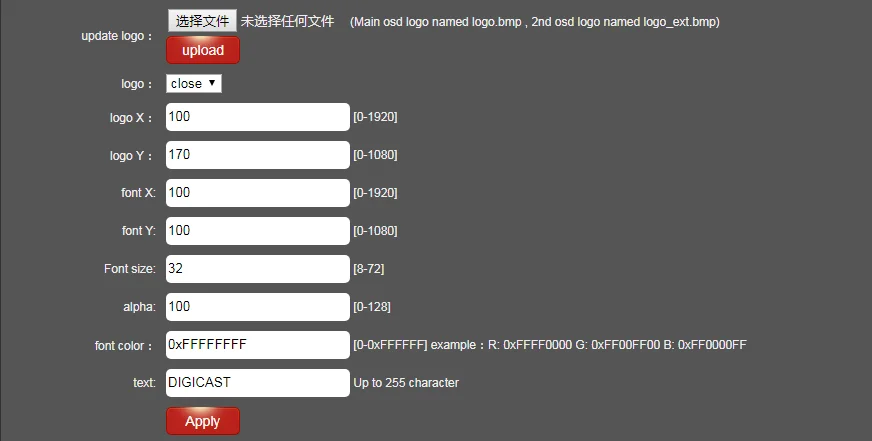

OSD Settings




This part can be edited the characters that displayed on the page, currently, support 32 letters or numbers. This part, user can edited the size and location of the characters.
Note: with the resolution changing, the characters size is also changing. Currently, transparency not open for users.
Logo X: 0-1920 is optional, display the left and right position of the logo
Logo Y: 0-1080 is optional, display the up and down position of the logo
Font X: 0-1920 is optional, display the left and right position of the font
Font Y: 0-1080 is optional, display the up and down position of the font
Font size: 8-72 optional
Alpha: 0-128 optional

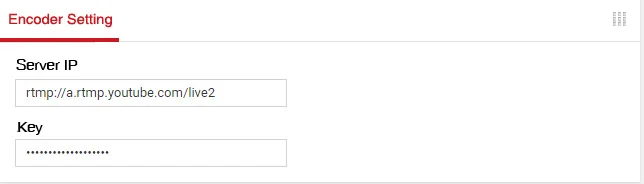

Broadcast Settings


YouTube




Find Server IP and Key on YouTube, then fill-in it on web management.
rtmp://a.rtmp.youtube.com/live2/Key
