commercial laundry machine fully automatic ironing machine for fabric

1. Large door opening for easy loading and unloading.

2. High-density flat hole technology of drum,perforated V-ribs for better cleaning result.

3. Anti-corrosion,tub and all metal part connect with water are AISI 304 stainless steel ensure long lifespan.

4. Heavy stainless steel material structure design,absorb vibration rate is up to 97%, freestanding.

5. Five soap box, unique tilt stainless steel door for not leakage.

6. High spin testing under large capacity of unbalanced loading ensure long lifespan of structure.

7. Narrow water tank design,improve water utilization,reduce detergent consumption,engergy save.

8. 300 G-fator,standard double water inlet,save water and time.

9. Unbalance design ensure balance of linen,efficient extraction.

10. Comprehensive security control system,water pressure lever diagnostic, more reliable.

11. High quality seal from German supplier, guaranty stable performance.

12. Fully programmable micriprocessor,USB port avaliable

Optional: * Detergent connect system * Second drain system

                    * Cambered loading part * Reuse water inlet

Main Parameters

Model No	Unit	LMX-65S	LMX-110S	LMX-155S	LMX-220S	LMX-285S
Heating		Steam/Electric	Steam/Electric	Steam	Steam	Steam
Capacity	kg	30	50	70	100	130
Drum Diameter	mm	902	1069	1090	1240	1300
Drum Deepth	mm	500	610	760	840	960
Inverter Power	kw	5.5	7.5	11	11	15
Motor Power		4	5.5	7.5	7.5	11
Multilingual Microprocessor		30 Programmable programs + Maunal
Washing Speed	rpm	37	36	35	32	32
Spin Speed		750	720	722	650	640
G-factor	G-factor	300	300	300	300	300
Stainless Steel AISI 304		Standard	Standard	Standard	Standard	Standard
Cage & Cage House AISI304		Standard	Standard	Standard	Standard	Standard
Electrical	V/Ph/Hz	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Steam Pressure	bar	4~6	4~6	4~6	4~6	4~6
Cold Water Inlet	inch	11/2	11/2	11/2	11/2	11/2
Hot Water Inlet	inch	11/2	11/2	11/2	11/2	11/2
Steam Inlet	inch	1	1	1	1	1
Recycling Drain-optional	inch	/	11/2	/	11/2	/
Drain	mm	140	140	140	140	140
Compression Air Inlet	mm	∮8	∮8	∮8	∮8	∮8
Weight	kg	1600	2860	2800	3200	4200
Width	mm	1460	1700	1650	1810	1870
Depth	mm	1440	1730	1960	2010	2130
Height	mm	1870	2080	2108	2340	2340

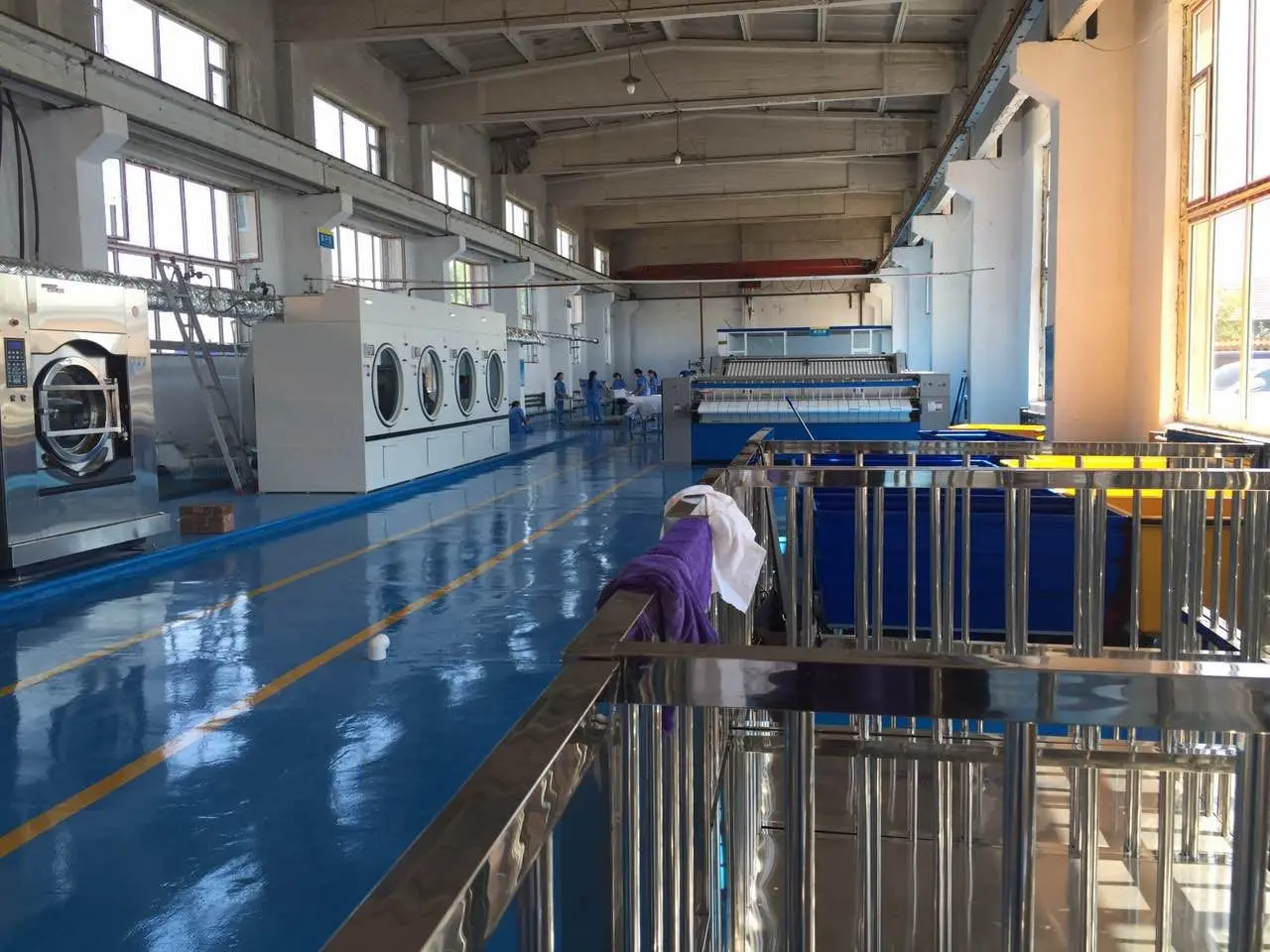

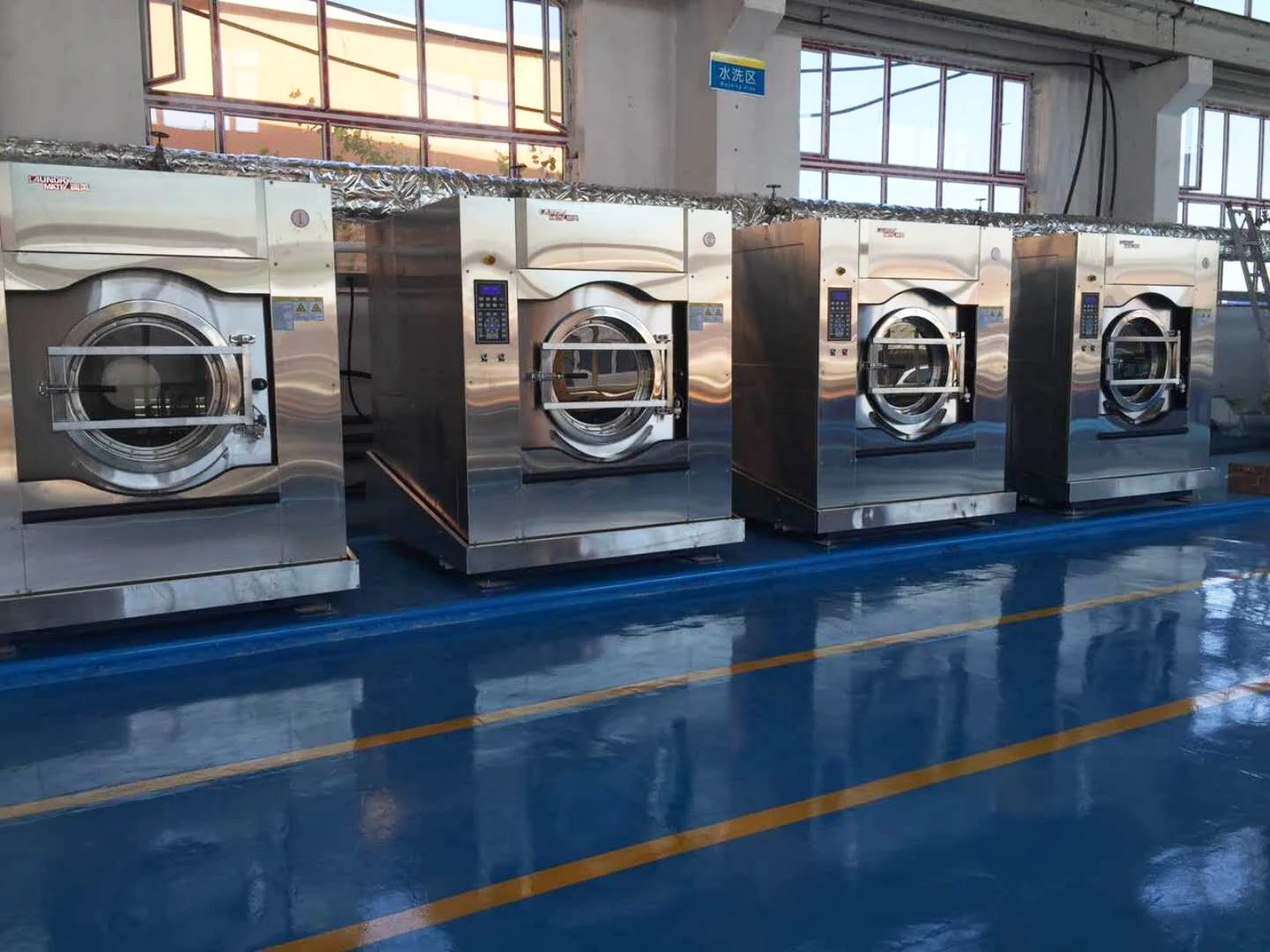

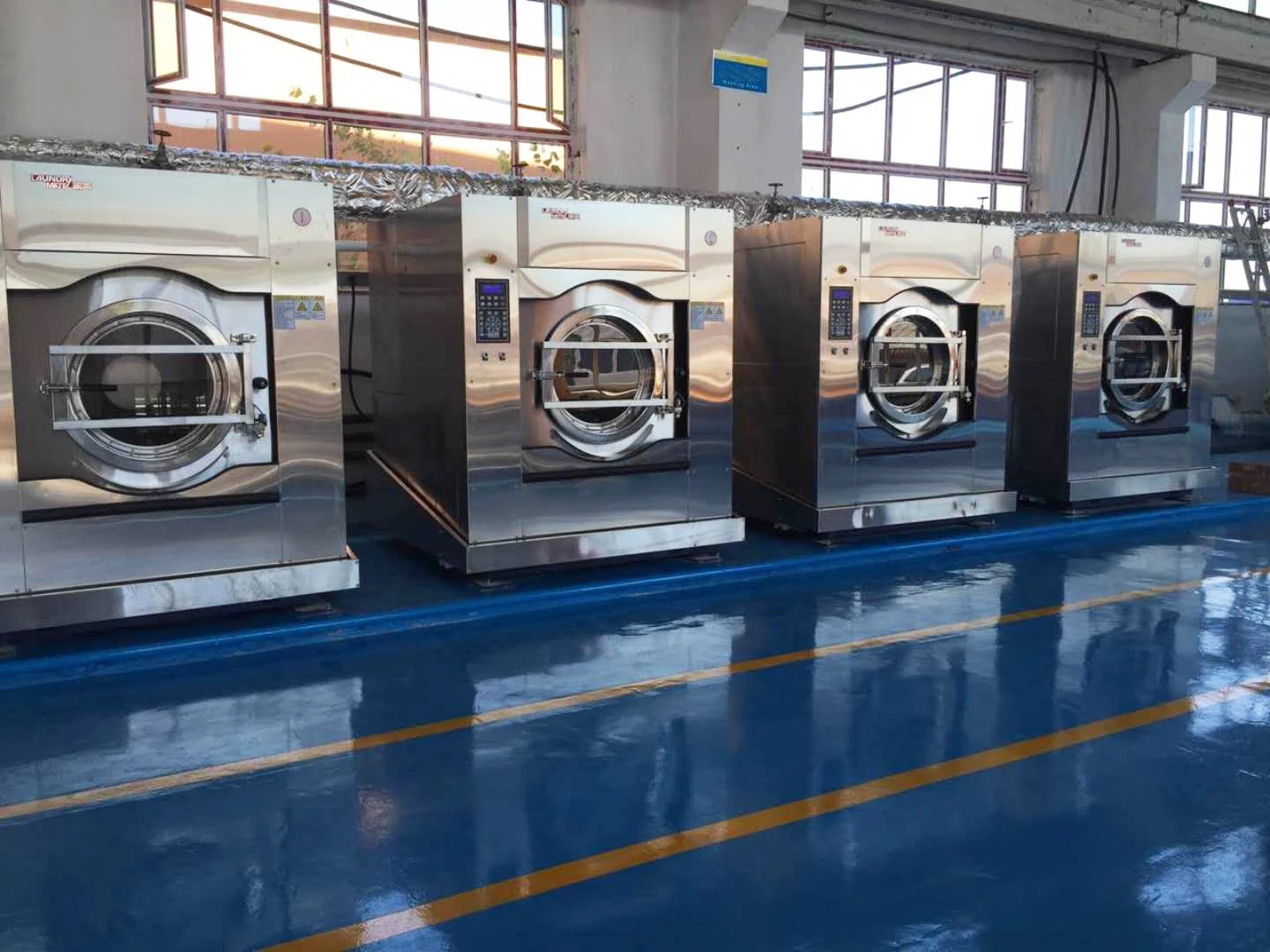

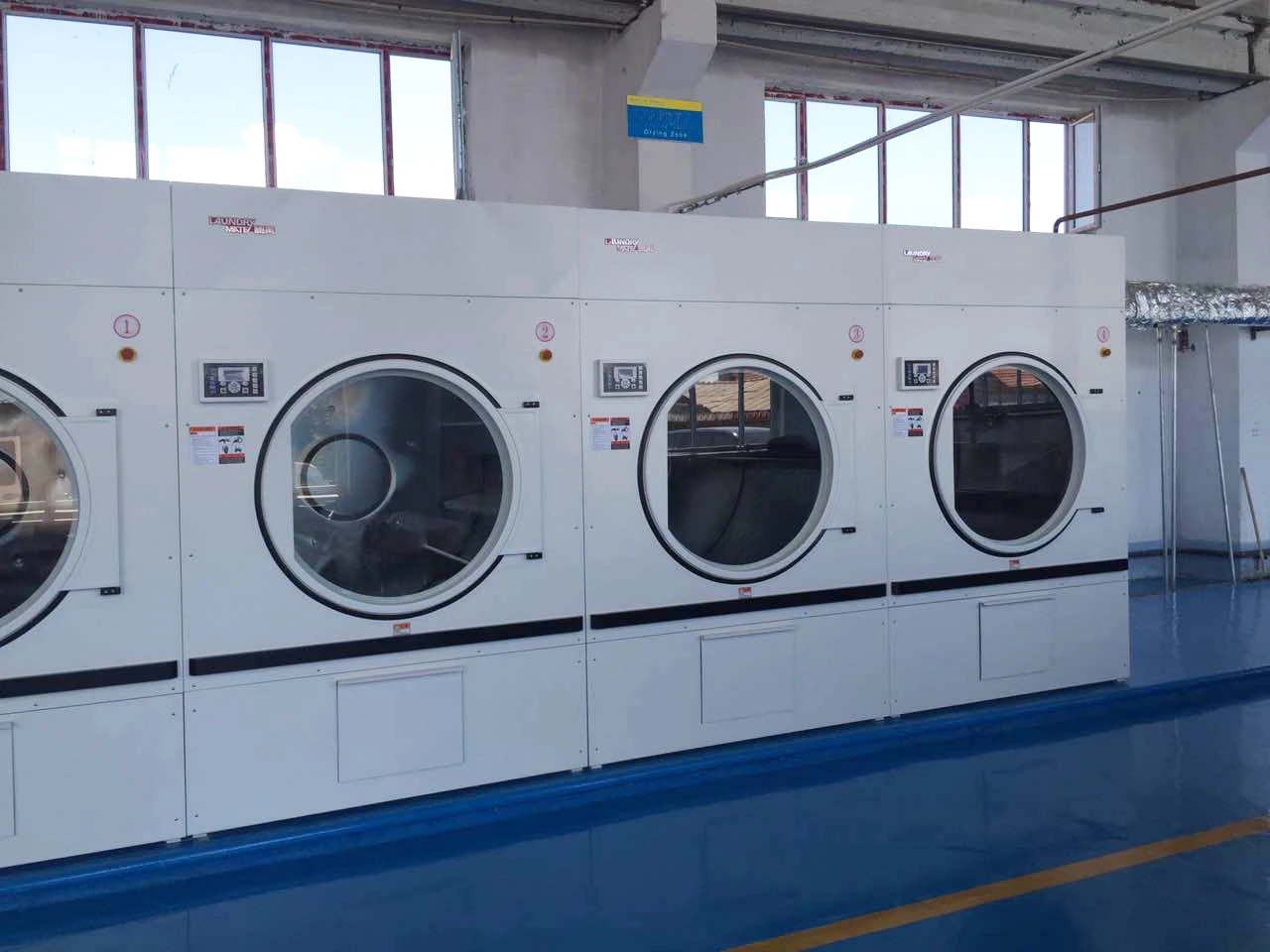

Show Case

The most highly cost effective laundry equipment on the global market, more and more hotel and comercial laundry choose LaundryMate.

Shanghai InterContinental Hotel

Packing

Wooden case or Carton packing for your optional.
