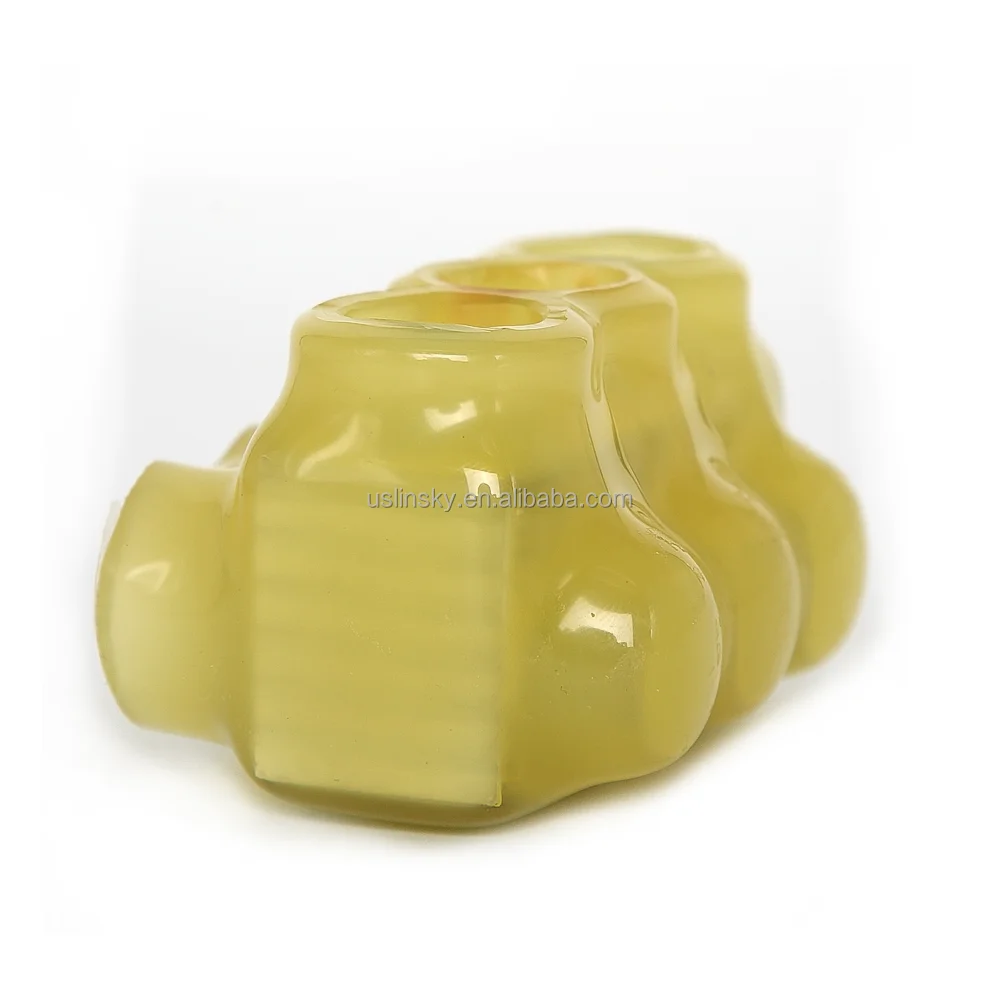

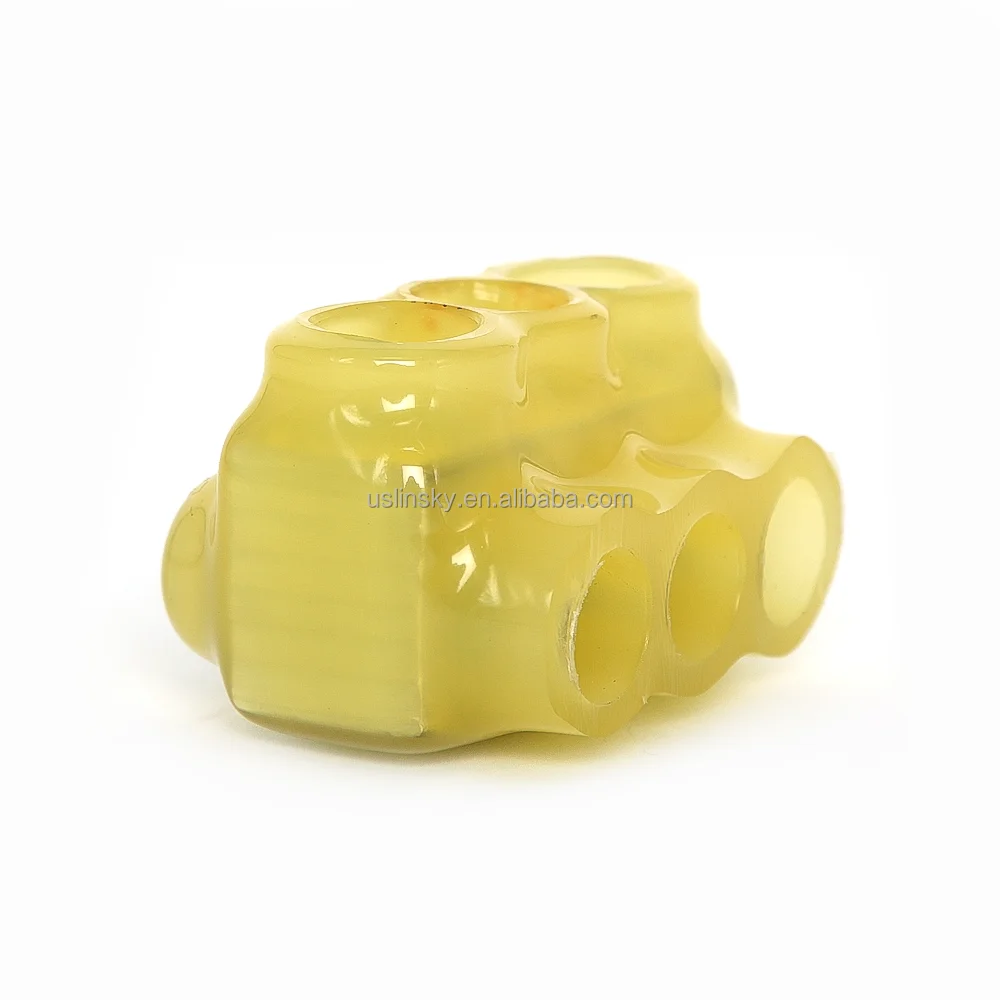

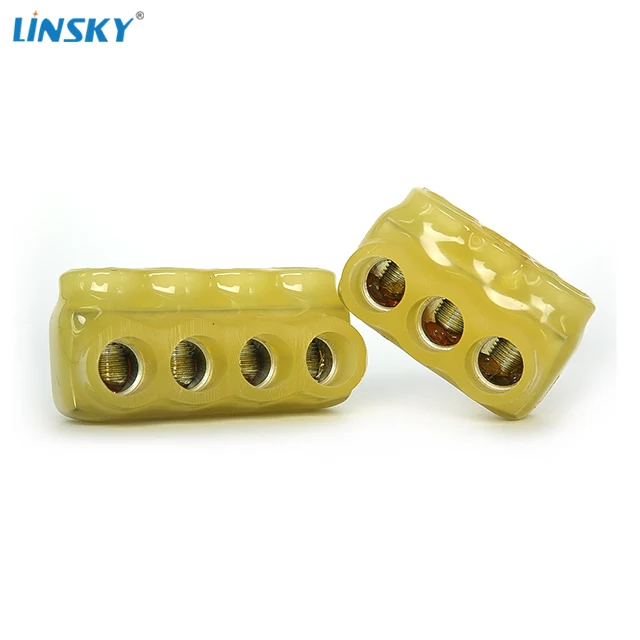

Shanghai Linsky single cable wire entry from one side insulated terminal electrical power distribution connector
- Category: Terminals >>>
- Supplier: Shanghai,Linsky,Electrical,Co.,Ltd.
Share on:
Product Overview
Description
Company Information
SHANGHAI LINSKY ELECTRICAL CO.,LTD
Shanghai Linsky Electrical Co.,Ltd is a Hii-Tech company, we specialized in researching, manufacturing and marketing of the UL standard Electrical Devices and Fittings. Such as the Ground Fault Circuit Interrupters-GFCI, USB receptacle, Interlligent switches and sockets, LED dimmers and wire connectors, we produce different devices of household and industrial electrical devices. We are located in Shanghai City, Fengxian District, which is close to Hongqiao and Pudong international Airport with convenient transportation. All of our products comply with UL/CUL, ETL/CETL and CSA certifications. Our products have been well received by our USA and Canada customers.
Shanghai Linsky has passed the ISO9001 certification and has more than 30 patents. There are perfect product design team, including structure engineer, electronic circuit engineer, product appearance design engineer, mold design engineer, there are punching workshop, injection workshop, seiko CNC workshop, electronic assembly line in different area. So we can design metal parts, plastic products and PWB/PCB according to customers' requirements. Shanghai factory covers an area of 5000 square meters.
Product Description
Product Details
◎Clear/Black or Any color Insulation
◎6061-T6 Aluminum
◎Insulated With Rugged High-Dielectric Plastisol Dipped Coating
◎Pre-filled With Oxide Inhibitor
◎Easy Re-Entry For Changes, Inspection Or Troubleshooting
◎Plugs Marked With Connector Max &Min Wire Size For Easy ID
◎CU9AL Dual Rated For Use With Copper And/or Aluminum Wire
◎One Wire Per Terminal
◎Temperature Range Of -49℉ To194℉(-45℃ To 90℃)
◎600 Volt
◎Rated For Use With 90℃ Cables
◎ANSI C119.4& UL 486B Listed
◎6061-T6 Aluminum
◎Insulated With Rugged High-Dielectric Plastisol Dipped Coating
◎Pre-filled With Oxide Inhibitor
◎Easy Re-Entry For Changes, Inspection Or Troubleshooting
◎Plugs Marked With Connector Max &Min Wire Size For Easy ID
◎CU9AL Dual Rated For Use With Copper And/or Aluminum Wire
◎One Wire Per Terminal
◎Temperature Range Of -49℉ To194℉(-45℃ To 90℃)
◎600 Volt
◎Rated For Use With 90℃ Cables
◎ANSI C119.4& UL 486B Listed
Item# | Wire Range | Allen Hex | Length | Width | Height | Box Qty | Ctn Qty |
LICD2-1 | 2-14 | Slotted or 5/32 | 2.44 | 0.83 | 1.4 | 16 | 256 |
LICD1/0-1 | 1/0-14 | 3/16 | 2.99 | 0.94 | 1.59 | 15 | 120 |
LICD2/0-1 | 2/0-6 | 7/32 | 3.23 | 0.98 | 1.63 | 15 | 120 |
LICD3/0-1 | 3/0-6 | 7/32 | 3.43 | 1.05 | 1.77 | 12 | 96 |
LICD250-1 | 250-6 | 5/16 | 4.13 | 1.3 | 2.14 | 7 | 56 |
LICD350-1 | 350-6 | 3/8 | 4.8 | 1.46 | 2.5 | 4 | 32 |
LICD500-1 | 500-4 | 3/8 | 5.62 | 1.61 | 2.79 | 6 | 24 |
LICD600-1 | 600-4 | 3/8 | 5.79 | 1.77 | 3.11 | 5 | 20 |
LICD750-1 | 750-1/0 | 3/8 | 7.64 | 1.97 | 3.46 | 2 | 8 |
