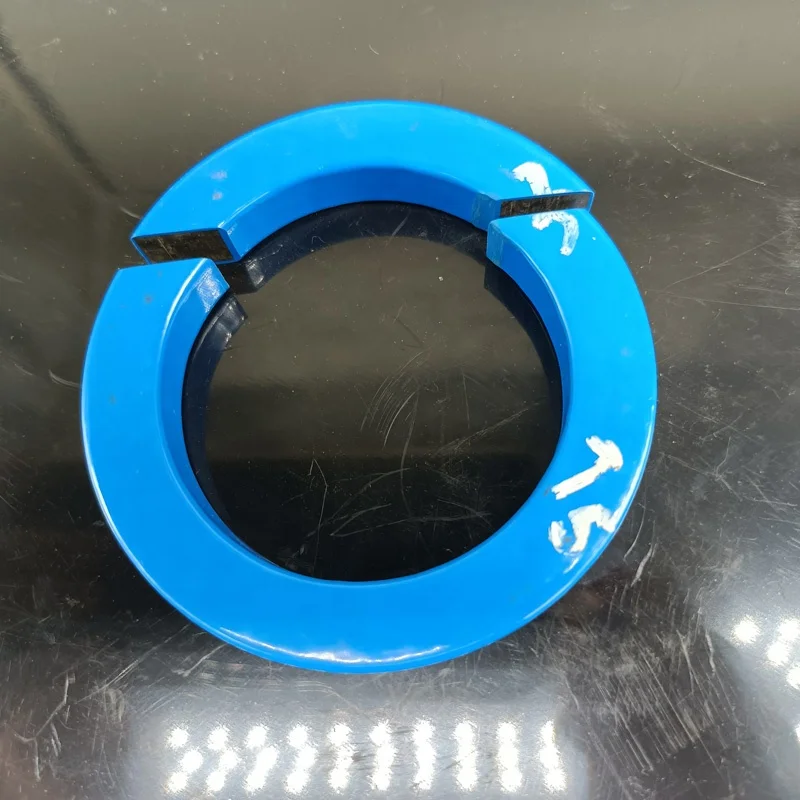

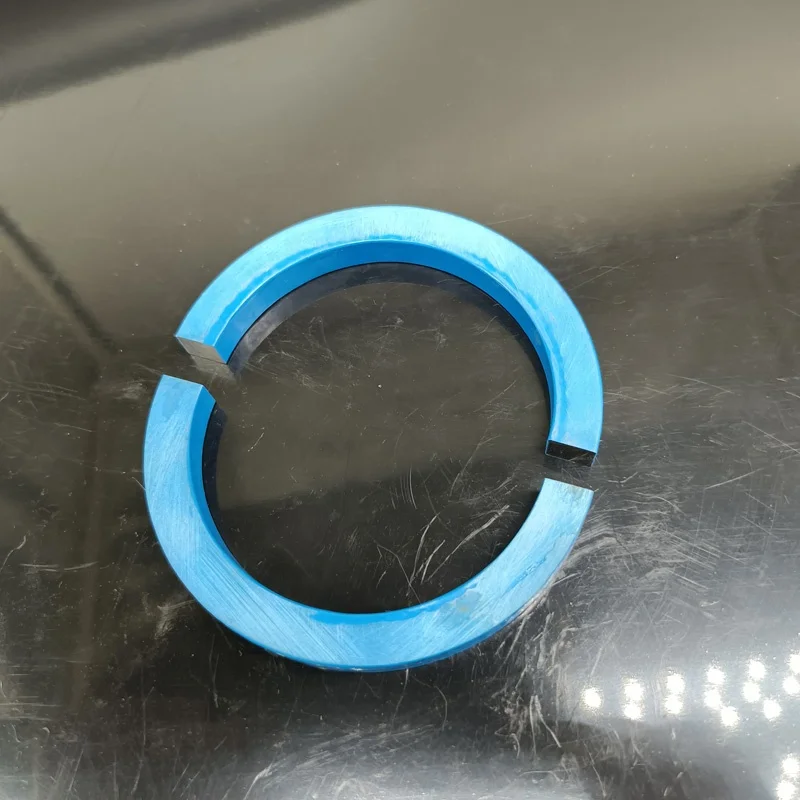

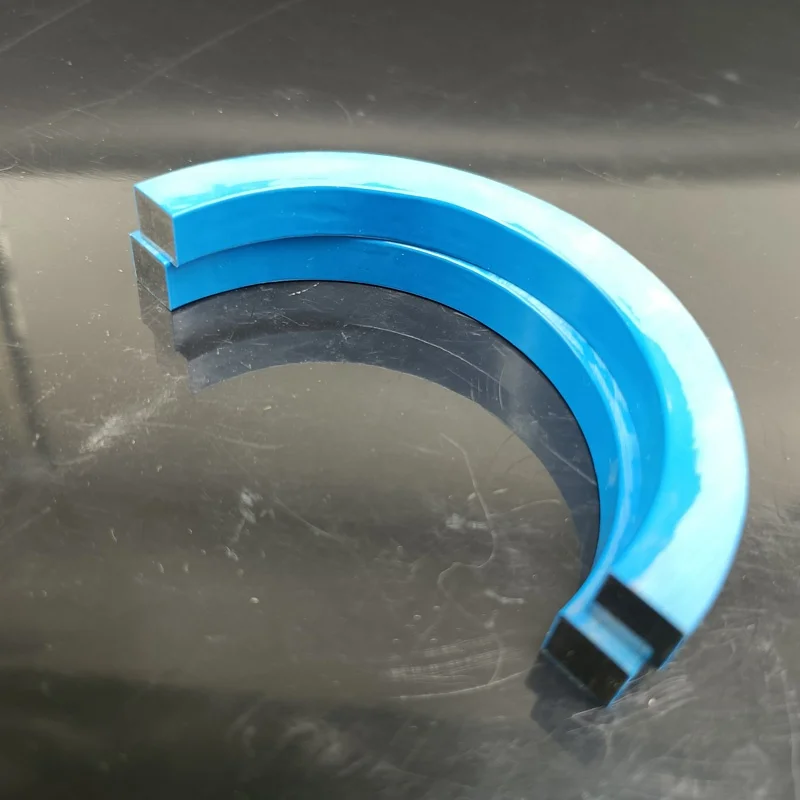

Magnetic Materials Nanocrystalline C Core Soft Powder Core Cutting Core

Product Overview

Description



• Magnetic Material: Silicon Steel ( CRGO); Nanocrystalline

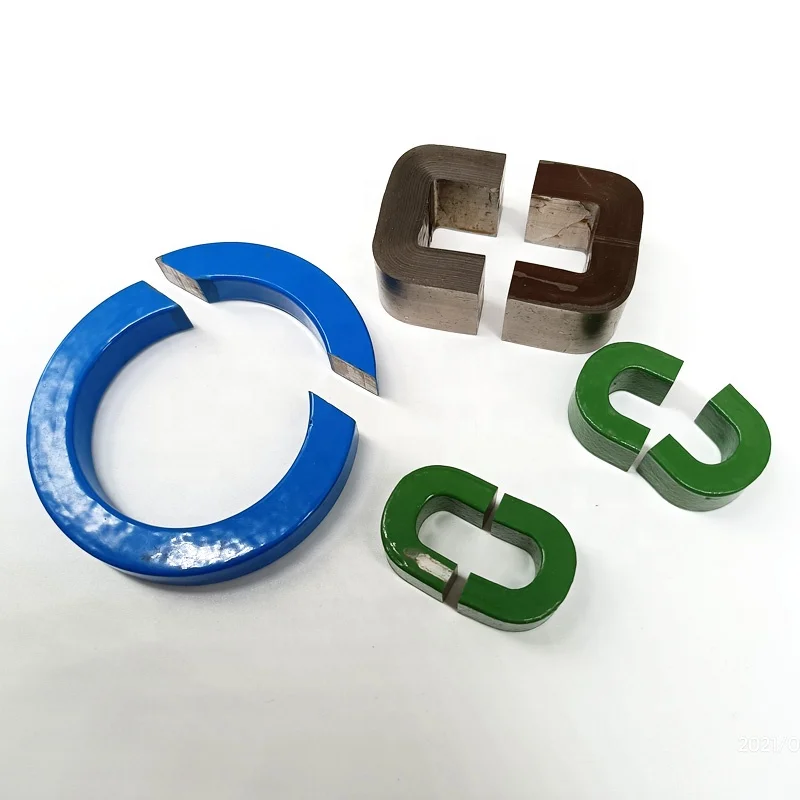

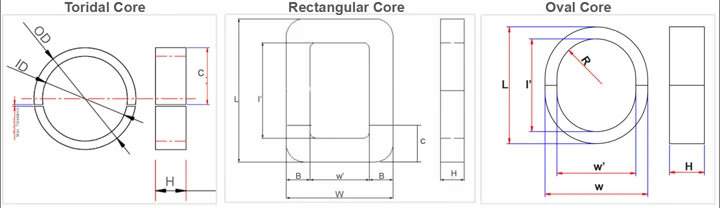

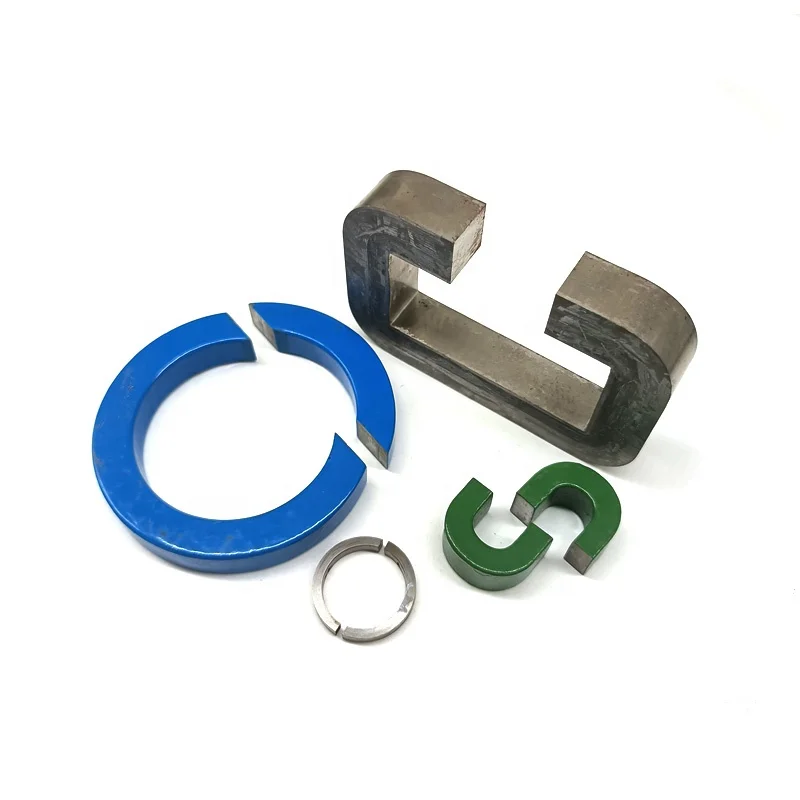

• Core Shipe Design: Toridal Core, Rectangular Core, Oval Core


• Cutting Location: Average Cutting, Un-equal Cutting

Key Properties:

1. Inherit the simple structure of the traditional C cores

2. Clamp-on core design, safer, easier installation, portable, don’t need to cut of the grid-power when adjust the inductance.

3. Comparing other materials, with high accuracy, due to nanocrystalline high permeability.

4. Energy conservation & environment protection, huge potential market



Typical Specification	Silicon Steel	Nano Crystalline
Bs (T)	2	1.2
HC (Oe)	0.5	0.1
Initial Permeability (µo)	1500	>100000
Max. Permeability (µm)	2 x 104	1 x 106
Resistivity	50	80
Curie Temperature (°C)	750	570
Crystallization	-	510/570



 Main Application:

Widely used in high frequency, high power transformers for converters, in drives, traction, power supplies.



Flexible Design:

1. Various shape design supported





2. Not only Split Core, but Split current Transformer we produce.





3. Customised Size as request. Our Common Standard for your first reference as below:







We can design & produce goods based on specifications & drawing, specification needed including:
