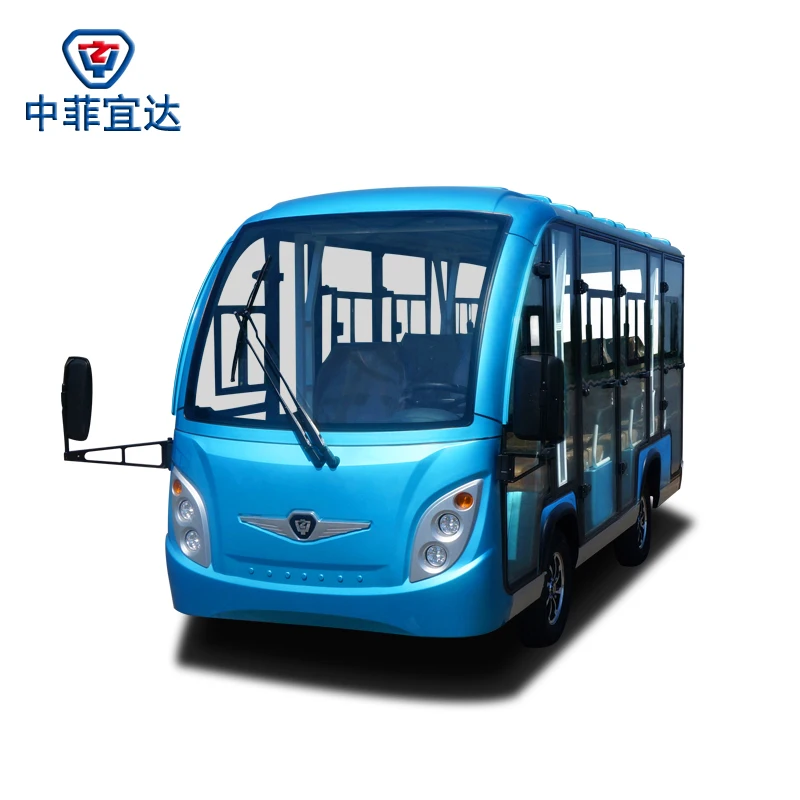

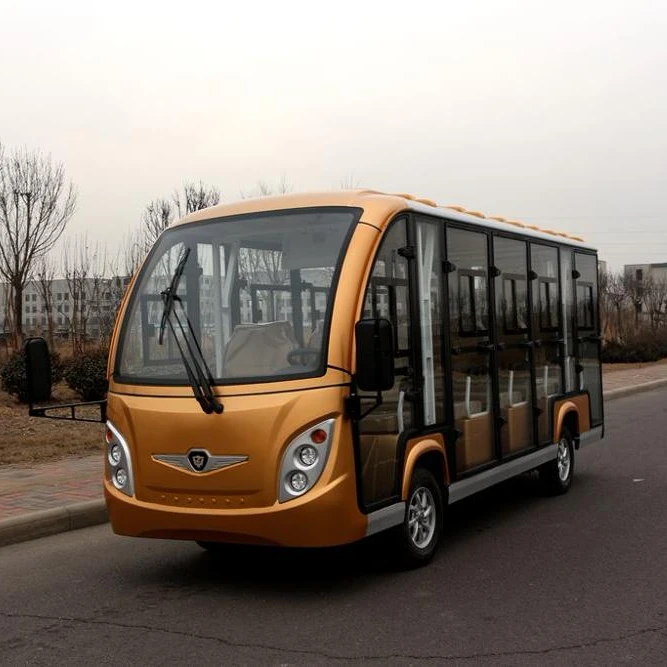

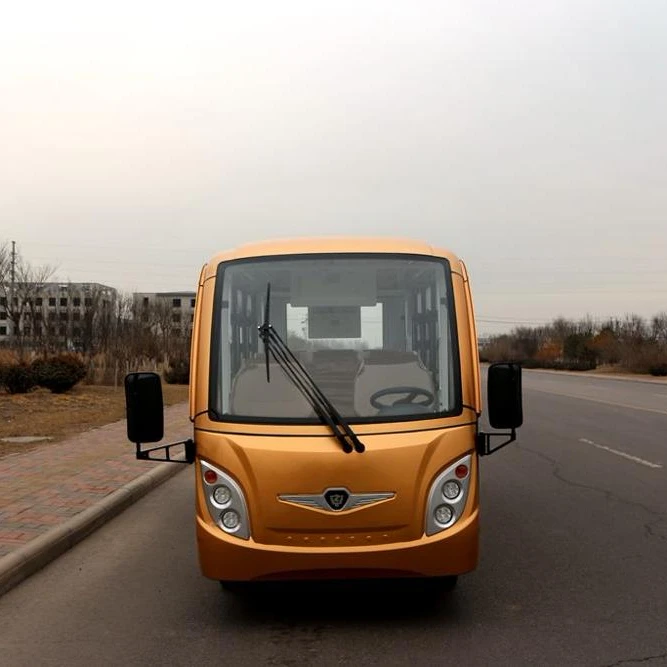

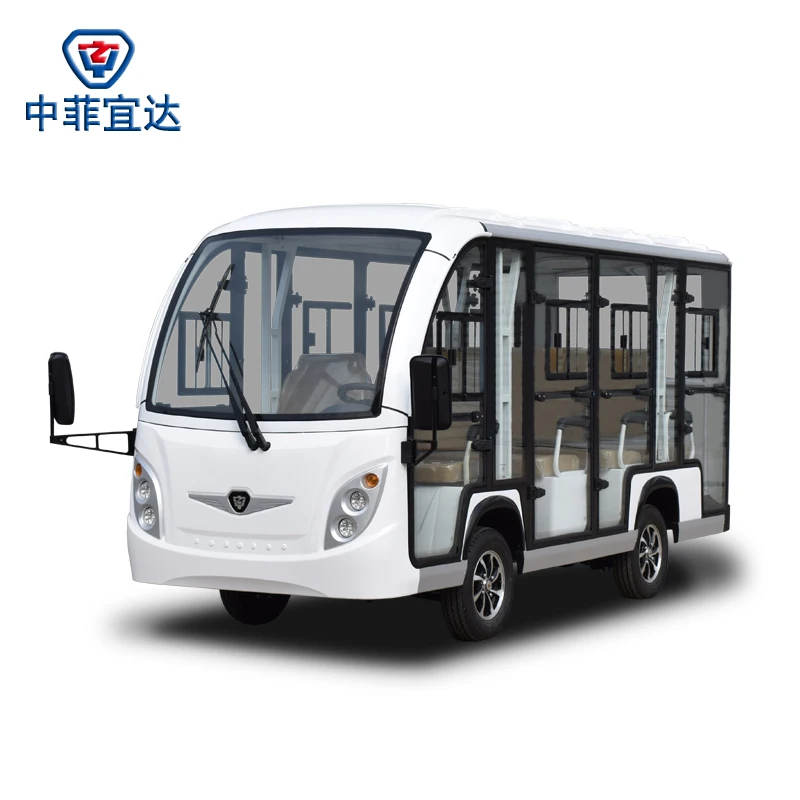

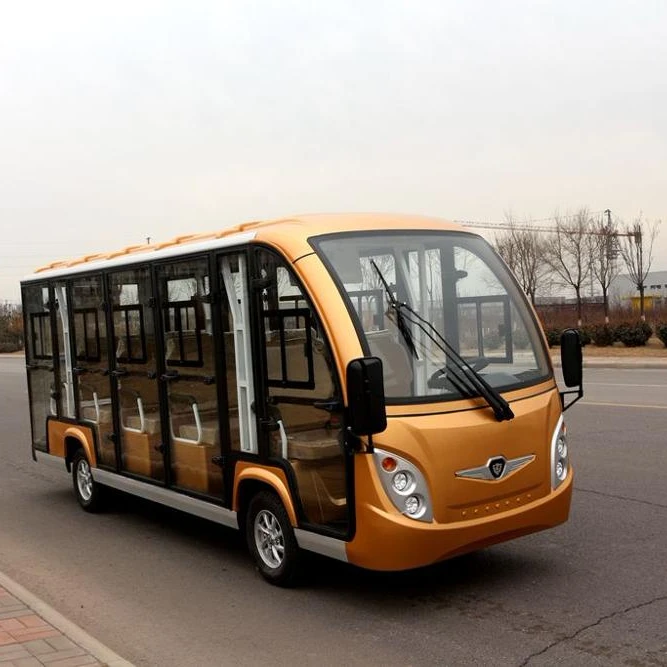

Распродажа 14 электрических туристических автомобилей для курорта

Model

GD14-A14

Qty/20′ (assembled)

1 Units

Qty/40′(assembled)

2Units

Performance

Passenger Capacity

14 Seats

Max.Speed

28-30km/h(adjustable)

Range

70-80km

Climbing Ability

<20%

Braking Distance

<5m

Mini Turning Radius

6.5m

Min.Ground Clearance

130mm

Recharge Time

8-10hours

Dimension

L*W*H

5220*1500*2835mm

F/R Tread

1240/1220mm

Axle Distance

2835mm

Net Weight

1120kgs

Standard Configuration

Motor

48V/5.5KW DC motor

Controller

USA Crutis Controller

Battery

Huge capacity deep cycle lead-acid battery  6V/piece  8  pieces  230Ah

Body & Roof

Injection molding modeling design separable replacement with all aluminum frame

Windshield

Laminated Glass with wiper

Seats

Sponge& artificial Leather,the seaters of driver and co-driver are adjustable

Rear View Mirror

2 pcs

Tire

Aluminum alloy hub ,155R12C

Chassis

High strength structural steel

Steering

Gear steering&auto backlash compensation+electronic power steering

Braking System

Front disk &rear drum ,double circuit hydraulic brake& hand brake

Front Axle

Mcpherson independent suspension  Spiral spring &cylinder hydraulic shock absorption

Rear Axle

Integral rear axle, Non independent suspension, leaf spring +cylinder hydraulic shock absorption

Lighting System

Combination LED front light (turning light, high beam, dipped light) rear light (turning light, brake light) driving & reverse buzzer.

Charger

On board charger

Dashboard

Plastic molding instrument board with volt meter, ammeter, electricity indicator, speedometer,key switch, radio, USB plug, storage box, cup holder
