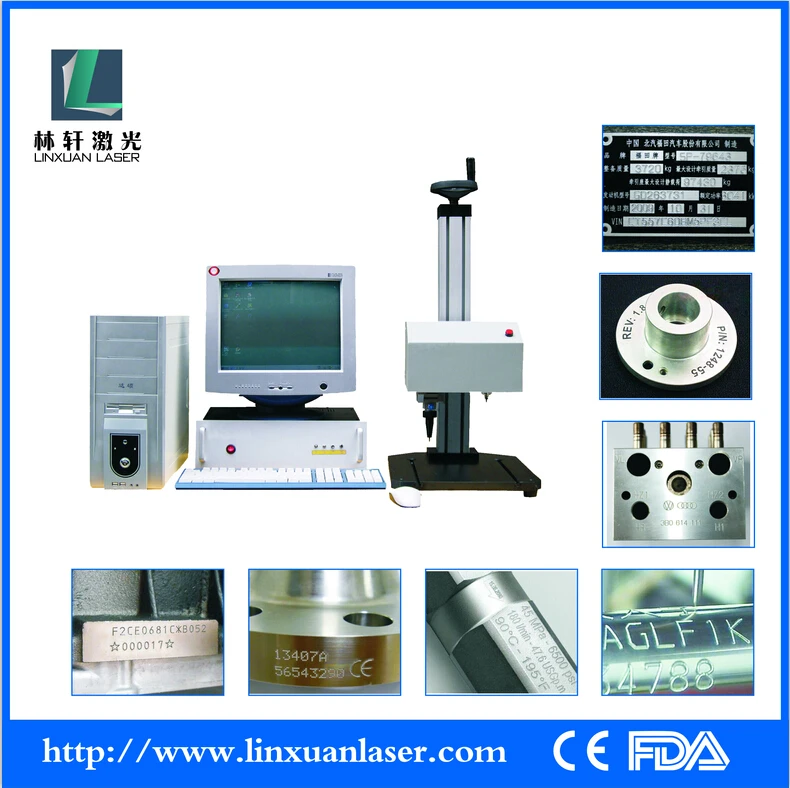

Automatic Nameplate / Sign / Serial Number / Vin Number Metal Tag Portable Dot Peen Marking Machine for Plate

Product Overview

Description

Automatic Nameplate / Sign / Serial Number / Vin Number Metal Tag Portable Dot Peen Marking Machine for Plate











Introduction:



LX-E1 can be operated under the computer system of WIN98,WIN2000,WINME,XP etc,can leading in CAD vector graphics ,friendly Chinese interface operation interface.Users can design background images freely. It supports scram function,database function .All these function can help to reduce worker’s error operation.



Features :

Economical and practical.



Note: pneumatic marking machine increased the function of circular surface printing based on graphic printing . Having two function with one machine,this machine is more convenient for users because of its wide range of application.



Print range:

Flat:100*80mm,round surface :10-125mm(weight less than 4KG), customized print range is accepted .





Application:

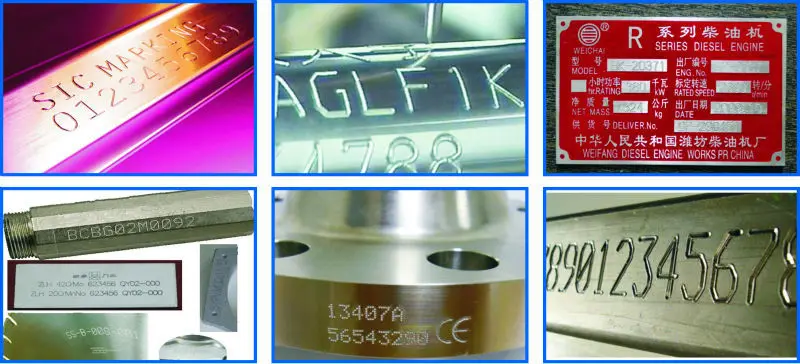

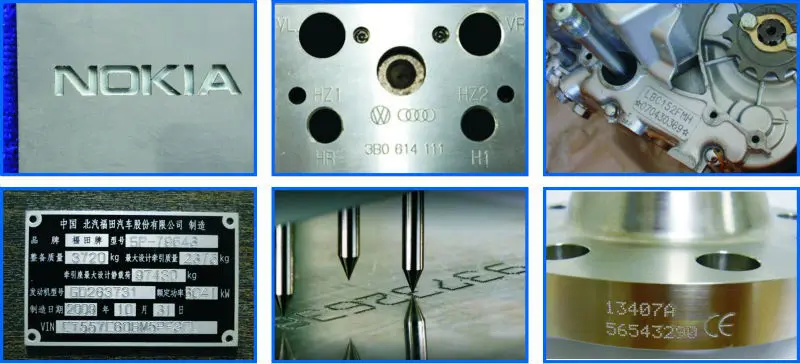

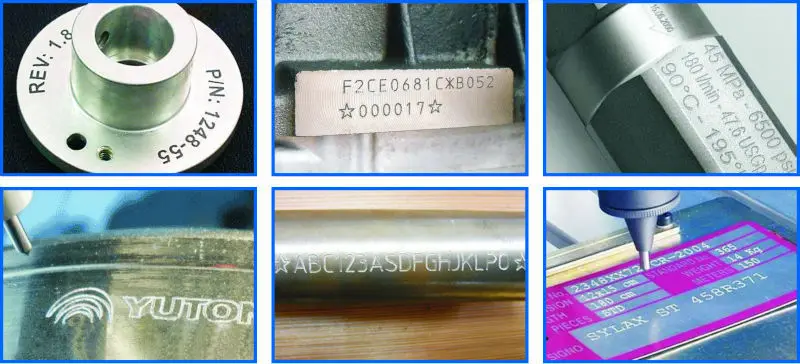

It is applicable for the fields of automobile, motorcycle, aeronautical and space,electronic apparatus,and suitable for marking on steel, cooper ,aluminium ,metal,non metal and hard plastic materials.



It is adequate for marking logo,characters,serial numbers, nameplate,connecting rods,engine,mechanical parts,machine tools,fastening pieces.



Specification:

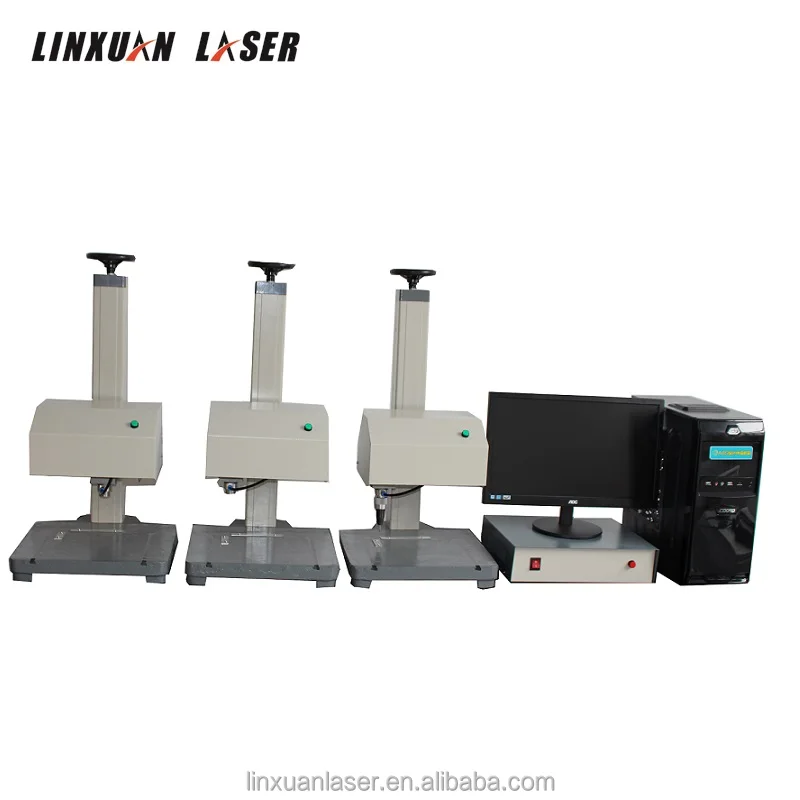

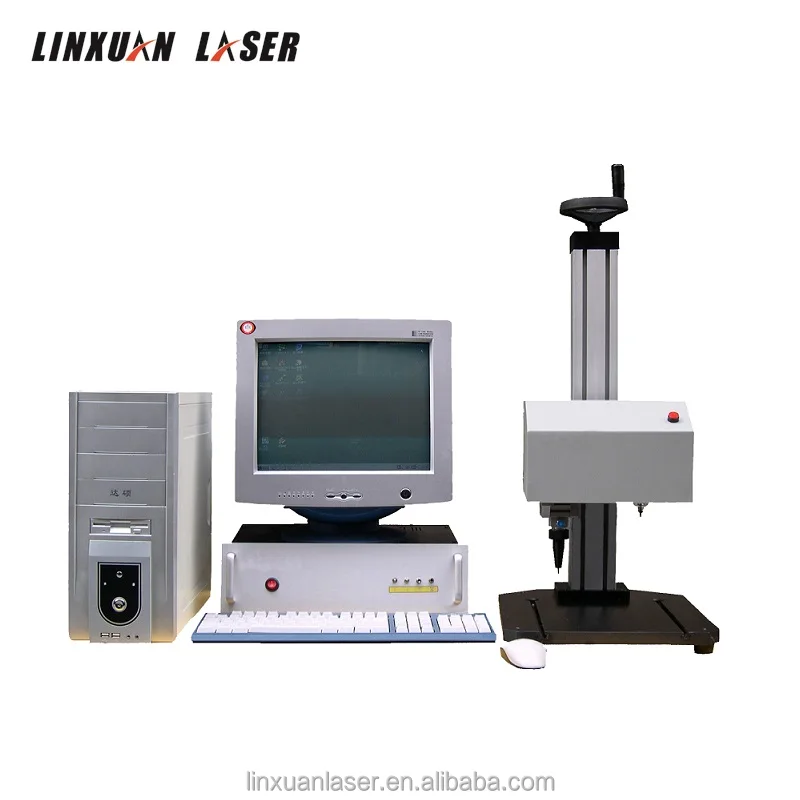

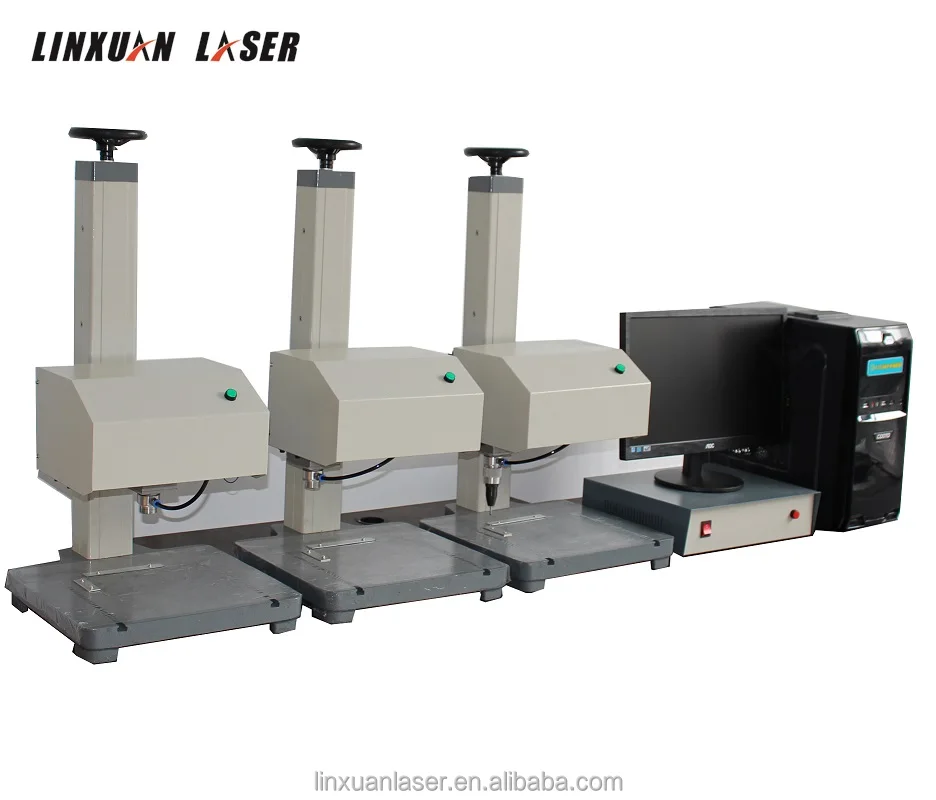

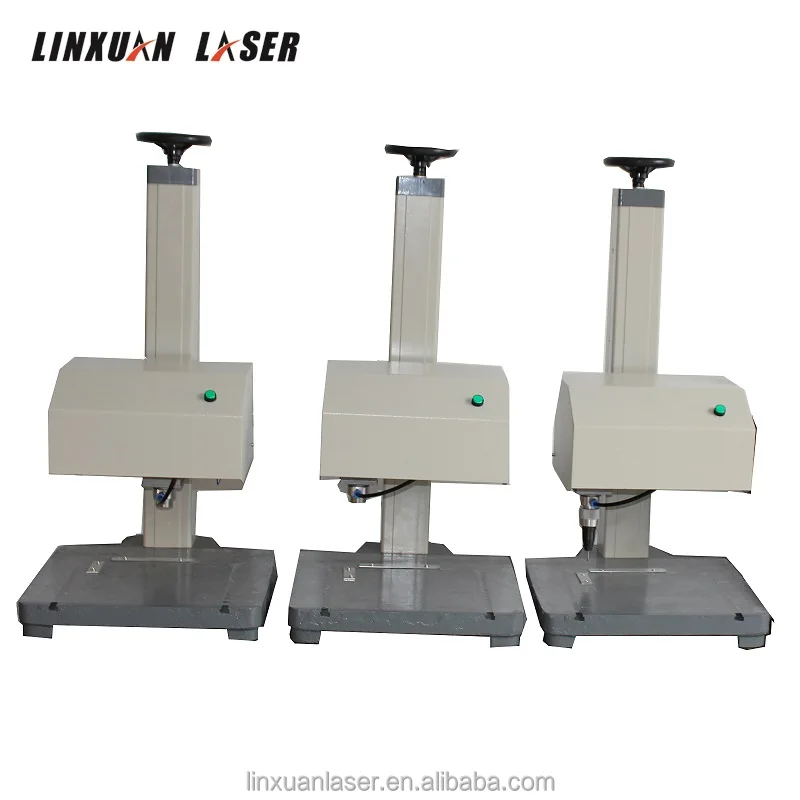

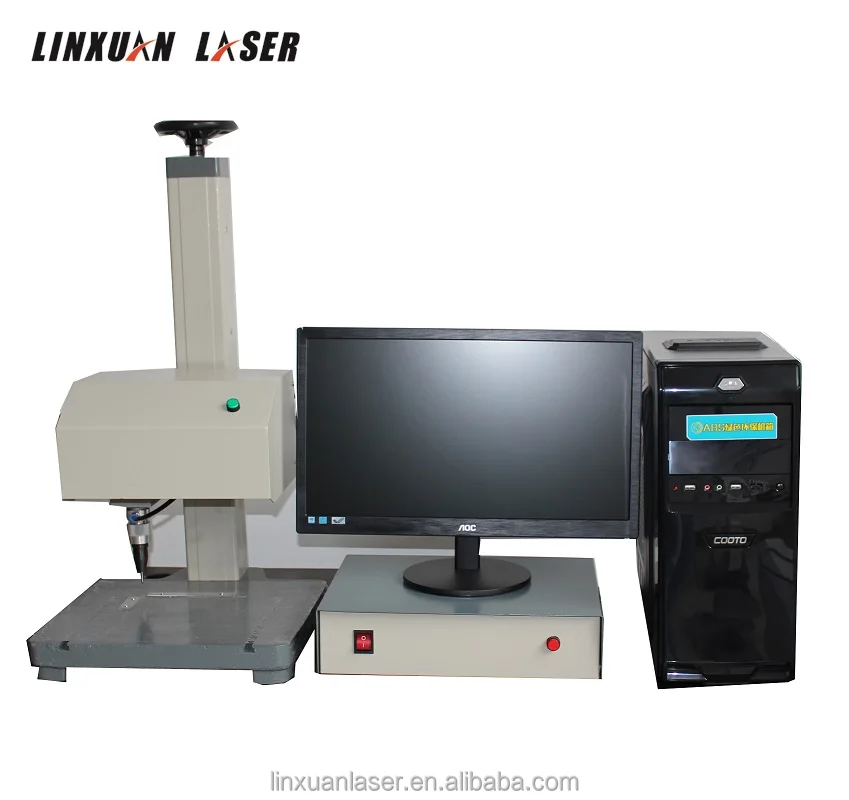

Model	LX-E1 pneumatic marking machine
Marking Area	150mm×100mm,
Marking Depth	0.01-0.2mm
Marking speed	80mm/s( for characters height of 3mm/3-4 numbers/second
Lifting Up/down Range	0-300mm
Marking Accuracy	0.01mm

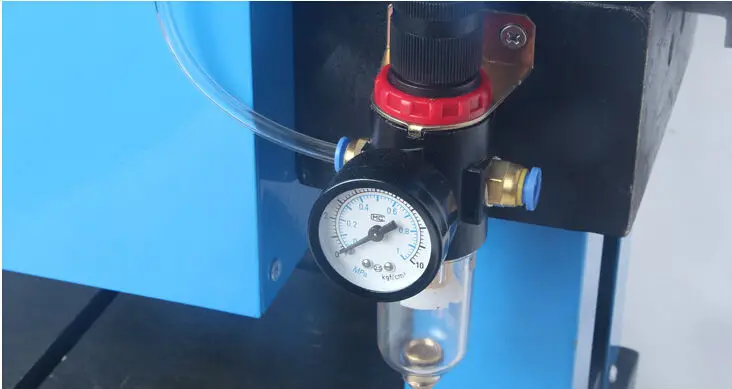

Air Pressure	0.2-0.6Mpa
Machine Power	≤400W
Power Supply	AC220V/50HZ±15%
Machine Weight:	50kg
Packing Size	700*470*400mm 460*420*220mm



Our service:



24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.

One-year warranty is provided. (The detailed reference will be written into the final contract.)

Professional staff for installation and training if needed.

Spare parts are supplying on time or doing some inventory if promising certain sales volume.

Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.

If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.

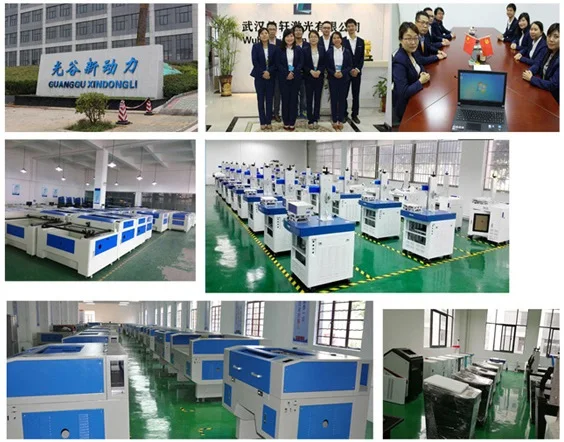

 About Linxuan laser:
