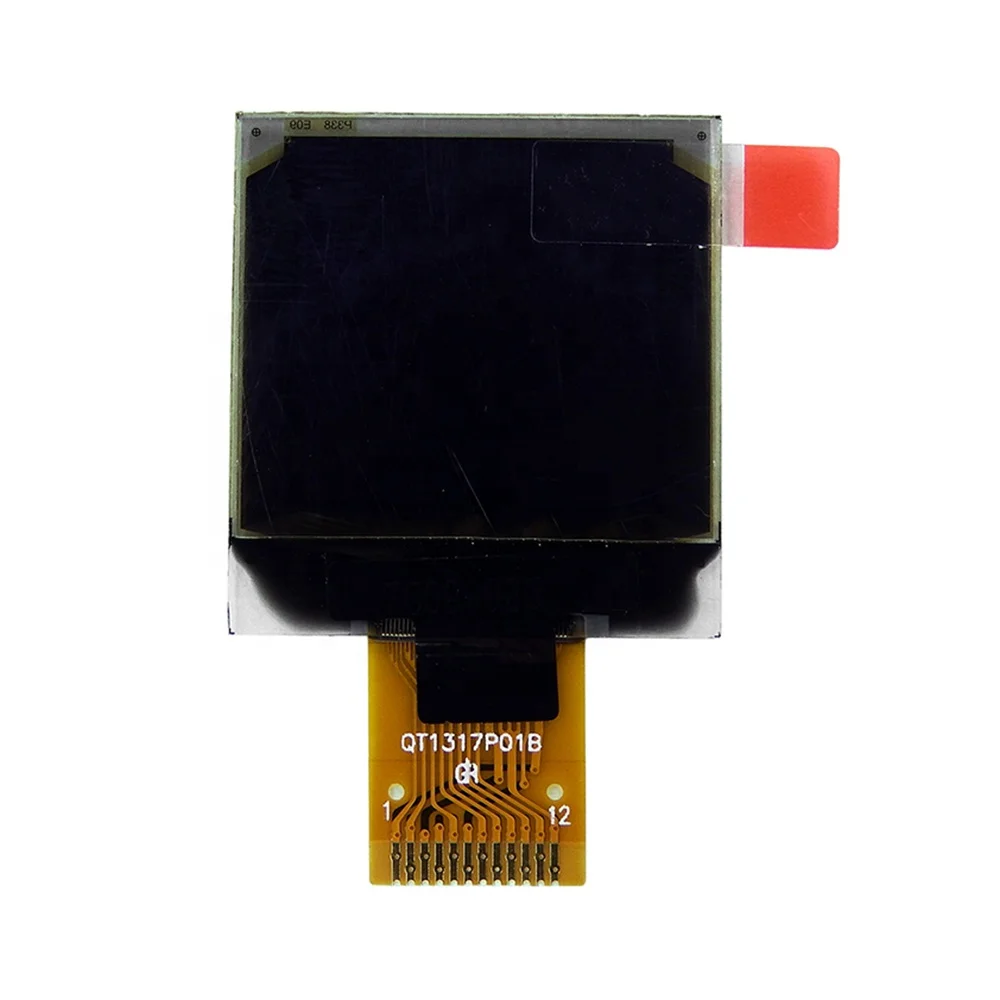

0.96 Inch 96x96 Graphic Display Screen SPI Interface SSD1317 Frontal Digital Thermometer OLED Module
0.96 Inch 96x96 Graphic Display Screen SPI Interface SSD1317 Frontal Digital Thermometer OLED Module
0.96 Inch 96x96 Graphic Display Screen SPI Interface SSD1317 Frontal Digital Thermometer OLED Module
0.96 Inch 96x96 Graphic Display Screen SPI Interface SSD1317 Frontal Digital Thermometer OLED Module
0.96 Inch 96x96 Graphic Display Screen SPI Interface SSD1317 Frontal Digital Thermometer OLED Module
0.96 Inch 96x96 Graphic Display Screen SPI Interface SSD1317 Frontal Digital Thermometer OLED Module

0.96 Inch 96x96 Graphic Display Screen SPI Interface SSD1317 Frontal Digital Thermometer OLED Module

Share on (60750696192):


Price:$2.80 - $2.90

Quantity:


Product Overview

Description



Products Description


Resolution
96*96
External dimensions
24.0*25.7*1.2mm
Visual Area
19.26*19.26mm
Active Area
17.26*17.26mm
Driver IC
SSD1317
Interface
4-wire SPI
Display Color
oled White
Operating Temp.
-30°C~+70°C
Storage Temp.
-40°C~+80°C
Number of pins
12 pin

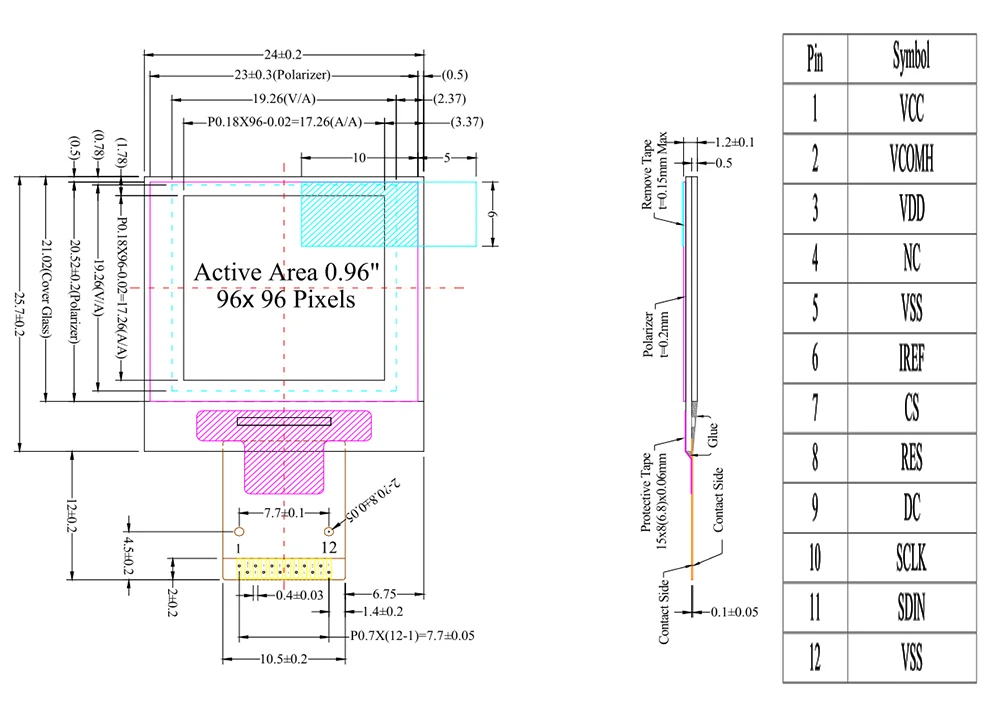

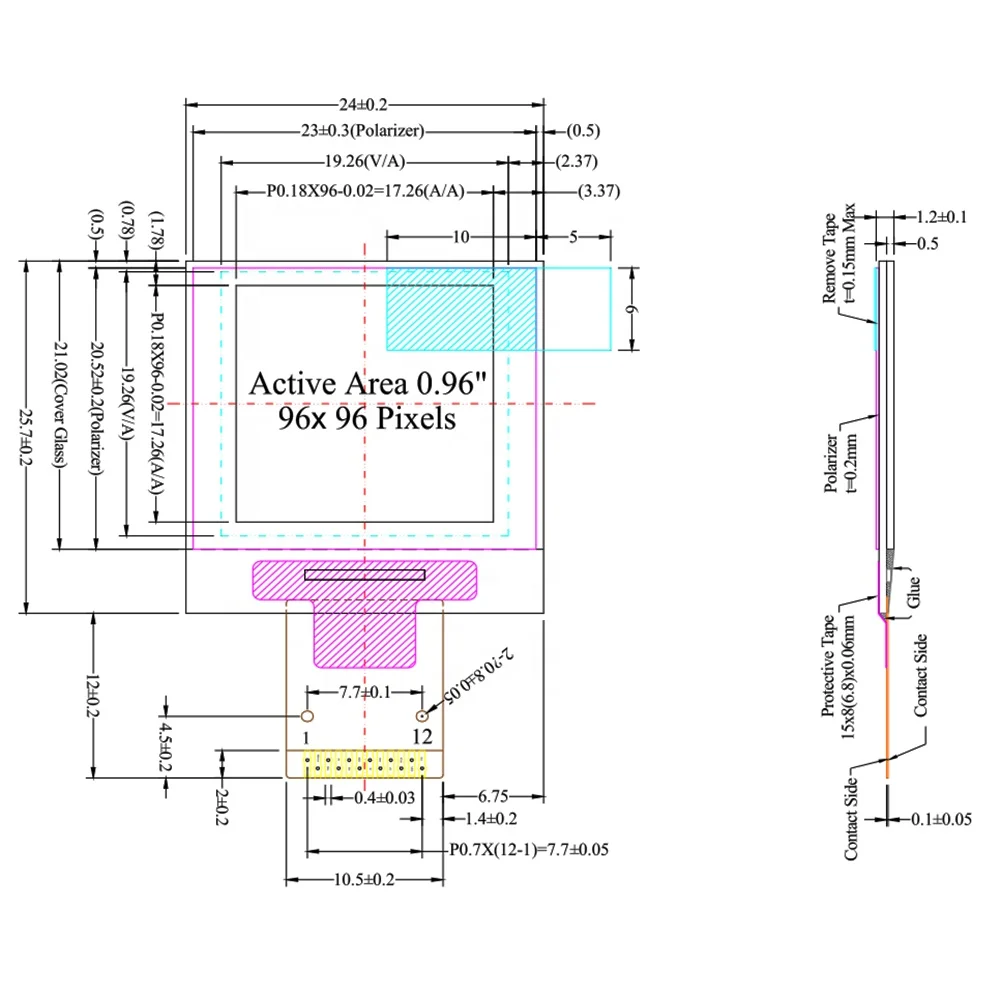

    SYO9696TSWXG04

0.96 inch 96*96 oled display
4-wire SPI interface
Driver IC:SSD1317








Product packaging






Choose a suitable electrostatic packaging bag according to the size of the product, and use an airplane box with foam to ensure that the product is not damaged during transportation.


More products




Product application










Our products are used in a wide range of applications, such as electronic equipment, medical equipment, industrial equipment and smart home.


Certifications






We have a complete quality management system and have passed ISO9001:2015, SGS, TUV,BV, RoHS, and other certifications.


Manufacturing Technique








The company has advanced manufacturing equipment to provide customers with a strong guarantee for fast service and delivery.




TCC always adhere to the "Quality First" and strictly control the production process, the product after high temperature aging 100% inspection of qualified shipments.


Company Profile



Shenzhen TCC LCD Hi-tech Co.,LTD.

Shenzhen TCC LCD Hi-tech Co., Ltd was established in 2005. Is a high-tech enterprise specializing in the design, development and
production of lcd display module full scheme.

The company's products include two series: standard and custom-made products, related to:Segment code lcd display, Character lcd display,Graphic lcd display, COG lcd display, TFT color display, OLED display; covers TN, HTN, STN, FSTN, TFT and other film types; fusion of COG, TAB, COB, SMT and other process.






TCC has been established for 15 years and has always believed in humanistic care. It has built a stable and excellent work team to provide customers with satisfactory services.


FAQ


Q: Can you customize the product? what do you need?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.

Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.

Q: Can the LCD module be Export directly?
A: We have passed ISO9001, SGS, TUV, BV, RoHS and other certifications, and can export.

Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.

Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.

Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1weeks,Mass production for 2 weeks.

Q: Are you a merchant or a factory?
A: We are manufacturers, have production trademark and production workers.

Q: Are you open to OEM processing?
A: Yes, we can OEM.

Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
