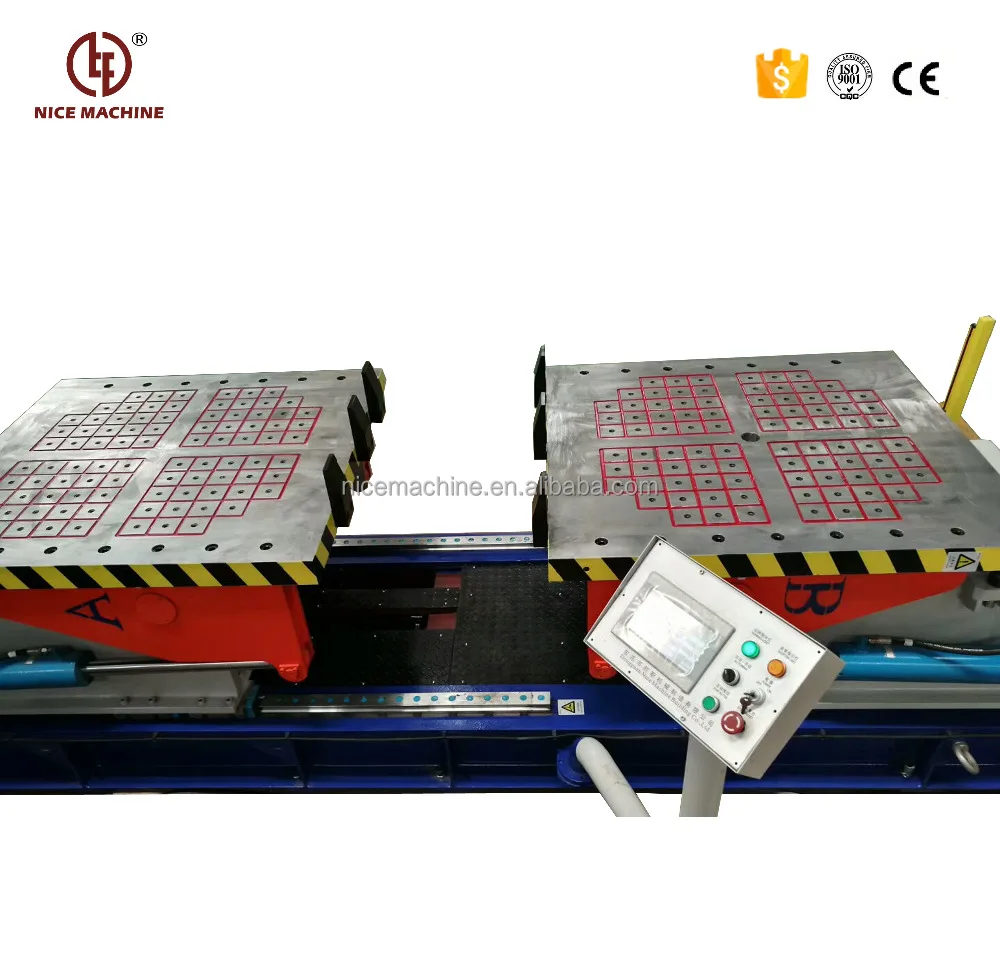

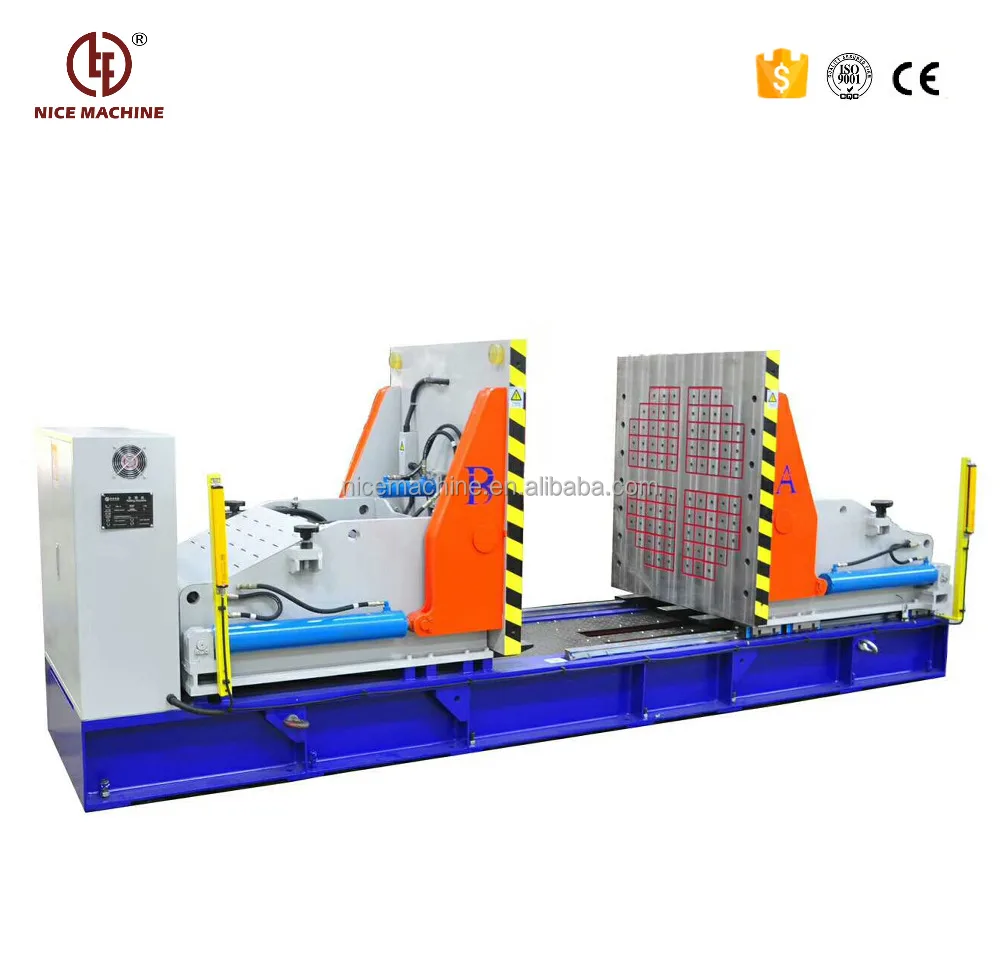

Die Parting Machine

Product Application

Die parting machine is newly developed by the company，it is widely used for fiting, maintenance and repairing of die-casting molds and other molds. the design of this machine is elegant, with beautiful appearance, easy to operate, and can be customized according to user needs, has been widely praised by users after been put into the market.

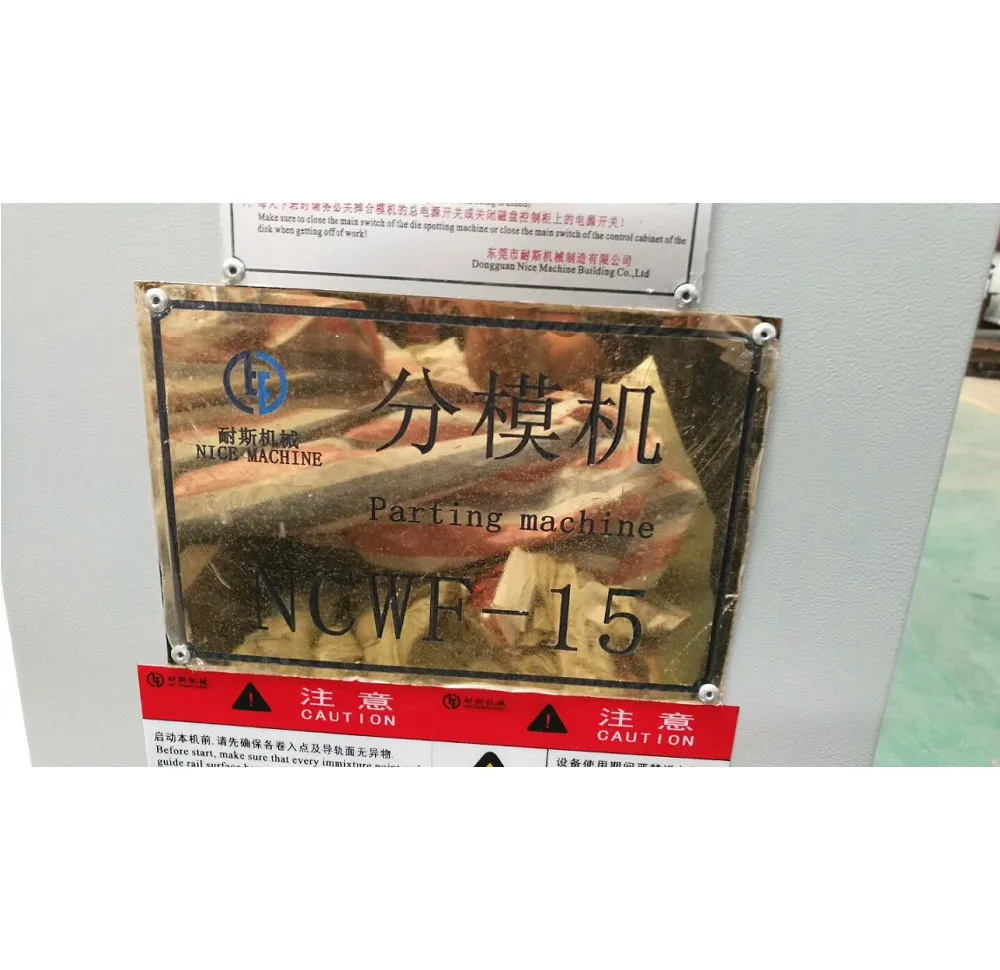

SPECIFICATIONS FOR NCWF-15 DIE PARTING MACHINE
ITEM	Unit	Value	Remark
Die open force	T	15	Adjustable
Turn over capacity	T	4
Turning speed	Degree/SEC	2.5	90 degree turn over
Standard open span	mm	1300
Minium open span	mm	300
Sucking force of magnetic disk	T	55
Workbench size	mm	1200*1300
Parting speed	mm/S	50
Ejecting urn stroke	mm	100
Eject capacity	T	4
Motor power	KW	7.5
Ground area	mm	1200*4500
Machine height	mm	1850
Machine weight	T	7

Main Features

1) Daily maintenance of die-casting molds and other molds;
2) The machine tool has a single-side turn over function, making repairing efficient and more convenient;
3) The machine tool has a test thimble function.

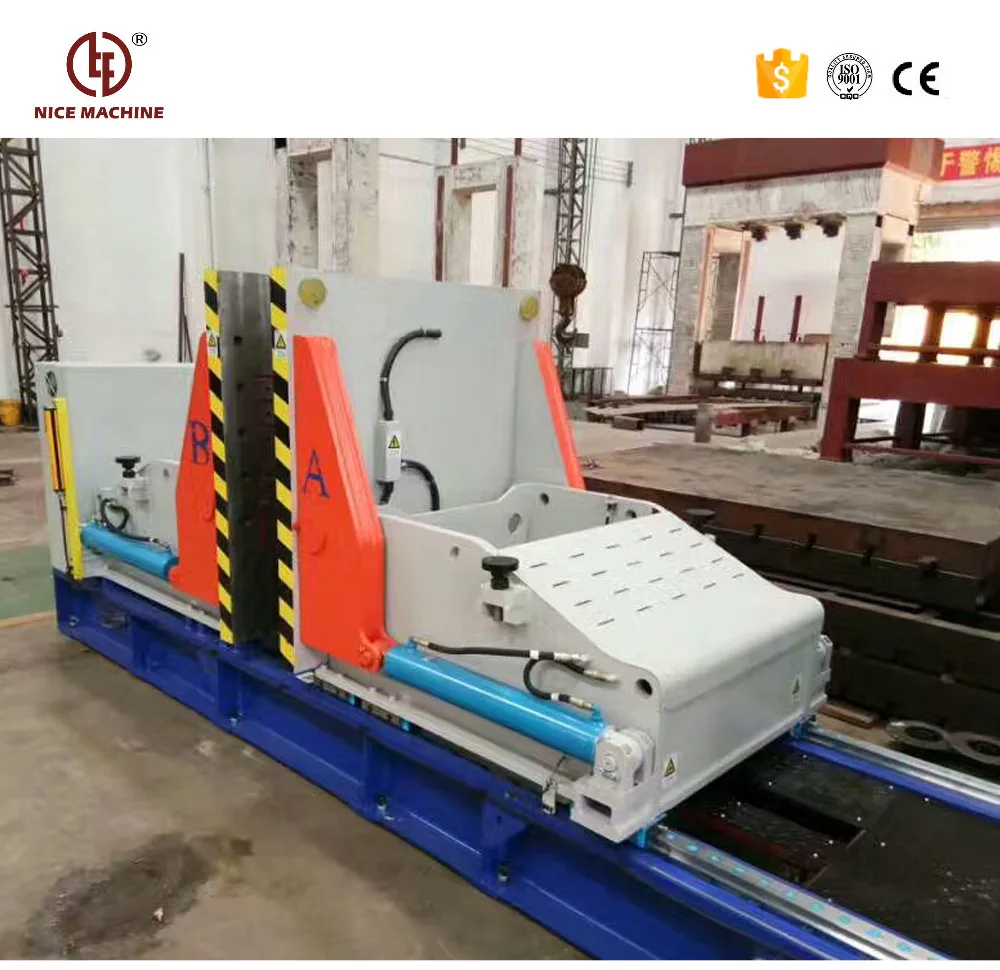

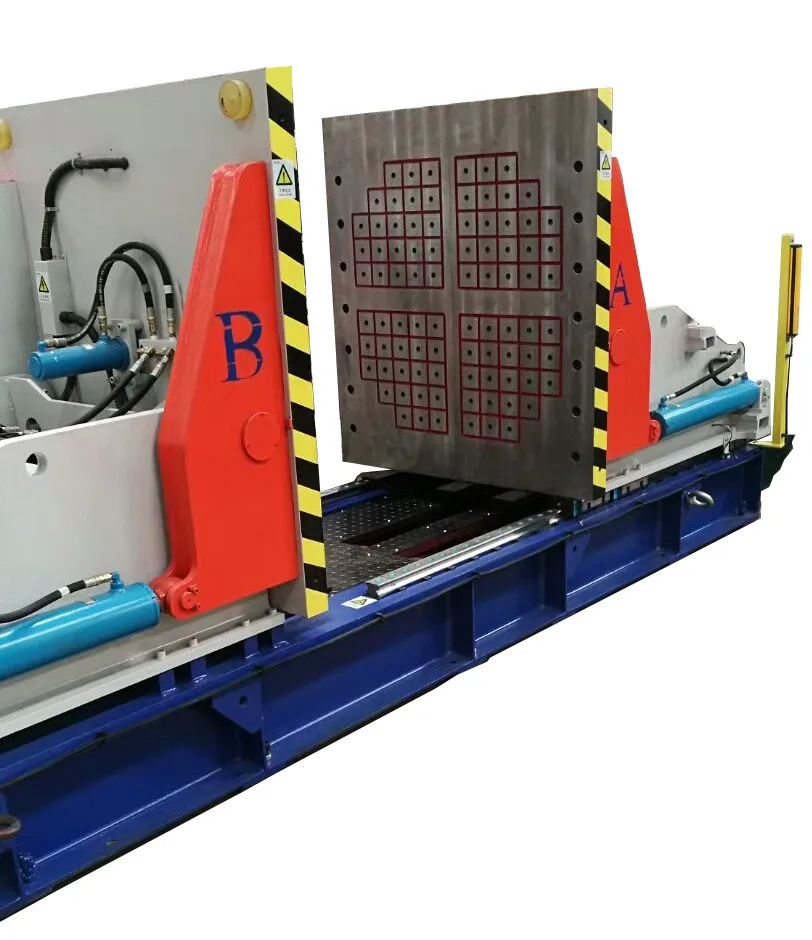

Detailed Images

Our Company

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* View Factory.
* Machinery customization and drawing confirm.

After-Sales Service

* Training of using the machine free.
* Engineers available to install machinery overseas.
* Technical support by email and phone.
* Engineers available to service machinery overseas.
