Crawler type full feed grain combine harvester is applied to rice and wheat which can achieve harvesting, threshing, separating and cleaning all at one time. It has the advantage of efficient threshing and less impurities. The compact body design makes it more easily handling and convenient operating, which is especially for small and medium farms.
Crawler Type Full Feed Grain Combine Harvester

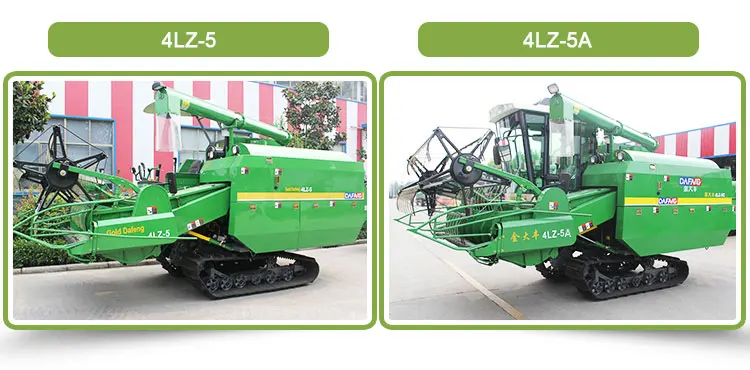

Model
4LZ-5
4LZ-5A
Warranty
1 Year
1 Year
Certification
ISO/SGS
ISO/SGS
Brand
Gold Dafeng
Gold Dafeng
Size
5450*2520*2870mm
5580×2420×2880mm
Driving mode
Gear Drive
Gear Drive
Gearbox
Hydraulic gearbox
Hydraulic gearbox
Working width
2200mm(2000mm is optional)
2200mm(2000mm is optional)
Feeding volume
5kg/s
5kg/s
Horse power
98hp
98hp
Operating efficiency
0.27-0.85hm²/h
0.27-0.85hm²/h
Fuel consumption
35kg/hm²
35kg/hm²
application
Rice/millet/wheat/barley/rye/rape
Rice/millet/wheat/barley/rye/rape
Threshing type
Longitudinal running axle roll
Longitudinal running axle roll
Bin capacity
1.3m³
1.3m³
Track width
450mm(500mm is optional)
450mm(500mm is optional)

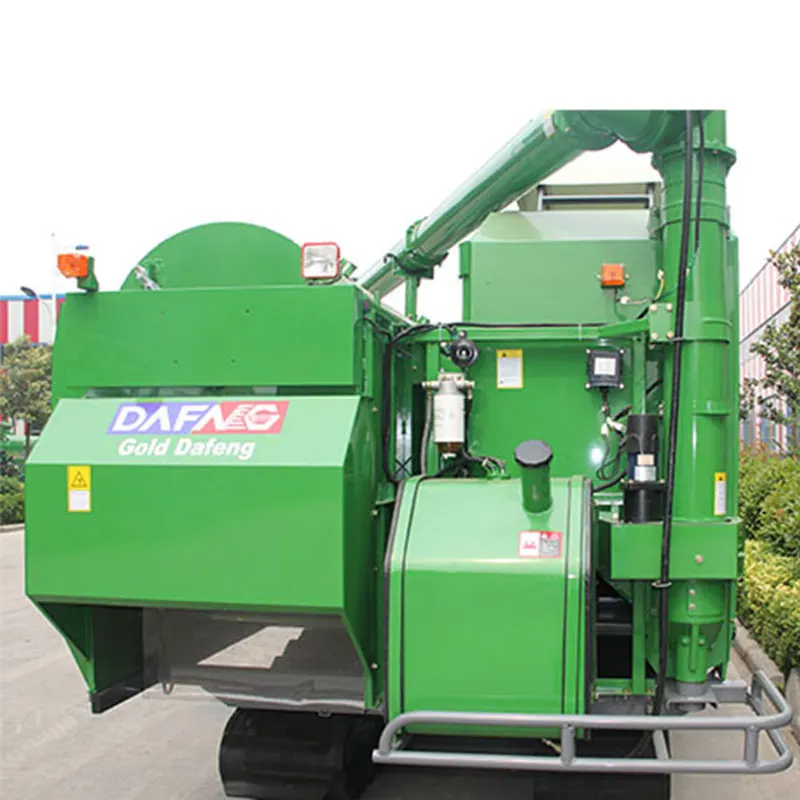

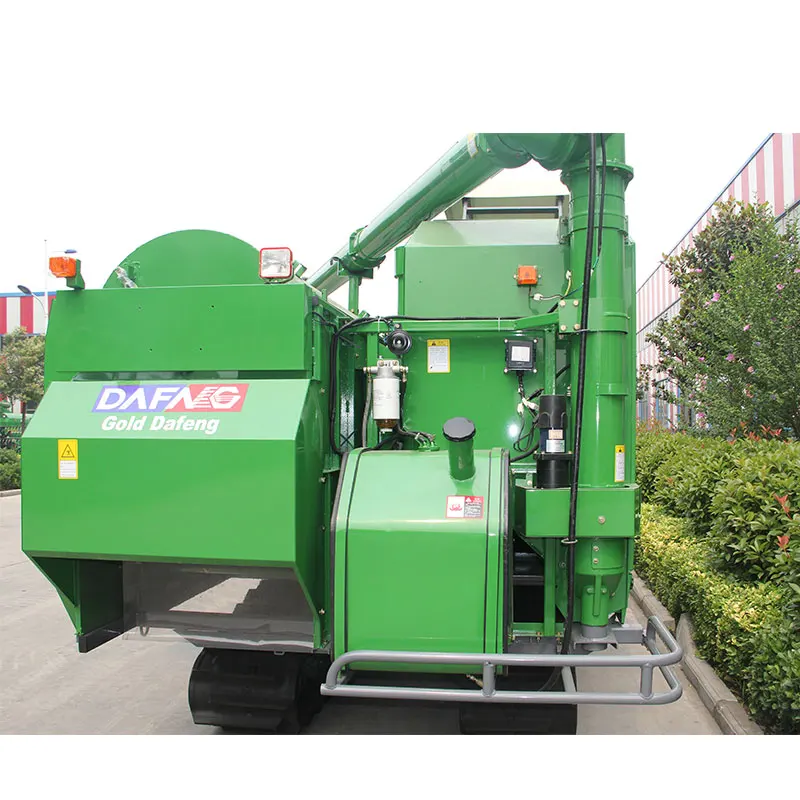

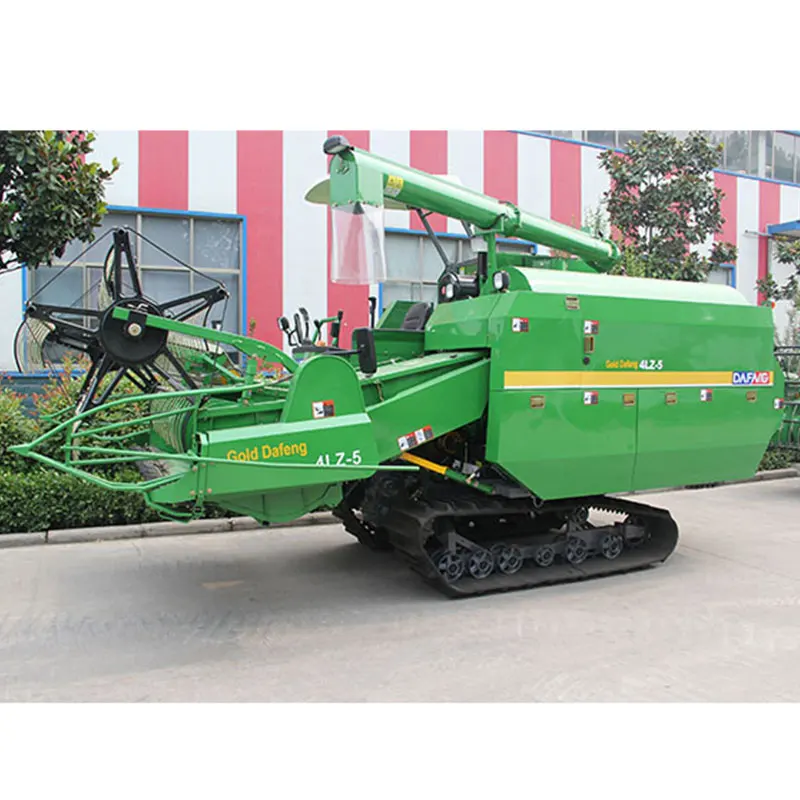

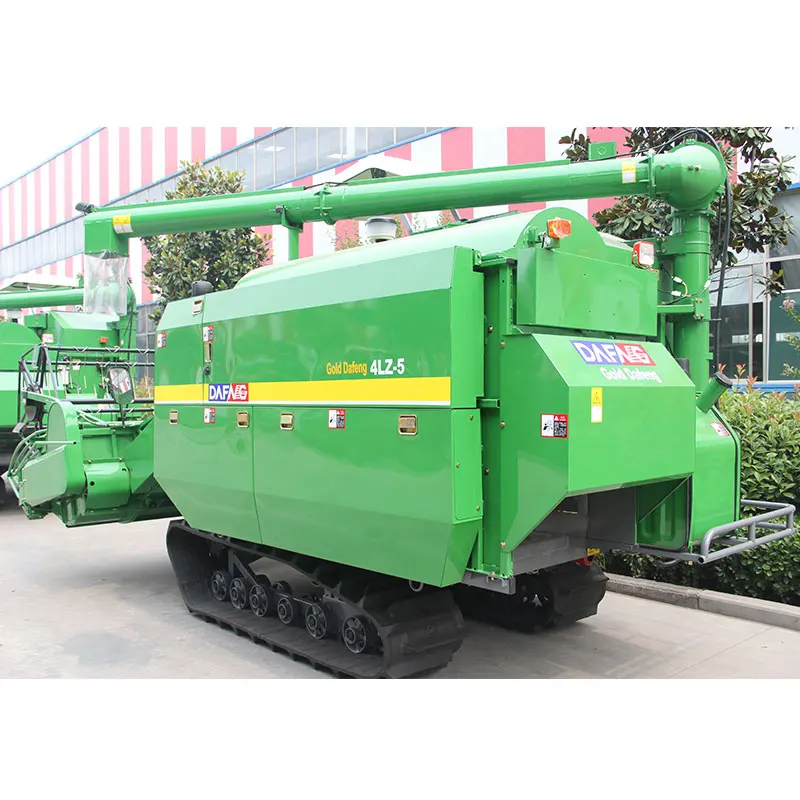

Product Display
The Crawler type full feed grain combine harvester is equipped with 98hp engine, which is located at under the driver’s seat, which offers the drive forces for the walking, hydraulic system and the working mechanism. Chassis and the walking part are the special self-propelled mechanism, which include front and the rear axle, drive wheels, transmission, and the steering wheels.

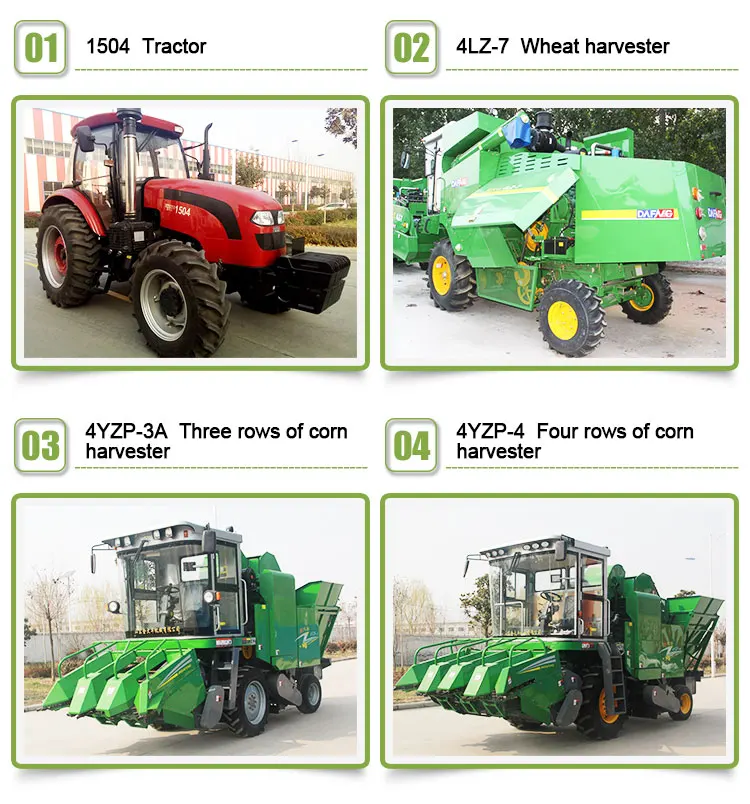

Related Products
Product Details
Application
Crawler type full feed grain combine harvester can achieve harvesting, threshing, separating and cleaning all at one time, to avoid the process of artificial harvesting mixed and improve the clarity and quality of paddy rice. The mechanical harvesting hours per unit area is far lower than the artificial harvest, which can reduce labor costs and
increase labor efficiency. What's more, rice straw returned to soil, which is beneficial to maintain soil strength.
Package & Shipping
Information Profile

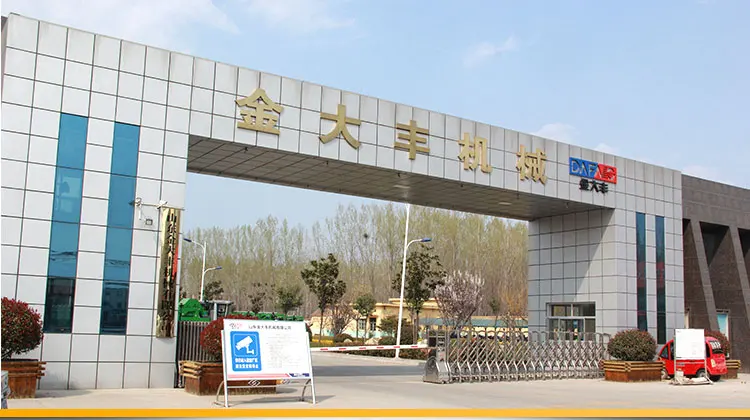

Shandong Gold Dafeng Machinery Co., Ltd. is a manufacturer of agricultural machinery that integrates R&D, manufacturing, sale and service activities. Since 1995, the Company has 20-year history of developing and manufacturing agricultural machines and witnessed the startup and growth of China harvester market. The Company totally covers 100,000m2. Till now, the phase I and phase II, which include a 33,600m2 modern standard plant building and a 1,500m2 office building, have been completed, and their total investment was more than RMB 180 million.
The Company's R&D and manufacturing focus on the corn segment. Its leading products include Gold Dafeng three-row self-propelled corn harvesters and Gold Dafeng four-row self-propelled corn harvesters, which all passed national promotion appraisal and enrolled into the list of promoted products. Meanwhile, its new generation Gold Dafeng corn harvesters have been developed and tested and ready to go on sale.
The Company is very strong in high-efficiency corn harvester development and manufacturing. Now it has 160 sets of production equipment including advanced CNC laser cutter, CNC plasma cutter, 3D cutting robot, fully automatic flat line, welding robot, electrophoresis and vanish baking equipment and flexible assembly line, and 200 sets of test equipment such as 3D coordinate measuring instrument, dynamic balancing machine, ultrasonic flaw detector, physical and chemical lab, infrared thermometer, paint film thickness gauge, etc.
Always operating in line with the honest and win-win philosophy, the Company formed good partnership with its suppliers and dealers, which in turn strengthens and stabilizes its supply and completing system. Welcome to establish a cooperative relationship with us and seek win-win development.
