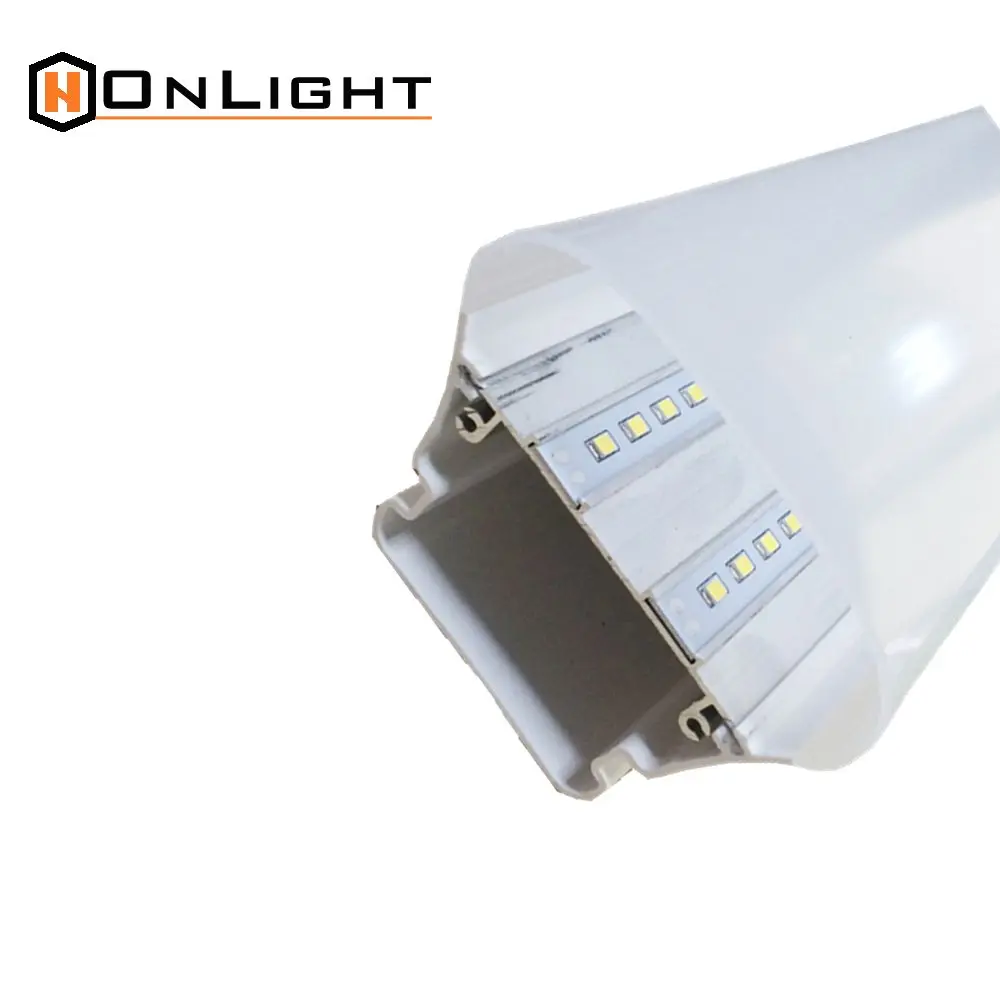

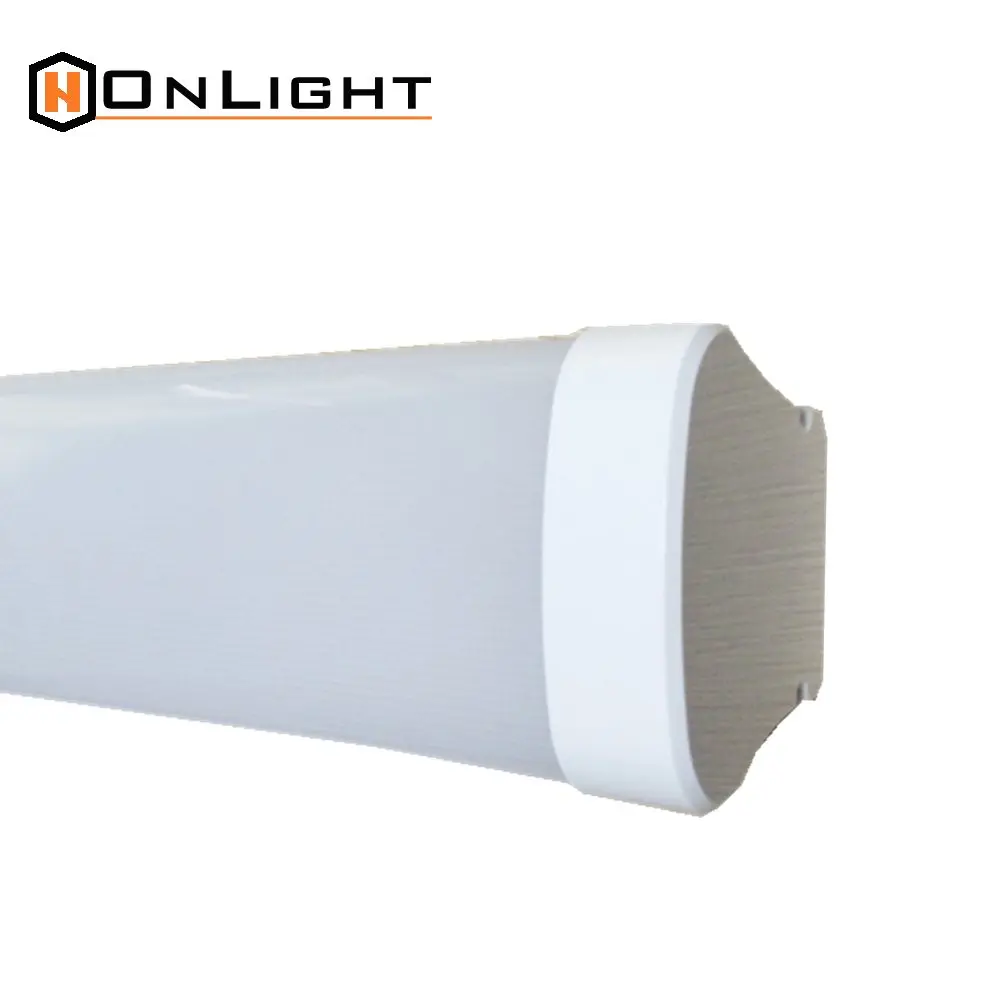

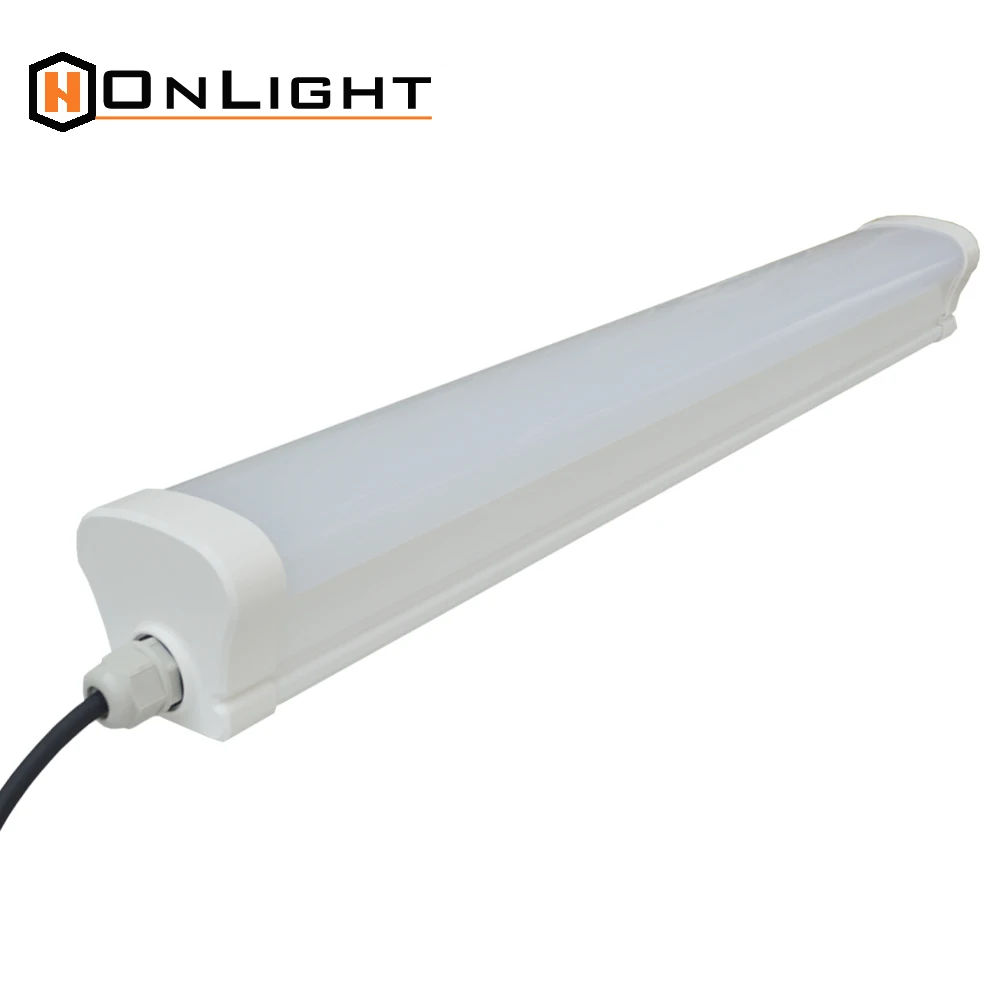

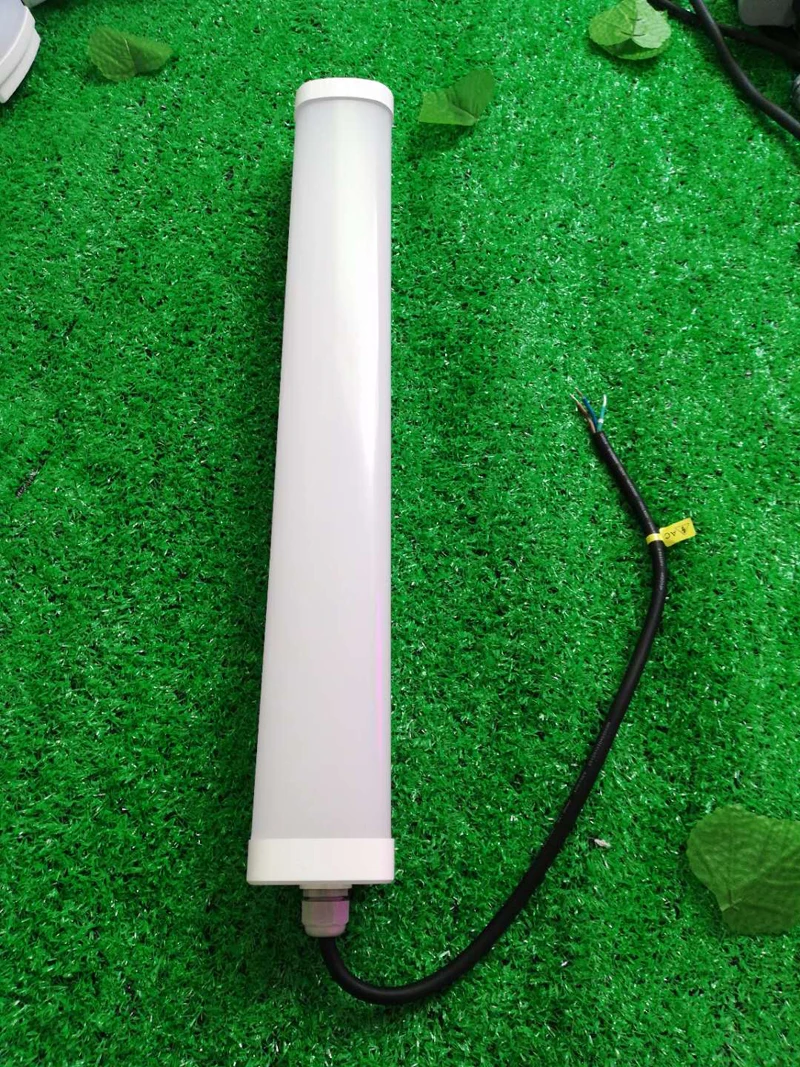

New Linear Fluorescent Replacement as led light strips 18 Watt to 60 Watt Warehouse led light bar
- Category: >>>
- Supplier: Shenzhen Hongnaxin Technology Co. Ltd.
Share on (60750727592):
Product Overview
Description

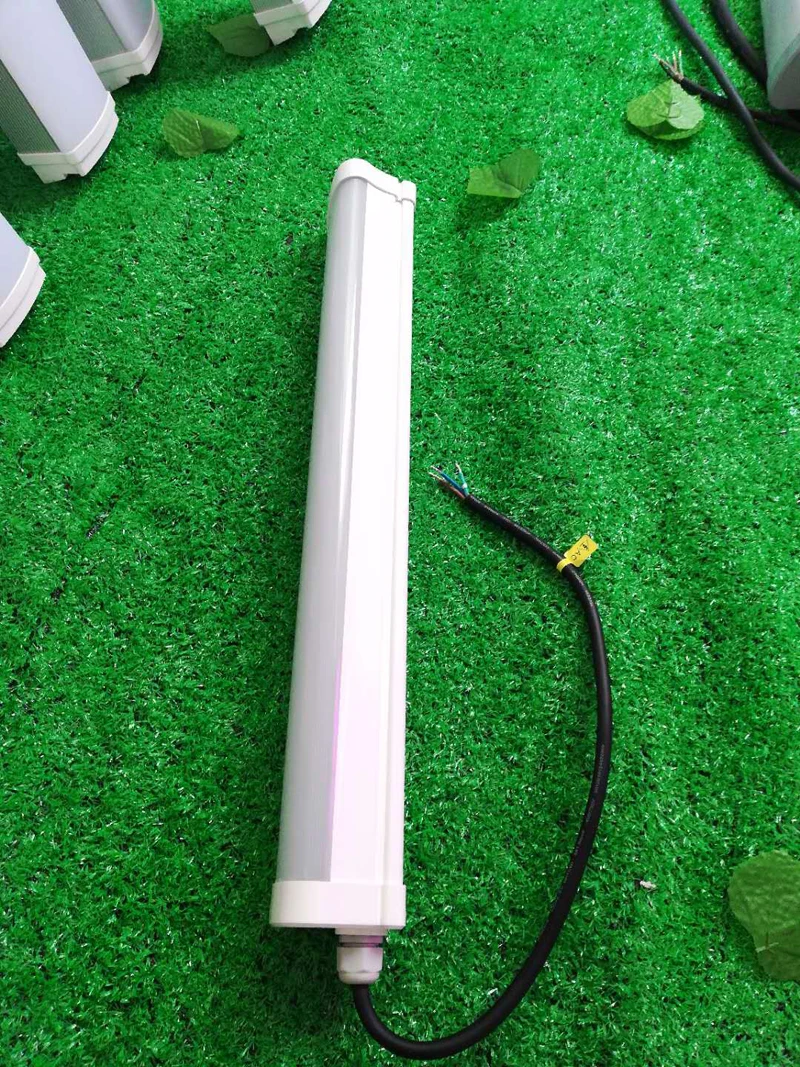

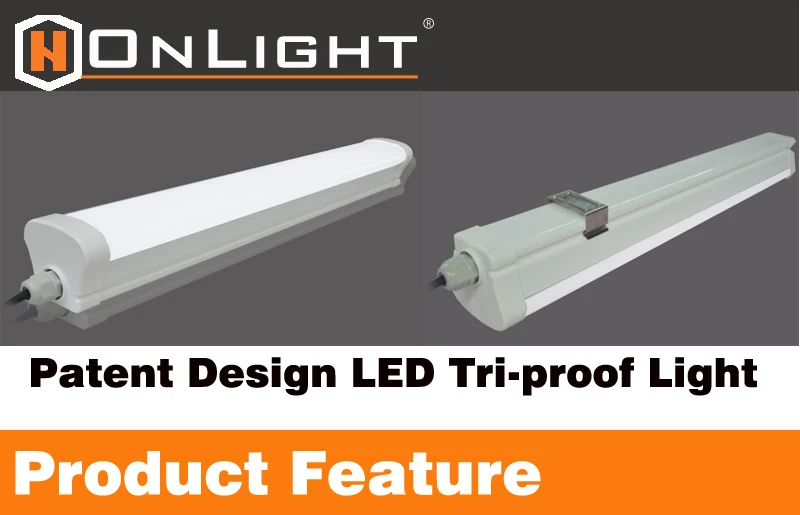

Factory directly led lighting New Linear Fluorescent Replacement as led light strips 18W to 60W Warehouse led light bar
Product Description

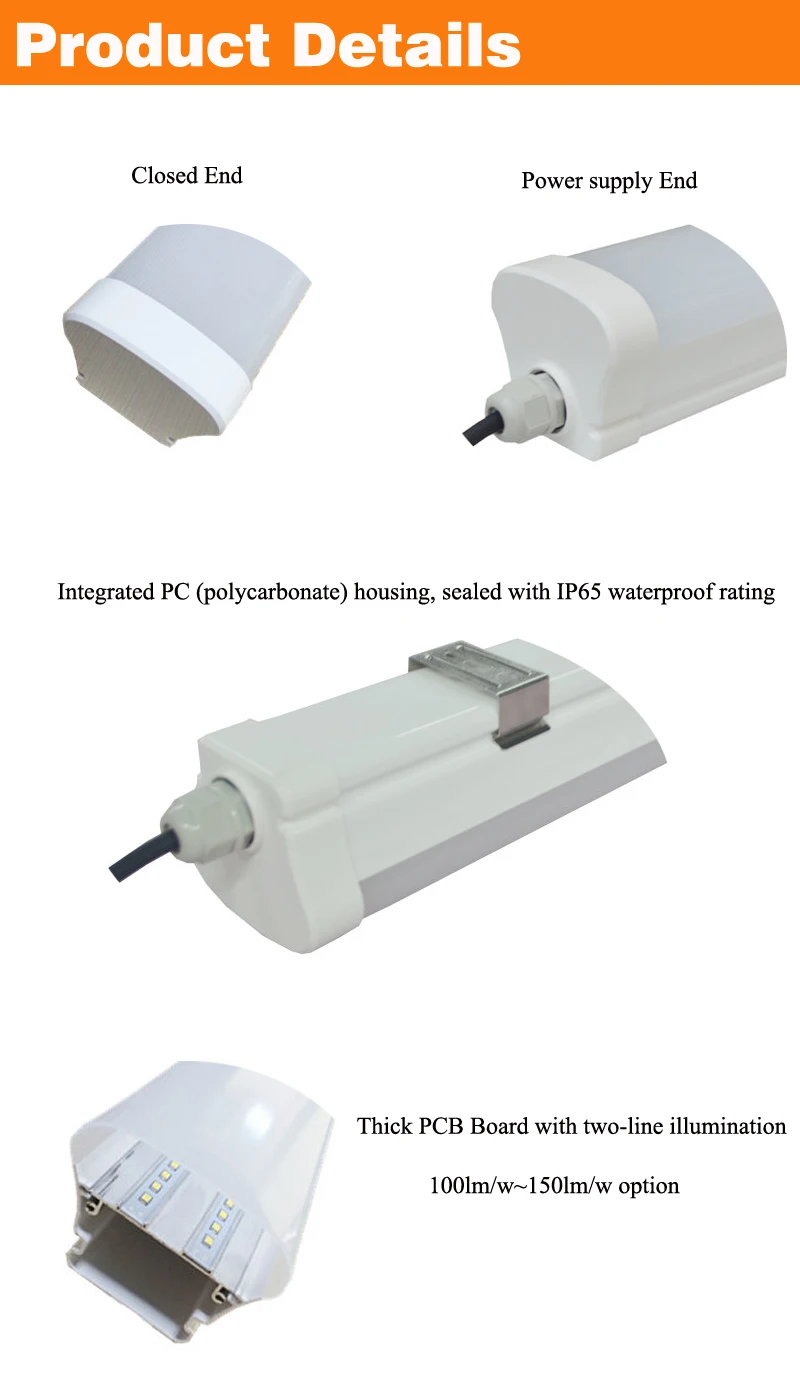

- PC housing Tri-proof led fixture for waterproof, dustproof, corrosion proof and pressure-proof, IP65
- Rated AC Input voltage AC85-265V; Safety operating voltage DC30~DC42V
- High lumination SMD2835 LED and High lumens 100-110lm/w, 120-130lm/w, 130-140lm/w
- Widely use for ambient lighting application such as office, school, warehouse, cold storage, workshop, supoermarket ect
- No UV ,No lead, No Mercury
- Being reduced 60% heat dissipation, compared with traditional fluorescent lamp
- White/Grey housing available
- 3 years warranty

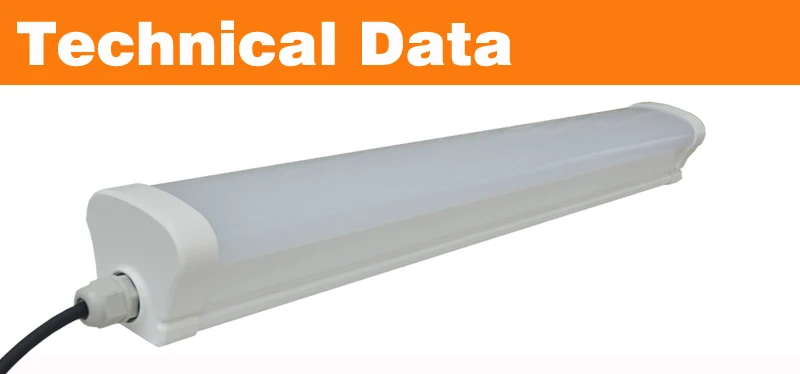

Technical Details
| Model Name: | Comapct Series |
| Part No: | HNX-TPC65-60W5F |
| Part Name: | 18W to 60W Warehouse led light bar |
| Mercury-free: | Yes |
| Body Color: | White or Grey |
| Input Power: | 60W |
| Input Voltage: | Ac 85-265V |
| Input frequency: | 50/60HZ |
| Power Factor: | >0.9 |
| Conventional lamp power to replace: | 120W |
| Energy consumption: | 60KWH/1000H |
| Lens / Diffuser | Frosted Diffuser |
| Luminous flux: | 6000lm,7200lm, 8400lm |
| Color temperature: | 2800K-6500K |
| Power supply | Single end power supply or duoble end power supply |
| Color rendering index RA: | >83 |
| Luminaries efficacy (lamp): | 100lm/w, 120lm/w, 140lm/w |
| Light Distribution angle: | 120 degree |

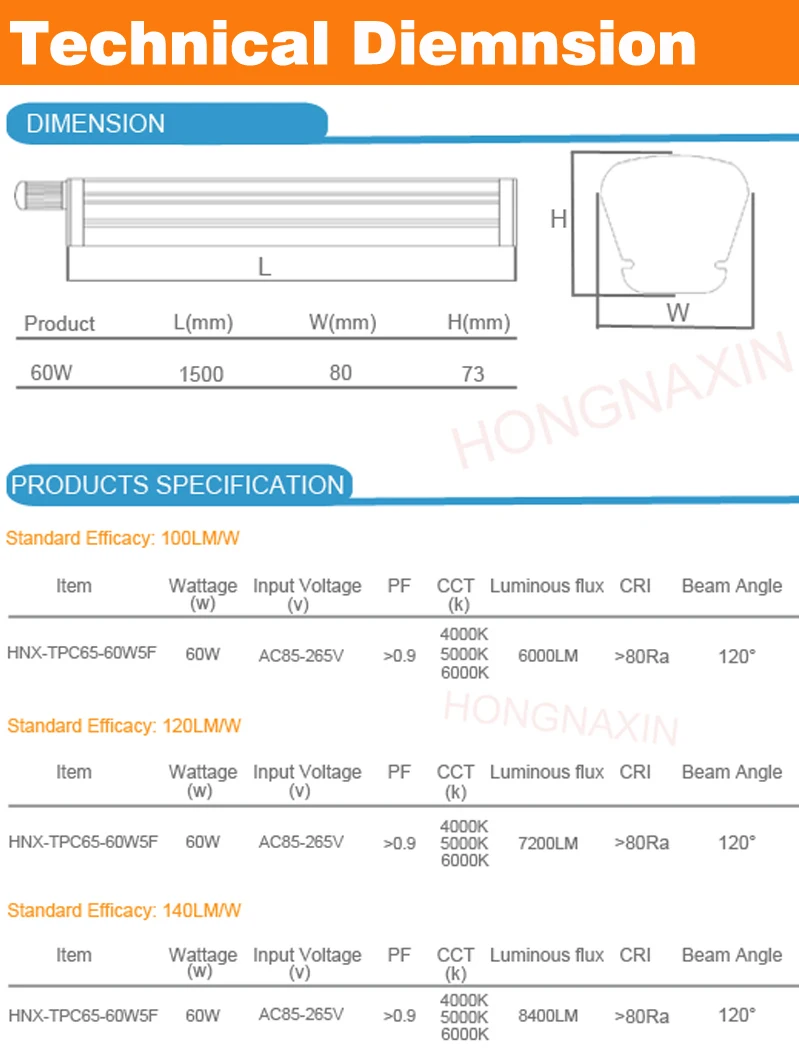

| Size: | 1500*76*69mm |
| Weight: | 1.8 kg |
| Nominal life time: | 35,000 Hours |
| 1-10V Dimmable: | Optional |
| DALI Dimmable: | Optional |
| Microwave Motion Sensor: | Yes |
| Emergency: | Optional |
| Linkable Soltuion: | Optional |
| Certificate: | CE/RoHs/LVD/EMC |

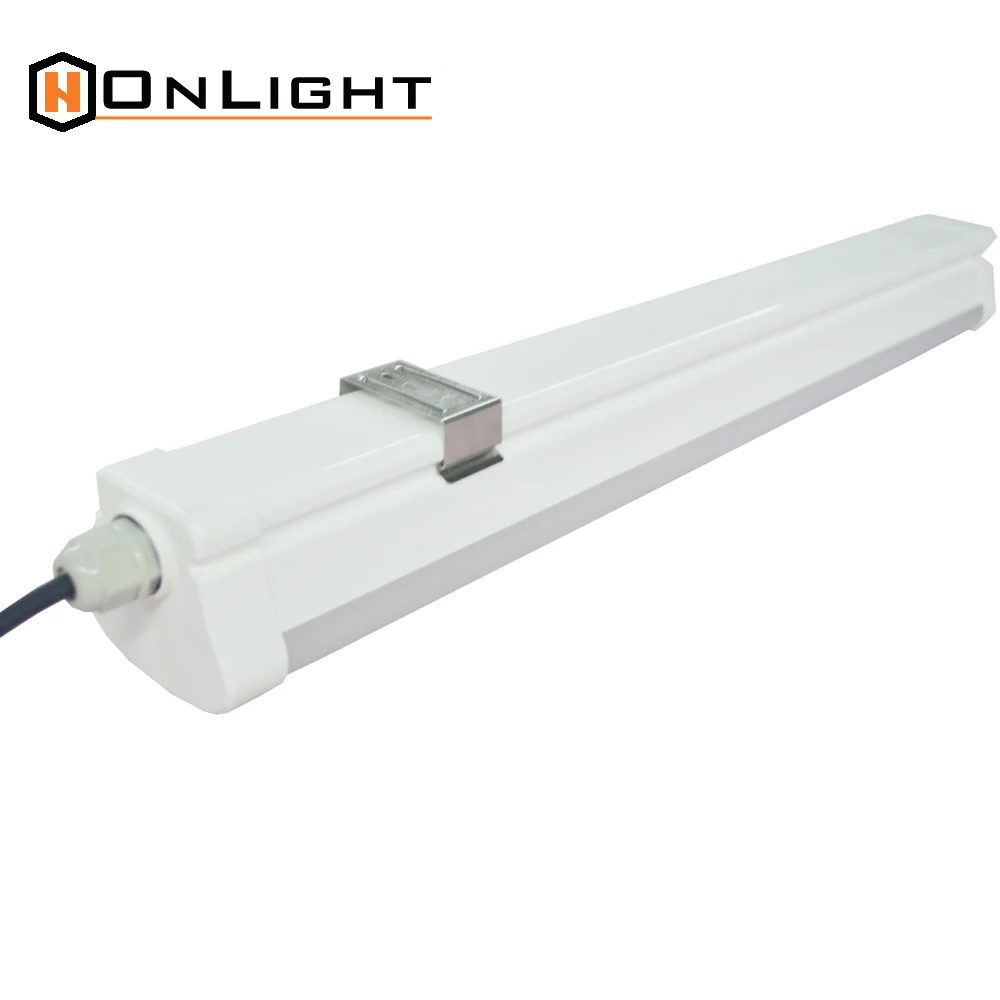

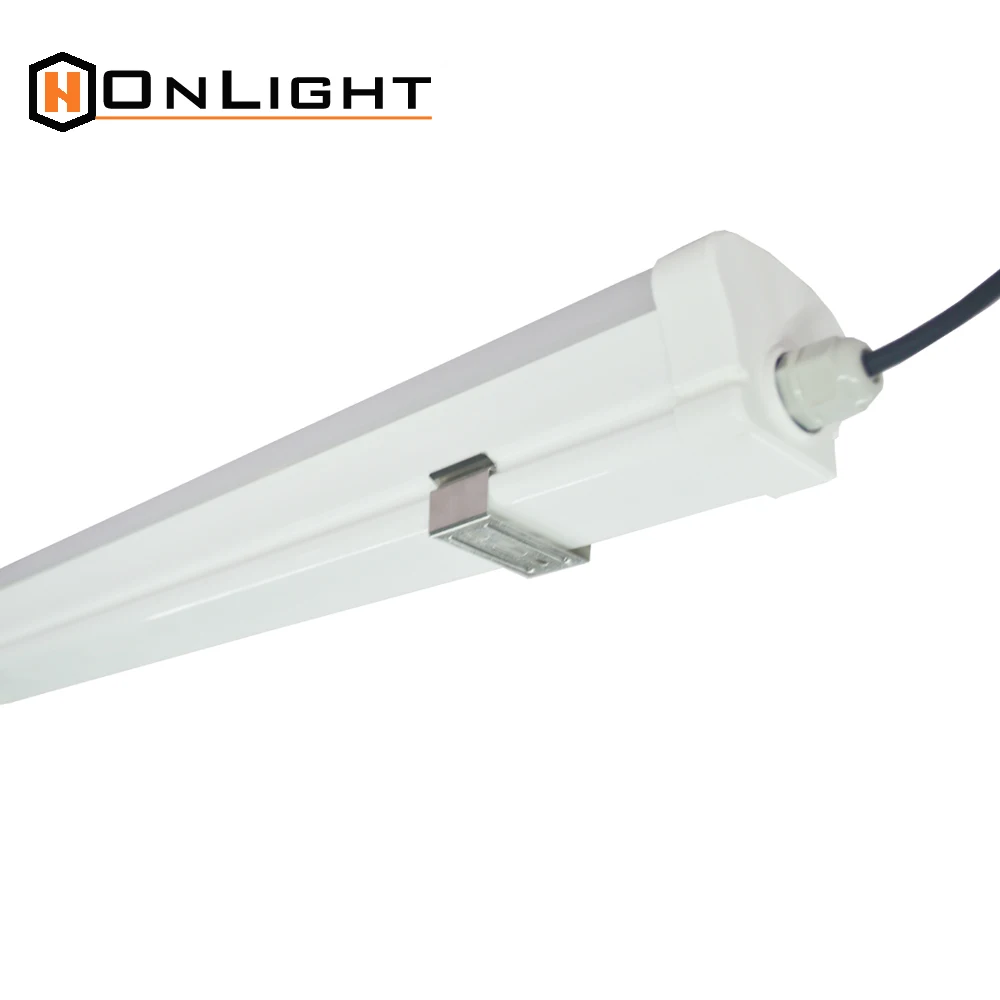

| Installation Method: | Ceiling Mounted Installation |
| Suspended Installation | |
| Waterproof Protection: | IP65 |
| Vandal Resistant Protection: | IK10 |
Installation

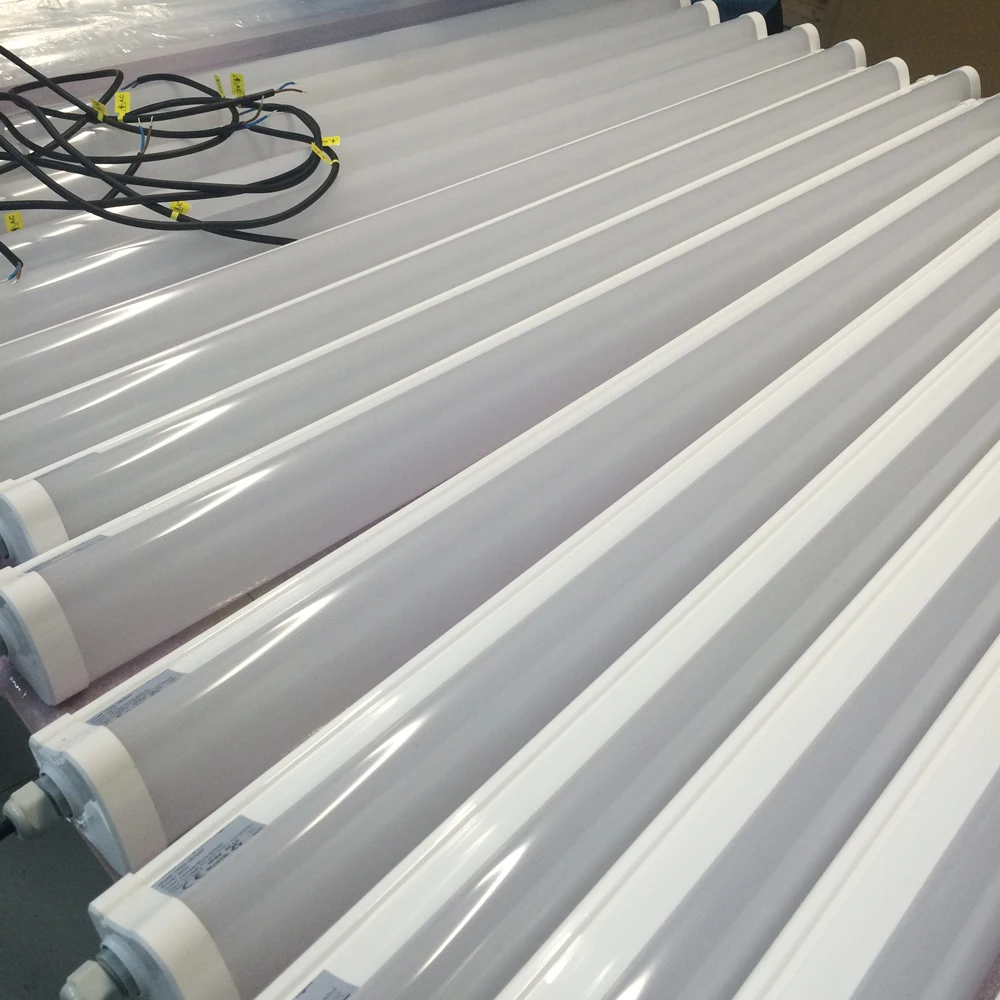

Packaging & Shipping
| Part no. | Size(mm) | LED Q'ty | Voltage | Power (W) | Power Factor(PF) | Color Temp (k) | Color-redenring Index(CRI) | CTN Size | Qty/CTN | GW/CTN |
| HNX-TPC65-18W2F | 600*80*73 | SMD2835 120PCS | AC85-265V | 18W | PF>0.9 | 3000-6500K | Ra>80 | 68*24*28cm | 6 pcs | 5.6KG |
| HNX-TPC65-20W2F | 600*80*73 | SMD2835 120PCS | AC85-265V | 20W | PF>0.9 | 3000-6500K | Ra>80 | 68*24*28cm | 6 pcs | 5.6KG |
| HNX-TPC65-36W4F | 1200*80*73 | SMD2835 220PCS | AC85-265V | 36W | PF>0.9 | 3000-6500K | Ra>80 | 128*24*28cm | 6 pcs | 8.9KG |
| HNX-TPC65-45W5F | 1500*80*73 | SMD2835 336PCS | AC85-265V | 45W | PF>0.9 | 3000-6500K | Ra>80 | 158*24*28cm | 6 pcs | 13.4KG |
| HNX-TPC65-48W5F | 1500*80*73 | SMD2835 336PCS | AC85-265V | 48W | PF>0.9 | 3000-6500K | Ra>80 | 158*24*28cm | 6 pcs | 13.4KG |
| HNX-TPC65-60W5F | 1500*80*73 | SMD2835 336PCS | AC85-265V | 60W | PF>0.9 | 3000-6500K | Ra>80 | 158*24*28cm | 6 pcs | 13.4KG |
Certifications
Our Services
Company Information
Contact & FQA
Q1: What is the warranty for the Warehouse led light bar?
A1: Warranty is 3 years for whole product of this Warehouse led light bar.
Q2: What is the led chips, light efficiency, CRI, CCT for this Warehouse led light bar?
A2: Our chips for this Warehouse led light bar are Epistar SMD2835, 100-110lm/w, 120-130lm/w, 130-140lm/w CRI>83, CCT: 3000k 3500k 4000k 4500k 5000k 5500k 6000k 6500k.
Q3: Will your Warehouse led light bar work with sensor, and battery emergency?
A3: Yes, this Warehouse led light bar can work with radar sensor and battery emergency function.
Q4: Are your Warehouse led light bar in double end power supply or single end power supply?
A4: Double end power supply and single end power supply for this Warehouse led light bar is available for your option.
Q5: Do your Warehouse led light bar accept OEM?
A5: Yes, OEM is also welcome for this Warehouse led light bar here. If you need to print your logo on the Warehouse led light bar product itself or on the outer carton box, we can make that with MOQ 500pcs. If you need any other OEM requirement, just let us know the detailed information.
