removable motor engine oil hydrualic lube transformer oil purification machine dirty oil purifier cleaning equipment
|
Part number |
AOP-V32-* |
AOP-V50-* |
AOP-V100-* |
AOP-V200-* |
|
Rated flow |
32 L/min |
50 L/min |
100 L/min |
200 L/min |
|
Rated pressure |
0.6 MPa |
|||
|
Original pressure loss |
≤0.1 MPa |
|||
|
Coarse filter accuracy |
80 μm, 120μm, 180μm, |
|||
|
Primary filtration accuracy |
5 μm, 10 μm, 20 μm |
|||
|
Secondary filtration accuracy |
3 μm |
|||
|
Oil viscosity |
10-160 cst |
|||
|
Motor power |
0.75 Kw |
1.1 Kw |
2.2 Kw |
5.5 Kw |
|
Voltage |
AC 380V three-phase |
|||
|
Weight |
220 Kg |
280 Kg |
360 Kg |
600 Kg |
|
Dimensions(mm) |
900×600×1080 |
1000×600×1080 |
1200×880×1280 |
1350×900×1870 |

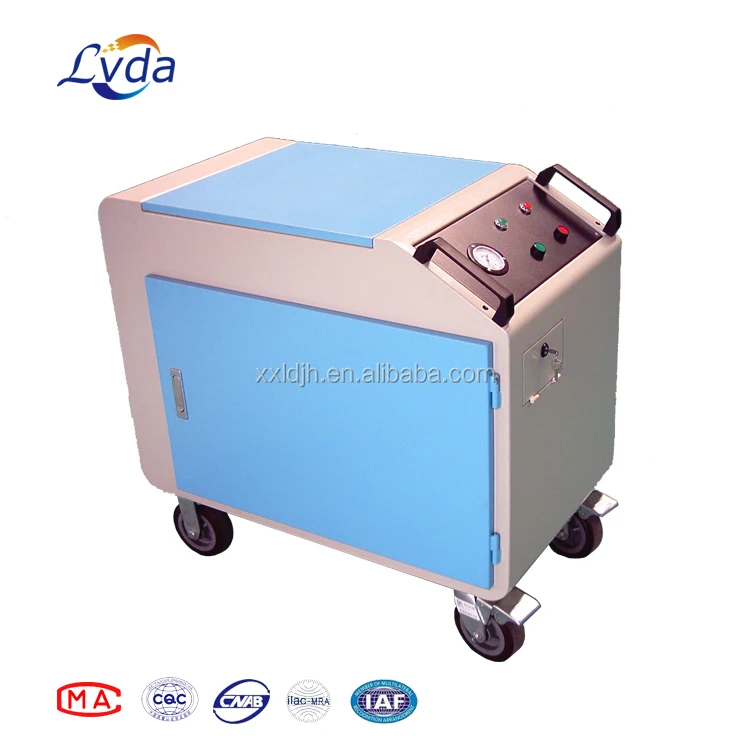

This oil purifier uses a refined shell to cover all components to protect the equipment from external pollution, and is especially suitable for occasions with high requirements for the use environment. This machine includes a gear pump driven by a motor, which has the characteristics of low noise, strong corrosion resistance and stable operation.
The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system. Use thermal relay protection to prevent motor damage caused by motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main filter.
There is a secondary fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
The precision filter can be selected with different precisions according to the different needs of users to achieve the required results.
The oil purifier shell adopts a quick opening structure, which can quickly and quickly open the upper cover and replace the filter element. The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the degree of pollution of the filter element during work.


Xinxiang Lvda Purification Equipment Co., Ltd. is a factory with more than 20 years of production experience. We specialize in the production, development and sales of filters, hydraulic filter elements, air compressor filters, oil filters, water filters, metal filters, oil filters and other products, and can also be customized according to customer requirements. Customers in more than 100 countries including Asia, Europe, North America, South America, Africa, etc.
lvda has been recognized in the professional field and has been continuously praised by customers.
| Brands | LVDA |
| Corporate name | Xinxiang Lvda Purification Equipment CO., Ltd. |
| Established year | 1997 year |
| Company address | Xinxiang Filtration Industrial Park in China |
| Factory Size(Sq.meters) | 15000.00 square meters |
| Number of Employess | 100-150 people |
| Number of R&D Staff | 10-20 people |
| Product/Service | Air filter element; metal filter; oil purifier machine |
| Management certification | ISO:9001, IQNet, CE |
Pre-sale service
1.We have stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 5-10 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
