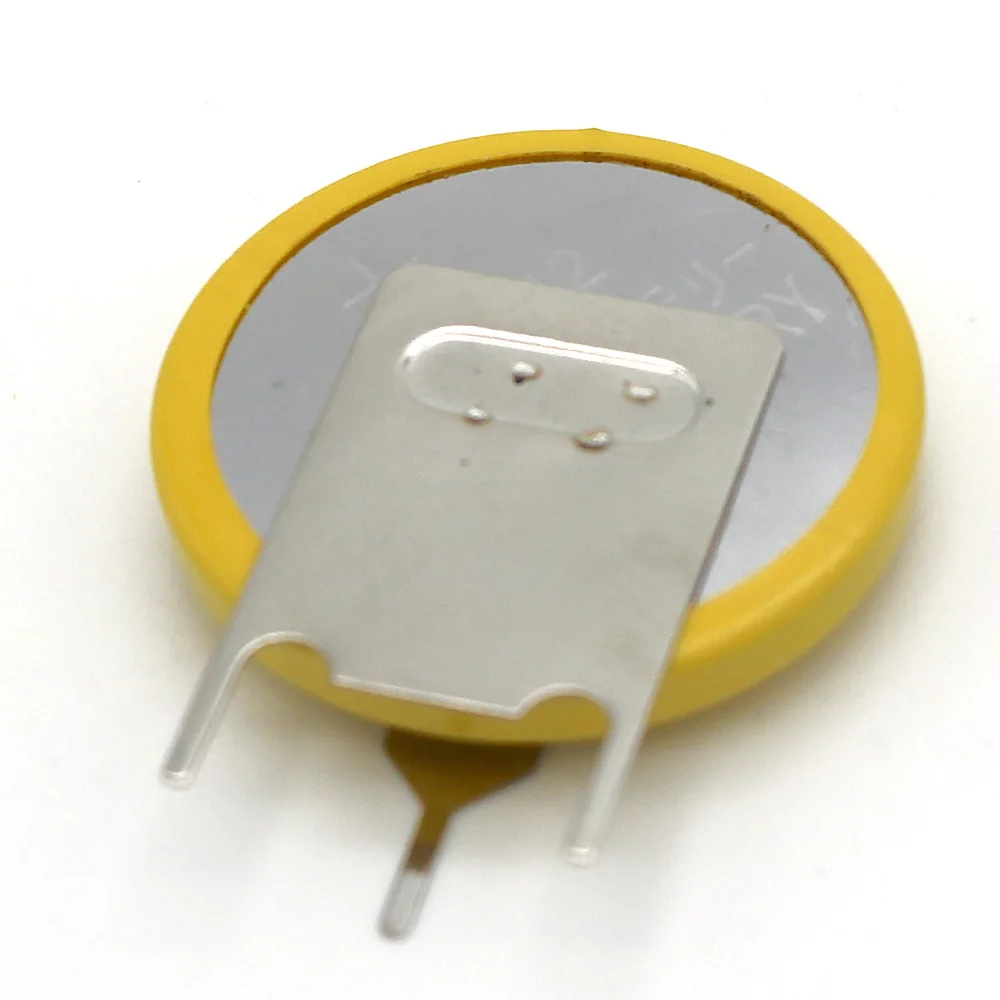

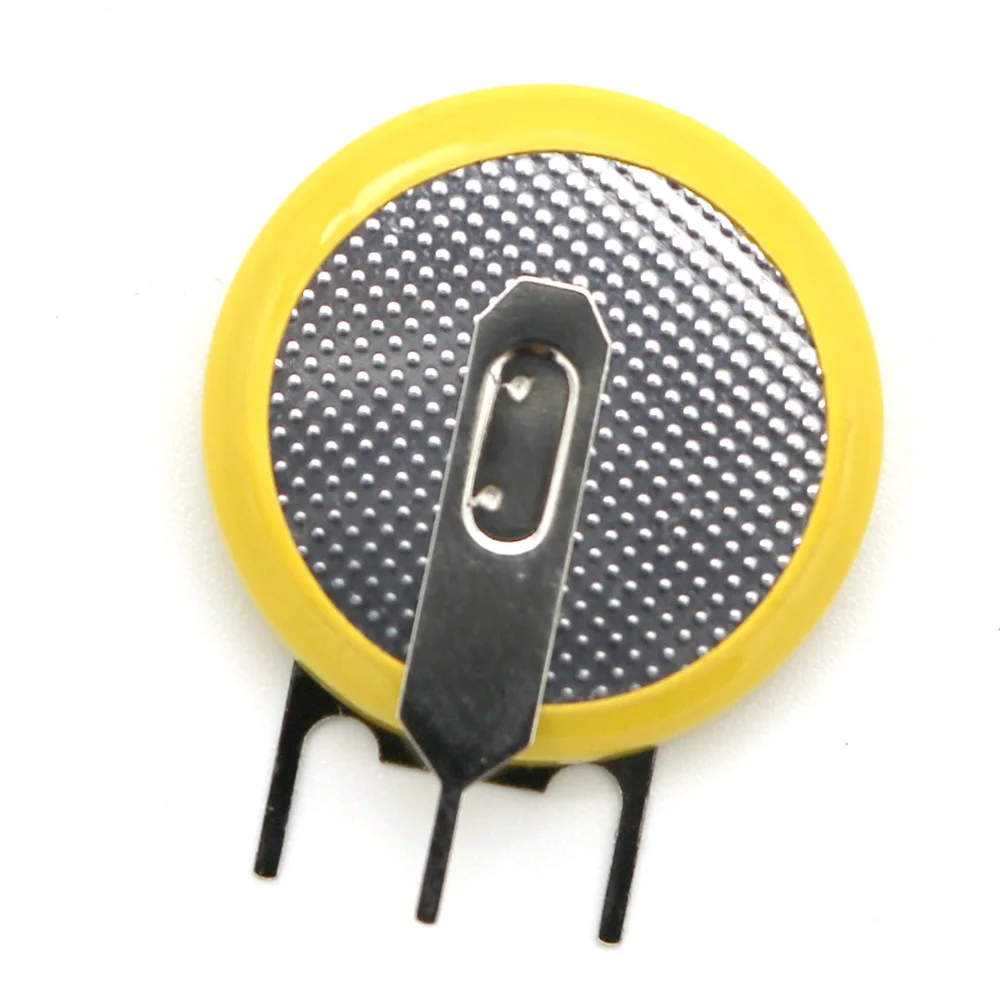

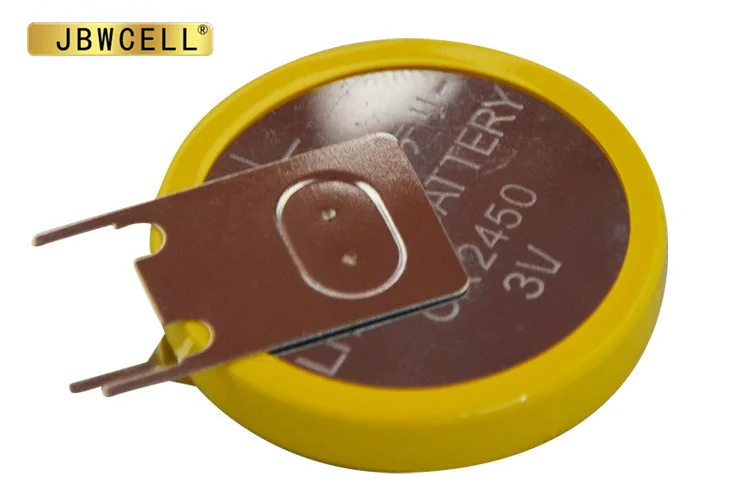

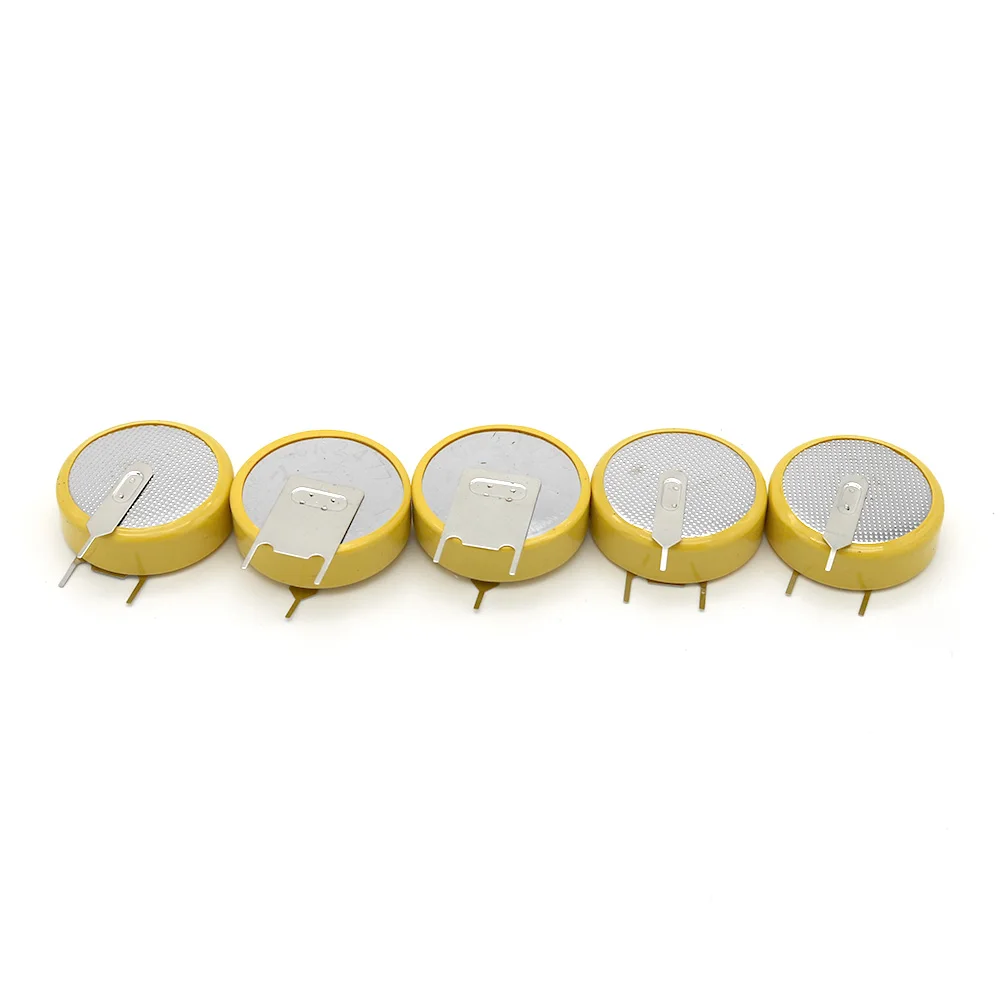

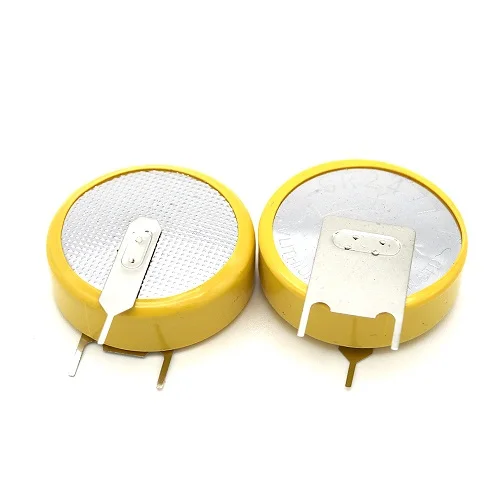

cr2450 batterycr with solder tabs 3V 180 Degree 3 Feet welding Solder Pins
- Category: >>>
- Supplier: Shenzhen Jbwcell Battery Co. Ltd.
Share on (60750760301):
Product Overview
Description
Cr2450 Lithium Button Cell Battery With Solder Pins Tabs Tags
![NMZP)]GA_W8S$X]{Z1W}XH8_.png](http://sc02.alicdn.com/kf/HTB16abPcS8YBeNkSnb4761evFXaj/232893838/HTB16abPcS8YBeNkSnb4761evFXaj.png)
Product Description
| Battey Type | 3V button cell battery with wires and connector | ||||||||||||
| Brand | JBWCELL or OEM | ||||||||||||
| Model | CR2450 | ||||||||||||
| Size | 24.5*5.0mm | ||||||||||||
| Voltage | 3V | ||||||||||||
| Capacity | 550mAh | ||||||||||||
| Shelf Life | 5 years | ||||||||||||
| Chemical System | Lithium manganese dioxide button battery (Non-Hg, Non-Cadmium) | ||||||||||||
| Certifications | RoHS SGS REACH MSDS | ||||||||||||
| Description | 3V Lithium manganese dioxide button battery | ||||||||||||
| Storage Performance | After 12 months storage at specified conditions, discharge capacity should be no less than 80% of the original discharge capacity. | ||||||||||||
| Package | Tray bulk, blister card, shrink, box, clamshell. | ||||||||||||
| Shipping | 3-20 working days | ||||||||||||
Related Products
| Model | Voltage(V) | Norminal Capacity (mAh) | Dimension (mm) | Weight (g) | Recommended Continuous Drain(mA) | Recommended Pulse Drain(mA) |
| CR927 | 3 | 30 | 9.5*2.7 | 0.8 | 0.1 | 5 |
| CR1025 | 3 | 30 | 10*2.5 | 0.8 | 0.1 | 5 |
| CR1130 | 3 | 60 | 11.5*3.0 | 1 | 0.1 | 5 |
| CR1212 | 3 | 18 | 12.5*1.2 | 0.5 | 0.05 | 5 |
| CR1216 | 3 | 26 | 12.5*1.6 | 0.7 | 0.1 | 5 |
| CR1220 | 3 | 36 | 12.5*2.0 | 0.8 | 0.1 | 5 |
| CR1225 | 3 | 50 | 12.5*2.5 | 1 | 0.1 | 5 |
| CR1530 | 3 | 90 | 15*3.0 | 1.5 | 0.1 | 8 |
| CR1616 | 3 | 50 | 16*1.6 | 1.2 | 0.1 | 5 |
| CR1620 | 3 | 70 | 16*2.0 | 1.4 | 0.1 | 5 |
| CR1625 | 3 | 90 | 16*2.5 | 1.4 | 0.1 | 8 |
| CR1632 | 3 | 125 | 16*3.2 | 2.3 | 0.1 | 5 |
| CR2016 | 3 | 80 | 20*1.6 | 1.6 | 0.1 | 10 |
| CR2020 | 3 | 120 | 20*2.0 | 2 | 0.1 | 10 |
| CR2025 | 3 | 150 | 20*2.5 | 2.5 | 0.2 | 15 |
| CR2032 | 3 | 230 | 20*3.2 | 3.1 | 0.3 | 15 |
| CR2050 | 3 | 300 | 20*5.0 | 4.2 | 0.2 | 18 |
| CR2320 | 3 | 130 | 23*2.0 | 3 | 0.2 | 15 |
| CR2325 | 3 | 180 | 23*2.5 | 3.5 | 0.2 | 15 |
| CR2330 | 3 | 250 | 23*3.0 | 4 | 0.3 | 15 |
| CR2335 | 3 | 330 | 23*3.5 | 5 | 0.3 | 15 |
| CR2354 | 3 | 530 | 23*5.4 | 6.3 | 0.3 | 20 |
| CR2430 | 3 | 280 | 24.5*3.0 | 4.3 | 0.4 | 20 |
| CR2450 | 3 | 550 | 24.5*5.0 | 6.2 | 0.4 | 25 |
| CR2477 | 3 | 1000 | 24.5*7.7 | 10.5 | 0.4 | 25 |
| CR3032 | 3 | 500 | 30*3.2 | 7.1 | 0.4 | 25 |
