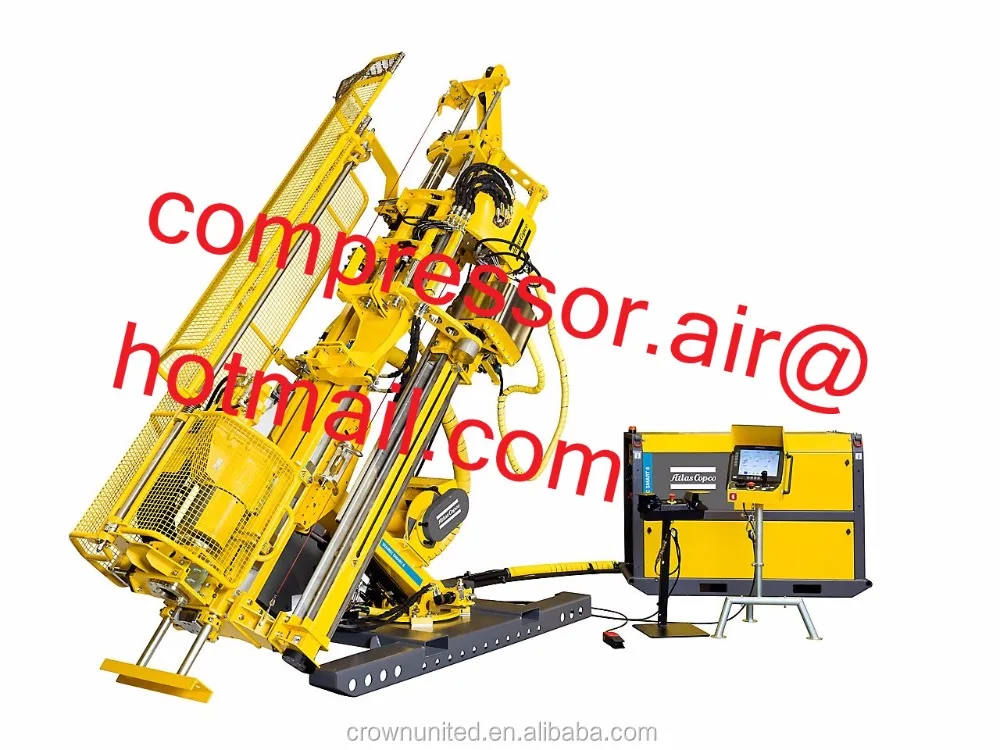

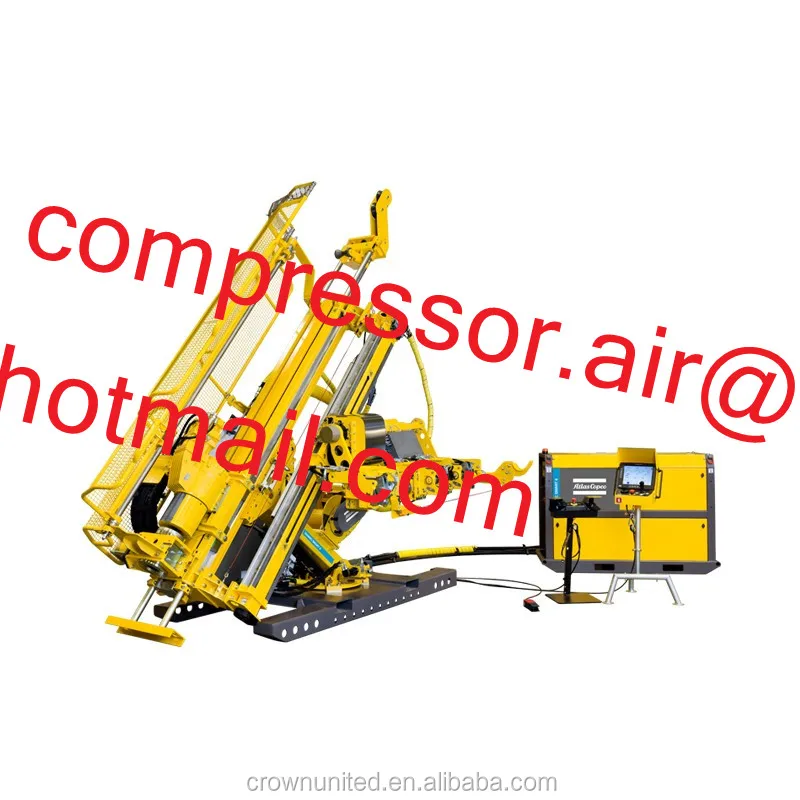

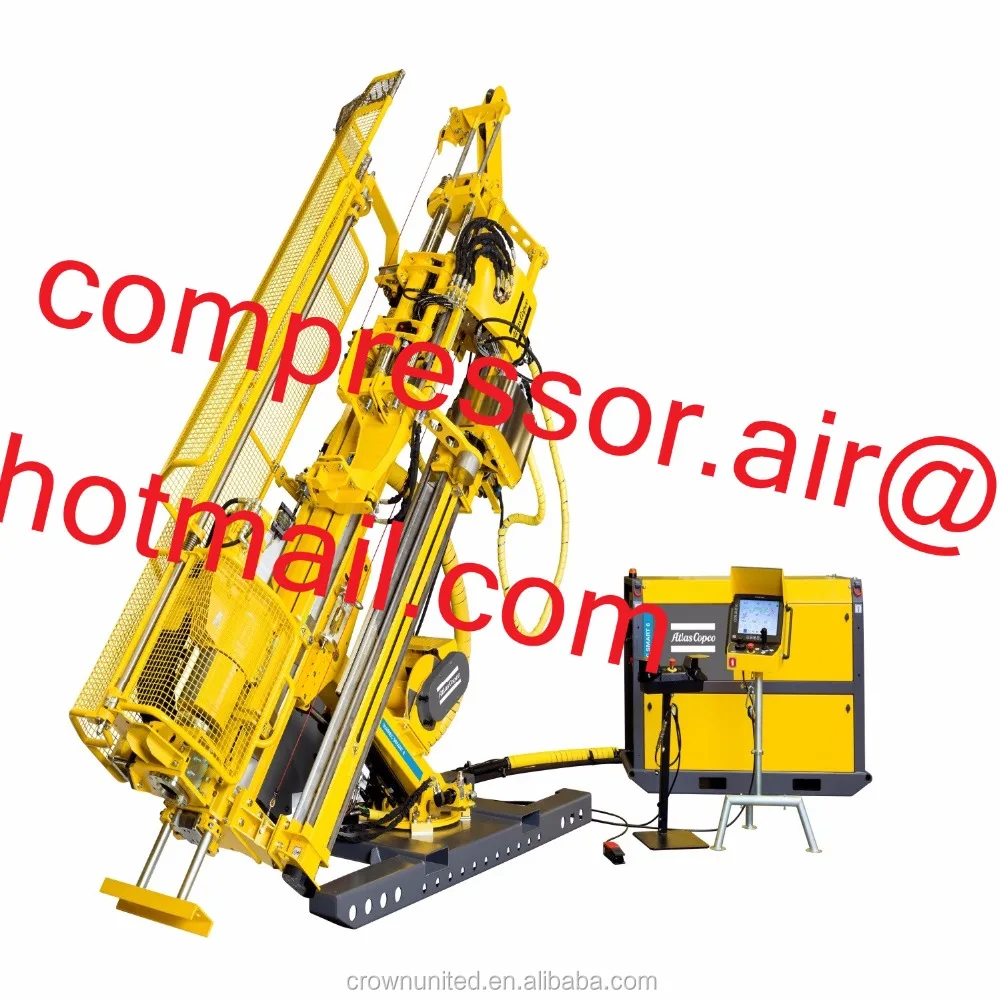

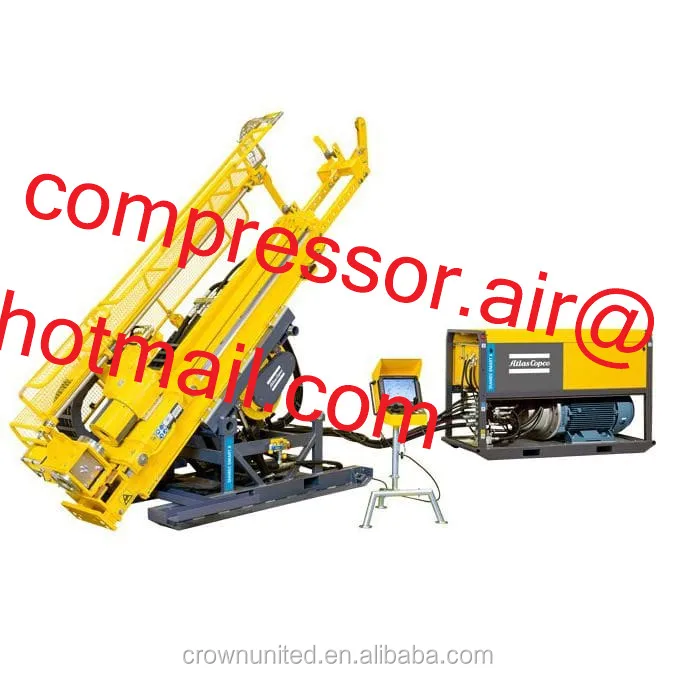

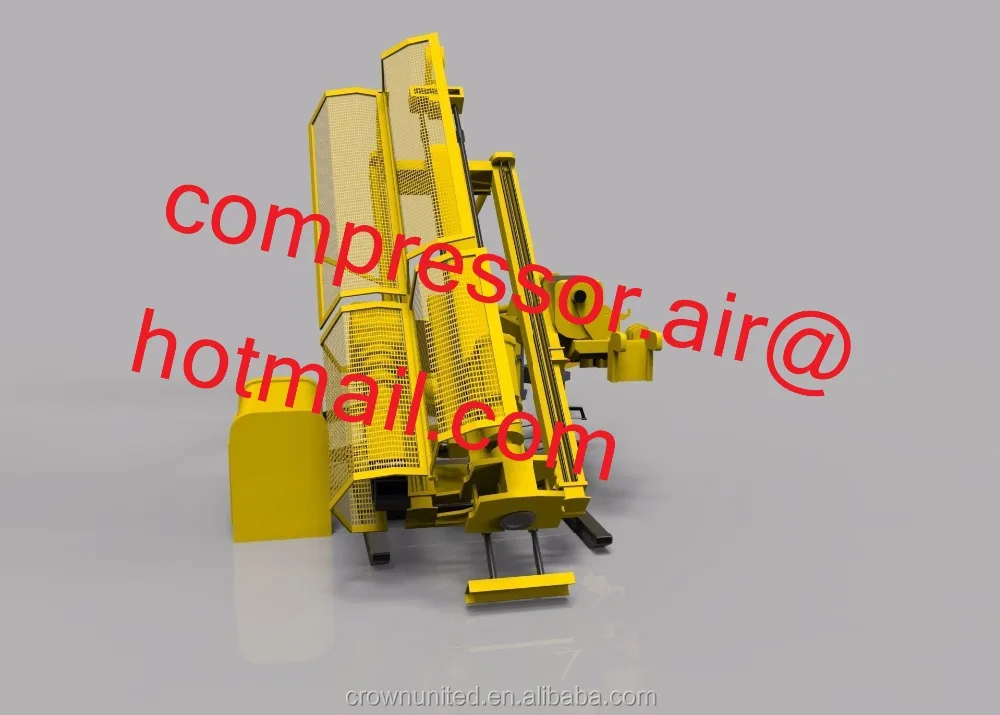

Diamec Smart 4

Underground core drilling rig

Automated drilling

Less time wasted between holes

Versatility at its best



Diamec Smart RCS

Compact and smart



Product description

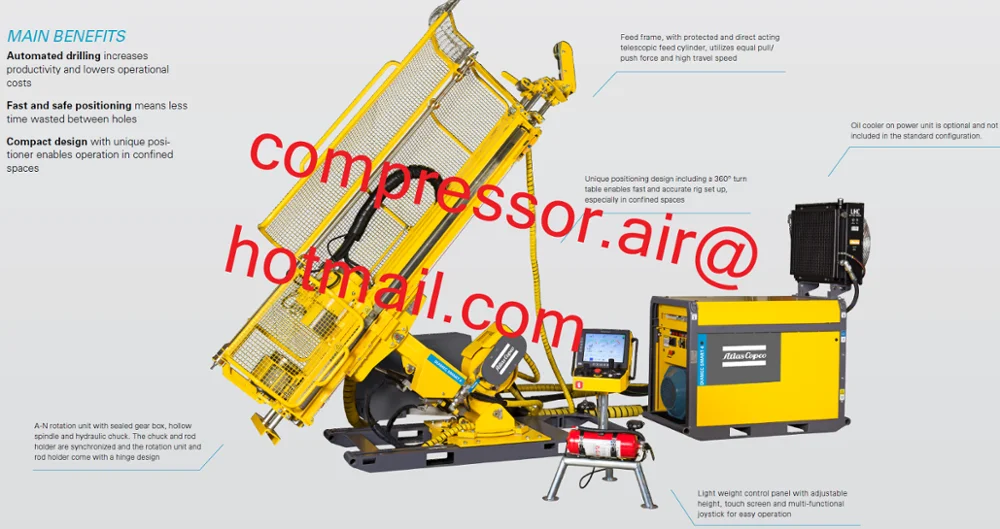

The Diamec Smart 4 is compact and powerful for its size as well as easy to set up. Ideal for both underground and surface drilling, it can be equipped with a long or short feed frame and wire line equipment. The “push-equals-pull” feed cylinder also allows for maximum capacity for uphole and downhole drilling. A unique positioner system facilitates movement of the feed frame through 180 degrees. With the aid of levers, the synchronized dual hydraulic cylinders move the feed frame from vertically downwards all the way up to vertically upwards – and there’s no need to move the wire line winch. This ensures exact lining up to existing holes. A turntable is also available for easier horizontal adjustment.

Quick facts

• Metric
• US/Imperial

TECHNICAL DATA

Main application area	Underground exploration
Drilling method	Core drilling
Drilling diameter	A ; B ; N
Drilling depth capacity (see note)	0 m - 900 m
Chuck inner diameter	78 mm
Max. torque	744 Nm
Feed type	Direct acting cylinder feed
Feed force	52 kN
Pull force	52 kN
Max. rod size	89 mm
Installed power	45 kW
Control system	CanBus Control-RCS4 with touch screen control panel
Carrier option	Skid
Main optional equipment	Flush pump ; Air oil cooler ; Bracing device
Note	The drill depth capacities only serve as guidelines and refer to vertical down drilling. Epiroc cannot guarantee that these results can be achieved in all drilling conditions. You find details about technical specifications in the brochure.

TRANSPORT DIMENSIONS (DRILL RIG)

Height	2 050 mm
Length	3 050 mm
Width	1 100 mm
Weight	1 500 kg

Downloads

• Diamec Smart 4 brochure







Diamec Smart with rod handler



The two-hand controller ensures that the rod handler is operated safely



New horizons for safety

11 January, 2016



Diamec PHC 8

Underground core drilling rig

Raw power

Flexible

Tried and tested



A rig which provides unbeatable power and reliability

Drill rigs

Exploration drilling rigs

Underground core drilling rigs

Diamec PHC 6

• Diamec PHC 6

  Underground core drilling rig

  Powerful and flexible

  Built for reliability, safety and durability

  Tried and tested

  Powerful, rugged and flexible

  Product description

  The Diamec PHC 6 is a powerful and flexible machine. It’s available with various feed lengths, standard and deep hole feed cylinders and three different rotation heads. The rig can be configured to serve a large variety of drilling applications. The Diamec PHC 6, in common with the other Diamec rigs, is fitted with a sychronized rod holder and chuck, making it impossible to drop rods because of human error.






  Technical data

  • Metric
  • US/Imperial

  TECHNICAL DATA

  Main application area	Surface exploration ; Underground exploration
  Drilling method	Core drilling
  Drilling diameter	A ; B ; N ; H
  Drilling depth capacity (see note)	0 m - 1 300 m
  Chuck inner diameter	101 mm
  Max. torque	2 390 Nm
  Feed type	Direct acting cylinder feed with equal feed/pull force
  Feed force	89 kN
  Pull force	89 kN
  Max. rod size	89 mm
  Installed power	90 kW
  Control system	Pilot hydraulic
  Carrier option	Skid ; Mobile carrier (MCR)
  Main optional equipment	Flush pump ; Air oil cooler ; Bracing device
  Note	The drill depth capacities only serve as guidelines and refer to vertical down drilling. Epiroc cannot guarantee that these results can be achieved in all drilling conditions. You find details about technical specifications in the brochure.

  TRANSPORT DIMENSIONS (DRILL RIG)

  Height	2 100 mm
  Length	3 300 mm
  Width	1 100 mm
  Weight	2 000 kg

  Downloads

  • Diamec PHC range brochure
• Drill rigs
• Exploration drilling rigs
• Underground core drilling rigs
• Diamec PHC 4

Diamec PHC 4

Underground core drilling rig

Powerful, compact and flexible

Built for reliability, safety and durability

Tried and tested
