10 Вт/м. k ультра мягкие проводящие прокладки, используемые для листа интерфейса охлаждения высокой температуры TIM

Product Overview

Description

10w/m.k  ultra soft conductive pads used for TIM high temperature cooling interface sheet



Product Introduction:

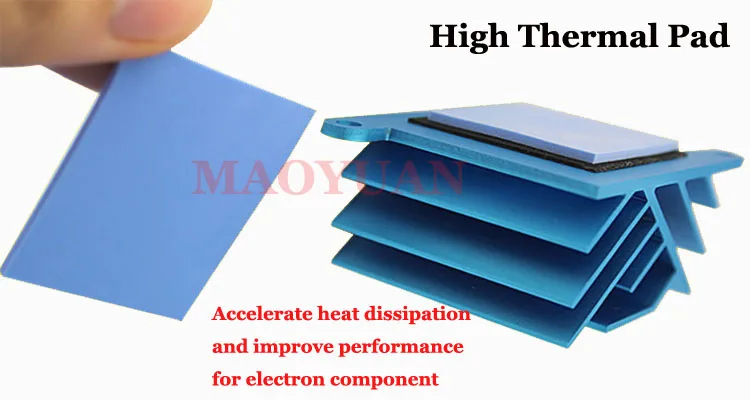

Thermal conductive pad is high-performance,thermal conductive gap filling materials, mainly for the transmission interface between the electronic equipment,and heat sink or product outer coving. With nice stickiness,flexibility, good compression performance and excellent heat conductivity,it make the products can discharge gas from the electronic original and heat sink, to achieve fully conforming and obviously cooling effect. .



Features & benefits:

High reliability & High thermal conductivity

High compressibility, soft and flexible

Natural stickiness, no extra surface frontal adhesives

Meet with the environmental requirements of ROHS and UL

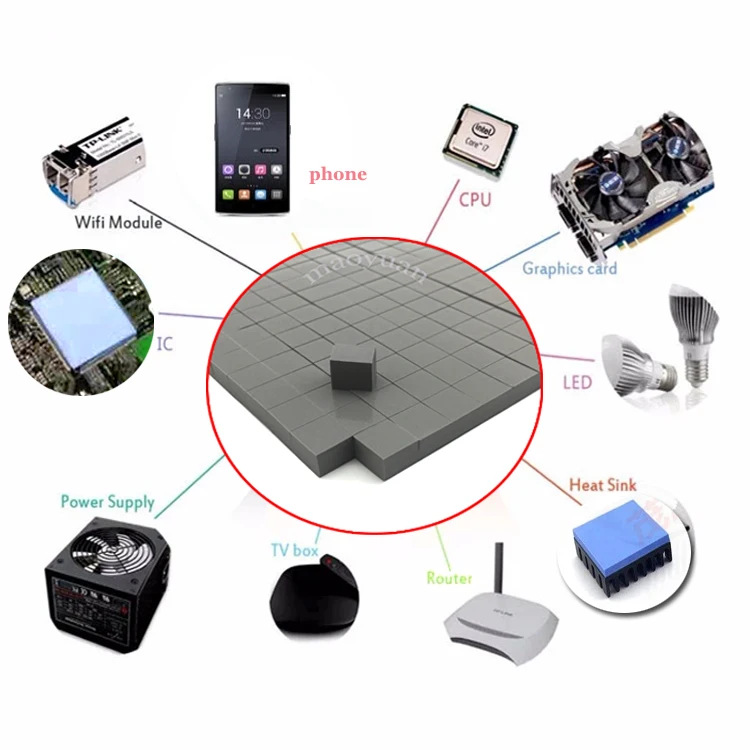

Typical Application:

Communication equipment	Mobile equipment
LED Light	Video equipment
Switching power supply	Networking equipment
Back light model	Household appliances
Medical equipment	PC server/workstations



Technicial Properties:



Test Item	Test Method	Unit	Test Value
Color	Visual	-	Grey/Black/Blue/Pink
Thickness	ASTM D374	Mm	0.25 to 20.0
Specific Gravity	ASTM D792	g/cm3	1.8±0.1
Hardness	ASTM D2240	Shore C	18±5 to 40±5
Tensile Strength	ASTM D412	kg/cm2	8-55
	ASTM D412	Pa	5.88*10 9
Continous Use Temp	EN344	℃	-40 to +220
Volume Resistivity	ASTM D257	Ω-CM	1.0*1011
Breakdown Voltage	ASTM D149	KV/mm	4
Flame Rating	UL-94	-	V-0
Conductivity	ASTM D5470	w/m-k	10

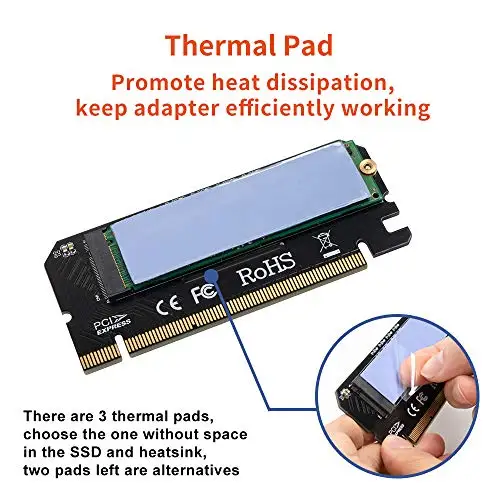

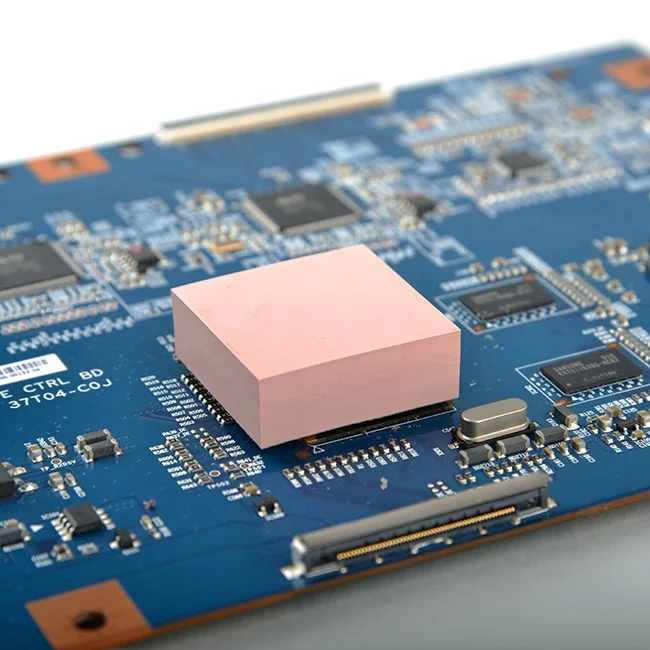

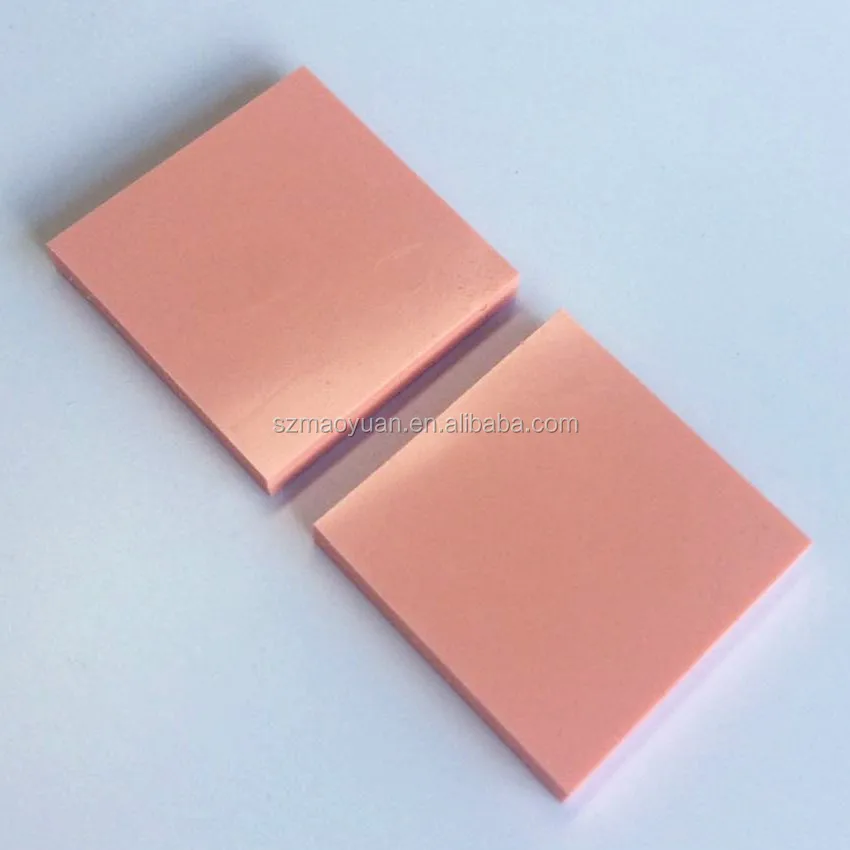

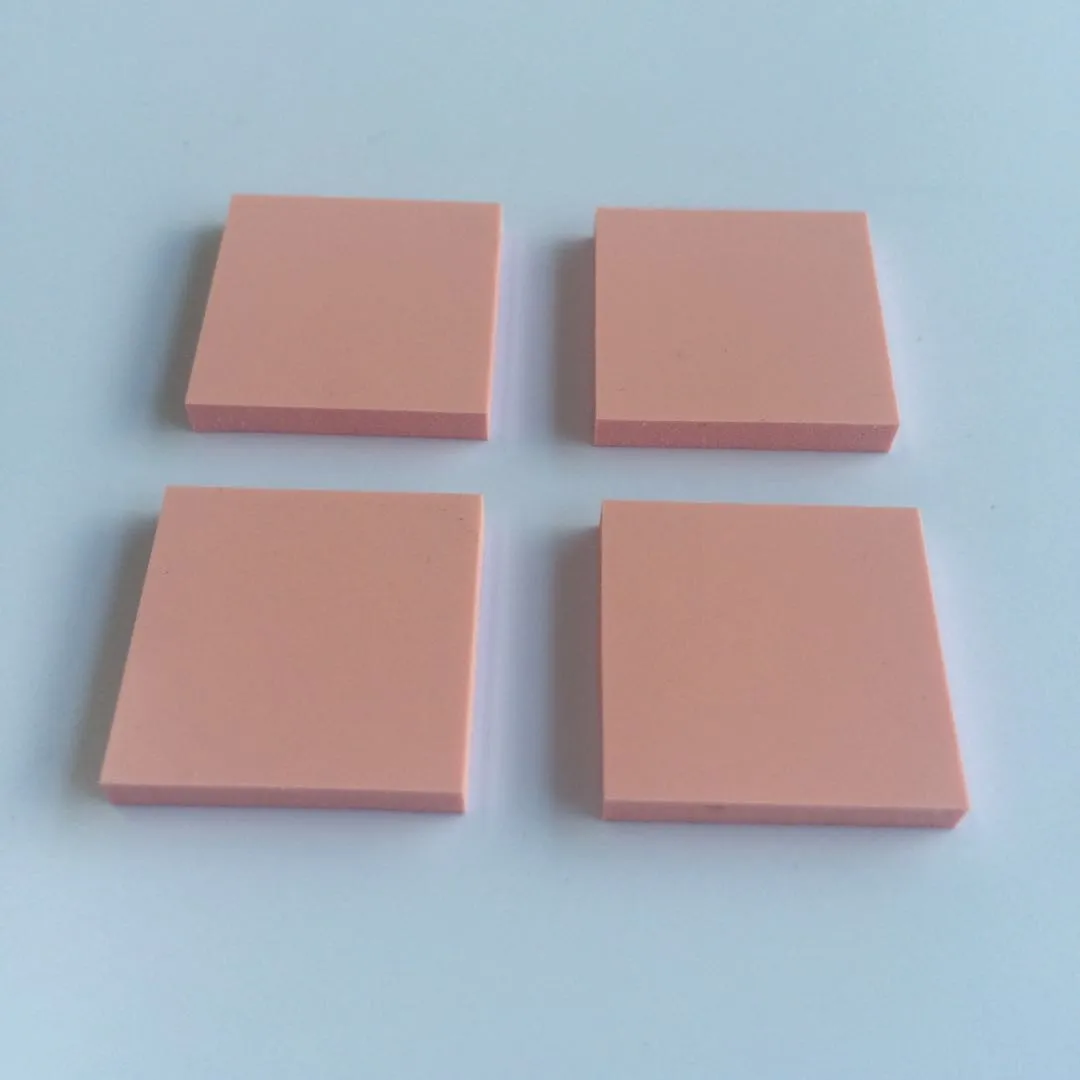

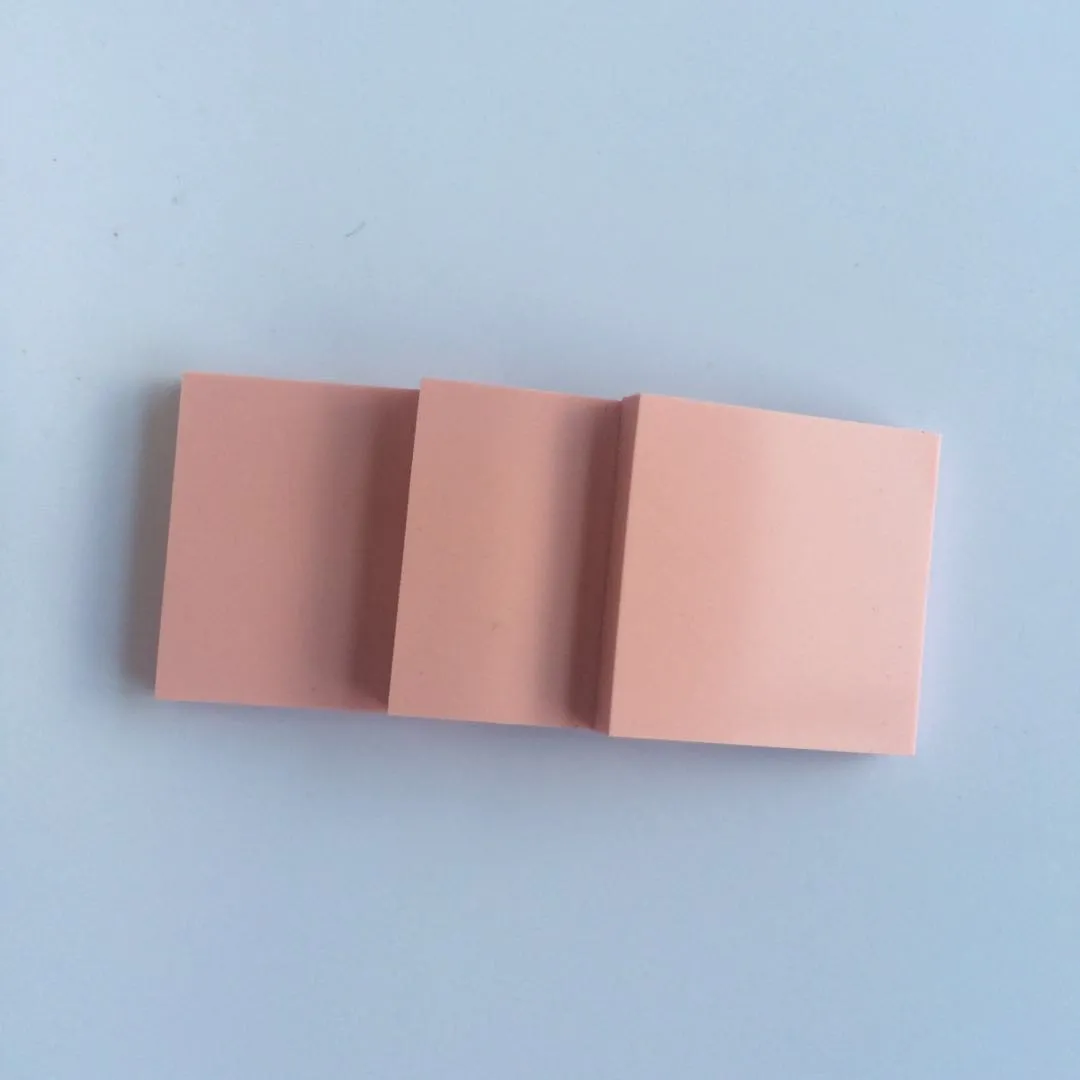

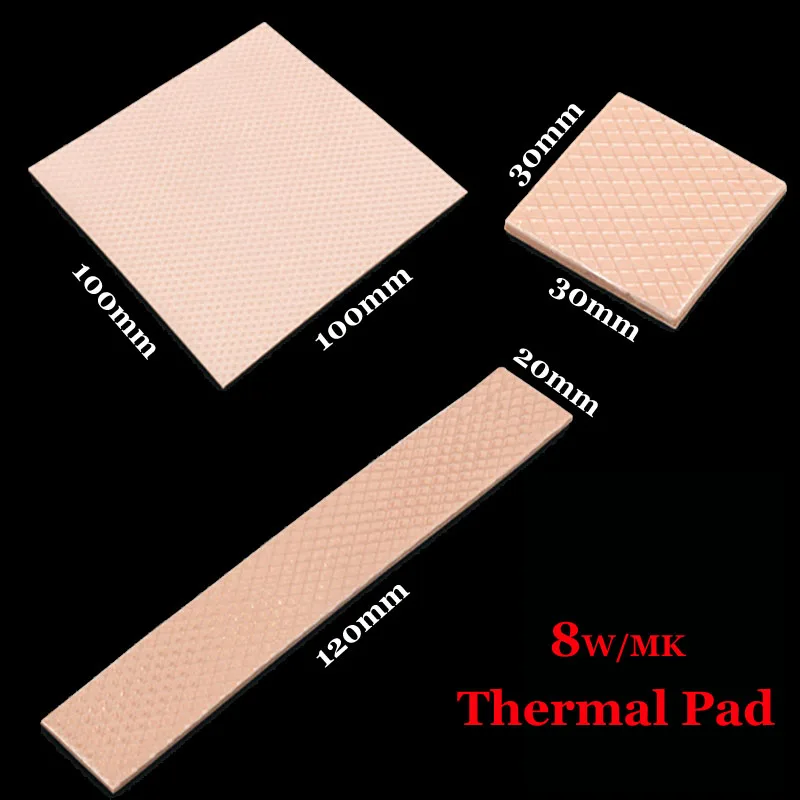

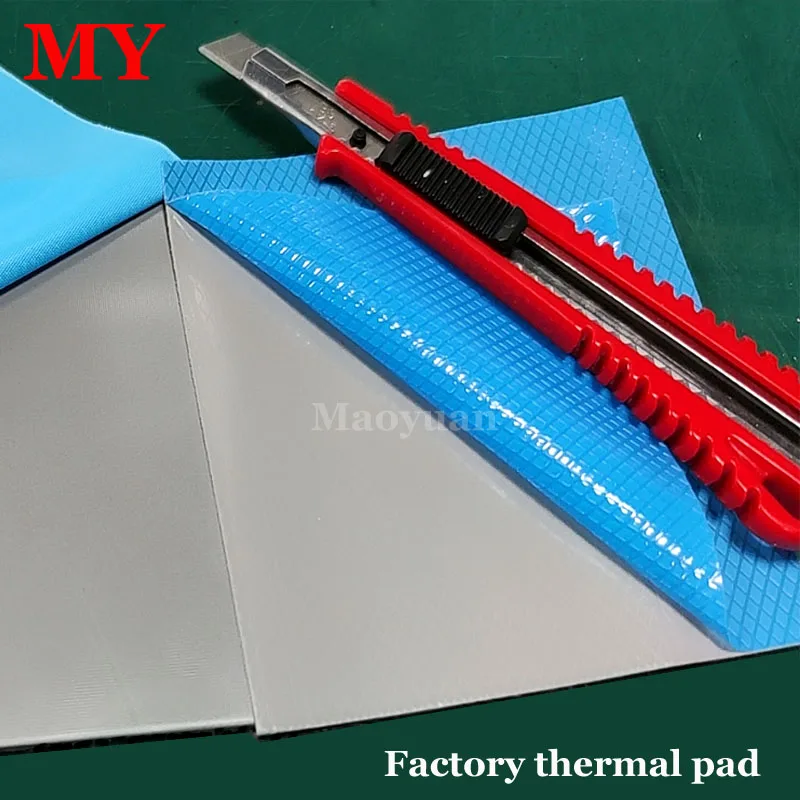

Thermal Pad Product Pictures:



Why Choose Us? 3 main reasons as below:



1: Intelligently designed and manufactured

All of our products are crafted with precision, intelligently designed and engineered for top performance in our 2000 square meters facilities in Shenzhen. You’ll never have to worry about inferior products with us.



2: Price match guarantee

You'd think that with such a great product our prices would be astronomical. but nothing could be further from the truth. In fact, we offer a price match guarantee. If you're quoted a lower price from any of the competition, simply send us the quote and we'll match it.



3: Trusted by tons of brands

Major brands from all over the country are now choosing us for their electronic and electrical thermal management needs. Who wouldn't choose superior quality products at reasonable prices?
