poultry slaughter line use automatic chicken feet cutting machine /chicken feet cutter
Structure Features
the equipment is mainly to achieve the poultry claw on the hook automatically seperated from the hook in the movement process of the assembly line
the card design is different from other manufacturers ,the cutting position is accurate to ensure the qualified rate .
the equipment is all made of stainless steel ,with reliable performance ,convenient installation,strong continuous working ,high production efficiency and so on
poultry processing slaughtering equipment
1
Killing conveyor line
Chicken will be processed on this rail, it is main part for the main slaughter plant Production line.
This machine is used to scald the carcass of the chicken to remove the feather easily;
Thickness of Board: 2mm,Upper Cover Thickness :1.2mm,Supporting Leg Thickness:2mm.
Temperature between 58C°-61C° of the water
use blower system and impact pressure system make to produce highly scalder results.
4
A Frame Primary Plucker
This plucker is dedicated device for chickens ,there are 4 main parts: Depilation, regulation section, guide part, spray part.
Principal part is stainless steel
Shape Size:3350*2350*2350
De-feather Machine consists of four boxes .Each line has 12 plates .Total 6 lines with 72plates.
5
Automatic cut head machine
this equipment use to auto cut the head on production line
Principal part is stainless steel
6

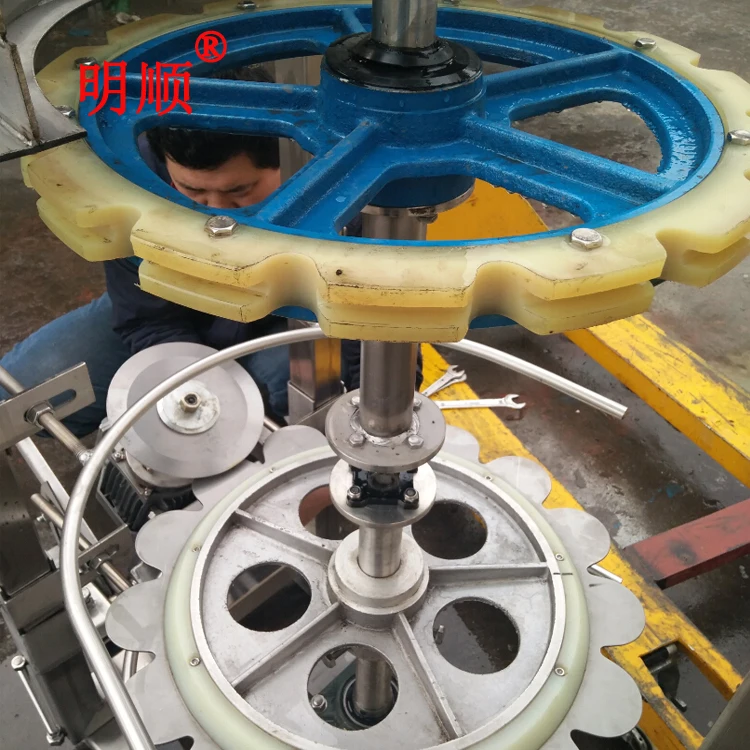

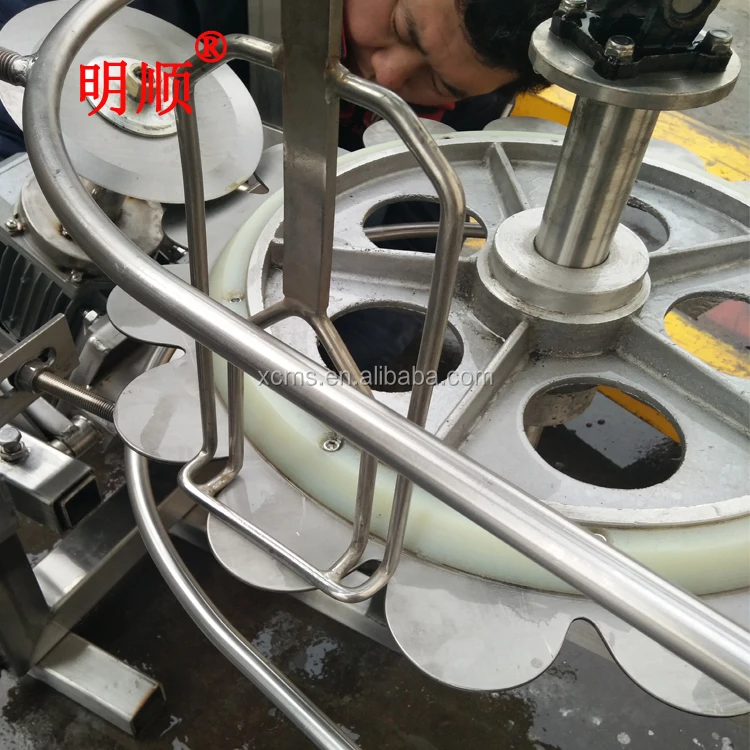

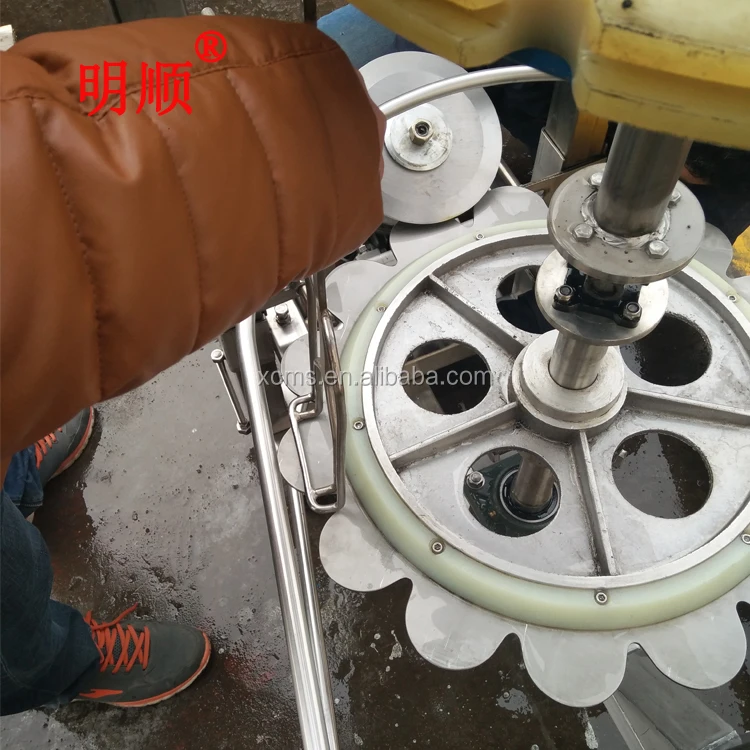

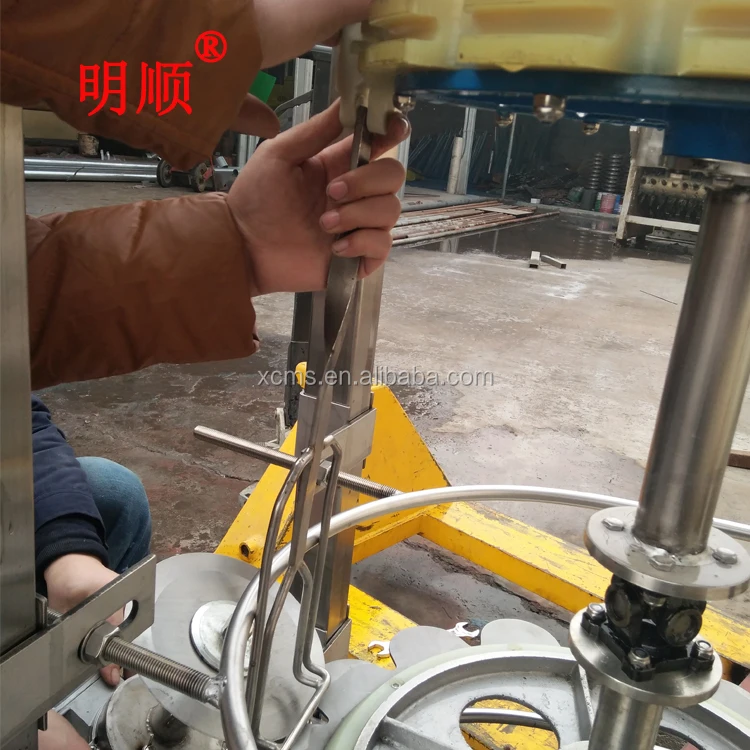

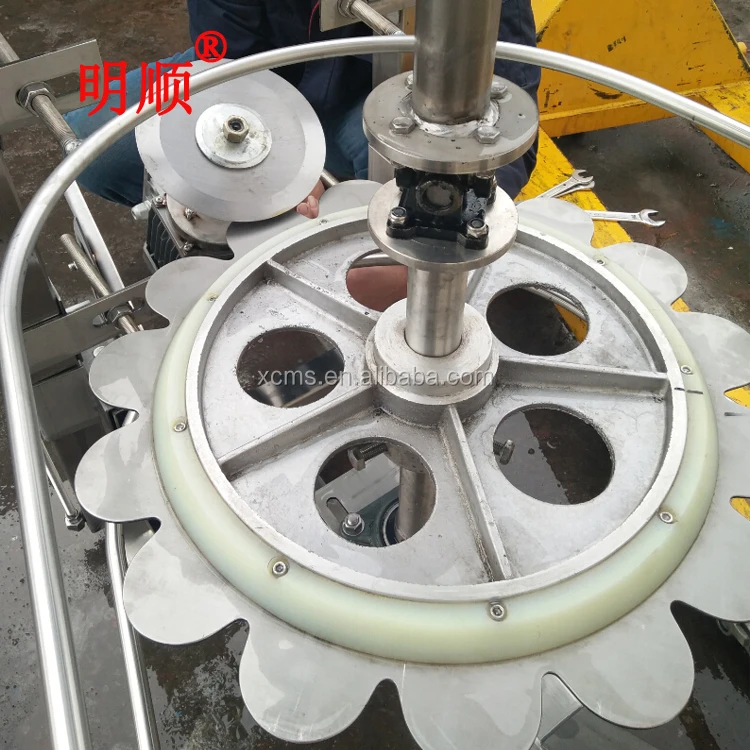

Automatic cut claw machine
this equipment use to auto cut the feet on production line
Principal part is stainless steel
this equipment use dedicated accurate chuck location had high quality feet
7
Unloading claws device
this equipment will be auto take off the feet from production line
All body is stainless steel
8
Drivng device
This machine is to run the whole hang rail
including: motor , reducer , brackets and other drive components
Power:2.2KW By inverter power, run more smoothly.
9
Frequency converter
Frequency Controlling Box.
Stainless steel Box
3.7kw
10
Tension device
To control the convey rail length and tight
Stainless steel structure
11
Spiral precooling machine
This device can replace the precooling line to precooling the chicken carcass
This machine used to low down the temperature of carcass to keep the carcass good-looking and keep fresh in the forward process.
The Thickness of the tank made of 3 stainless steel
Spiral Pushing Device is melted by 2mm thick stainless steel.
Power 5.2kw/set
ONE sets of Fan to make bubbles in the water in the tank efficiently so that improve cooling result and clean the carcass too
Buyer Also Need To Prepare cold Water Or A Piece Of Ice MachineBuyer prepare workspace
Packaging & Shipping
Packaging :wrapped in wrapping film before packing which is to avoid moisture on the sea ,this machine is put in wooden/iron crate based on good protection purpose and export standard .
Delivery Detail:15-30 working days
Our Services
Service before sale
1.24 hours online .Your inquiry will be quick reply by email .
Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager )
2.Professionally and patiently introduction,details pictures and working video to show machine
Service on sale :
1.Test every machine and inspect the machine seriously .
2.Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok .
3.Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery.
Service after sale
1.Free insurance for goods
2.24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory
FAQ
1.
Q: We don’t have experience on how to build a poultry slaugherhouse. Can we offer full support ?
A: Yes, we can offer a turn key service with the customer information of layout, project plan and other information.
2.
Q: How do you control the quality?
A: We have incoming material inspection, equipment drawing, advance producing machine and final production inspection.
3.
Q:How do you ensure that I received the equipment undamaged?
A:We’ll use standard packaging material and take picture for all equipment to you before the shipment. Please do not openthe package if you find the outer package is damaged. Please take a picture of the damaged package or equipment and send
it to us. We’ll then make a solution plan for it and discuss the replacement or debit.
4.
Q: How will you ship your products?
A: Generally we’ll take the sea transportation with our forwarder as term CIF and customer’s forwarder as term FOB.
If a air or express transportation is requested, we can also arrange.
5.
Q: What is the MOQ?
A: 1 set of single slaughtering machine, or 1 complete chicken or duck slaughtering line.
6.
Q: What is the documents shipping with machine?
A: Commecial Invoice, Packing List, Bill of Lading, Certificate of Origin(FORM A, FORM E, or CO). Special certificate and inspection can be provided as per customer's requests.
Company Information
Zhucheng XinChengMingShun Machinery Co., Ltd, is a professional production-oriented enterprise, with foreign trading department, specializing in poultry slaughtering equipment, poultry slaughtering lines.
Our company is equipped with advanced computer-aided design (CAD) system, senior and intermediate engineering technicians as the core of design, development and service team to provide customers with preliminaryconsultation, layout design, installation, debugging and other services. Equipment can be properly used with product of Europe, the United States and other regions. Comparable to similar products in the world market, product performance is in the domestic leading position.
Over the years, the company has been providing long-term equipment and technical services for more than 80% manufacturers in Linyi, China duck industry. It also provides equipment and services to large agricultural and animal husbandry enterprises, such as New Hope Liuhe,CP Group,Doyoo Group,Guiliu Group,Yunken Group, establishs long-term cooperative relations with them. It is the ideal choice of the livestock and poultry slaughtering enterprises at home and abroad.
