Item# CV880 Power Feeder, Power Press Feeder, Power Press Mechanical Feeder

Product Overview

Description

Heavy Duty Power Feeder with 8 Rollers and 8 Speeds

Item# CV880





Description

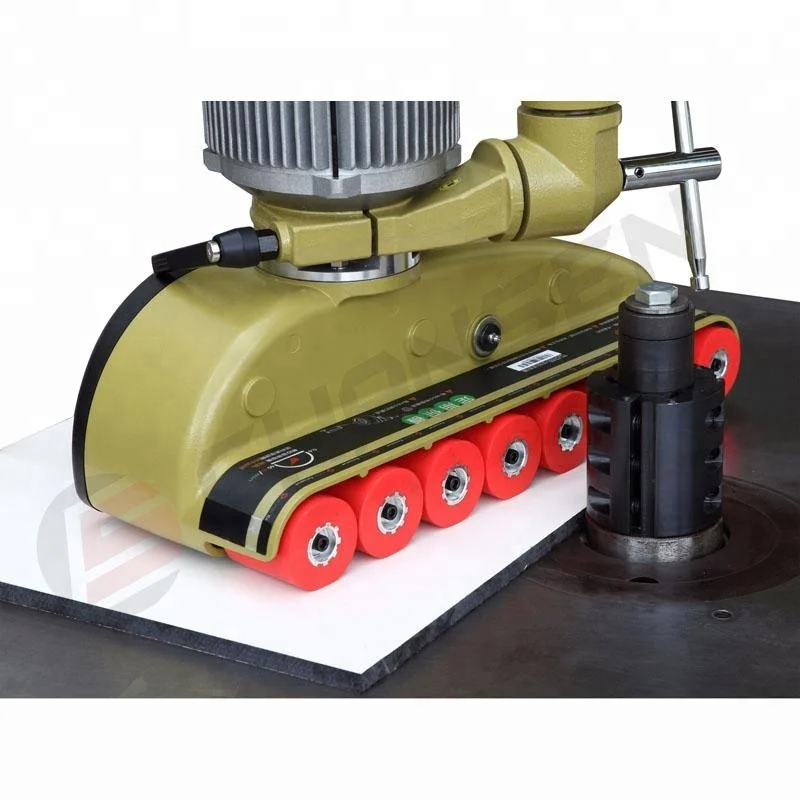

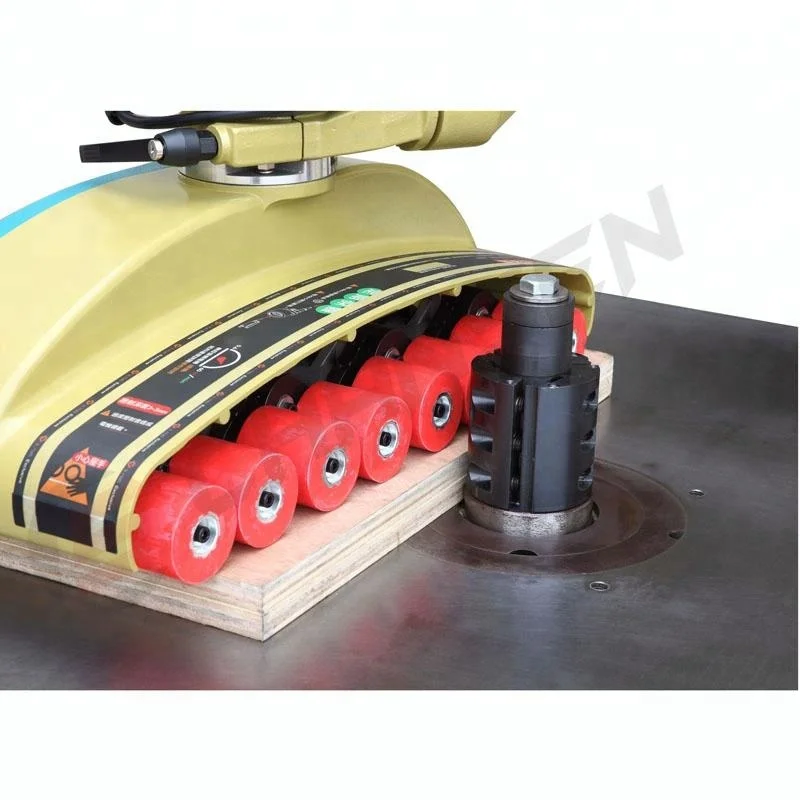

The CV880 heavy duty power feeder is perfect option for the ripping and milling production, especially with longer & wider stock. It features 8 rollers, 8 speeds, powerful 750w TEFC motor, precision ground and coated stand columns, high quality cast iron joints, etc. Plus precision gears and shafts are made in Taiwan which provide smooth and quiet driving. The whole machine is after rust-proof treatment, therefore the maintenance is super easy. All these make your production safer and more efficient.



Features

• Heavy-duty rugged aluminum  housing

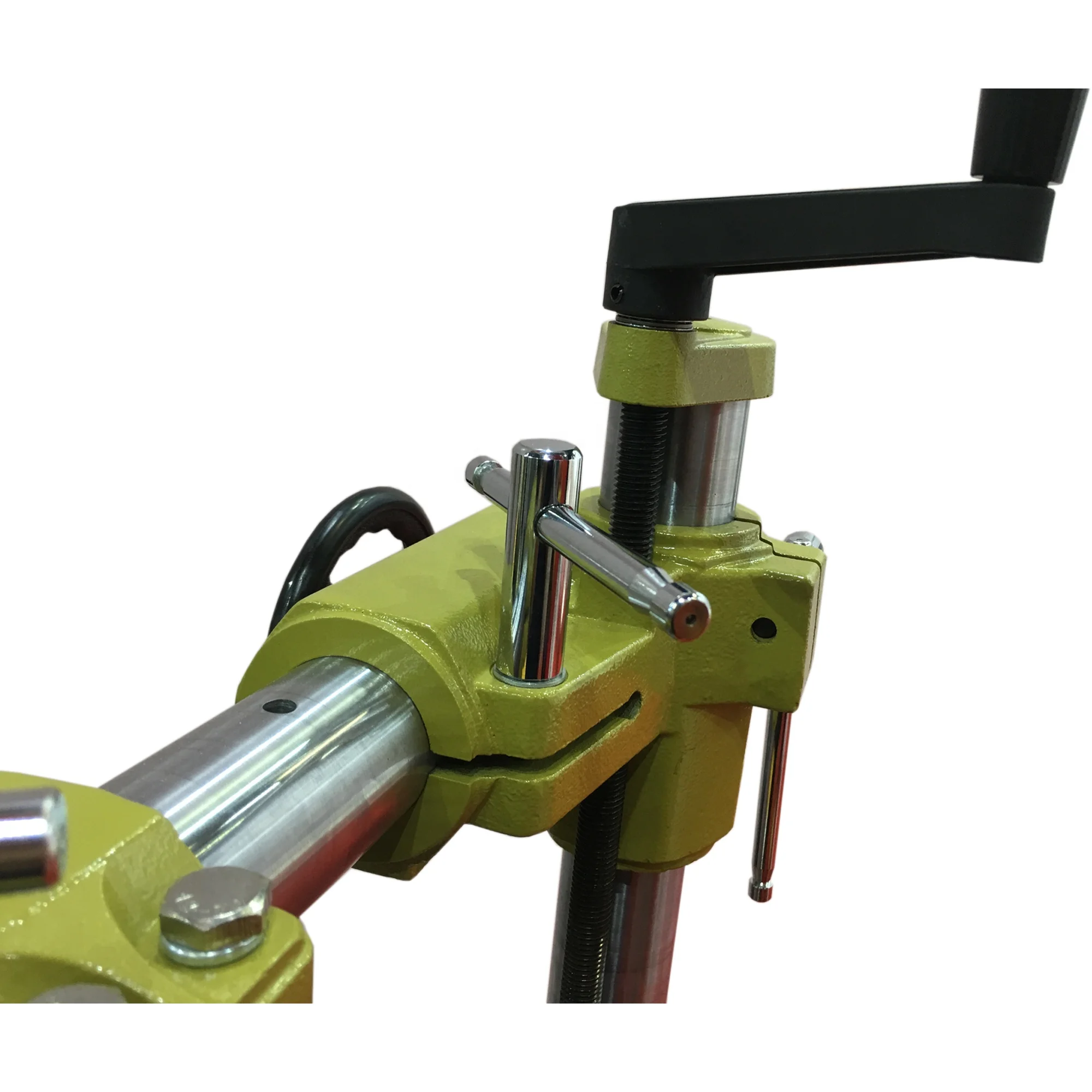

• Precision ground and coated columns of stand


• Hard chromed columns don’t need rust prevention


• Chromed handles  provide smooth operation


• Precision gears and shafts are made in Taiwan


• 8 feeding speeds

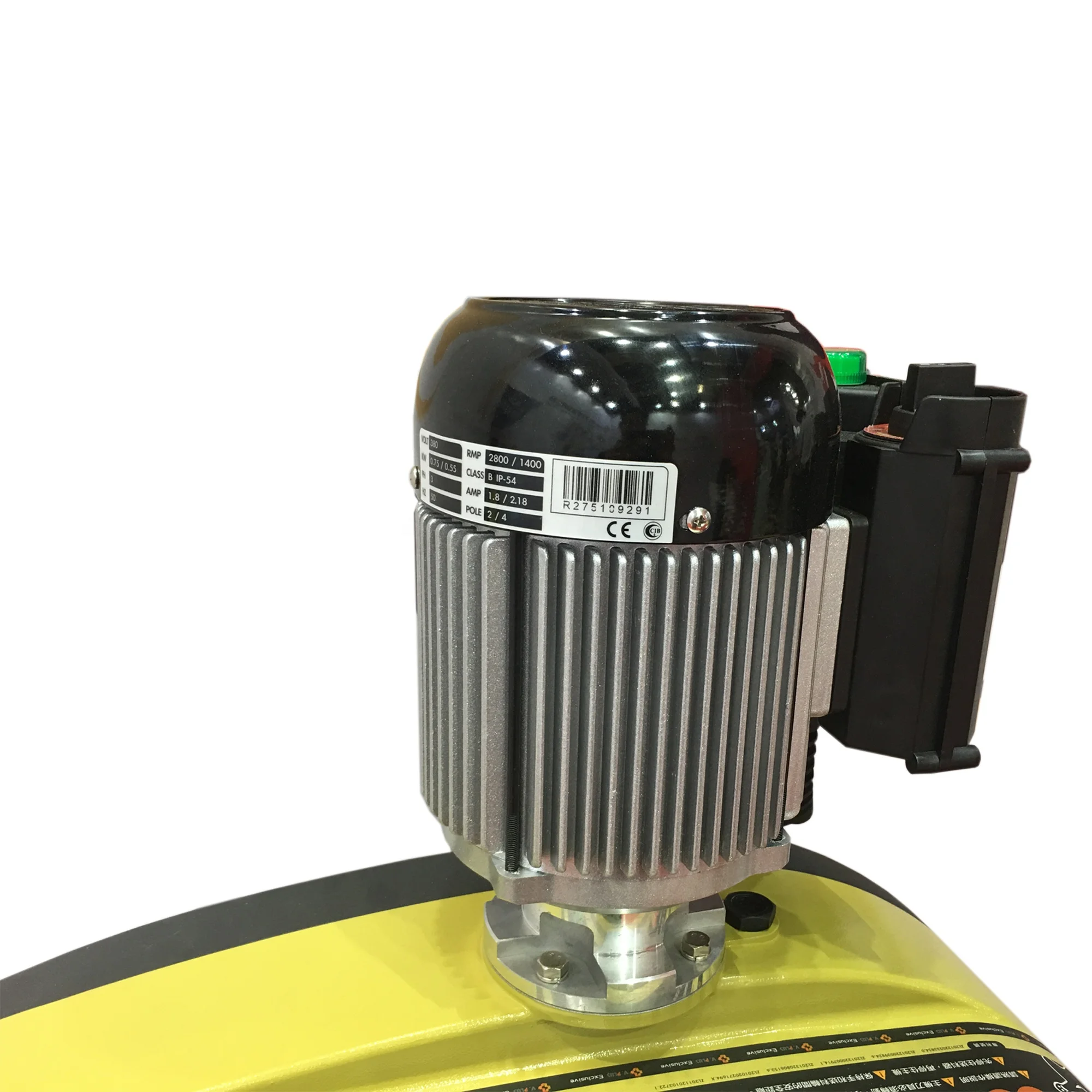

• 750w TEFC motor has more cooling fins


• Blake oxide coated lead-screw makes up and down smooth

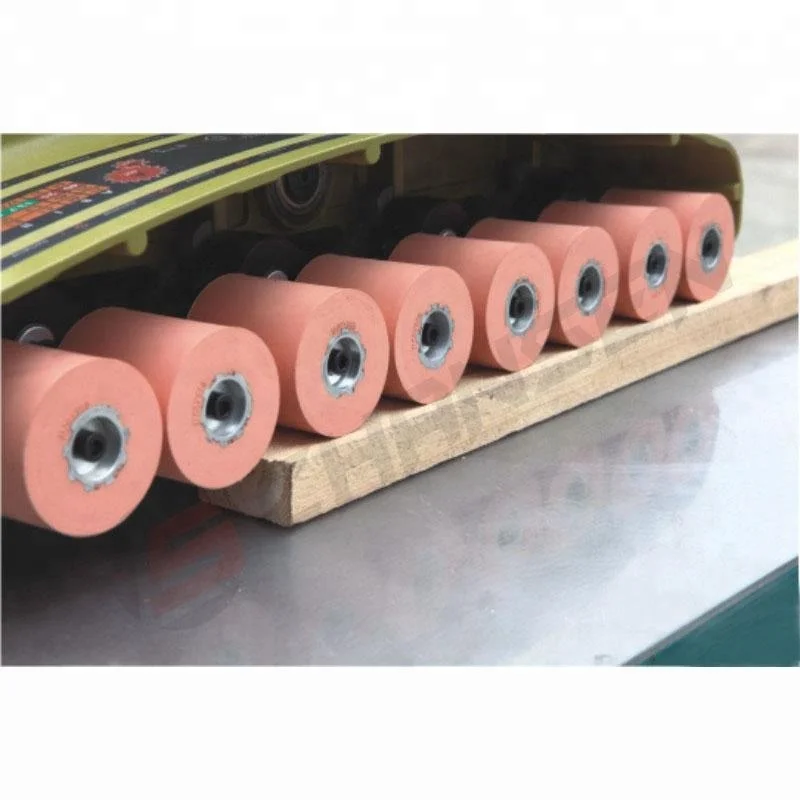

• Big size synthetic rubber rollers are safe and stable


• High quality cast iron joints


• Whole machine is after rust-proof treatment and convenient for maintenance



Specification

• Switch: Forward/ reverse barrel with 2 speeds


• Cable: 3m length


• Recommended: 15 amp


• Motor type: TEFC capacitor start induction, 750w


• Speeds: 2800/1400 rpm


• Poles: 2/4


• Transfer: Worm gear deduction with hardened gears


• Starter: Full voltage direct start


• Direction: Forward/ reverse


• Min. length allowed: 75mm


• Numbers of feeding speeds: 8


• Speed range: 3.5/5/7/10/12.5/16/25/32 m/min


• Numbers of rollers: 8


• Roller width: 60mm


• Roller diameter: 58mm


• Roller lifting range: 27mm


• Roller material: Synthetic rubber


• Housing: Aluminum die casting


• Supports: Cast iron(FC20/HT200)


• Columns: Steel tube, 58mm


• Finishing: Power coating


• Net weight: 68kgs


• Gross weight: 72kgs


• Packing dimension (Main machine): 560x325x537mm


• Packing dimension (Stand): 760x335x310mm
