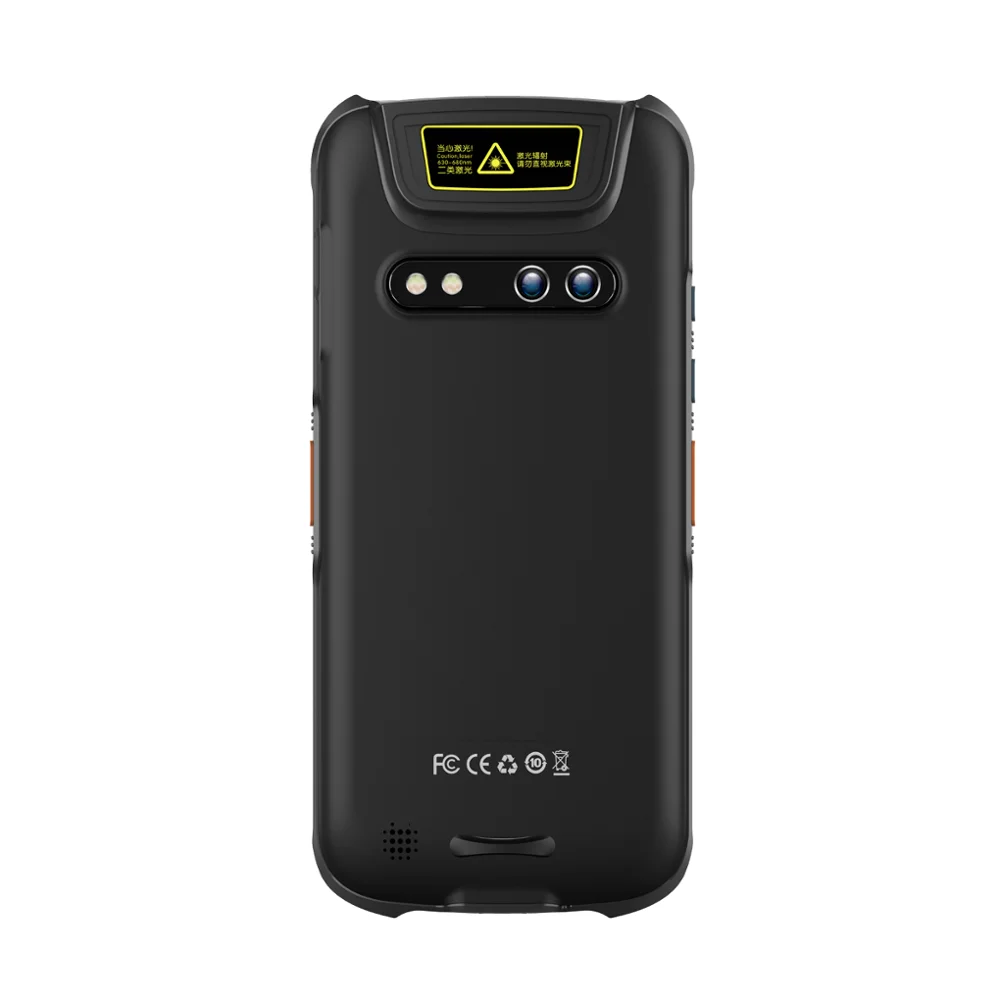

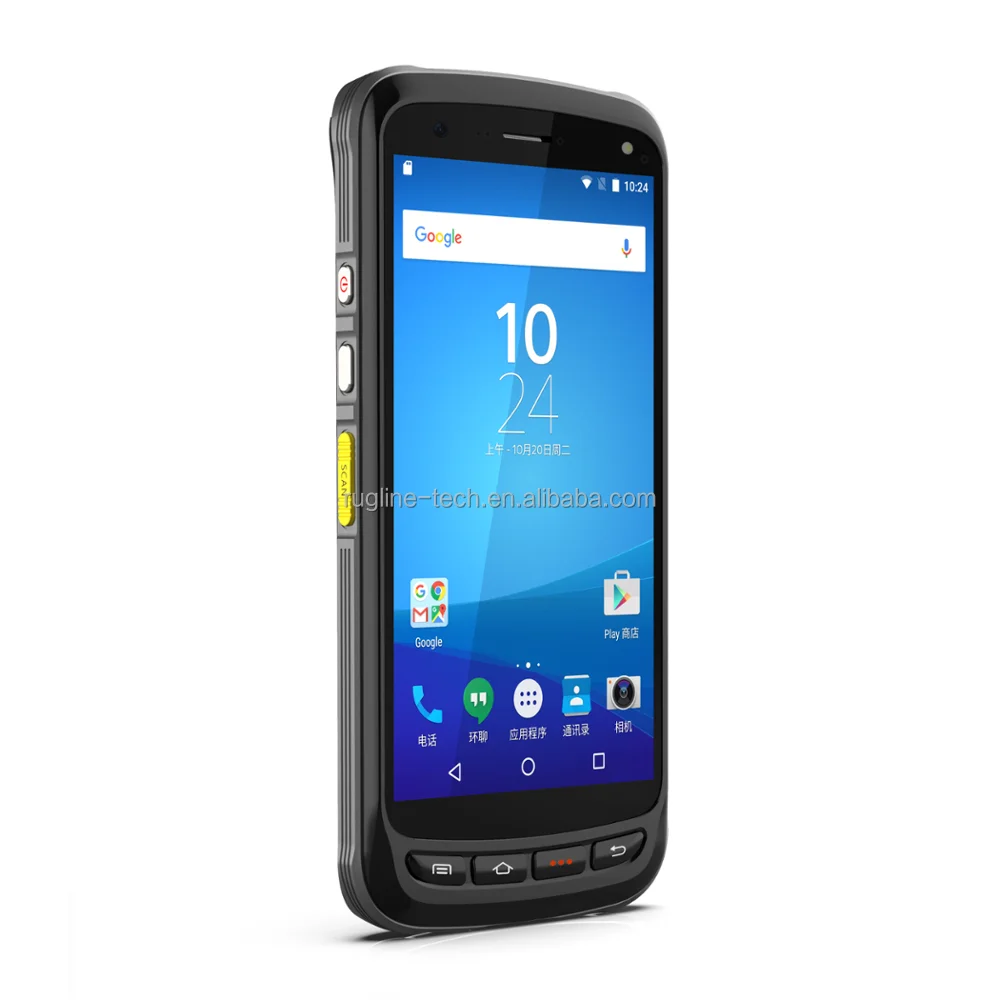

5.2 inch touch screen rugged mobile phone 4G handheld android RFID reader UHF RFID reader with wifi 13MP camera
- Category: >>>
- Supplier: Shenzhen Rugline Technology Co. Ltd.
Share on (60750818312):
Product Overview
Description
Handheld Android wireless biometric fingerprint reader with nfc rfid barcode scanner wifi 4G gps

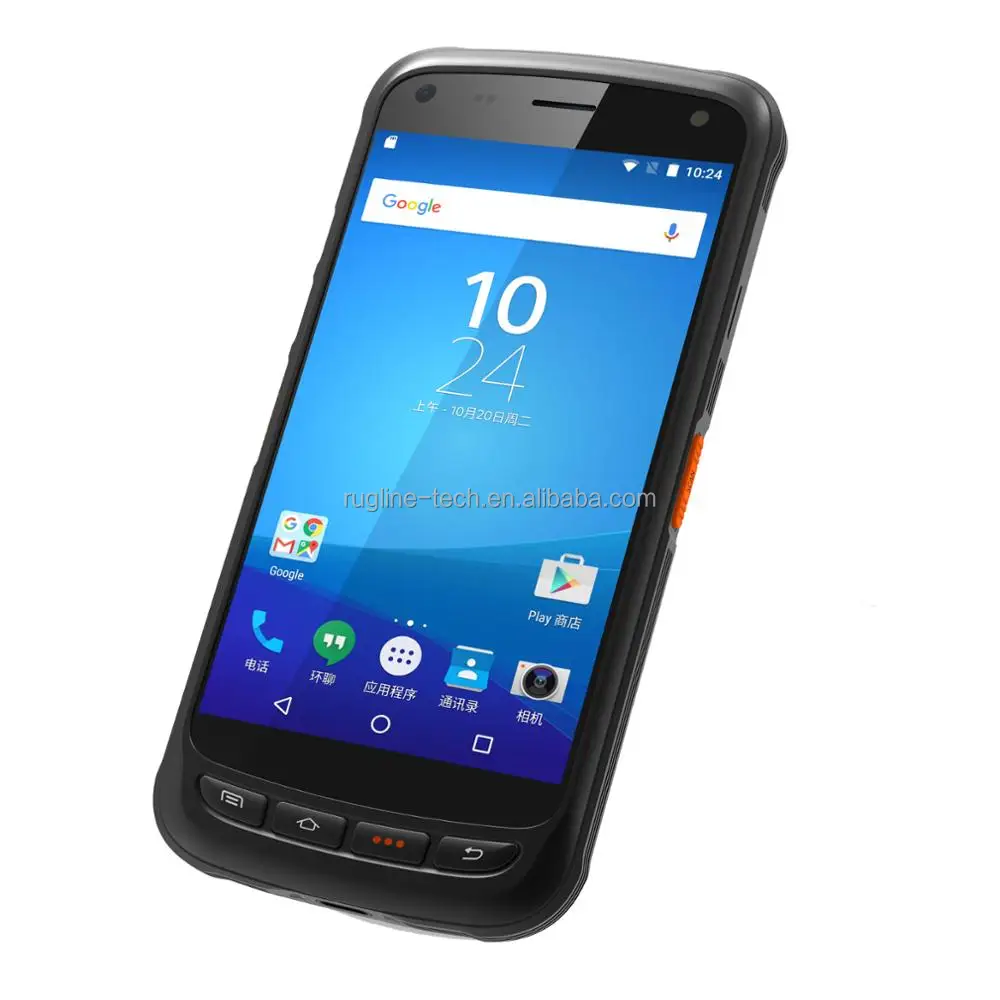

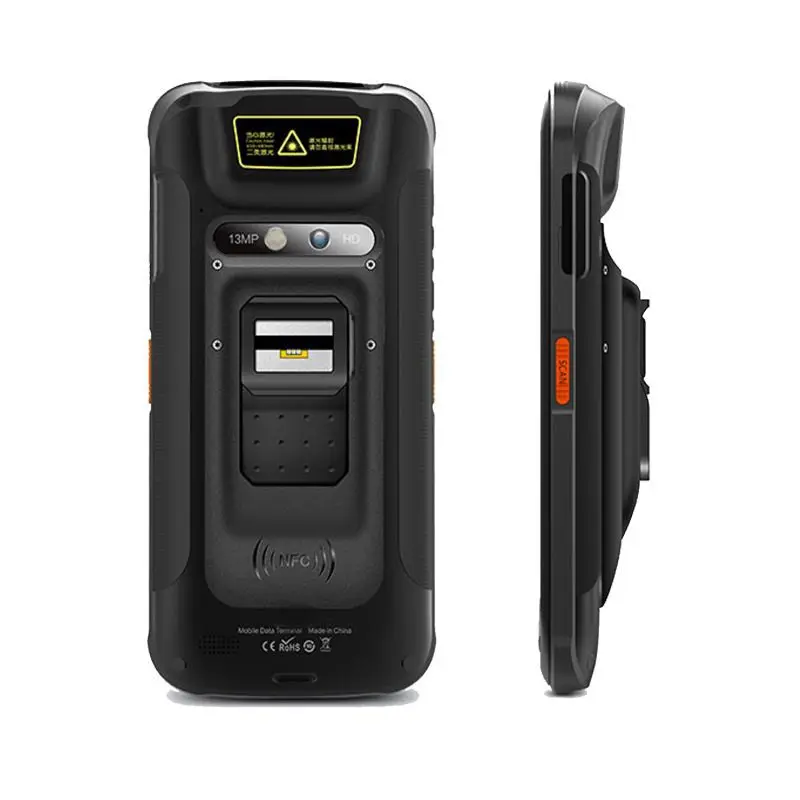

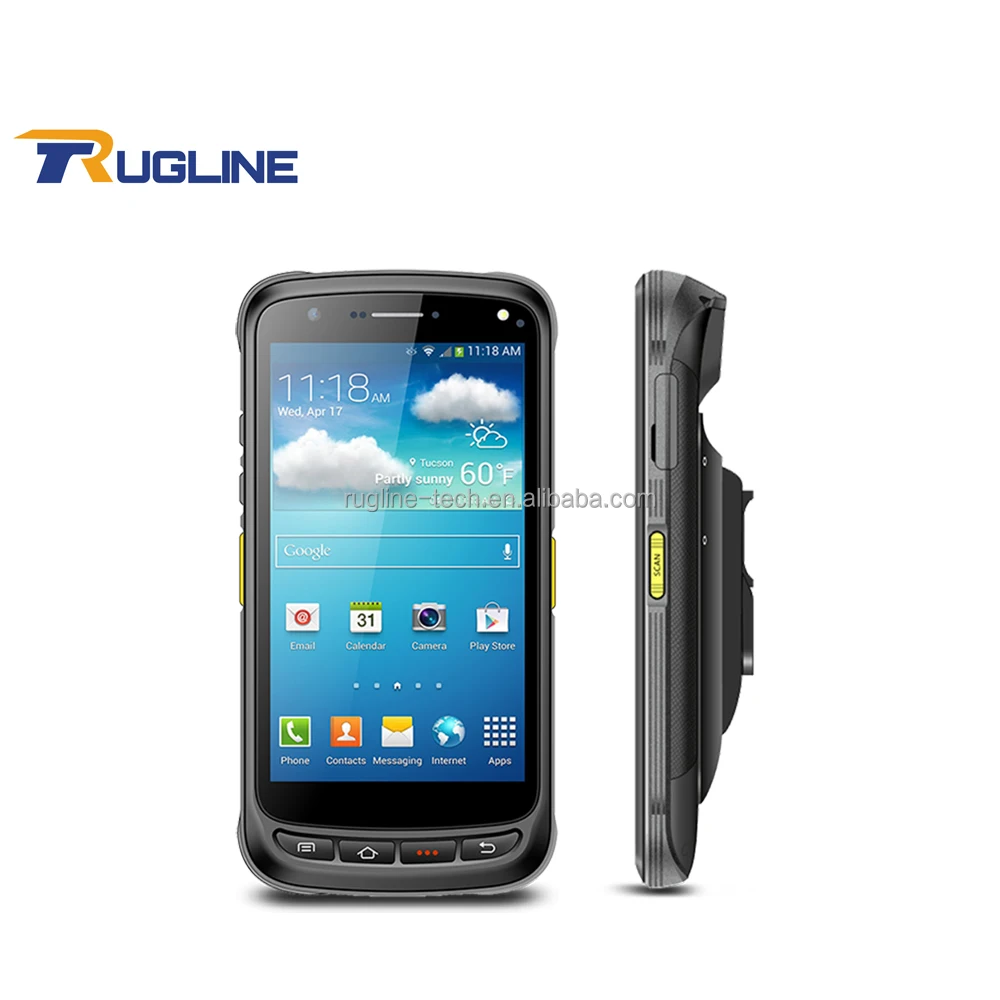

RT71 data terminals with abundant functions is an Android rugged mobile computer. With its powerful quad-core processor, stable wireless connections and comprehensive data capture options, you can find this easy-to-deploy device a valuable helper to increase productivity in logistics, warehousing, retail, identity verification, meter reading, IC card reading and etc.
| Physical Characteristics | |
| Dimension | 164.2*78.8*17mm/6.46*3.10*0.67in (for standard version) |
| Weight | <288g/10.15oz (for standard version) |
| Display | 5.2'' IPS FHD 1920x1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel,gloves and wet hands supported |
| Expansion Slot | 2 PSAM slots at most, 1 slot for SIM card, 1 slot for SIM or TF card |
| Keypad | 4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key |
| Power | Main battery: Li-ion, rechargeable, 4000mAh |
| Audio | speaker, 2 microphones |
| Interfaces | USB2.0 Type-C, OTG |
| Sensors | Proximity Sensor, Vibration Motor |
| Performance | |
| CPU | Cortex-A53 Quad-core 1.3GHz |
| RAM+ROM | 2GB+16GB |
| Expansion | Supports up to 32 GB Micro SD card |
| Developing Environment | |
| Operating System | Android 6.0 |
| SDK | Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
| User Environment | |
| Operating Temperature | 14°Fto 122°F / -10°C to 50°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Humidity | 5% - 95%RH (Non-condensing) |
| Sealing | IP67 |
| Drop Specification | Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m / 1.64ft. falls at room temperature |
| ESD | ±8KV air discharge, ±4KV conductive discharge |
| Communication | |
| WLAN | IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna |
| WWAN(Europe) | 2G: 850/900/1800/1900MHz; |
| 3G: 850/900/1900/2100MHz; | |
| 4G: B1, B3, B5, B7, B8, B20, B40 | |
| WWAN(America) | 2G: 850/900/1800/1900MHz; |
| 3G: 850/900/1700/1900MHz; | |
| 4G: B2, B4, B7, B12, B17 | |
| WWAN (China) | 2G: 900/1800MHz; |
| 3G:900/2100MHz ; | |
| 4G:TDD-LTE: B38, B39, B40, B41, FDD-LTE: B1, B3, B5 | |
| WWAN (Others) | Depending on the country's ISP |
| BT | BT 4.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| NFC | |
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4cm |
| Camera | |
| Camera | 13MP autofocus camera with flash |
Barcode Scanners (Optional) | |
1D Honeywell N4313 2D CCD Zebra (SE4750) 2D CCD Zebra (SE4750) 2D CCD SE4759MR(long distance) | |

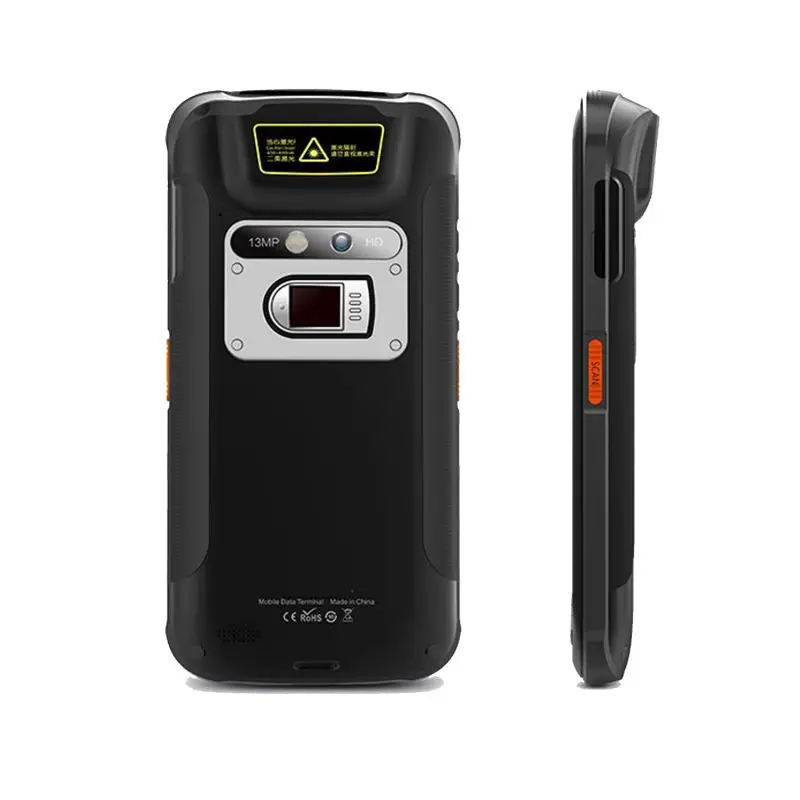

Fingerprint reader(Optional) TCS2 TCS1 | |
Real Iris(optional) Front Iris(optional) Front camera(optional) | |
After - Sales Service:
1. All items will be 100% check or tested before shipping.
2. In case if the item is defective or has any problem,please contact us first to check the problem,after confirmed by us,it can be exchanged or return within 7 days after receipt.
3. If you need to exchange or return,please request a return address from us.Items return must contains all accessories and packing well.The buyer should pay for the return shipping fee.
4. For the product maintenance,we will send the video for your reference.If necessary,we will send technical staff to train client's repairer for free.
5. We will provide technical assistance for the whole life.
FAQ:
1.Q:Are you manufacturer?
A:Yes.we are professional manufacturer for PDA and POS Terminal, and we have 9 years experience on PDA/POS terminals fields.
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year without man-made damage.
4.Q: How about your product quality?
A: We provide unrivaled Quality - Very rigorous testing process for Incoming Quality Control, Input Process Quality
Control, and Final Quality Control for every piece. We follow at least 18 QC test procedure,and do 100% FQC to ensure
your satisfaction.
5.Q:Does the device have the language default as English?
A:Of course, our device supports multi-language such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on.
6.Q:Can your device install the Android Apps that our customers provide?
A:No problem. Just send us your Apps which you need to get the liscense of the apps and then our Engineers can do that for you.
If you have any other question about our products,please don’t hesitate to contact us.We will be more than happy to serve you.
