Medical catheter tube end tipping machine(ISO9001:2000, CE, 2018 new design)

Product Overview

Description



A. Main Application:

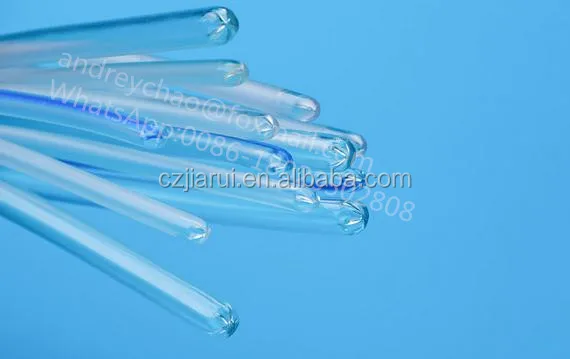

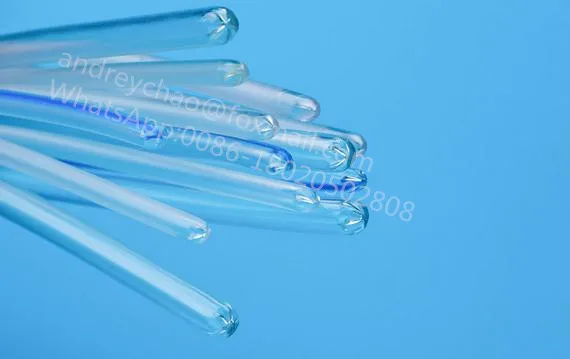

This Medical soft catheter tube hole punching drilling machine is mainly used for semi automatic tube end tipping welding or thermoforming for different kinds of soft PVC, PE, PP, EVA tube, etc, such as CVC catheter, urethral catheter, stomach tube, feeding tube, etc.



B. Working Principle:

Electric heating regulator adjusts the heating temperature. Placing 5 sets of thermoforming glasses tubes on the heater during the beginning, then inserting and pushing the medical tube-head to be thermoformed inside when getting to the right heating temperature.



C. Main Parameters:

C1. Model: DT-12.

C2. Tube diameter: Ø1-Ø12mm mostly.

C3. Working speed: 1,250pcs/h.

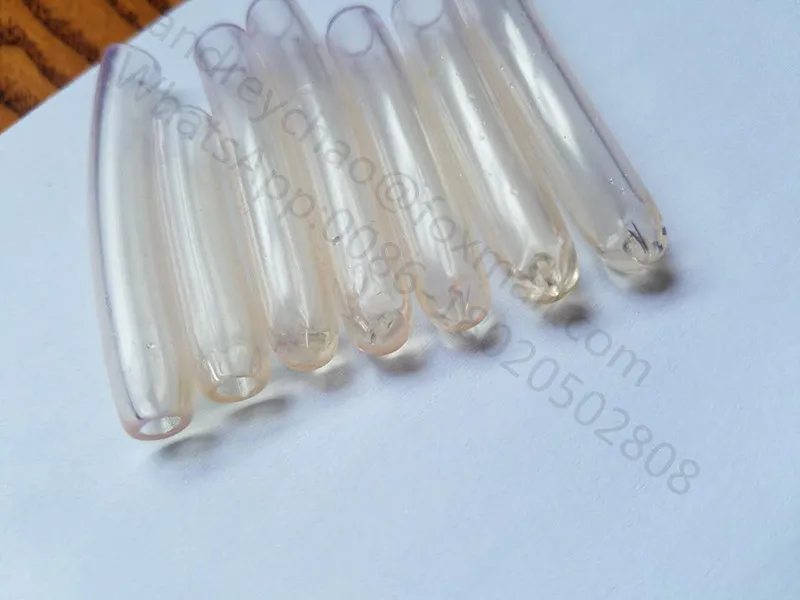

C4. Material of the thermoforming tube: Special high strength silica glass.

C5. 5 pcs of special high strength silica glasses necessary for each diameter size of opened and closed Ø1-Ø12mm medical tube, 17 sizes totally, such as OD x ID=2x1.1mm, 2.3x1.3mm, 2.7x1.7mm, 3.3x2.3mm, 4x2.8mm, 4.7x3.3mm, 5.3x3.8mm, 6x4.5mm, 6.7x5.1mm, 7.3x5.6mm, 8x6.2mm, 8.7x6.9mm, 9.3x7.5mm, 10x8mm, 10.7x8.7mm, 11.3x9.3mm, 12x10mm.

C6. Heating power: 1KW.

C7. Machine size: 400x400x200mm.

C8. Weight: 12KG.

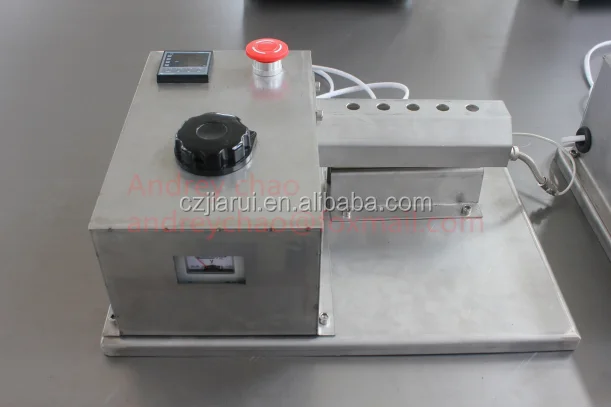

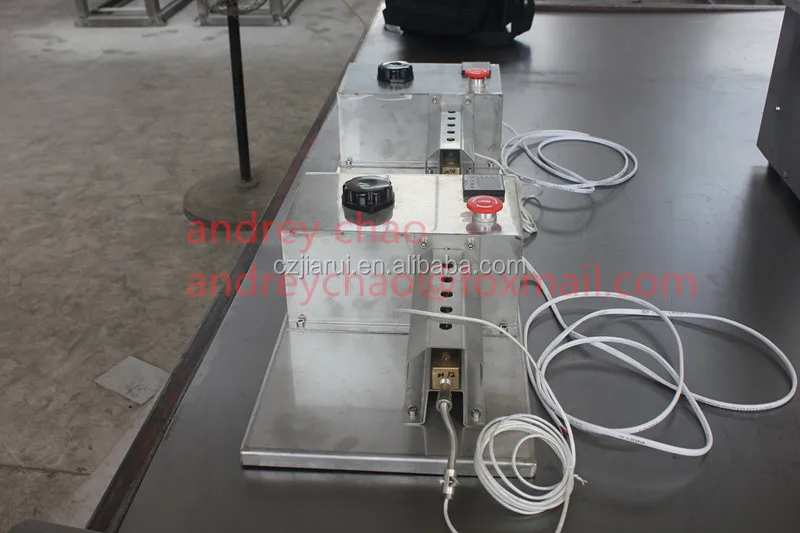

D. Company, Machine and Product Photos:



E. Machine Packing and Shipping Photos:
