Price:$60,000.00

Quantity:


Product Overview

Description






Product Description





                                                               Cable tray roll forming machine(Only for reference)

The production line can produce many types of cable rack and other machinery products according to producing requirement.(steel coil width 225mm≤§≤1020mm)

Raw material request: Q235 cool steel.

Thickness: 1~2mm.

Line speed during hole punching: 3-8m/min

Total power: about 77.2kw


If you have your own special requirements,our machine can be also customized.

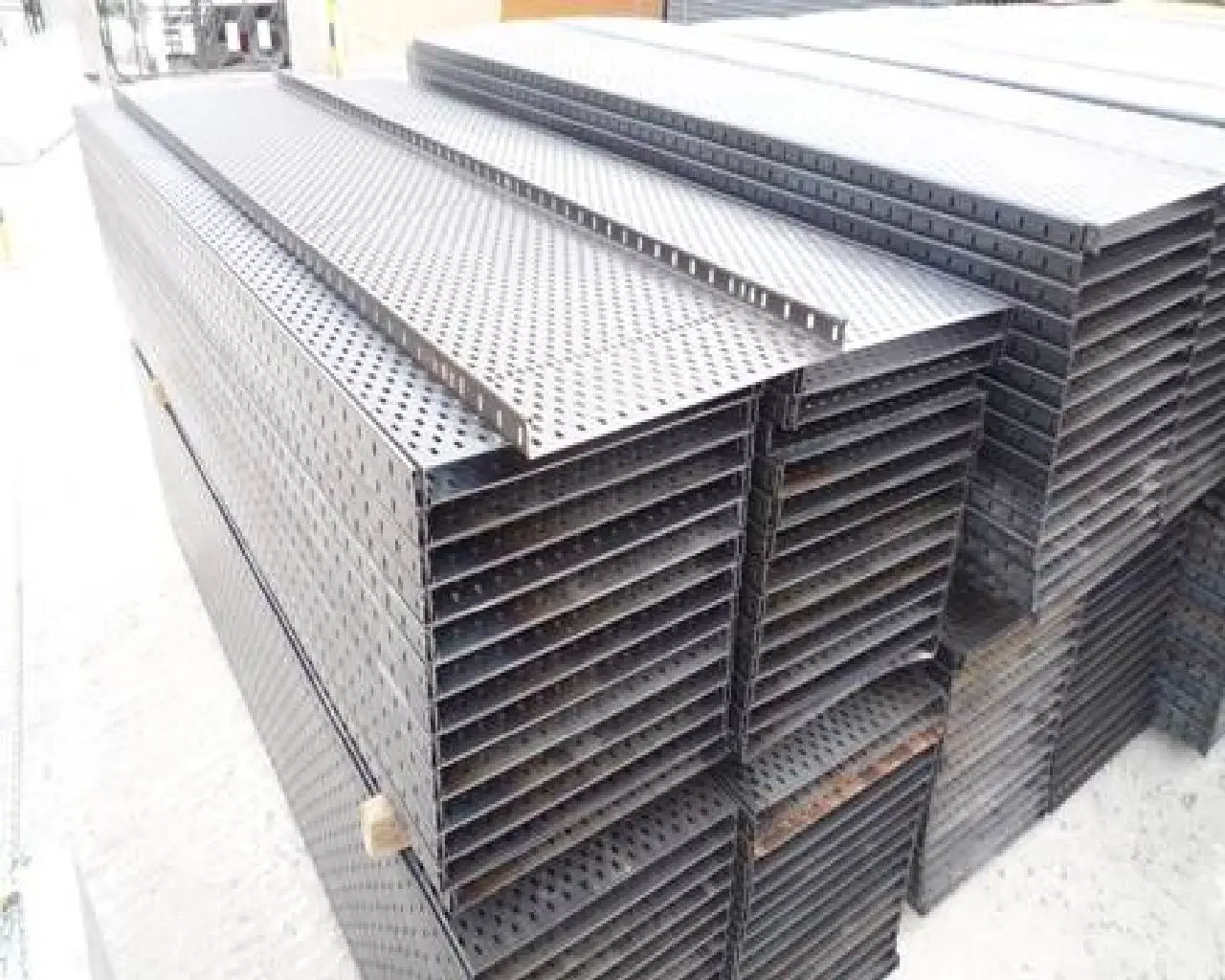

profile as following:





cable tray channel roll bending machine

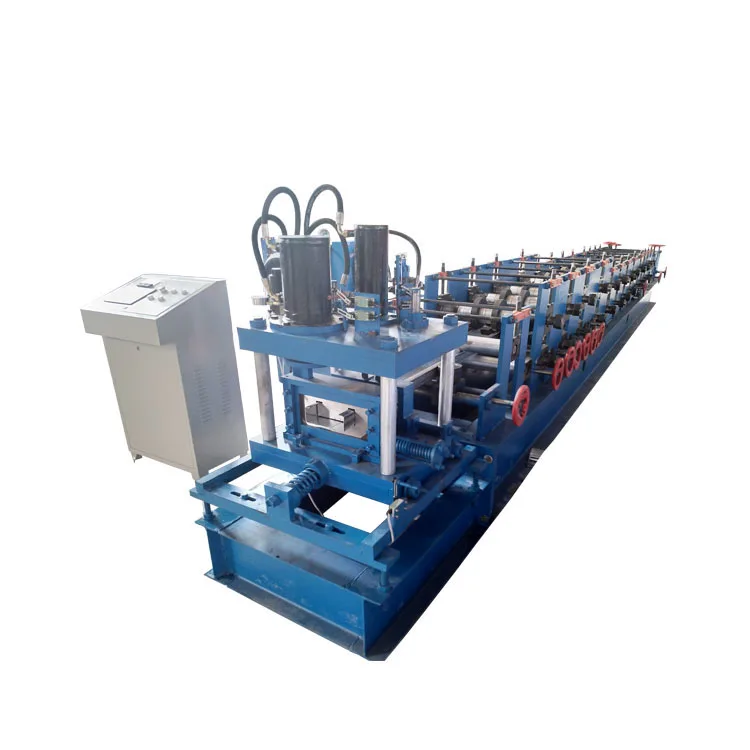

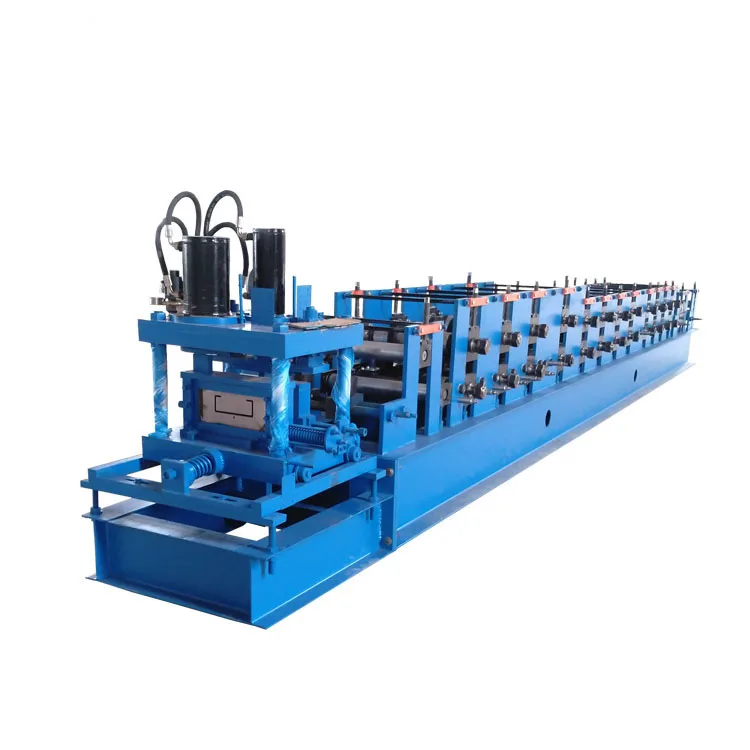

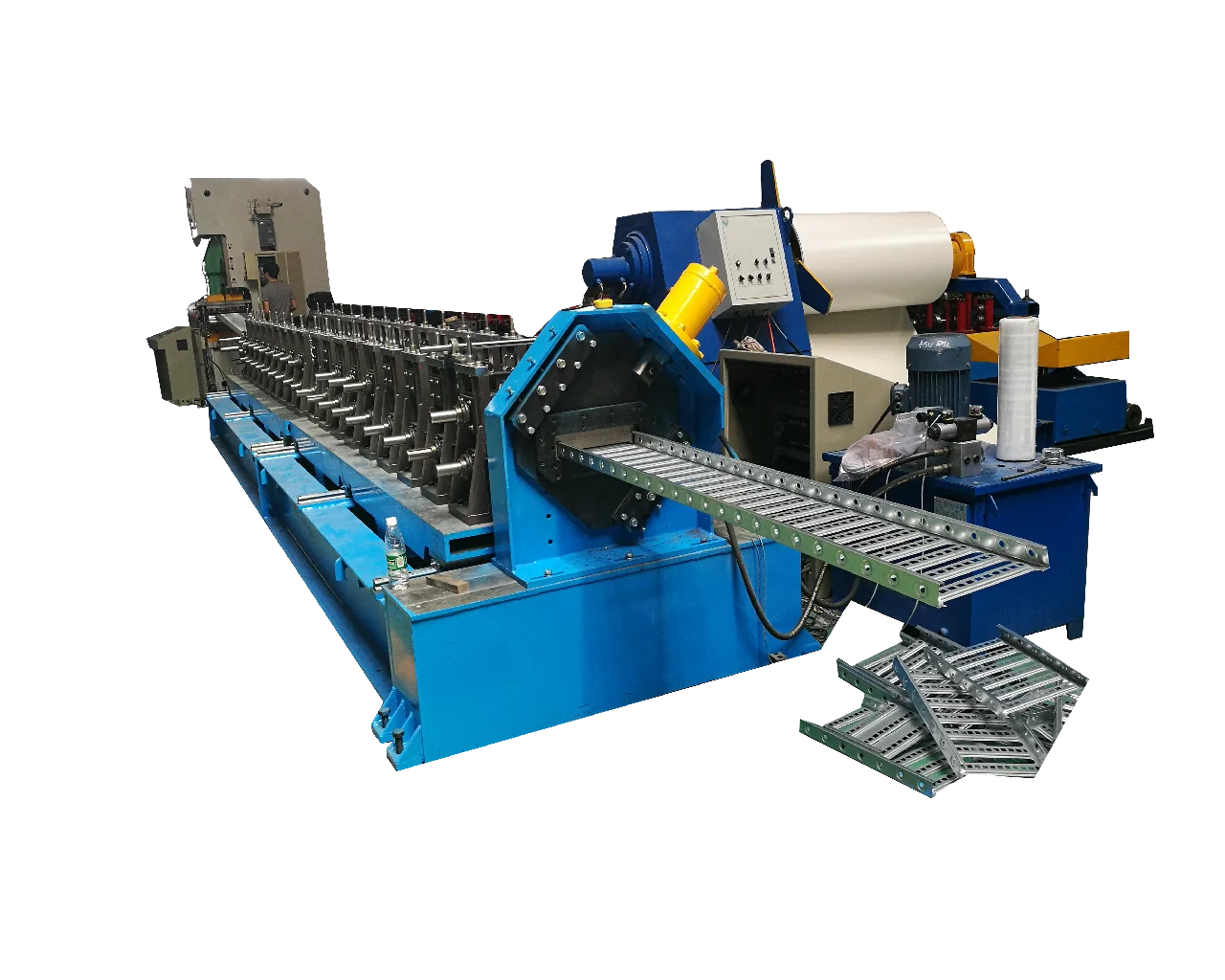

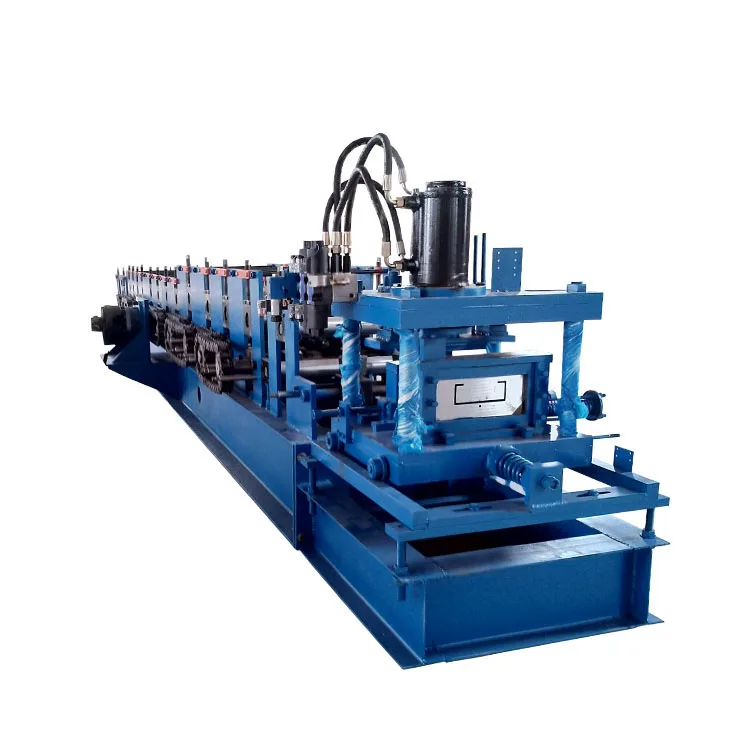

Whole machine:




cable tray channel roll bending machine






cable tray channel roll bending machineTechnological process







Auto-de-coiler-----leveling----servo feeding----hole punching----roll forming --re-coiler








Equipment consists

















































































NO.




Name




Quant.




Remark




1



Auto-de-coiler



1





2



Leveling machine



1



5.5kw frequency change drive motor, speed adjustable



3



Support frame



3



Roller type



4



NC900servo feeder



1



NC900 Servo motor drive



5



Punching press



1



120ton



6



punching mould



9





7



Main forming machine



1



100-900mm,thickness 1-3mm,material of roller:GCr 15



8



Hydraulic cutting machine



1





9



Cutting blade



9





10



Run-out table



1





11



Electric panel



1



PLC control system







Package&Delivery




cable tray channel roll bending machine



cable tray channel roll bending machine



cable tray channel roll bending machine



cable tray channel roll bending machine






Our Service






cable tray channel roll bending machine



cable tray channel roll bending machine






Enginer to test machine for clients.








Clents learning to check the products.
