Outline

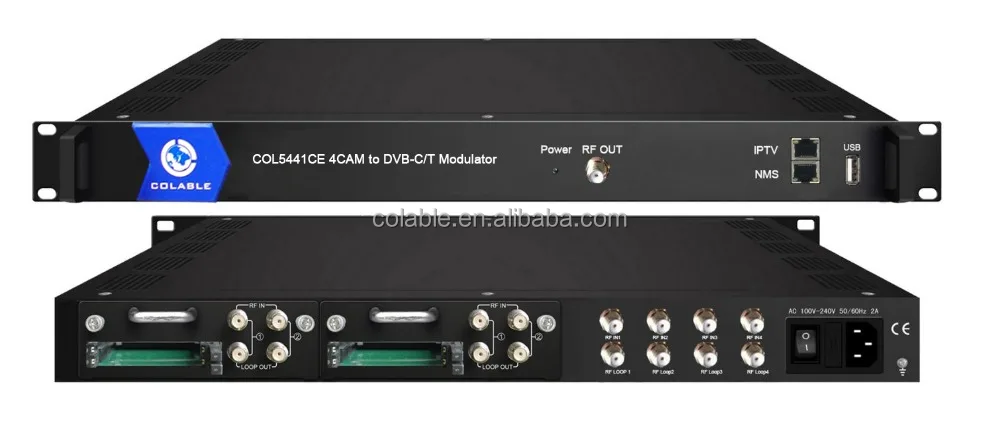

COL5441CE is a high performance and cost-effective DVB-C/T modulator. It has 8 DVB-S2 tuner inputs, after multiplexing, scrambling and modulating process, then it gives 4 RF output. To meet customers’ various requirements, this device is also equipped with 128 IP input and 4 MPTS output over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, the four CAMs/CIs accompanied can descramble the programs input from 8 Tuner inputs. COL5441CE can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and very adaptable to newly generation CATV broadcasting system.





Features

ü 8 Tuner(DVB-S2) input

ü Demodulation Module(4*RF/Loop out + 4*CAM + 4*Smartcard)

ü One CAM can decrypt multiple programs from Tuners and IP

ü maximum 128 IP input(MPTS/SPTS) over UDP and RTP protocol

ü 4 groups multiplexing + 4 groups scrambling (DVB-C)+ 4 groups DVB-C modulating

ü 4 IP (MPTS) output over UDP and RTP protocol

ü Integrated demodulating and multiplexing functions

ü Support accurate PCR adjusting

ü Support PID Remapping

ü Support PSI/SI rebuilding and editing

ü Web-based NMS management



Principle Chart

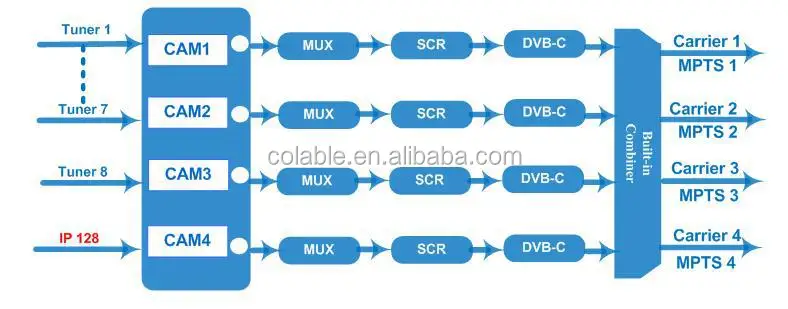

Cam card: 8DVB-S/S2 &IP MUX to dvb-c rf out

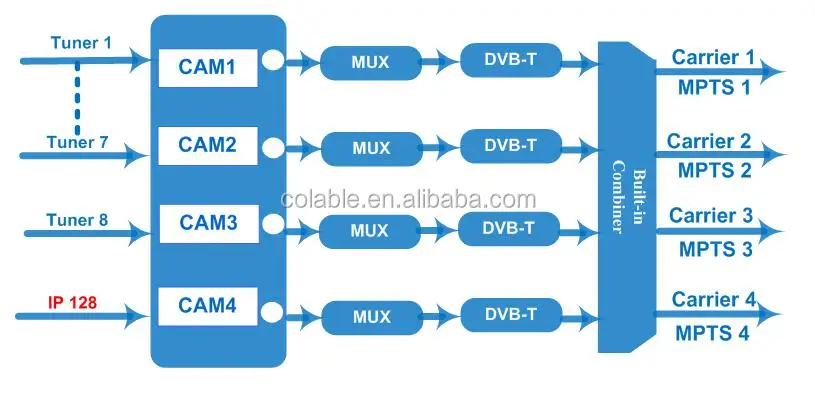

CAM card :8DVB-S/S2 &IP MUX to dvb-t rf out









Similar FTA 8*dvb-s2 to qam modulator





                                   8 dvb-s2 to qam modulator(click to check)



Specifications



Input	8 Tuner (DVB-S2) input 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M  Unicast/Multicast
Tuner Section	DVB-S	Input Frequency		950-2150MHz
		Symbol rate		2-45Msps
		Signal Strength		-65~-25dBm
		FEC Demodulation		1/2, 2/3, 3/4, 5/6, 7/8 QPSK
	DVB-S2	Input Frequency		950-2150MHz
		Symbol rate		QPSK 1~45Mbauds; 8PSK 2~30Mbauds
		Code rate		1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
		Constellation		QPSK, 8PSK
Descrambling	CAM/CI Quantity	4
Multiplexing	Maximum PID Remapping	256 per input channel
	Function	PID Remapping
		Accurate PCR adjusting
		Generate PSI/SI table automatically
Modulation	DVB-C	Standard
		MER	≥43dB
		RF frequency	30~960MHz, 1KHz step
		RF output level	-25~ -1dbm (77~97 dbµV), 0.1db step
		Symbol rate	5.000~7.000Msps adjustable
		RF Out	4*DVB-C adjacent carriers combined output
		MER	≥42 dB
			J.83A		J.83B
		Constellation	16/32/64/128/ 256 QAM		64/ 256 QAM
		Bandwidth	8M		6M
	DVB-T	Standard	EN300744
		FFT mode	2K,
		Bandwidth	6M, 7M, 8M
		Constellation	QPSK, 16QAM, 64QAM
		Guard Interval	1/4, 1/8, 1/16, 1/32
		FEC	1/2, 2/3, 3/4, 5/6, 7/8
		MER	≥42 dB
		RF frequency	50~960MHz, 1KHz step
		RF out	4*RF COFDM DVB-T out (4 carriers combined output)
		RF output level	-28~ -3 dBm (77~97 dbµV), 0.1db step
System	Remote management	Web NMS
	Stream Out	4*MPTS over UDP and RTP out (RJ45, 1000M/100M Unicast/Multicast)
	Language	English and Chinese
	Software Upgrading	Web and USB
General	Dimension (W*D*H)	482mm×300mm×44.5mm
	Weight	3.7kg
	Temperature	0~45℃(Operation) ; -20~80℃(Storage)
	Power	AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ
	Consumption	25W

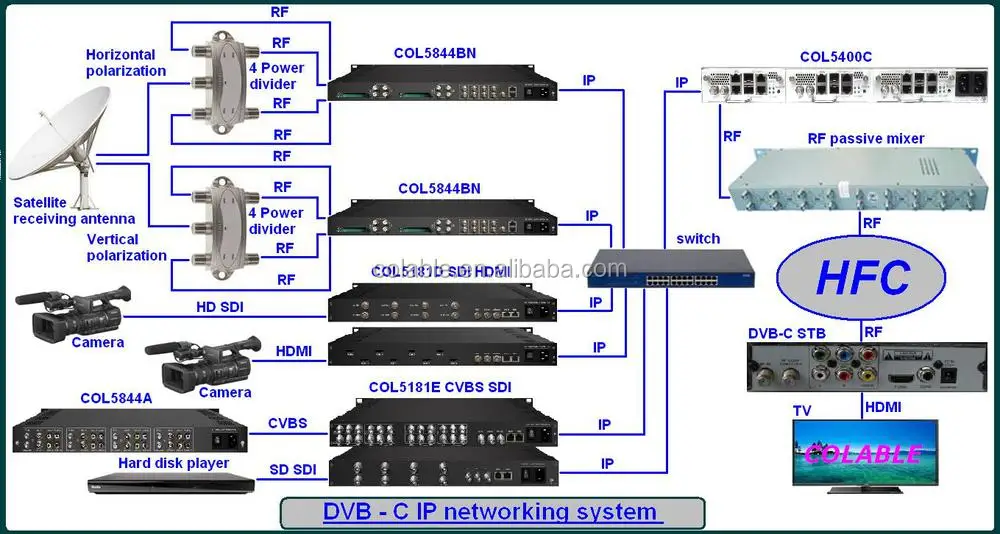

4CAM 8DVB-S2 to DVB-C/T Modulator in Digital tv /iptv system solution for reference
