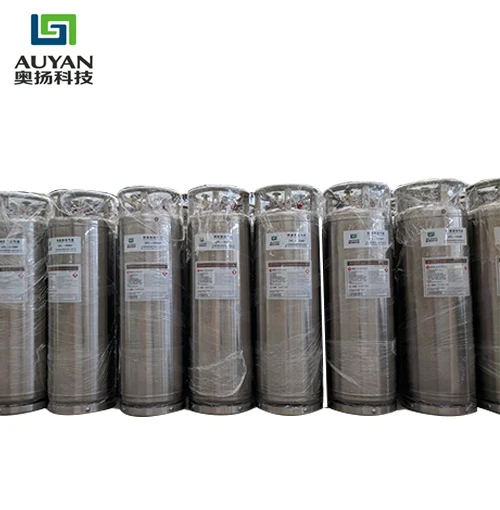

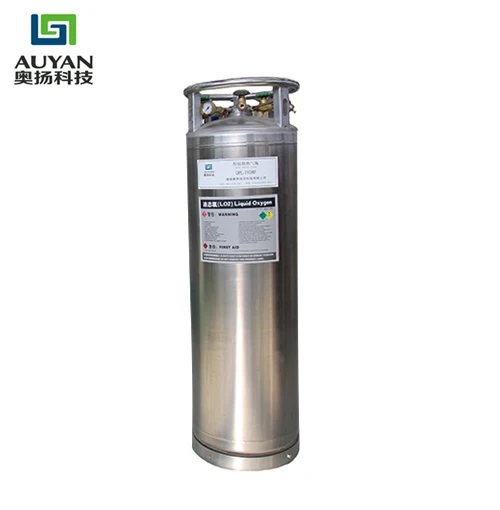

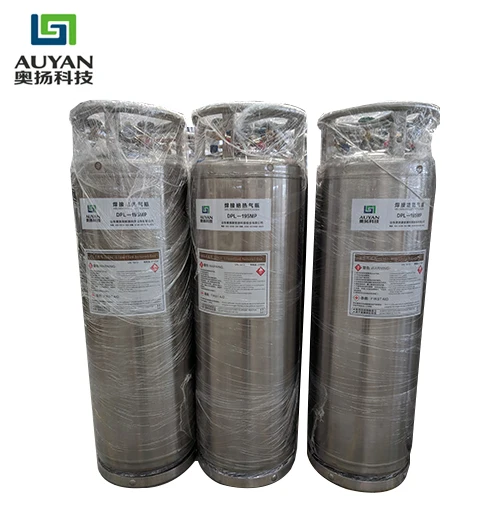

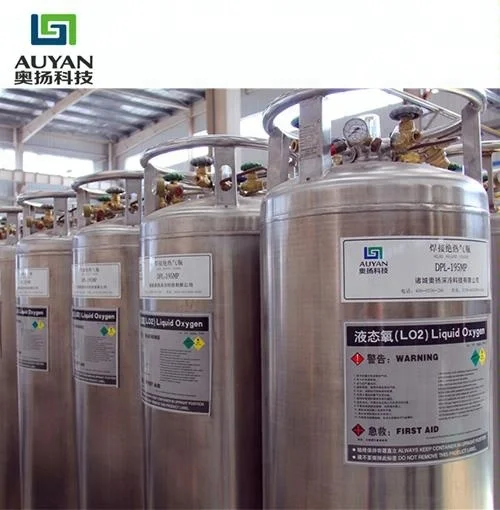

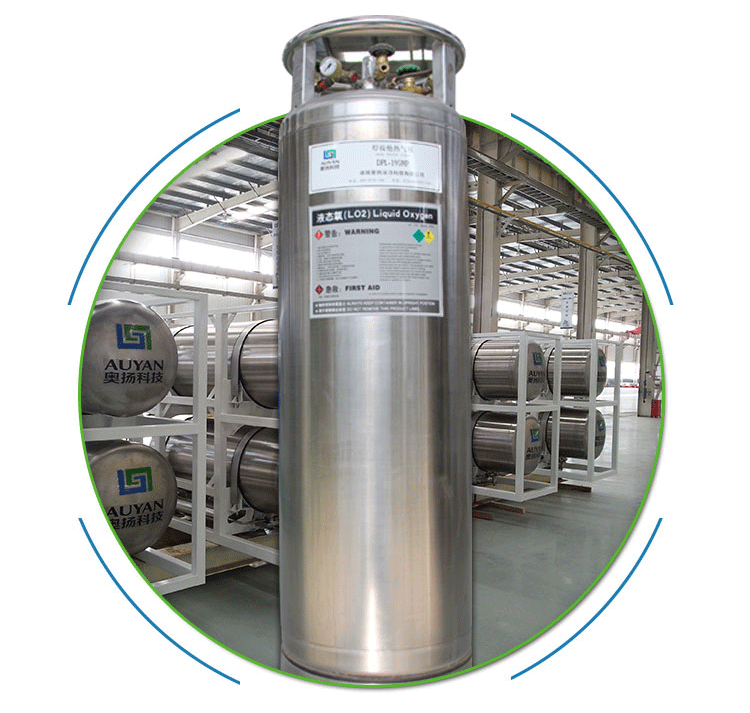

Welded Insulated industrial liquid oxygen carbon dioxide gas container cylinder

Product Overview

Description

Welded Insulated industrial liquid oxygen carbon dioxide gas container cylinder







Welded Insulated Cylinder technical parameter
Standard	GB24159-2009
Model	Vertical								Horizontal
	175MP	175HP	195MP	195HP	210MP	210HP	450MP	450HP	410MP	410HP	499MP	499HP
Work Pressure (MPa)	1.6	2.3	1.6	2.3	1.6	2.3	1.6	2.3	1.6	2.3	1.6	2.3
Volume
Nominal Volume (L)	175	175	195	195	210	210	450	450	410	410	499	499
Valid Volume (L)	161	161	179.4	179.4	193.2	193.2	405	405	369	369	459.1	459.1
Size and Weight
D (mm)	506	506	506	506	506	506	766	766	706	706	706	706
H (mm)	1504	1504	1631	1631	1721	1721	1625	1625	1900	1900	2110	2110
NW(kg)	130-135	152-157	138-143	158-163	145-148	176-179	258-263	284-289	295-302	351-358	335-342	393-400
Storage Capacity
LNG (kg)	69	69	77	77	83	83	172	172	157	157	193	193
LO2 (kg)	183	183	199	199	221	221	462	462	442	442	514	514
LN2 (kg)	130	130	140	140	156	156	328	328	299	299	364	364
LAr (kg)	225	225	251	251	271	271	567	567	522	522	636	636
LCO2 (kg)		188		209		226		446		440		536
LN2O (kg)		197		219		236		495		462		562
Valve Setting pressure (Mpa)	1.72 (250)	2.41 (350)	1.72 (250)	2.41 (350)	1.72 (250)	2.41 (350)	1.72 (250)	2.41 (350)	1.72 (250)	2.41 (350)	1.72 (250)	2.41 (350)
Pressure adjustable range (Mpa)	0.34-1.2 (50-175)	1.0-2.4 (150-350)	0.34-1.2 (50-175)	1.0-2.4 (150-350)	0.34-1.2 (50-175)	1.0-2.4 (150-350)	0.34-1.2 (50-175)	1.0-2.4 (150-350)	0.34-1.2 (50-175)	1.0-2.4 (150-350)	0.34-1.2 (50-175)	1.0-2.4 (150-350)
Static evaporation rate (%/d)	2.1	2.1	2.0	2.0	2.0	2.0	1.8	1.8	1.8	1.8	1.7	1.7
Note	Net Weight is based on the weight on name plate.

Product advantages:
1. Can be used to store and transport liquid nitrogen, liquid oxygen, liquid argon.
2. Different volumes, different pressures, more choices.
3. Spiral polished texture, beautiful appearance.

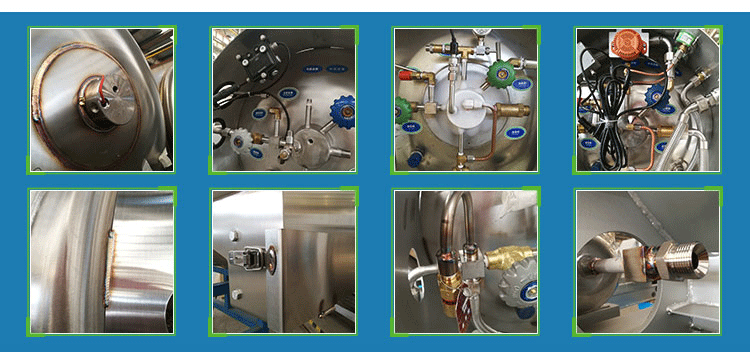

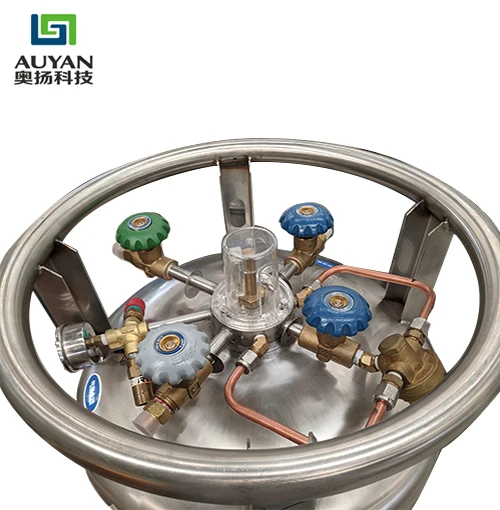

4. Brand accessories, reliable performance.
5. Floating support, lower heat loss.Product advantages:
