China Uniwin automatic membrane filter press for corn oil with driest oil cake

Product Introduction

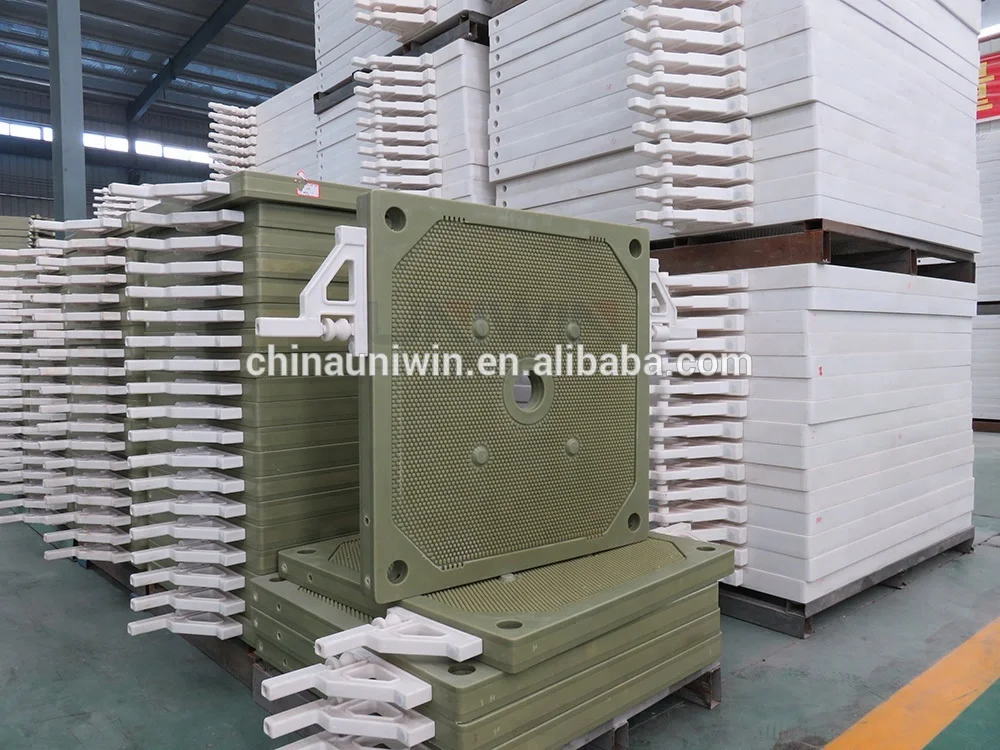

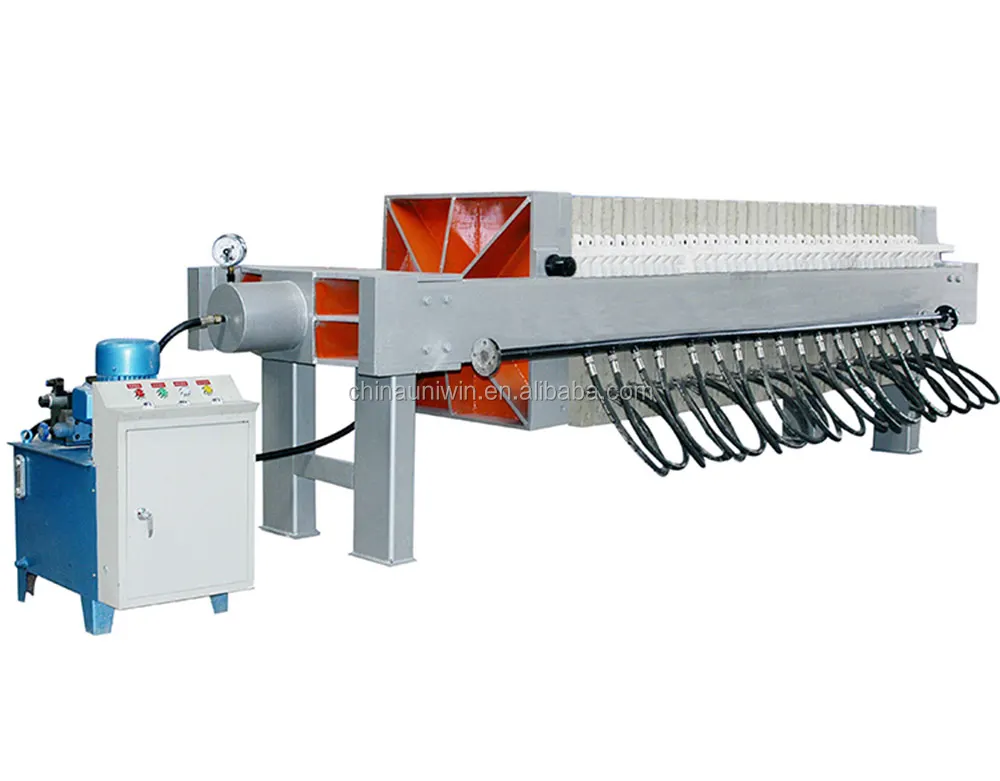

Membrane filter press is one kind filter press that using the membrane filter plates. In the process of operation, in the end of feeding the material, high hydraulic liquid or gas(0.8-2.0mpa) medium can enter into membrane plate, then the whole membrane will expand to compress filter cake, and filter cake will be further dewatered, which is usually called membrane squeeze.

* Shorten Filter Time

Compared to Plate and Frame Filter Press, Membrane Filter Press shorten filter time clearly, in the late period of filtering, Plate and Frame Filter Press takes a lot of time to compress water, its filtering efficiency is too low; however, filter with membrane , the cost of time is shorter, efficiency rises a lot.

* Save Electric Power

Save operation power, in the late period of filtering, small flow, high pressure, feeding pump consumes high power; however, filter with membrane, in the condition of high moisture, open air filter to finish this process in a shorter time and save electric power.

* Decrease Moisture Content of Filter Cake

Increasing filter cake dryness and decrease moisture content of filter cake, filter with membrane has a second time filtering on filter cake that was finished by static filtering. Restructuring filter cake and increasing density is for that substitutes a part of moisture content and increases filter cake dryness. According to former experience it can decrease 10%-40% moisture content. For different industries, the lowest moisture content can reach 12.5%.

* PH Valve can be Washed Thoroughly

In the process of working that needs wash acidity and alkaline chemicals of materials repeatedly, Membrane Filter Press can do it better.

* Improve Processing Capacity of Filter Press

Increasing operation elasticity of filter press, especially the operation of washing mud cake.

* Shorten Filtering Time

* Decreasing moisture content of filter cake,

* Washing chemicals in the filter cake thoroughly

* Save Electric Power

* High Filtering Pressure

* Good Quality of Anti-corrosion

* Convenient in Fixing

Pharmacy Industry

Strain, HuangLianSu, aureomycin and McGrady enzymes enzyme, Wells, inositol guangzhoumetro, phytic acid, calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate, pig’s blood.

Fine Chemical Industry

Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)

Wastewater Industry

Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment.
