Slitting and Cut to Length Machine,Steel Sheet Metal Coil Cut to Length Line

Product Overview

Description

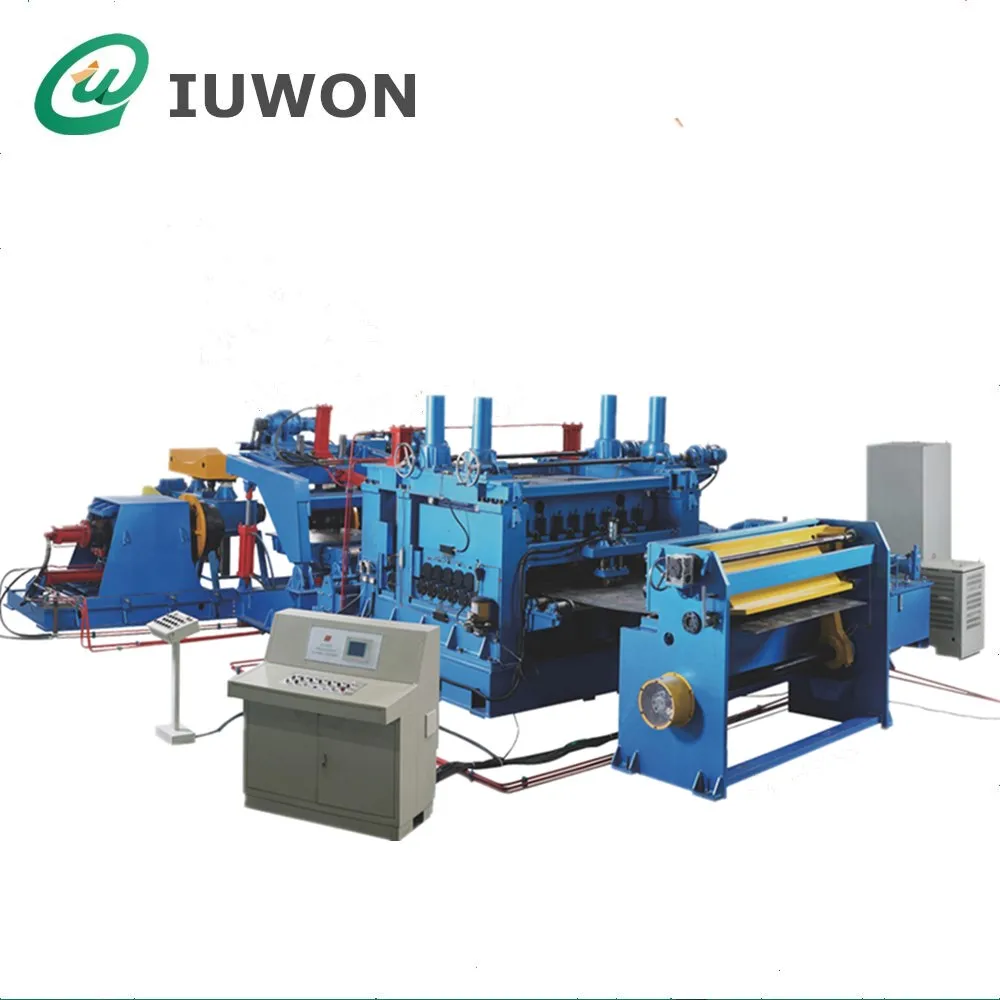

Slitting and Cut to Length Machine,Steel Sheet Metal Coil Cut to Length Line

With this line,the metal sheet coil coild be decoiled,leveled,cut to length,stacked to short sheetsaccording to required length. This ;ine normally includes coil car,decoiler,leveling machine,cutting machine and stacker.

Parameters of Line:

Item		Parameter
Raw Material	Type	Cold rolled stainless steel
	Yield Strength	≤600Mpa
	Tensive Strength	≤750Mpa
	Max.Coil Weight	7ton
	Width	350-800mm
Max. Feeding Speed	20m/min
Sheared Length	500-3000mm
Stack Weight	7000kgs
Stacking Height	550mm
Shear Frequency	6-8 piece/min

Layout Drawing

We Promise :

1).Take the EUROPEAN Quality Standard;

2). Choose the Best Material and Components.

3). Over 30-Year-Experienced Experts and Top International Sales to Care Your Needs.

4). Offer The Highest Quality but The Best Price in Prevailing Market.

5). Customize for You.
