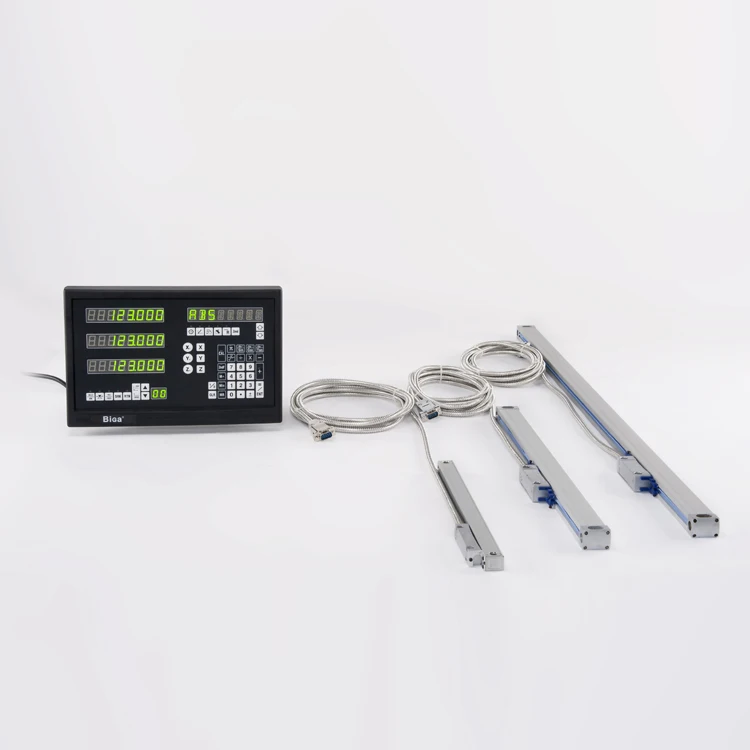

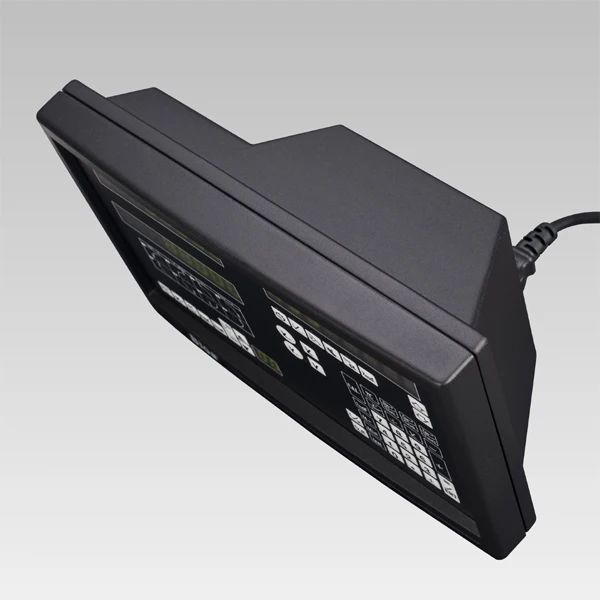

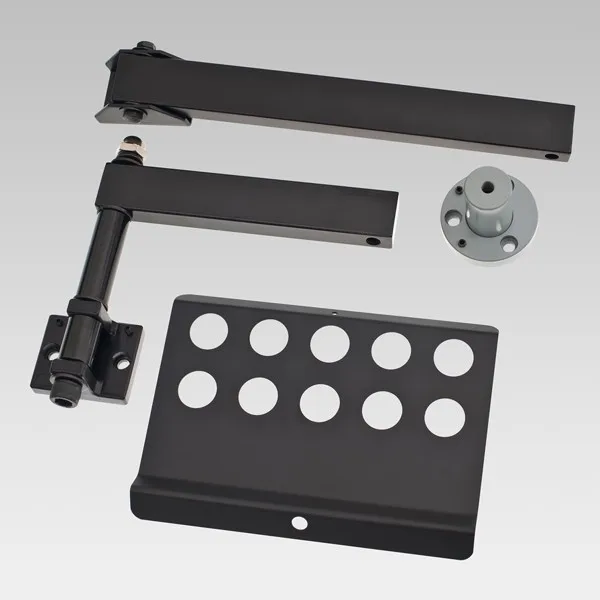

BiGa High Precision 3 Axis Sino DRO for Lathe Machine
- Category: >>>
- Supplier: Dongguan City Biga Grating Machinery Co. Ltd.
Share on (60750938077):
Product Overview
Description
Product Description
Digital Readout Features:
| Available resolutions | 10 - 5 - 1 - 0.5 um(For Linear Encoder);
|
| Power supply | 110VAC – 220VAC ±10% / 50Hz – 60Hz /15 VA |

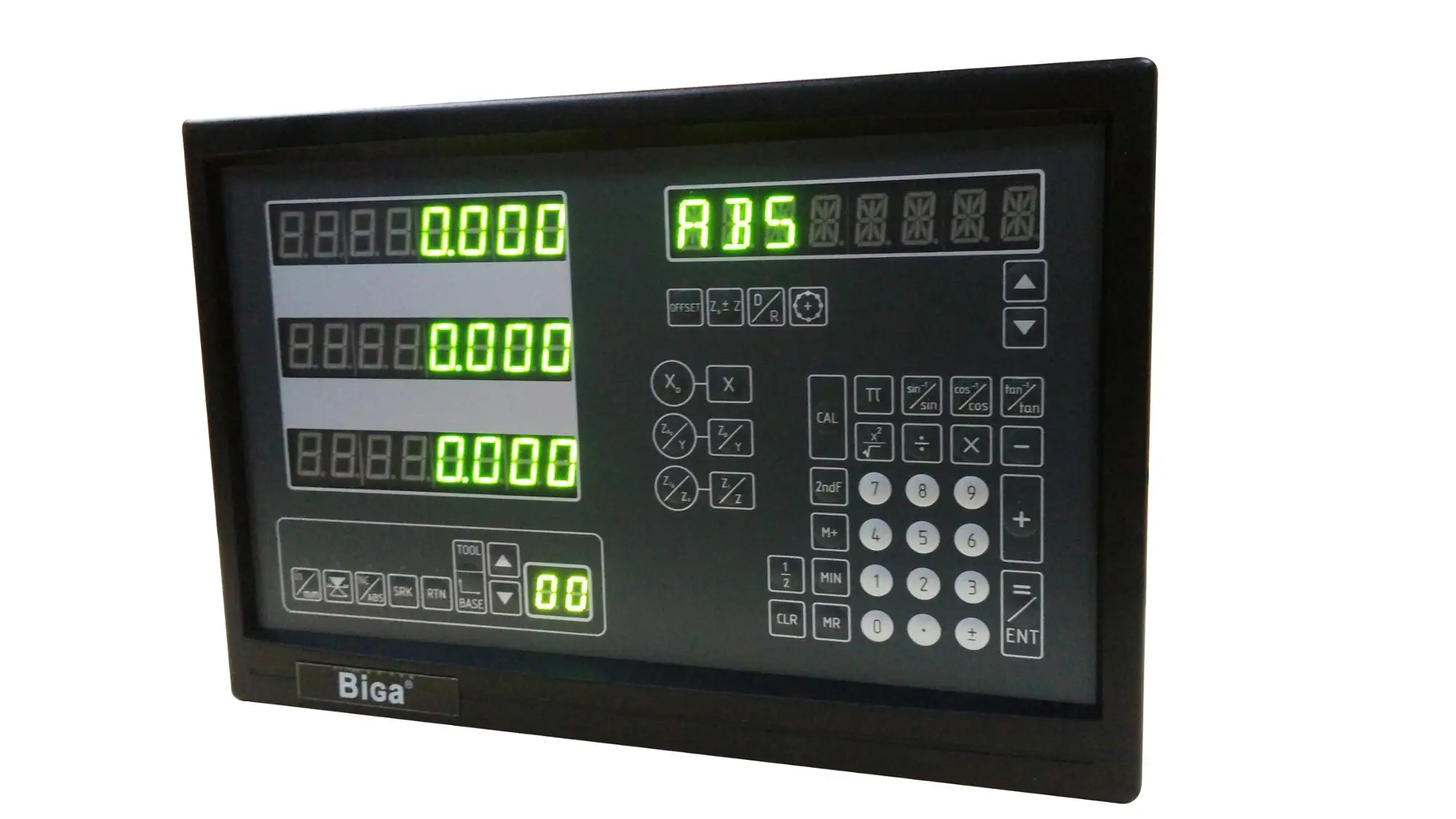

| Axis display | 8-digits green color LED display |
| Signal input per axis | A/B quadrature signals |
| Maximum input | frequency 300KHz |
| Operating temperature | 0 — 40 |
| Storage temperature | -20 — 60 |
| Relative humidity | 90% (not condensed) |
| Vibration resistance (EN 60068-2-6) | 25 m/s (55 – 2000Hz) |
| Protection Class (EN 60529) | IP 42 |
| Weight | 2.1 Kg |
Function for Digital Readout
1.Microscope |
2.Profile projector |
| 3.Mechanical control |
| 4.Movement control |
| 5.Position monitoring |
| 6.Coordinate measurement |
| 7.X-Y working table monitor |
| 8.Video measuring machine |
| 9.Coordinate measuring machine |
| 10.Other area of linear scale and rotary encoder |
Advantage for Digital Readout
| 1.The catalogue is lathe-role |
| 2.Automatic tool compensation for both X and Y/Z |
| 3.Aluminum ally,spray plastic appearance,dust proof and wear resisting,good shield |
| 4.Independent power,widely used,high stabilization,capacity of resisting disturbance well |
| 5.The power source and the signal have a good capacity of resisting disturbance,durable keyboard,easy to change |
| 6.The high precision digital readout is specialization design,elegant appearance,high speed of numeration,multifunction |
Company Information
Packaging & Shipping
Our Services
Warranty&After-sale service
1. 24-hours technical support by E-mail
2. All of our products’ warranty period for 12 months.
3. Man-made destroy will be exception.
4.We can supply the materials or tech support to our customers to
help them fix the problems.
Feedback
1.Since your feedback is very important to our business's development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. It'll just take you 1 minute.
2.Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems.Thank you!
If you need DRO, please feel free to contact with me.
I'd be glad to help you get them for your machine :)
FAQ
