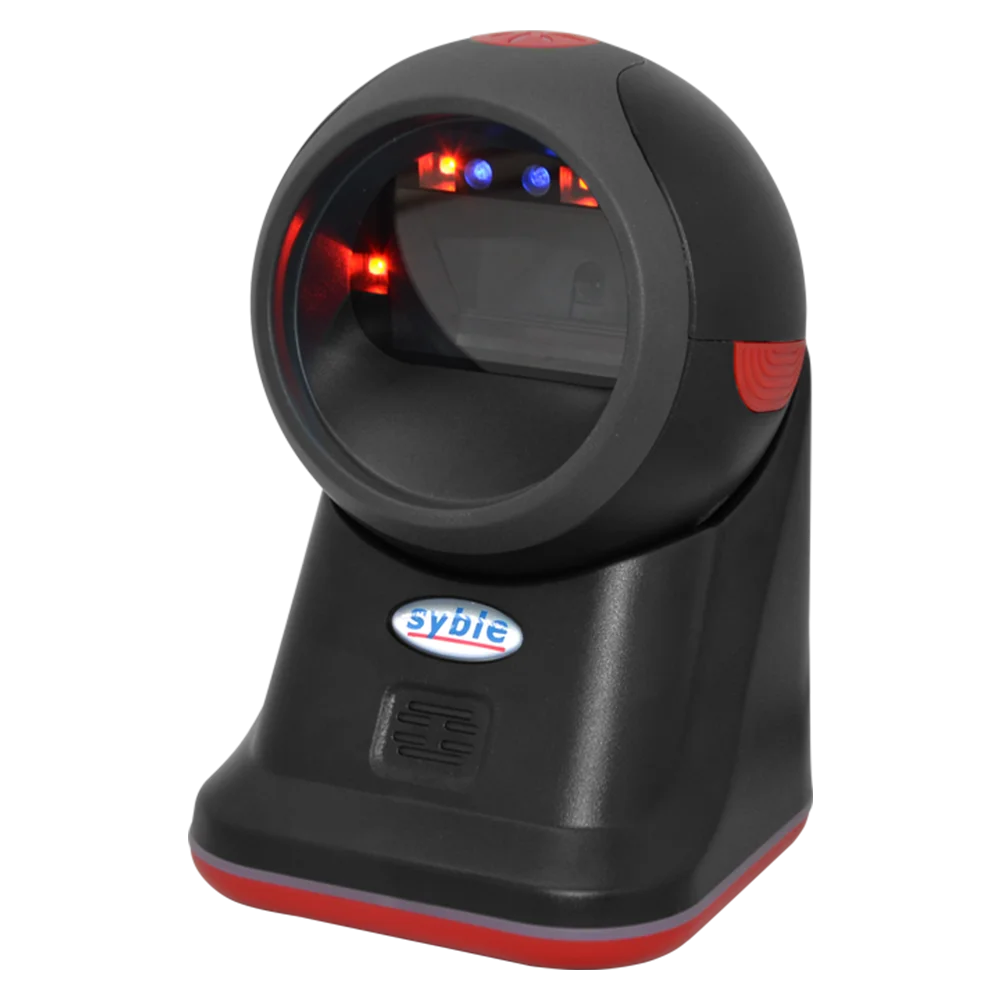

Factory price omi directional 1d/2d barcode scanner the same as Honeywell MS7120
- Category: Scanners >>>
- Supplier: Guangzhou,Xunbao,Electronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Factory price omi-directional 1d/2d barcode scanner the same as Honeywell MS7120
Specification
| Model Number | XB-8608G |
| Performance Parameters | |
| Light Sources | 617nm LED single dot, white LED |
|
Supported Symbologies
Postal |
1D:UPC/EAN,ISSN,UCC Coupon Extended Code,Code128,GS1-128,ISBT 128,Code39,Code93 FullASCII,Trioptic Code39,Code32,Code11,Matrix 2 of 5,Interleaved 2 of 5,Discrete 2 of 5,Codebar,MSI, Chinese 2 of 5,GS1 Databar Variants,Korean 3 of 5,ISBT Concat. 2D:PDF417,MicroPDF417,Composite Codes,TLC-39,Data Matrix,Maxi code,QR Code,Micro QR,Aztec. U.S. Posnet and planet,U.K. Post, Japan Post,Australian Post,Netherlands KIX Code,Royal Mai 4 state Customer,UPU FICS 4 state Postal,USPS 4CBl |
| Optical System |
640 H x 480 V pixels (Wide VGA) |
| Resolution | 4 mil (Code 39), 7.5 mil (Data Matrix), 5 mil (PDF 417) |
| Focusing Distance | Up to 267mm |
| Field of View | Horizontal: 46.1°; Vertical: 30.4° |
| Indicator | LED, Speaker |
| Interfaces | USB HID/USB-COM/RS-232 |
| Physical Parameters | |
| Dimensions | 96mm*108mm*150mm |
| Weight | 320g |
| Material | ABS+PC |
| Cable Length | 2M |
| Environmental Parameters | |
| Operating Temperature | -20℃~50℃ (32oF to 104oF) |
| Storage Temperature | -40℃~70℃ |
| Relative Humidity | 0%~95% RH(non-condensing/non-freezing) |
| Drop/Shock Resistance | Withstands multiple times 1.5 meters drops to concrete |
| Electrical Parameters | |
| Voltage | DC5V±10% |
| Current | 400mA |
Features
*The new decoder chip. Interpretation of various one-dimensional code / two-dimensional code
*Plug and play, set up simple, can be quickly used with other office equipment
* Bit error rate as low as 1/500 million times, accurate and correct
* With touch button
* Professional and technical, can scan WeChat, Alipay bar code
* The wire adopts 0.01 mm copper wire, which contains pull-resistant nylon wire for longer service life
* Anti-freeze wire material, can be used at temperatures below minus 30 degrees
Application areas
Mainly used in courier, warehousing, specialty stores, retail and so on
