Name: Compound table mitre saw cutting saw machine table miter saw panel saw woodworking machine panel saw woodworking machine
SKU: 60750975634
Price: $15,000.00 - $16,500.00 USD
Availability: InStock

Compound table mitre saw cutting saw machine table miter saw panel saw woodworking machine panel saw woodworking machine

Product Description

Model	Sliding table panel saw Altendorf F92X
Material	Carbide alloy
Color	Nickel white
Applied fields	Woodworking
Adjustable angle of sawing seat	0-180 degrees
Processing size	2700 X 2700 mm
Slide sliding table length	2000/2600/3000/3200mm
The maximum extension of the lateral baffle	3200 mm
Motor power	5,5KW
Main saw shaft speed	3000/4000/5000 rpm
The maximum outer diameter of the main blade	350mm
Maximum vertical sawing thickness	125 mm
Groove spindle speed	9000 rpm

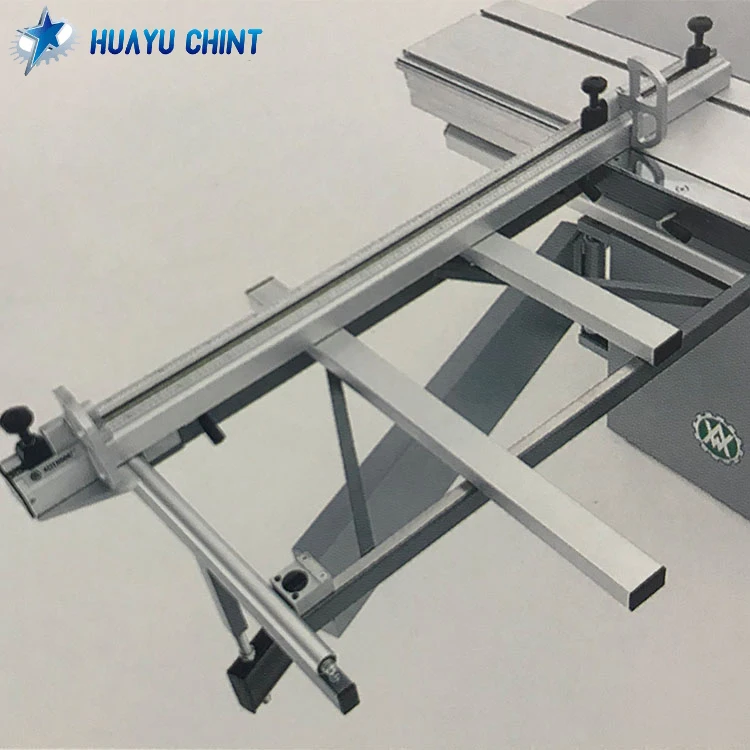

Adjustable angle baffle ruler maximum extension	3200mm

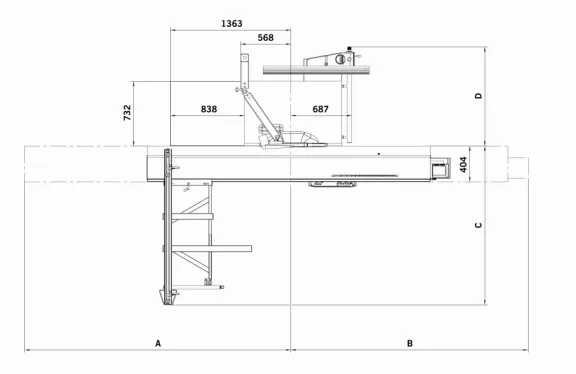

Mechanical footprint	6110 X 4170 mm

.jpg

Sawdust and dust adhering is removed with a vacuum cleaner. To remove res-in residues it is best to use a cleaning solvent. It is essential that parts treated in this way are treated afterwards with an oil-soaked cloth to avoid the buildup of rust.

The sliding table guides are to be cleaned regularly. If contaminated with resin,the guides are to be cleaned with petroleum and possibly using Scotch Brite pads for example. It is not advisable to use steel wool or sandpaper since this than irreparably damages the guide tracks.

Note!:

Before using a solvent and cleaner you must make sure that this substance will not cause any damage to the lacquered, anodized or zinc-plated surfaces as well as to plastic parts. You can obtain information about this by consulting the safety data sheets for this substance (obtainable from makers of solvents or cleaners).
