BiGa Hot Sales Metal Case BC20 2M Magnetic Scale DRO

Product Overview

Description









*Feature of BC20-2M  Digital Readout Display/DRO /Console* :

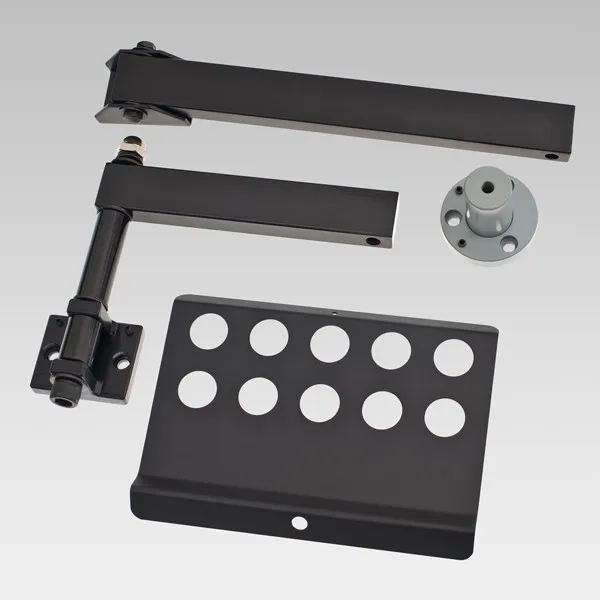

The BC20-M is a dedicated Milling specific DRO with all the functions you would expect and built in tilt mounting to ensure to optimal viewing when combined with the supplied mounting arm.

Fully loaded with all the features you would expect including bolt-hole (PCD) patterns, subdatums, tool-offsets and even inclined machining function.
1.Machine specific versions
2.Milling and Turning applications
3.Optical Glass or Magnetic encoders
4.Cost effective design
5.One touch axis zero keys
6. Latest SDM manufactured design
7. Bright clear wide-viewing angle display
8. Wipe clean membrane keypad
9. Ideal replacement for retrofit.

*Introduction of BC20-2M with metal casing *

Display:	Bright Green LED
Case:	metal
Power :	110…240 VAC (50/60 Hz)
Storage Temperature:	-20℃ to +70℃
Operating Temperature:	0℃ to +50℃
Relative Humidity:	20% to 85%
Dimensions (H x W x D):	290mm x 190mm x 105mm
Auxiliary Port (6-outputs + RS232):	Optional

Non-condensing
USB Service Fitted as standard

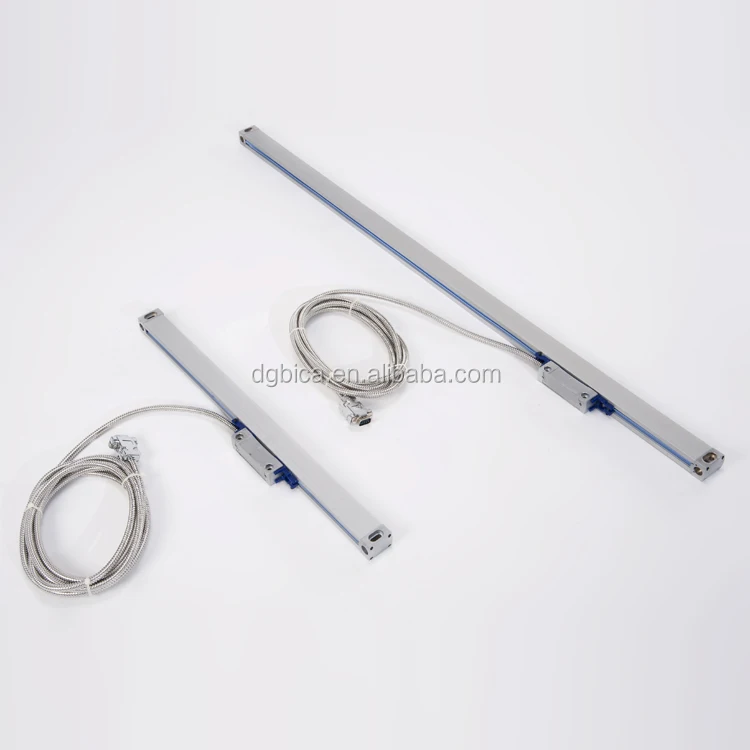

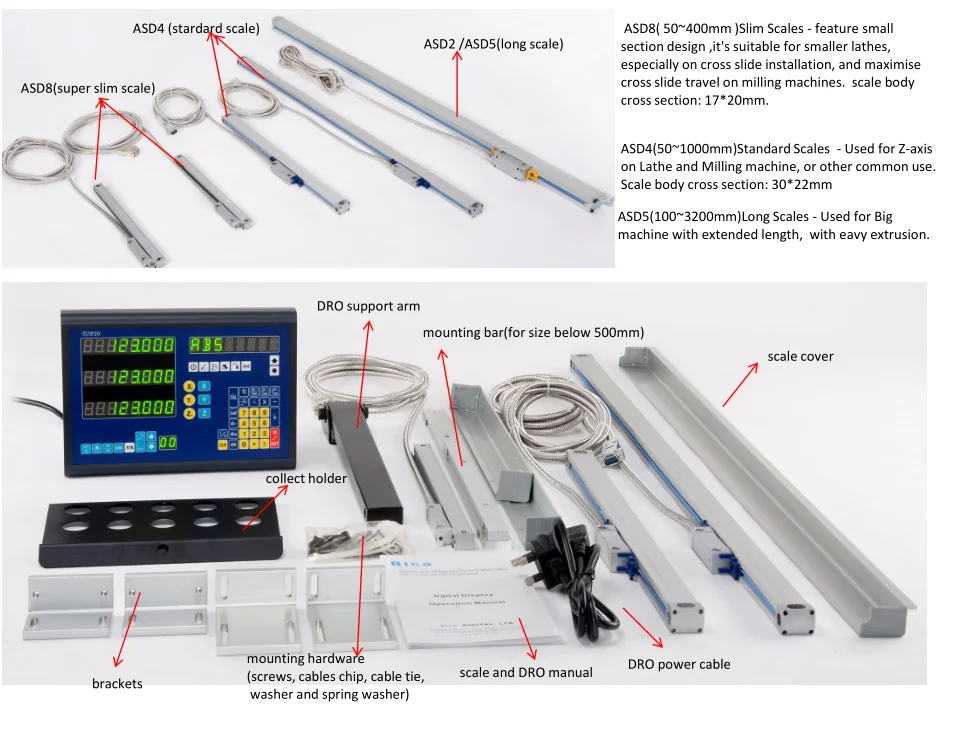

Linear Scale Features:
Linear Scale when used in conjunction with our counter is designed for manual
machine tools or other equipment having linear movements, for example cut off
saws. Alternatively the scale output can be used for automatic positioning
control of machine tools or similar equipment via CNC or PLC units. The scales
may also be fitted to co-ordinate measurement or other measurement
equipment used for high accuracy inspection & measurement. Our company is
the earliest national professional producer of optical grating sensors in China
and offers a comprehensive range of products. We are able to quote on special scales on request.

Linear Scale Superiority:
1)The reading head adopts ball bearing to position and guide with high sensitivity & long life.
2) Adopting metrology grating as measuring datum with high accuracy.
3)Adopting sealed structure that has reliable performance & is convenient for installation.
4)Glass precision measuring grating is adopted for the Linear Encoder as measuring benchmark to ensure high precision
5)Individualized components makes it very easy to install, maintain and repair the linear Encoder

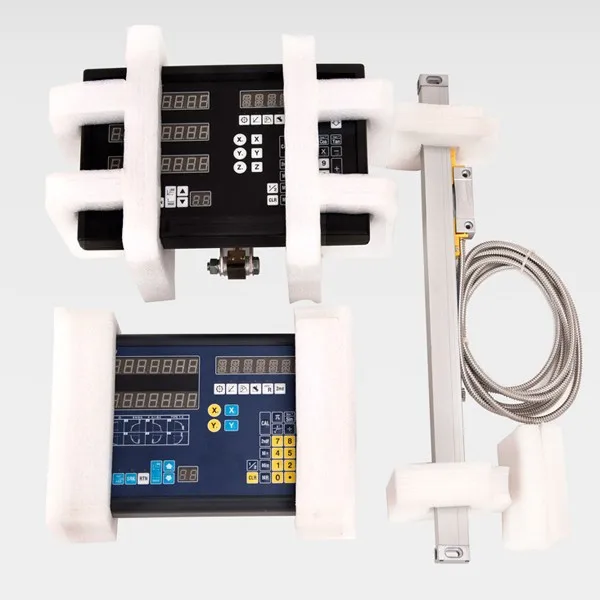

Delivery and Packaging:

Delivery time: 3 working days after get your payment

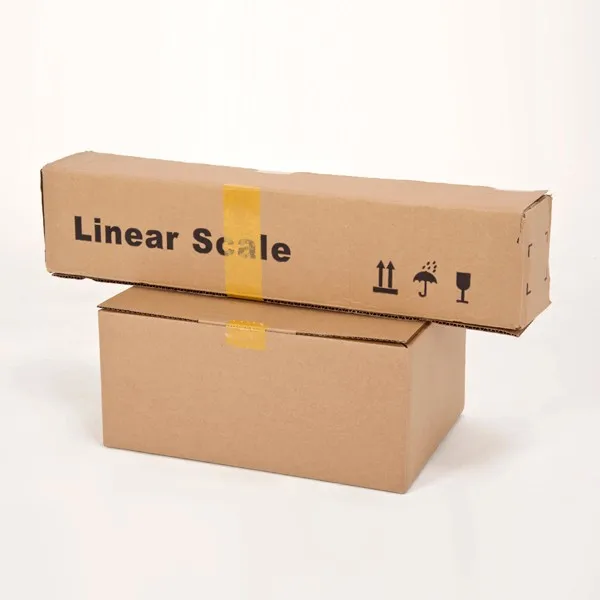

Packaging:standard export packaging



Thanks for your time and best regards!
