Automatic garage door infrared beam sensor
US $9.00-$9.50
Highly cost effective high speed automatic industrial door operators
- Category: Garage Door Openers >>>
- Supplier: ET,Technology,(Wuxi),Co.,Ltd.
Share on:
Product Overview
Description

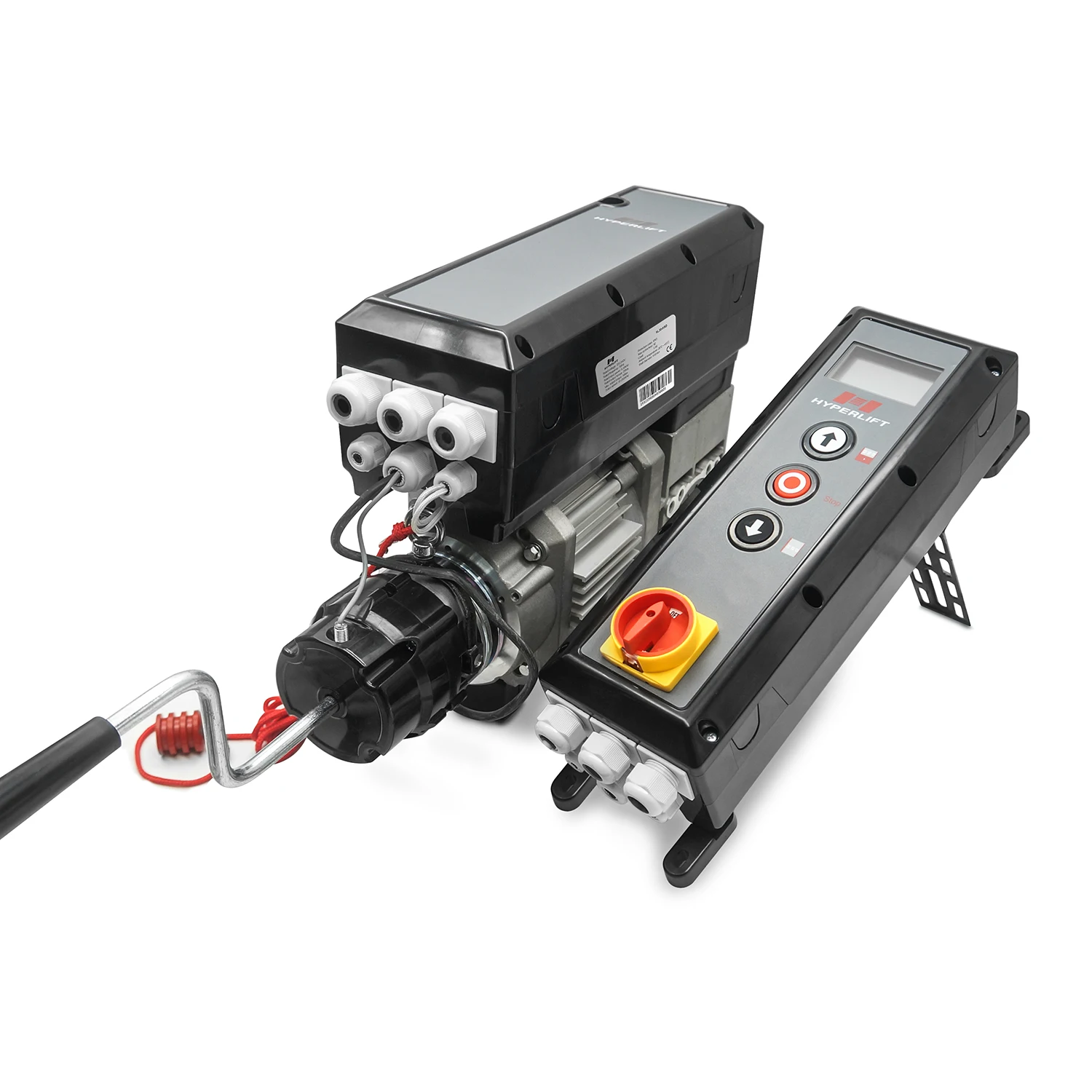

Qualities product high speed automatic industrial door operators
| High speed Door Operators | |||
| Application | High-speed Spiral door/PVC Curtain/Roller up door | ||
| HYPERLIFT-model | HL30-HSD | HL65-HSD | HL100-HSD |
| Motor power in KW | 0.55 | 1.1 | 1.5 |
| Torque in Nm | 30 | 65 | 100 |
| Speed in RPM | 30-250 | ||
| Frequency converter | Yes | ||
| Force supervision | Yes | ||
| Diameter hollow shaft in mm | 30 | ||
| Endurance in c/h | 60 | ||
| Emergency release | crank | ||
| Limit setting of door travel | digital encoder | ||
| Force of mechanical brake in NM | 8 | 8 | 12 |
| Max door area in M/2 | 9 | 16 | 25 |
