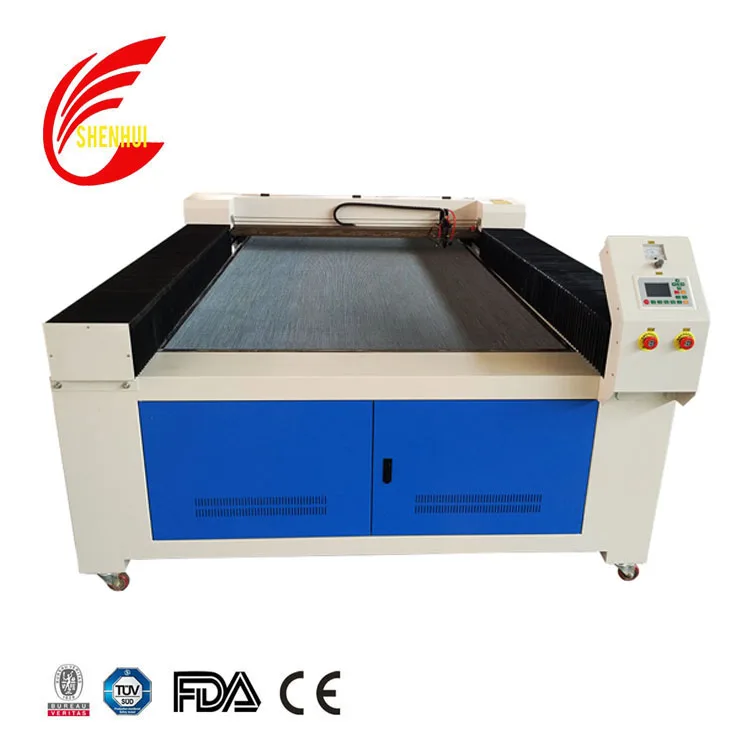

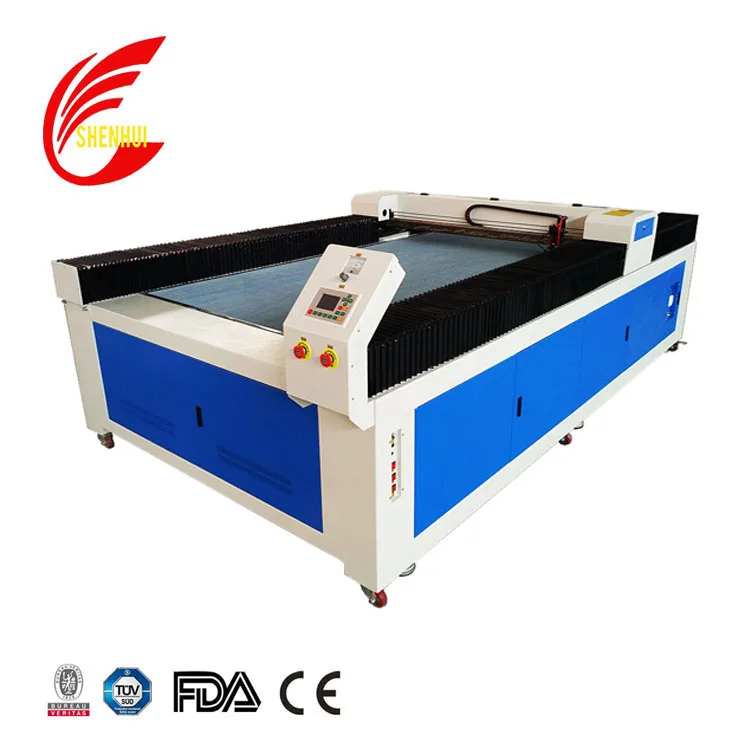

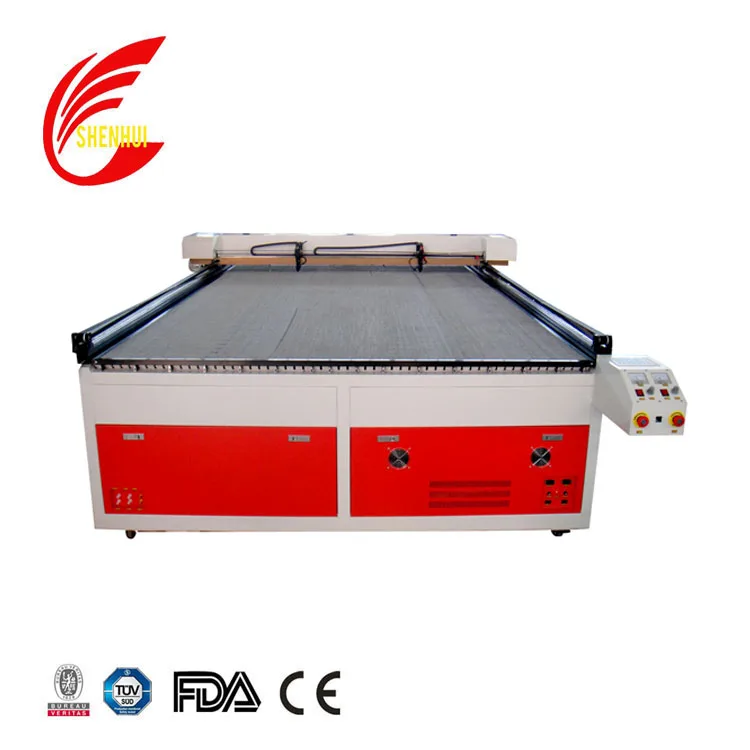

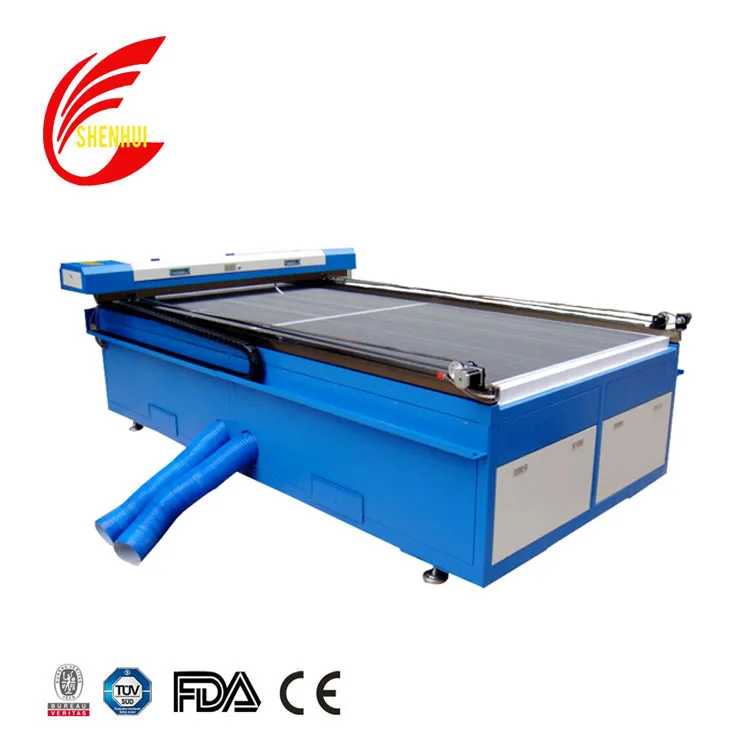

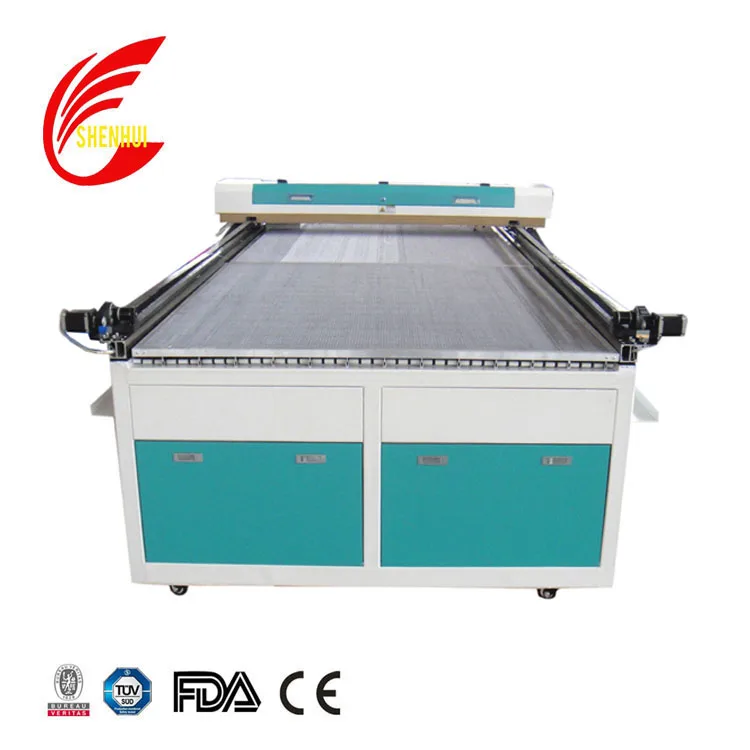

SH 2513 double heads auto feeding 100w 130w co2 laser leather cutting machine for shoes making
- Category: Industry Laser Equipment >>>
- Supplier: Liaocheng Shenhui Laser Equipment Co. Ltd.
Share on (60751069113):
Product Overview
Description
Product Description

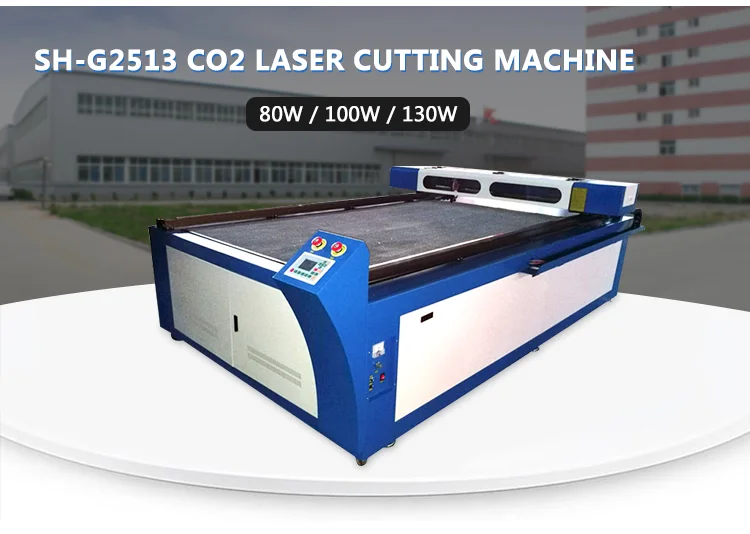

SH-2513 laser cutting machine for cloth shoes making

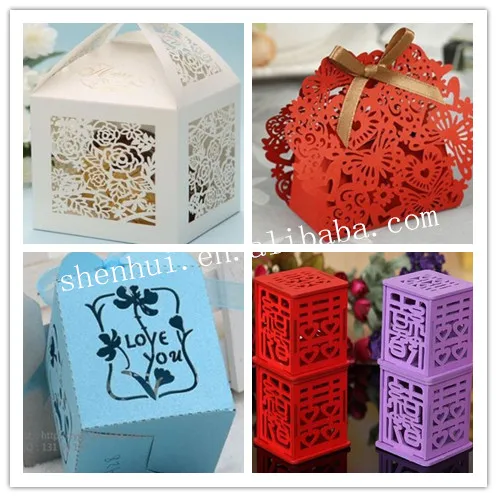

Application Industry: Advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry,Vector Cutting,Raster Engraving, Sign-making, etc.
Application Materials: Wood, bamboo, jade, marble, organic glass, crystal, plastic,garments, paper, leather,rubber, ceramic, glass Acrylic, ABS Plastic, Carbon Composite, Cardboard, Cork, Mylar, Plastic and other nonmetal materials.

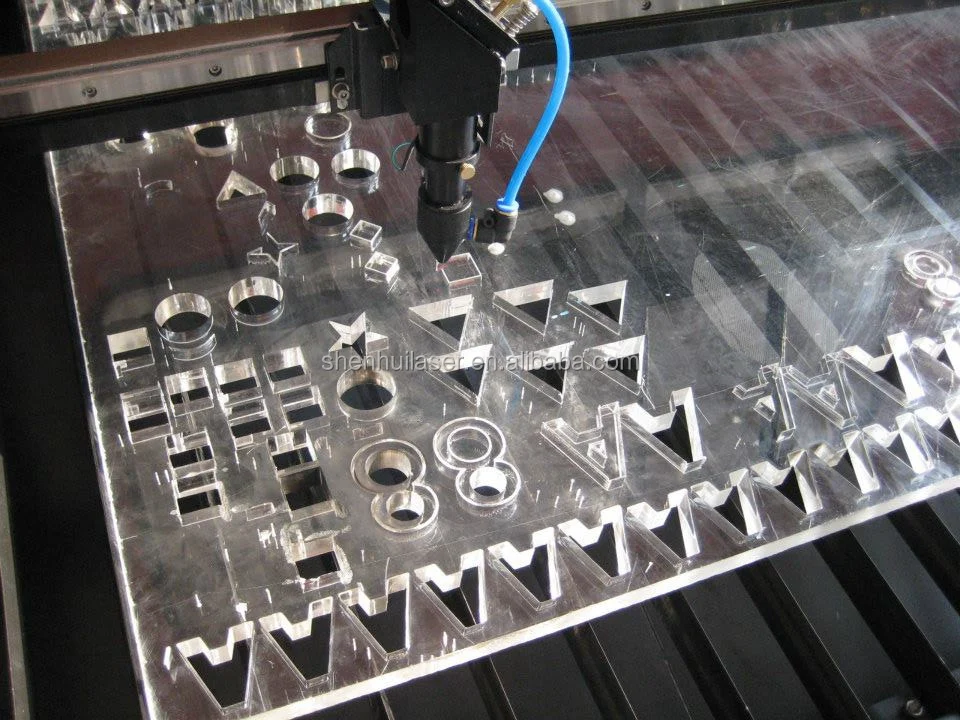

Acrylic engraving and cutting
Technical Parameter
Laser power | 80W-150W(Reci Brand is optional) | Graphic Format Supported | Files which coreldraw, photoshop, AutoCAD can entifyBMP,GIF,JPEG,PCX,TGA, TIFF,PLT,CDR,DMG, DXF,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF, EMF,CGM,SVG,SVGZ,PCT,FMVGEM,CMX) |
Laser type | Hermetic co2 glass tube | ||
Power supply | AC220±10% 50HZ/AC110±10%60HZ | ||
Working area | 2500mmx1200mm | Compatible software | Coreldraw, AutoCAD |
Max moving speed | 0-25000mm/min | Cutting thickness | 0-25mm/30mm( depends on different materials |
Worktable | Honeycomb worktable/aluminum knife | Color separation | Separation of cutting up to 256 colors |
Sloping engraving | Yes, slope can be designed discretionarily | ||
Locating precision | <0.01mm | Cuts off the water supply the protection | Yes |
Min shaping character | Character:3x3mm,letter:2x2mm | ||

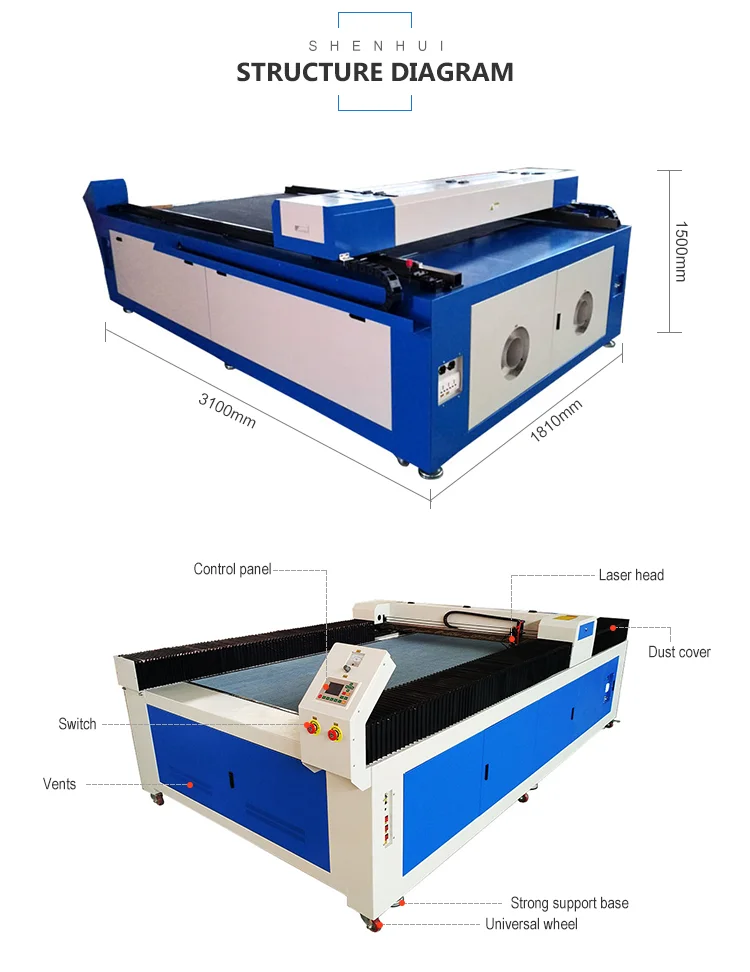

Operating temperature | 5℃-35℃ | Machine dimensions | 2700x1830x1000mm |
Resolution ratio | ≤4500dpi | Package dimension | 2980x1900x1530mm |

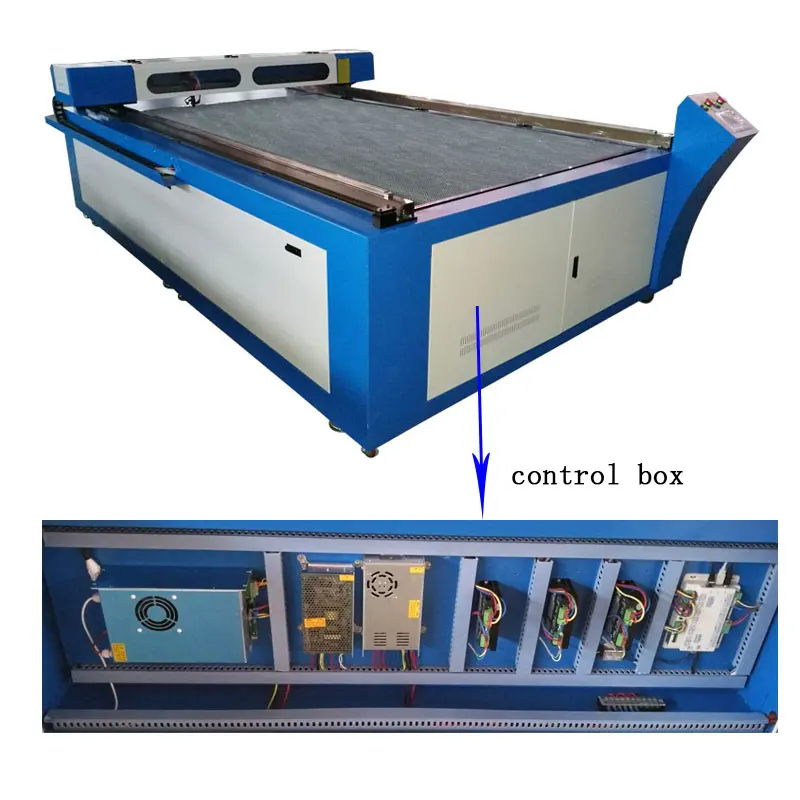

Control configuration | DSP | Net weight | 580kg |
Date transfer interface | USB(offline) | Gross weight | 700kg |
System environment | WINDOWS2000/WINDOWS XP/Vista/win7 | Cooling way | Water cooling and protection system |
Optional parts | CW3000/CW5000 chiller/double-head/cylinder rotary attachment/irregular rotary attachment/auto focus/aluminum knife/honey comb | ||
Packaging & Shipping

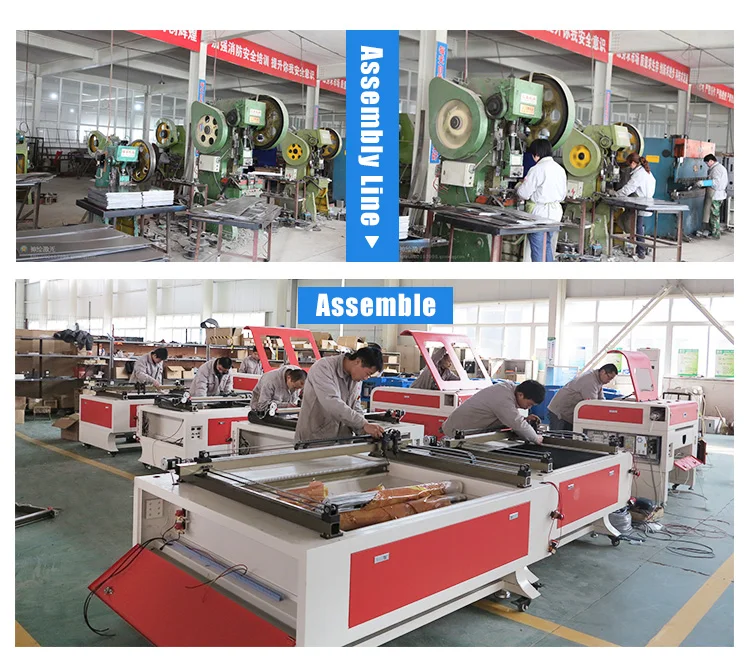

Company Information
