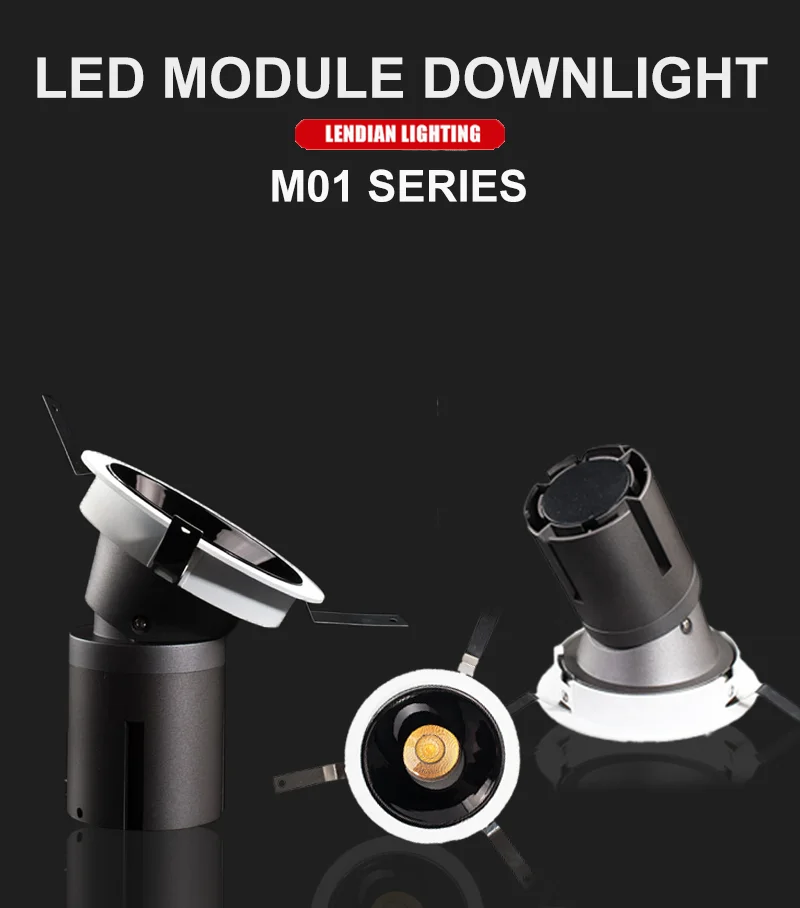

9W bigsize recessed down light frame round deep cob anti glare dimmable ip20 ip44 led spot downlight module
- Category: >>>
- Supplier: Zhongshan Lendian Opto-Electronic Technology Co. Ltd.
Share on (60751539642):
Product Overview
Description
Product Description
9W bigsize recessed down light frame round deep cob anti glare dimmable ip20 ip44 led spot downlight module

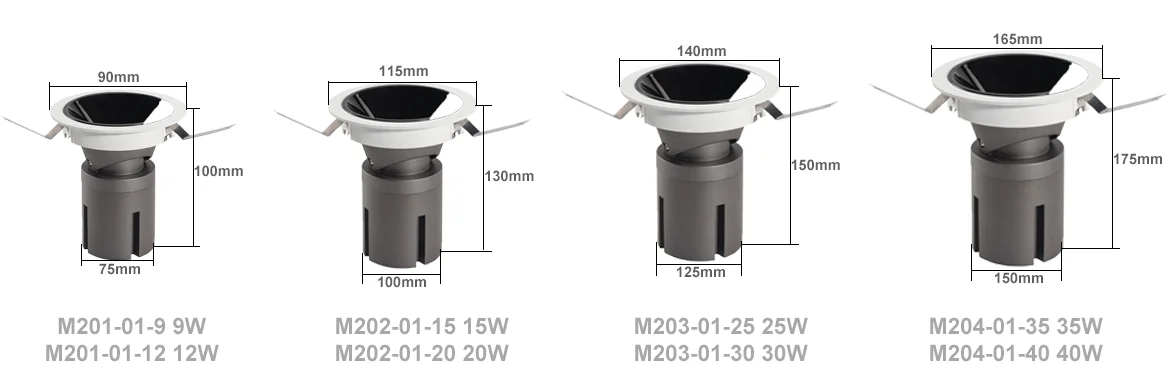

Model | Dimension(mm) | Cut out(mm) | Power | Luminous | Packing(mm) |
M201-01-9 | Φ90x100 | Φ75 | 9W | 720lm | 18pcs/CTN 425x425x245 |
M201-01-12 | Φ90x100 | Φ75 | 12W | 960lm | 18pcs/CTN 425x425x245 |
M201-01-15 | Φ115x130 | Φ100 | 15W | 1200lm | 18pcs/CTN 455x455x315 |
M201-01-20 | Φ115x130 | Φ100 | 20W | 1600lm | 18pcs/CTN 455x455x315 |
M201-01-25 | Φ140x150 | Φ125 | 25W | 2000lm | 18pcs/CTN 545x545x385 |
M201-01-30 | Φ140x150 | Φ125 | 30W | 2400lm | 18pcs/CTN 545x545x385 |
M201-01-35 | Φ165x175 | Φ150 | 35W | 2800lm | 8pcs/CTN 450x450x425 |
M201-01-40 | Φ165x175 | Φ150 | 40W | 3200lm | 8pcs/CTN 450x450x425 |
Products Details

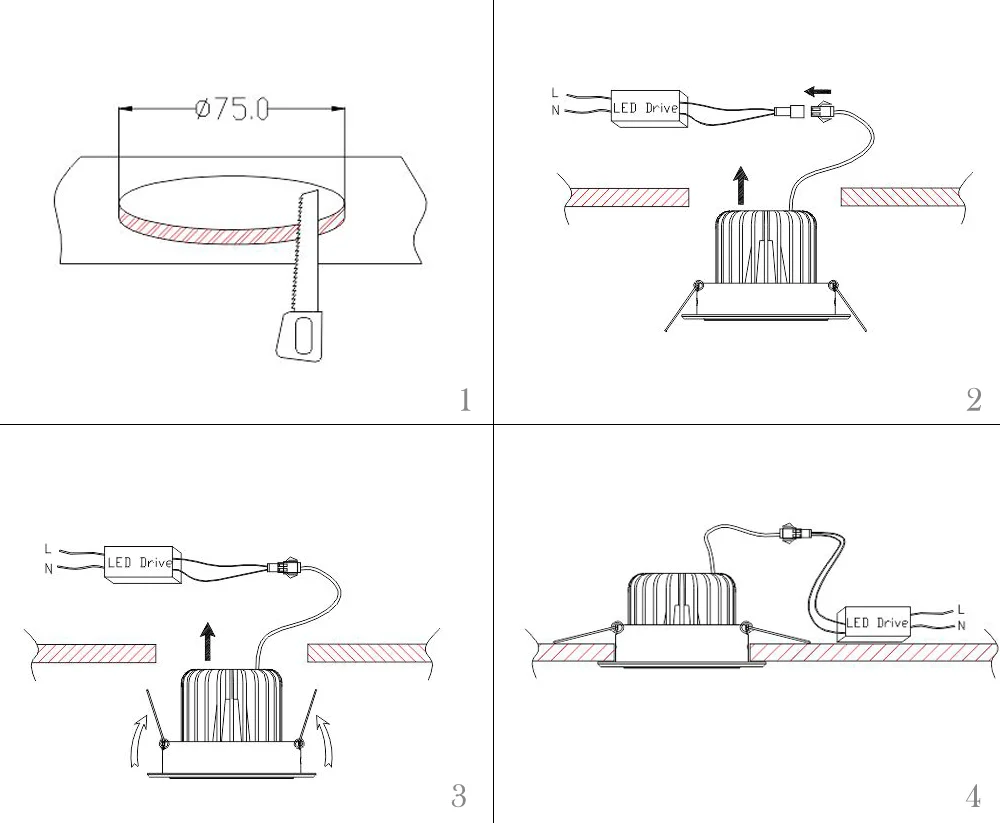

Installation Instructions

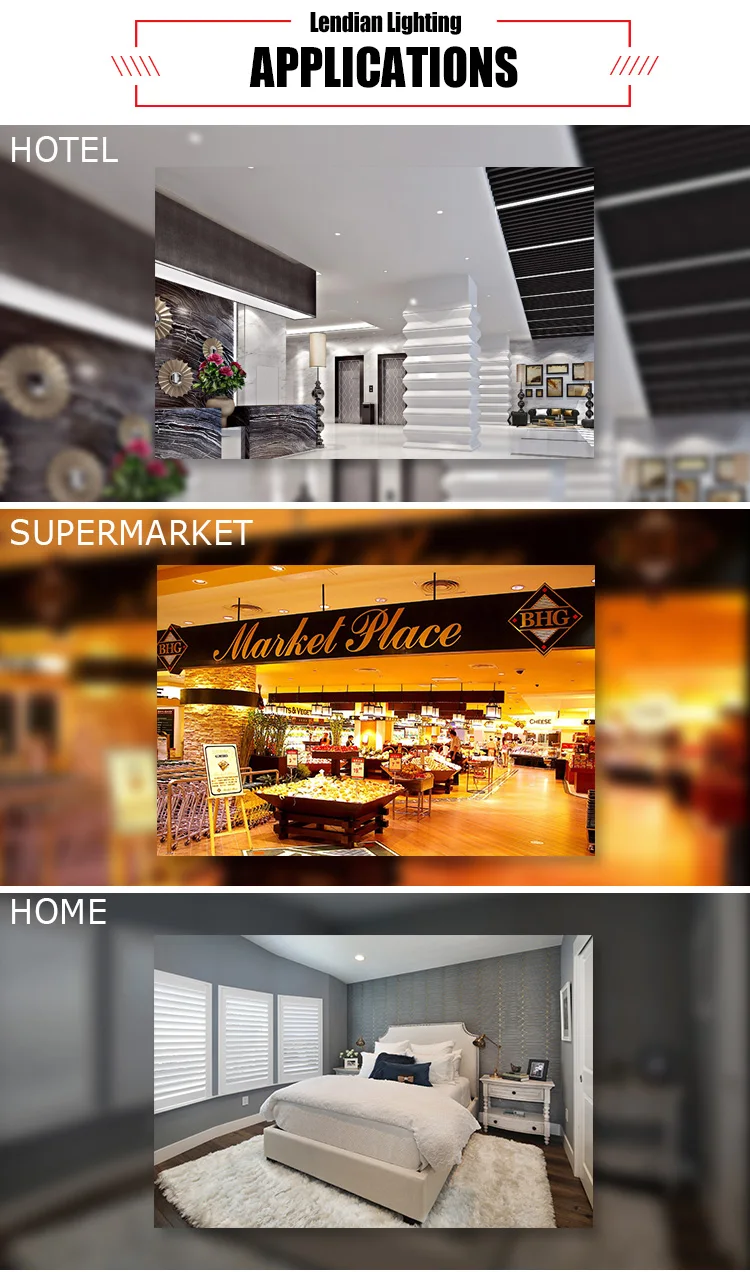

Application
Hot selling product
