PUXIONG stable quality 12KW pvc welding machine manufacturers

Product Overview

Description

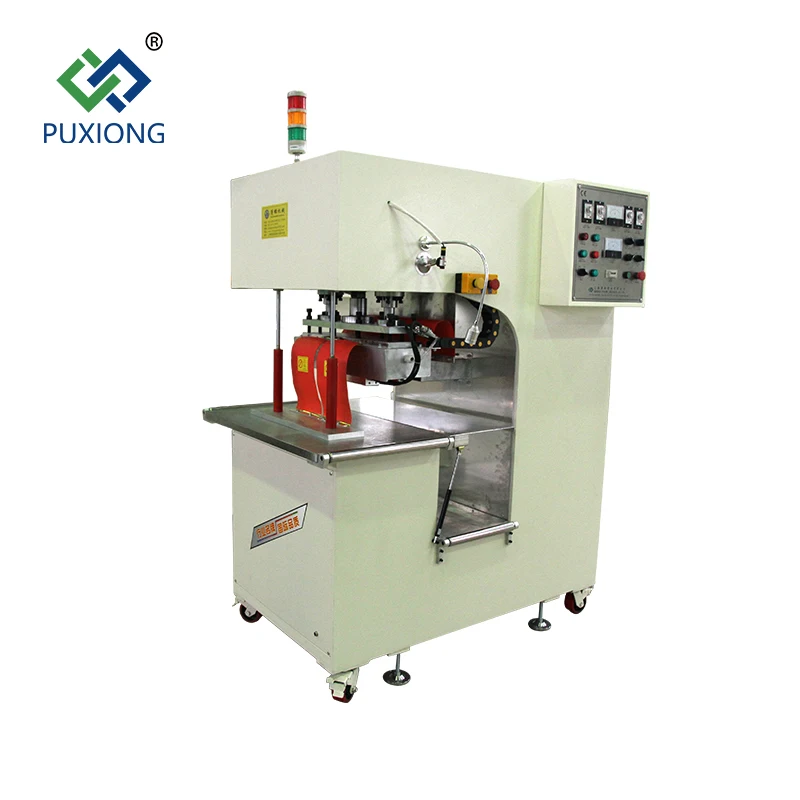

PUXIONG stable quality 12KW pvc welding machine manufacturers

                 Mainly used for PVC/PVDF/TPU coated fabric materials’ splicing or welding.It’s widely

                 used in the fields of inflatable tents,inflatable toys,tensioned membrance( building membrance),

                 soft digesters,canopy,booms,liquid bags,etc.

                 1.Easy to Move:compact design & with universal moving wheels.
                 2.Flexible Operation:both sides with “Start” & “Emergency” buttons.
                 3.Save Labor Cost:the operating panel is at the side of the machine,so it can save a staff

                    compared with the type that operating panel is in the front of it.
                 4.Materials are Convenient to Drag and Without Any Damage to the Surface: equipped

                    with unpowered rollers at both sides of the worktable.
                 5.Materials are Convenient to Stack:designed with corresponding space’s groove.
                 6.Accurate Positioning:with laser positioning system,manual focus,to ensure no misplace

                    at the greatest degree.
                 7.Stable High Frequency’s Output, Safe Working Enviroment:one side,high frequency

                    ossilating tube can provide more reasonable matching devices accordingly to materials’

                    different;the other side,high frequency electromagnetic fields are strictly controlled and

                    protected.
                 8.Equipped with Multiple Barrier Protection:such as high sensitive spark protection system

                    and overcurrent protection device, so that the moulds and materials can be protected in

                    the max.extent,if there’s any sparking or overcurrent.

Model	PXMS-K04M
Frequency	50HZ
Power	12KW
Voltage	Customized
Pressure Mode	Pneumatic
Air Pressure	0.6MPa  Adjustable
Oscillating Frequency	27.12MHz±0.5%
Size of Worktable	L1000mm*W550mm
Throat Depth	500mm
Through Height	670mm
Height of Worktable	980mm
Welding Bar	L500mm*W40mm(adjustable)
The Max.Welding Area	20000 mm²
Overall Dimension	L1500mm*W1500mm*H2100mm
Weight	850KG
