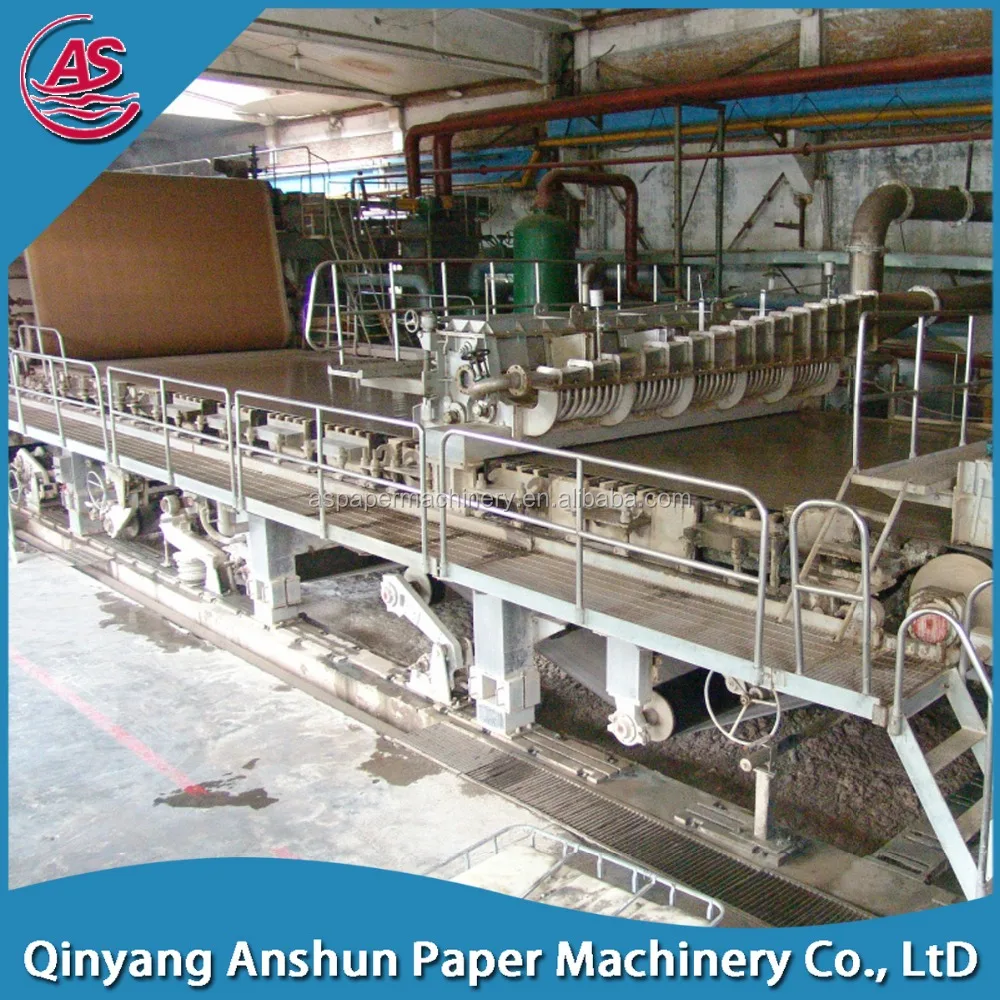

make a4 paper machine-newsprint paper rolls making machine on sale from paper product making machinery
Product Description

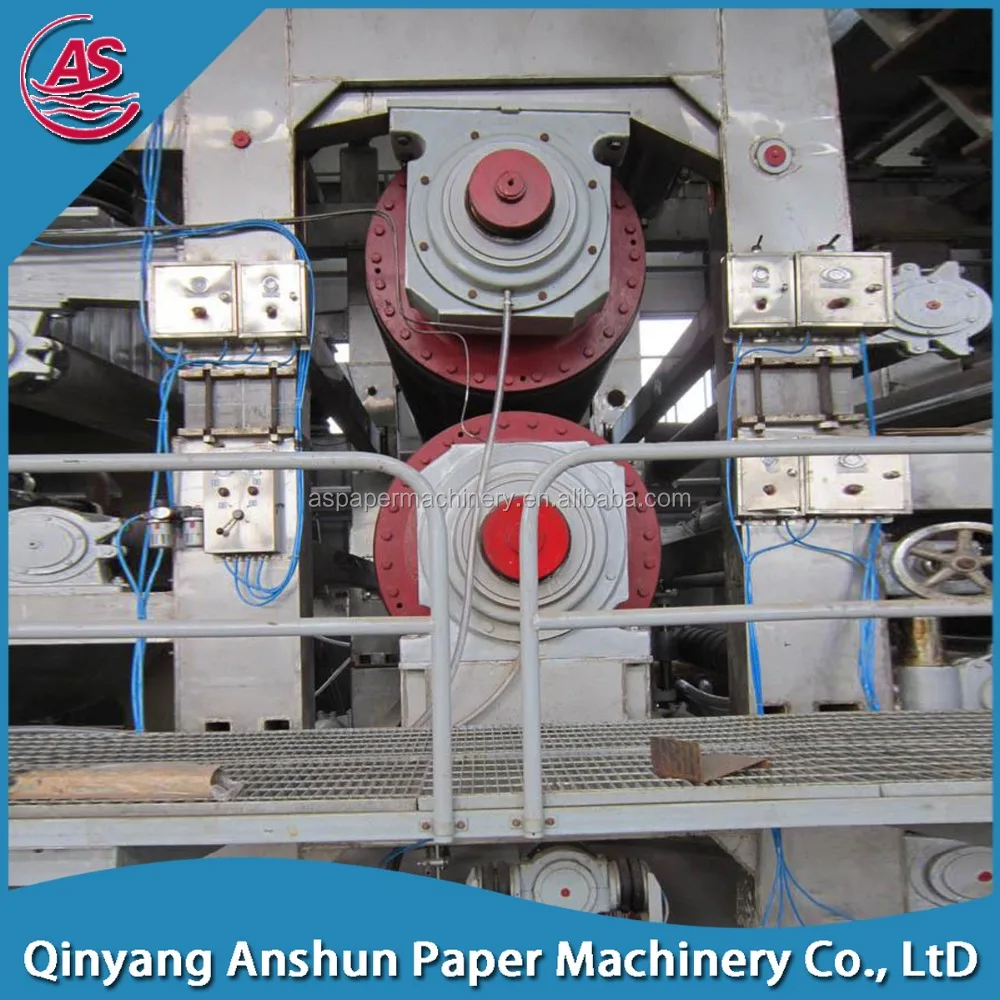

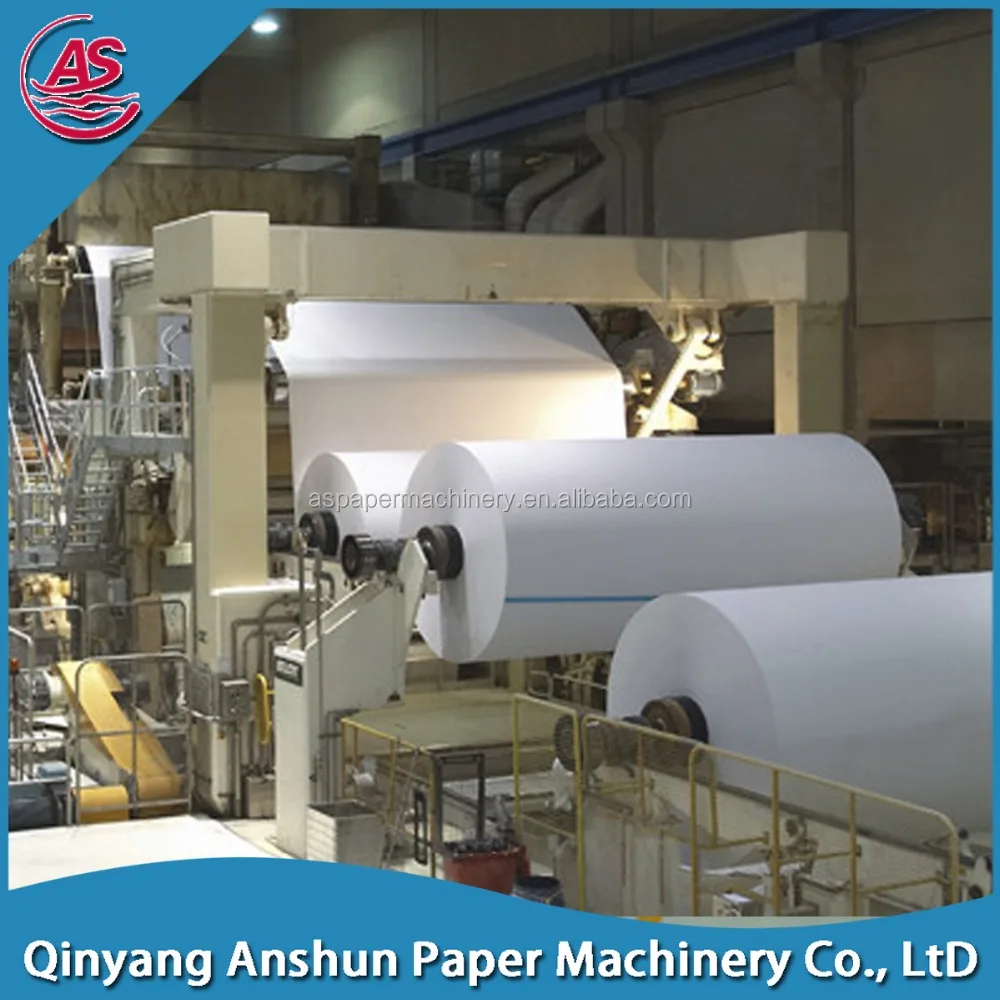

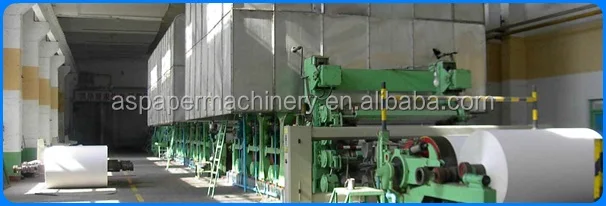

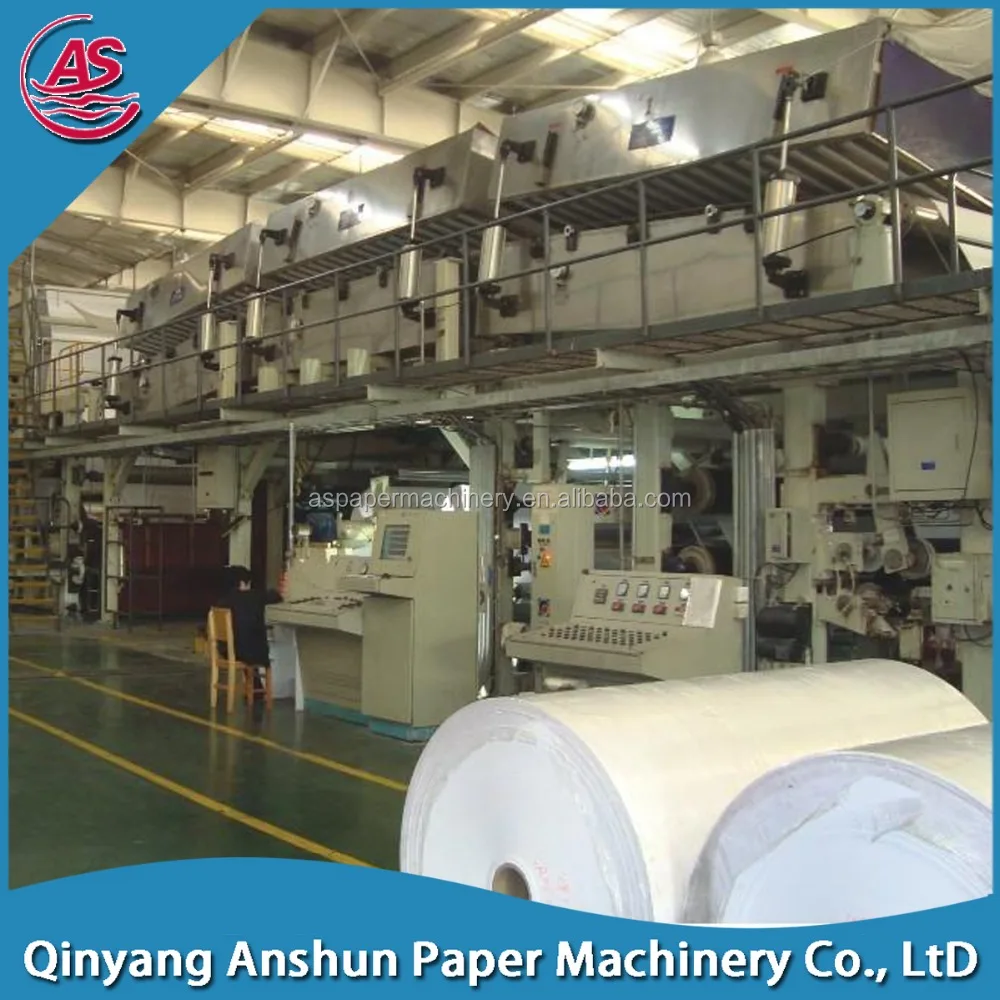

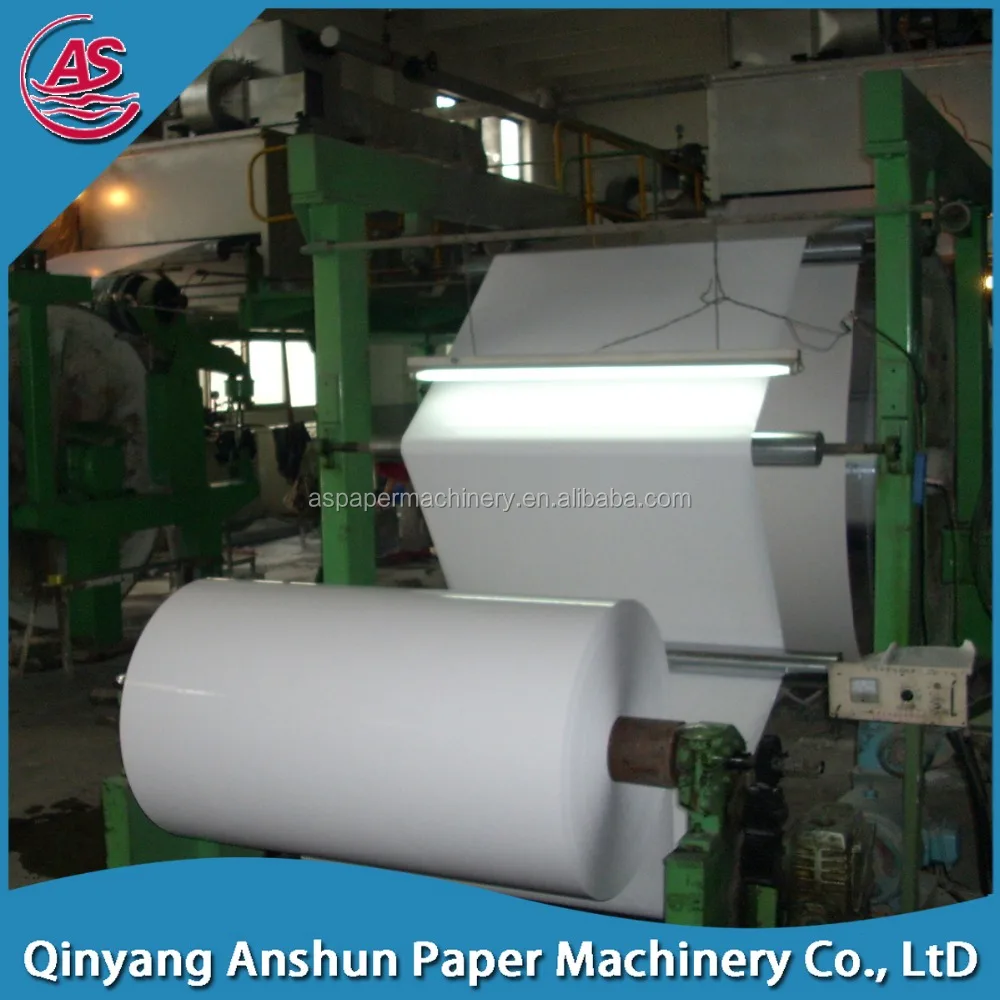

make a4 paper machine-newsprint paper rolls making machine on sale from paper product making machinery is the specilized equipment to produce all kinds of culture paper. is divided into fourdrinier type and cylinder type, the working speed can be 120-500 m/min, the net paper width can be 787-4400mm, the gram weight of paper can be 60-100 g/m2,the production capacity can be 3-150 tons per day.We can recommend best suitable configuration according to customer’s requirement. The leading products for culture paper machine is advanced culture paper, A3 / A4 paper, writing paper, copy paper, newsprint paper, bible paper, carbon paper, notebook paper, calligraphy paper, electrostatic copy paper for office work,and etc. Paper machine is mainly consisted of head box, the net department, press section, surface sizing machine, paper calender, paper winding machine,the steam condensate system, ventilation system, vacuum system, spray water system, pneumatic system, etc.
Raw material
waste paper
Output paper
copy paper,printing paper
Output paper weight
80-110g/m2
Net paper width
1700mm
Capacity
5T/D
Working speed
30 m/min
Designing working speed
80 m/min
Wire width
1950mm
Rail gauge
2800mm
Drive way
Alternating current frequency conversion adjustable speed, section drive
With using above materials of recovered fibers can saves:
Energy
It takes 64% less energy to make paper from recycled materials (used paper) than from virgin fiber (trees).Recycling one ton of paper saves the equivalent of 70 gallons of gasoline or 3 barrels of oil.
Water
It takes 61% less water to make paper from 100% recycled materials.
Land
Every ton of paper recycled saves 100 cubic feet of landfill space.
Air
Making recycled paper results in 70% fewer air pollutants than making paper from virgin wood.
Natural Resources (Trees)
For every ton of paper recycled, approximately 17 trees are saved.
make a4 paper machine-newsprint paper rolls making machine can used various raw materals to pruduce high quality toilet tissue paper ,like wheat straw,rice straw,bagasse,cotton with cotton straw,wasted paper,wood pulp etc.

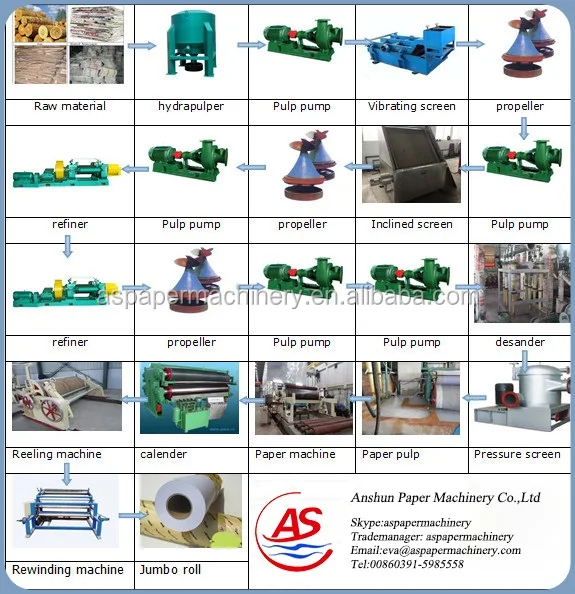

Flow chart make a4 paper rolls machine To China small business machines manufacturers office a4 copy paper making machine for sale, first it is sent to a Pulping process, where it is mixed with water and chemicals to aid in re-sloshing, before being cleaned and screened to remove large contaminants. The pulp is then de-inked in specially designed De Inking machines section before further cleaning, screening and brightening. Water is continually treated and recycled within the plant, to minimize total water consumption. Water is then added to the de-inked pulp to produce slurry of 99% water and 1% fibre. This mixture is then pumped into the wet-end part of our machine.
Ordinary waste paper process: waste paper after unpacking, after removing the wire, transported by the plate conveyor to the hydraulic pulper for broken, the hydraulic pulper to make paper for the pulp and deinking, beating pulp after the pulp into the pulp ⇓ by the pulp pump put pulp into the high-frequency vibrating screen, high-frequency vibrating screen play a role in screening, separation of debris; after the pulp into the pulp pool ⇓ by the pulp pump put pulp into the thickener, thickener is mainly to lower the concentration of the slurry, through the concentration and improve, while the concentration can also achieve the purpose of washing slurry; The concentrated pulp flows into the pulp pool ⇓ by the pulp pump make pulp into the bleacher machine, the role is to clean pulp, bleached pulp; bleached pulp into the pulp pool ⇓ by the pulp pump will make pulp into the refiner, the grinding mill into the slurry, the automatic flow into the pulp pool ⇓ by the pulp pump make pulp into the sedimentation tank, sedimentation sand ash and other impurities will be isolated after the precipitate made of pure pulp ⇓ by the pulp pump the pulp into the pressure box, the role of pressure tank is to reconcile the pulp concentration ⇓ the pulp through the pressure tank after the slurry and then remove the impurities in the sand after the second removal of the pulp, pulp into the flat box, made again after mixing pulp made of pure pulp.
Packaging & Shipping
Packaging culture a4 paper making machine
Shipments culture a4 paper making machine
1. Fixed all the movable parts with plastic films.
1.Sea transportation is from qingdao seaports or other ports.
2. Polystyrene foam plate wrapped around.
2. The delivery time is decided by your needed machines or machine parts. But it also follows your needs.
3. Wrapped with tighted plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Advantages
make a4 paper machine-newsprint paper rolls making machine on sale from paper product making machinery
Business scope
1.various pulp making machine;
2.various paper making machine;
3.various paper processing machine;
4.various spare parts;
Technology strength
1.one professional technician team of 108 engineers and 12 experts;
2.31 years rich practice experience;
3.one innovative research team,always follow the advanced technology of Finland,Denmark and Italy;
4.skilled and careful workers;
Our market
Our machines sells well in more than 30 countries and regions,such as Russia,Indonesia,Uzbekistan,Tajikstan,Nigeria,Uganda,Pakistan,Egypt,
high quality and perfect service have reserved customer's praise and
more orders,we also establish good strategic cooperation with local distribution
Company Information
Qinyang Anshun Paper Machinery Co.,Ltd is located in jiaozuo from henan province with convenient transportation access, has more than 25years expreiences.
we are focused on paper making machinery research and development
Our company vision market will widely sales in Africa, Europe, South Africa and Asia.
our company has introduced a series of advanced equipment including toilet paper machine ,kraft paper machine,culture paper machine, corrugated paper machine ect.
We also welcome OEM and ODM orders.
Whether selecting a current product from our catalog or seeking engineering assistance for your application.
Main market
Our Services
1.Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;
Acceptance standard
Unless stipulated in the technical documents accordingly, technology acceptance standards of designed main parts are in accordance with relevant state departments issued current relevant standards.
providing main parts technology acceptance standard of technical design.
Technical service
During paper machine installation, We cooperate with buyer for technological improvement to reach desired results.
We explains paper machine performance, structure and operation to buyer related people for free.
Quality guaranteed
We makes sure paper machine achieve promised performance with correct installation, commissioning
normal operation and maintenance.
FAQ
Q1: What is guarantee terms ? A1: According to the international practice, performance and mechanical guarantee shall be for 1 year from the successful commissioning or 1.5 years from the date of bill of lading.
Q2: What is the production time ? A2: Normally 3-4 months, it depends on the machine type and scope of supply. But we can arrange the partial shipment according to customer’s foundation construction schedule.
Q3: What kind of paper machines your factory produce? A3:We produce different kinds of paper machine. such as: Toilet Paper Machine which can produce toilet paper, tissue paper, napkin paper, handkerchief paper, towel paper and kitchen using paper etc. Culture paper machine which can produce A4 paper, notebook paper, copy paper, writing paper, printing paper and news printing paper etc. Kraft paper machine which can produce Kraft paper, fluting paper, corrugated paper, Kraft liner paper, carton box paper and packing paper etc. Coating paper machine which can produce coating paper, carbonless copy paper and thermal paper etc.
Q4:What should I have to know if I want to get the quotation? A4:a.What kind of raw material you will use(main important) b.The capacity you want produce per day(main important) c.The paper weight you require. d.The paper width you require.
Q5:Could your engineer can teach and train our workers and stay in our factory for long time? A5:Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary.
Warm Tips: 1.Before installation,you should check that equipment’s model and dimension are all right with the parts complete d and level remaining. 2.Before the test of installation,Checking each part is correct, lubrication supply normal.water, electricity values reaching the standard. 3.During Operation,you should pay attention to keep daily inspection, cleaning and oiling.and then examine and repair regularly.
