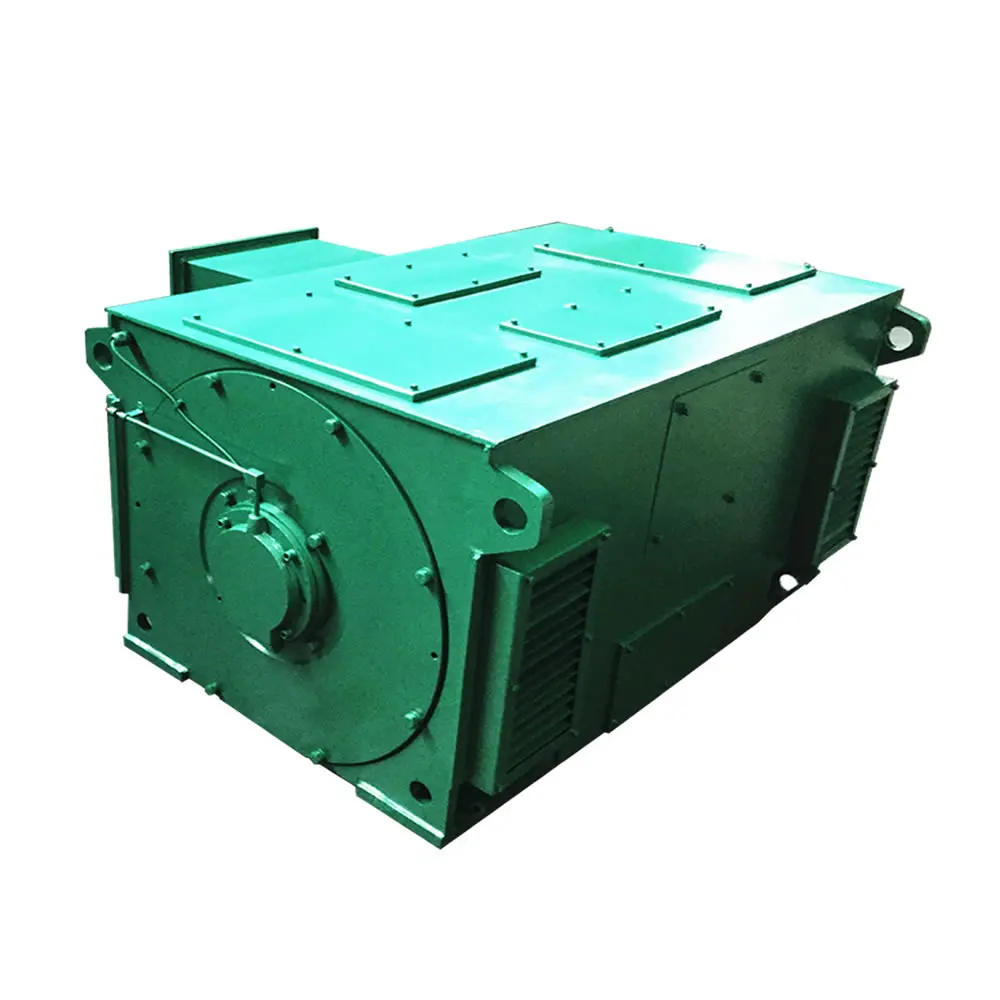

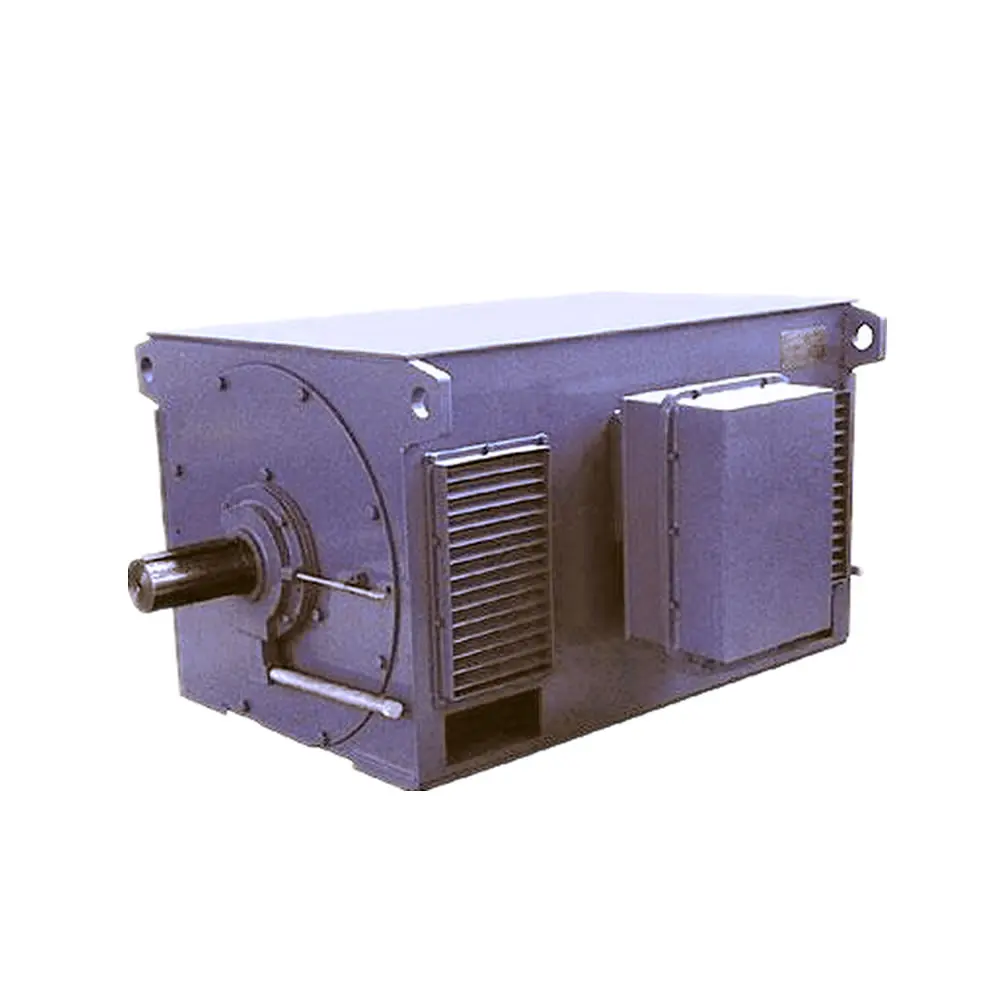

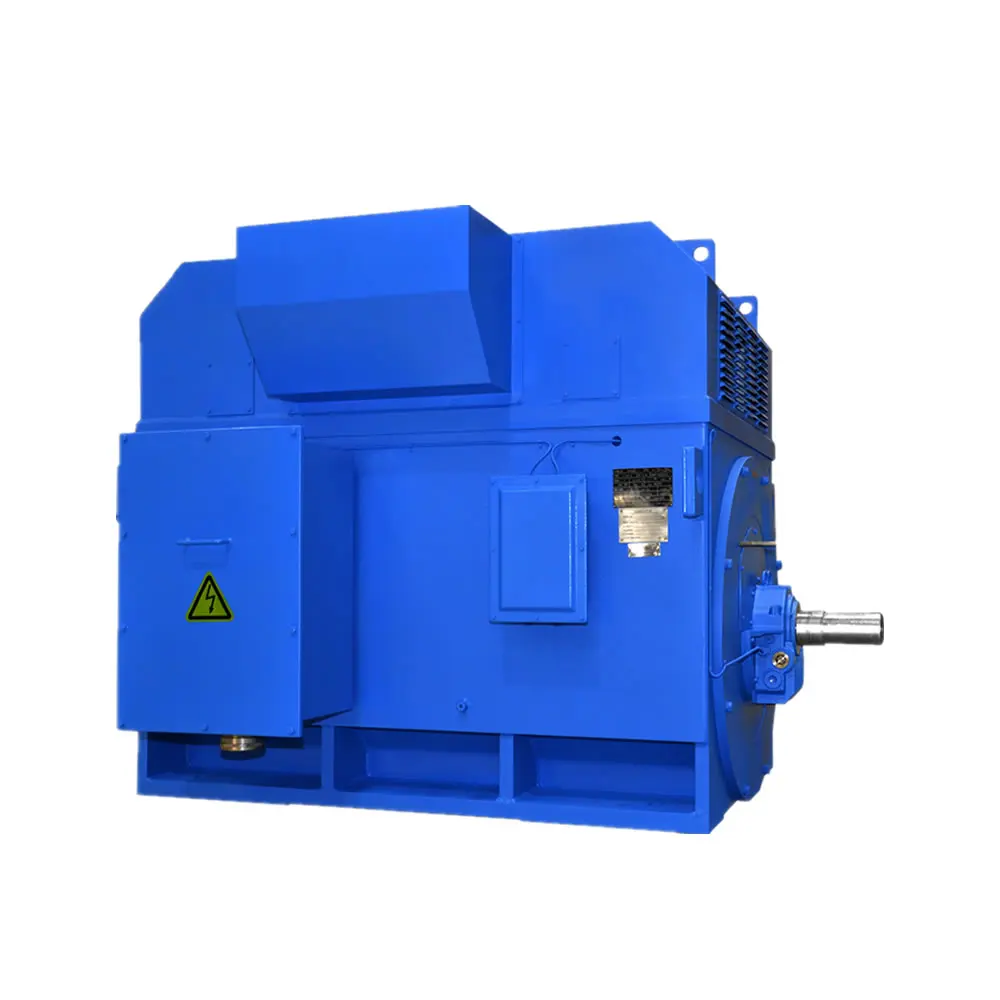

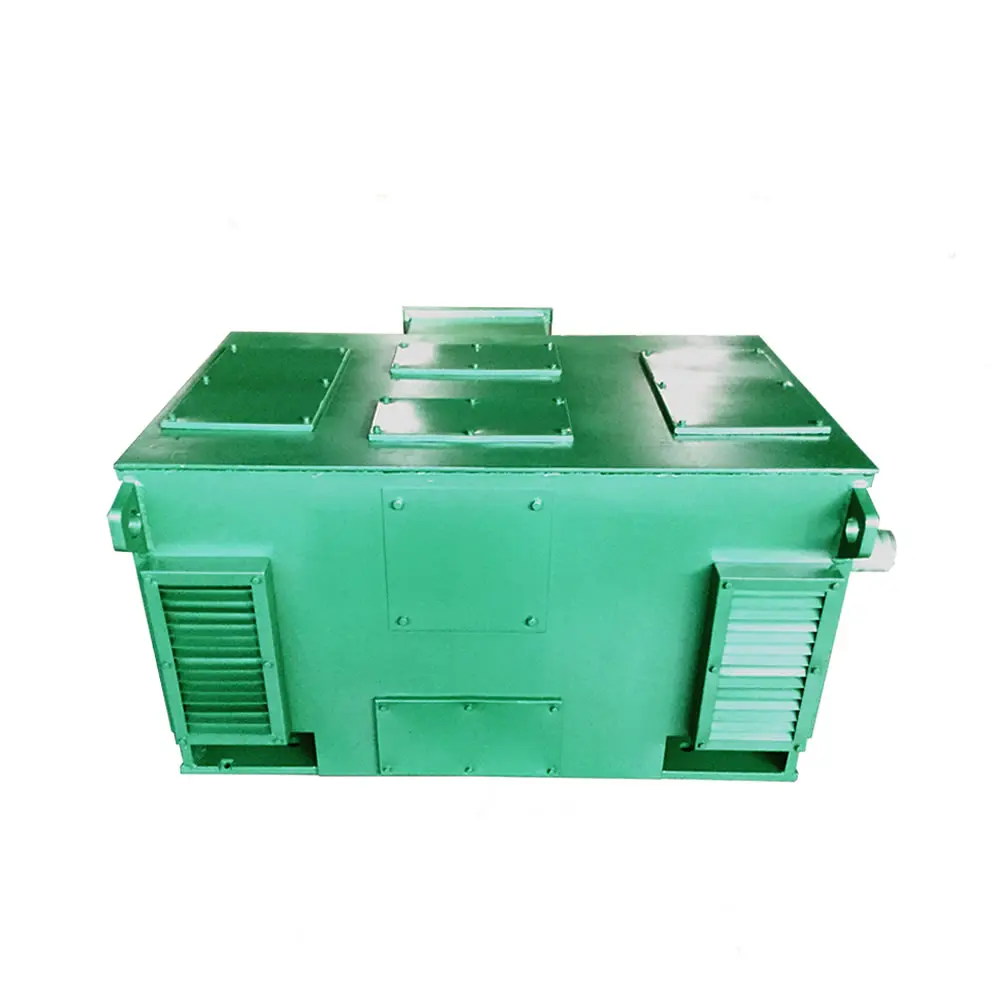

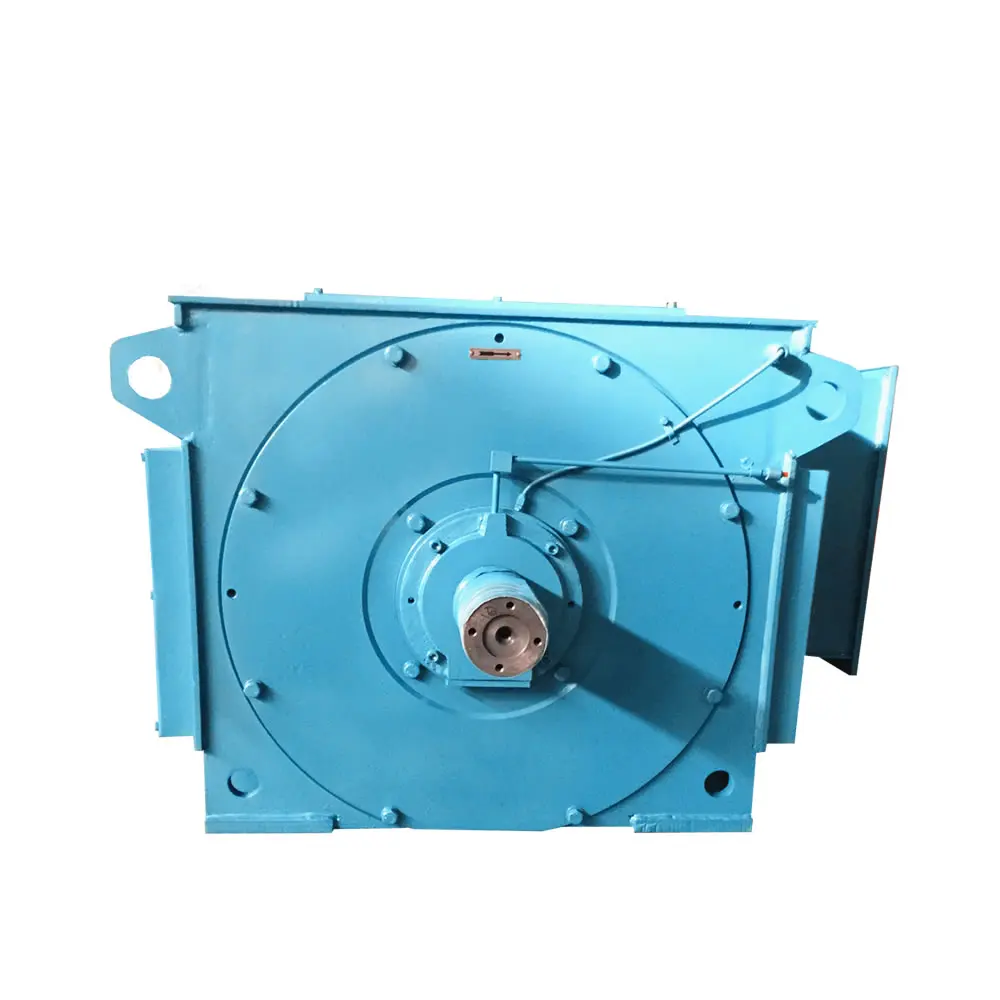

        Y-series (6kv,10kV) motor, is of squirrel-cage three phase asynchronous motor. The protection degree of the motor is of IP23 and the cooling method is of IC01. The motor has such advantage as high efficiency, energy-saving low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.

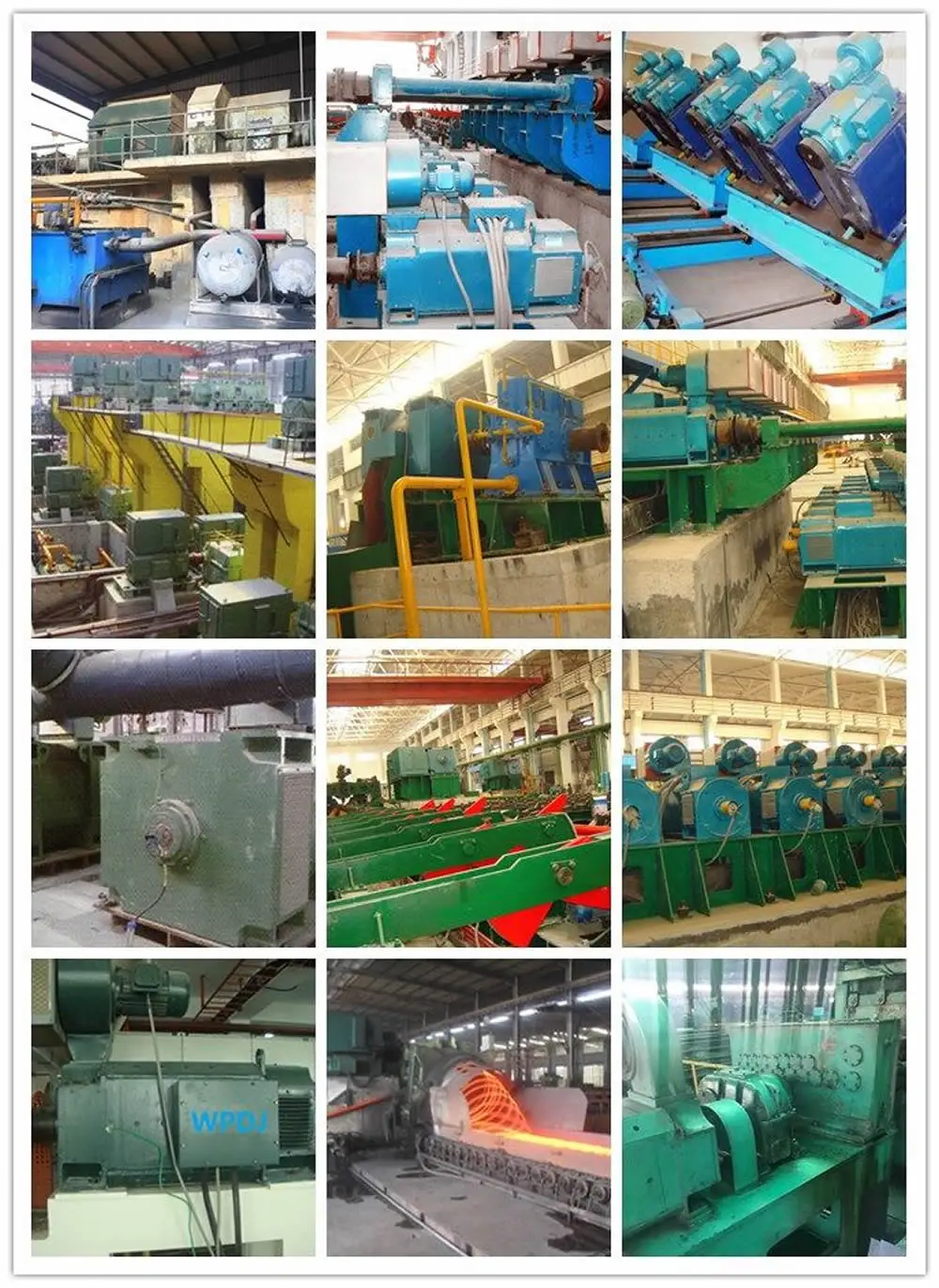

        This motor is used to drive various mechanical equipment such as blowers, compressors, pumps, crushing, grinding mill, etc. It can be serve as the prime movers in coal mines, mechanical industry, power plants and various industrial enterprises.

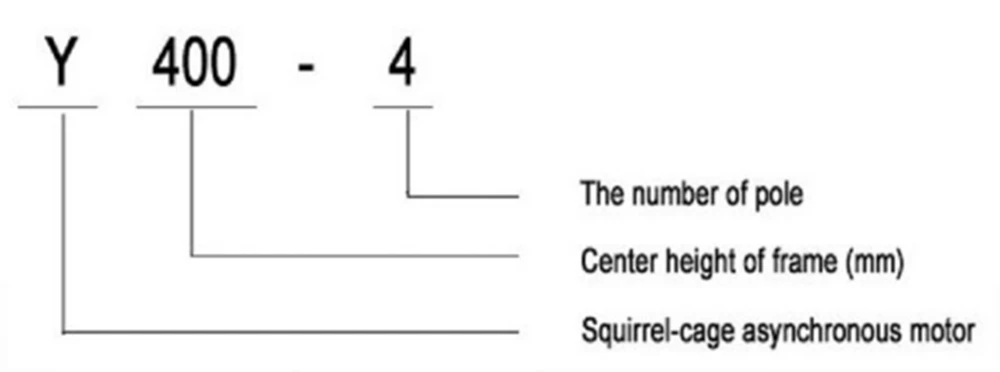

Type of Meaning

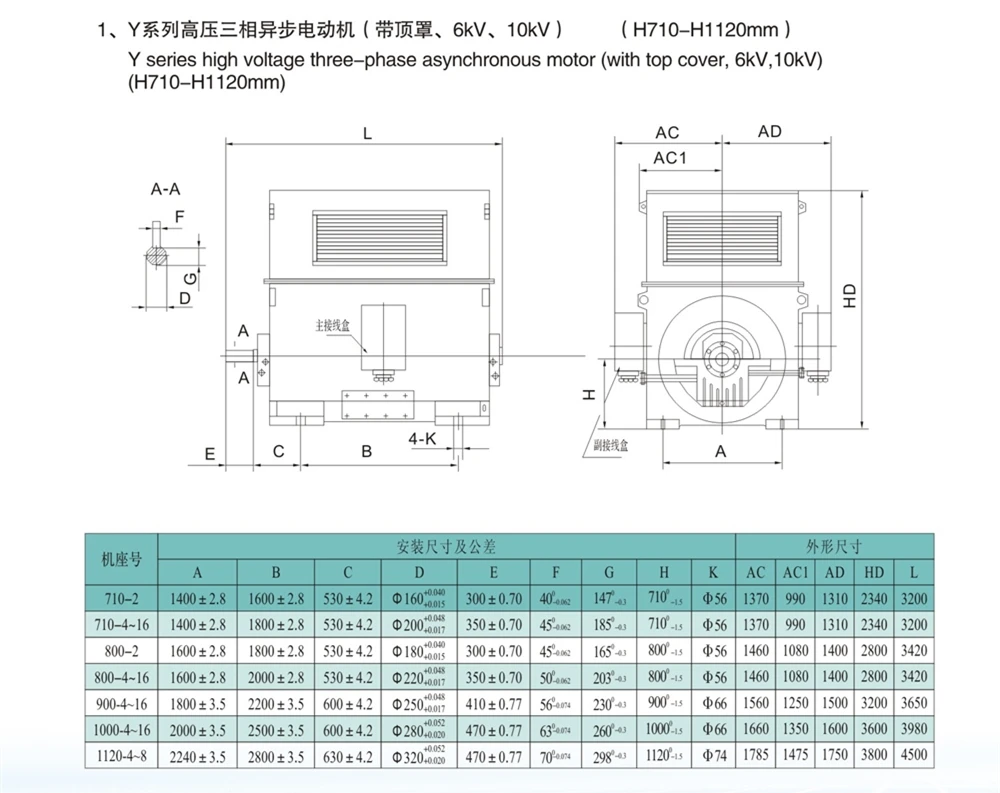

        The structure and the mounting type is of IMB3 with continuous duty(S1).The rated frequency is 50Hz and the rated voltage is 6000V,1000V,other voltage requirement or special requirements should be negotiate with manufacturer before order is placed.
        Y series motor is designed use rolling bearing with grease lubricating or sliding with diluted oil lubrication. The oil can be charged and discharged conveniently.

Order Notice

When ordering, the following requirement should be specified:
Frame size such as: Y3553-4
Mounting type: IM B3
Rated Power: 280KW
Protection Degree: IP23
Rated Voltage: 6 KV
Cooling Method: IC01
Rated Frequency: 50HZ
Insulation Class: F
Synchronous Speed: 1500r/min
Ambient Condition: Altitude above sea level maximal 1,000m, cooling air temperature maximal 40℃.
Note: Belt driving is not allowed on the motor of 2poles and 4poles. Belt driving applied on the motor of other poles, should be negotiated with factory.
