Product Overview


Product Description

GF industrial tubular centrifuge for virgin coconut oil centrifuge machine price



 Why choose us?

1. FIVEMEN has been engaged in the purification technology and its application for more than decades. We have our own R&D team, performing continuous product research and improvement from time to time.

2. Our products are certificated by the most prestigious national and international institutes.

3. Each of the production process is conducting under the strict quality control system. Our QC inspects each lot of the incoming material and the finished products carefully, so that we can supply the best products for customers.

4. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer products with the best quality and the most competitive price. Win-win is our ultimate purpose.


Product Description


The Feature


The centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle, it has t types, one is GQ two phase that can separate solid from the liquid, another is GF series, which  can separate the water, solid from the oil.

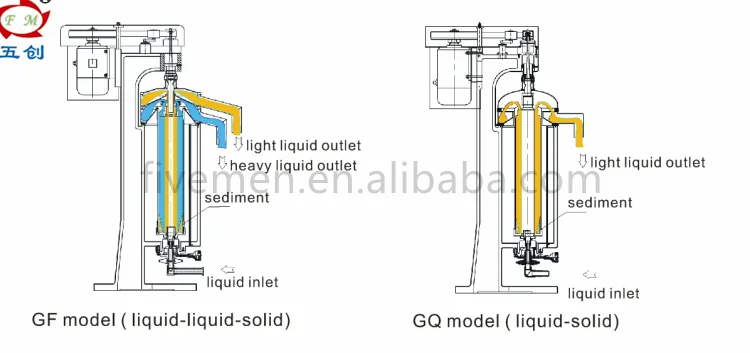

GF model: Liquid with big density forms the outer liquid circle, while liquid with small density forms the inner circle. Then liquid will flow out of the upper outlet accordingly, and those little solid will be deposited on the drum wall, and be removed by manual after machine stops.

GQ model: Solid particles with big density are gradually deposited on the drum’s inner wall, and forms sediment layer, after machine is stopped, is removed by manual. While the clarified liquid flows out through the outlet on the upper of the drum.


The Application


it has been widely used in pharmaceutical, health food, drinks, chemical industries to separate the liquid-solid or liquid-liquid-solid materials. It is an ideal centrifuge take advantage of centrifugal methods, the minimum granules is 1 um,which is suitable for distill, condense and clarify the material has small gravity difference, small and few solid granules and high erosion products.





appication of GF.jpg



 Working principle


 On the top of drum is the flinch axis, under is the damp drift bearing. Main axis linked by buffer and passive wheel,via conveyor belt, fasten wheel, the dynamic is transmit to drum and it will rotate axes to run at rapid speed.


The stuff is ripped into via liquid inlet, under the centrifuge force, the stuff along the wall of drum flow upward.




Drum is composed by upper cover, regulate loop, bottom cover drive the hollow axis and pipe drum. In the drum, there install 4 wing panels, make the liquid easily reach the speed of running corner. Discharge the liquid from the two outlets on the top of the drum, and then the liquid flow into the accumulating tray and tanks.
1.Drum, main axis and flinch joint hang on the belt wheel, the wheel combined other parts composed of machine head.

The upper end of the axis support on the buffer and the drum linked by nut.


2.The beraings are used the SKF brand.





Technical parameters


 Technical parameters





Drum speed

16300 r/min

14000 r/min

Max centrifugal force

15750 R.C.F


Drum inner diameter

φ105 mm

Φ145 mm

Drum effective length

730 mm

770 mm

Solid volume in drum

6 L


Stuff  inlet pressure



Output (water flux)

1500 L/H

2500 L/H

Motor power

2.2 KW

3 KW


760×450×1680 mm

890*580*1670 mm

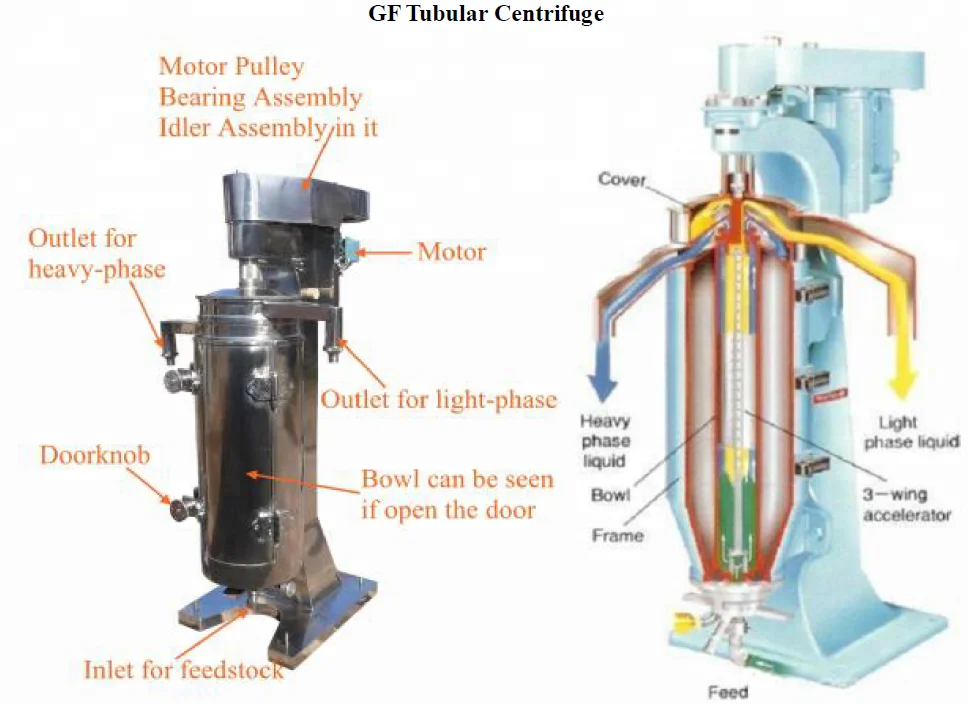

 structure of GF.png

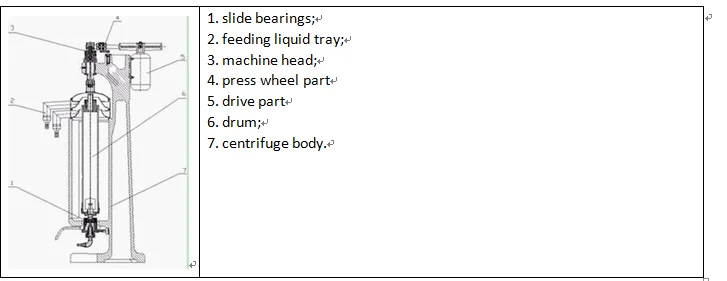

Main parts


 Main parts


bowl of GF105 tubular .jpg

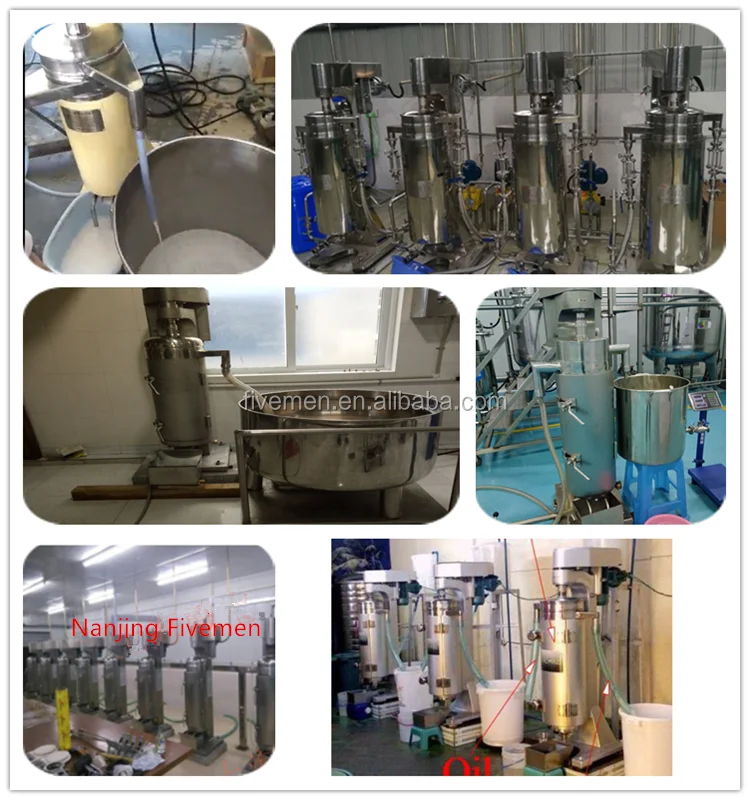

 application of tubular_.png

application 1

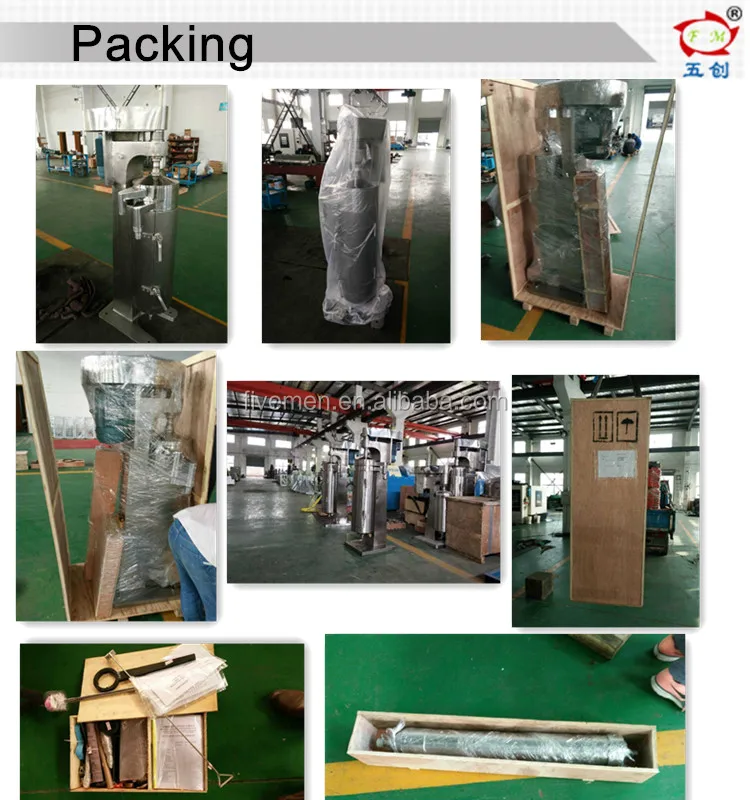

Packaging & Shipping
Packing of GF.jpg
