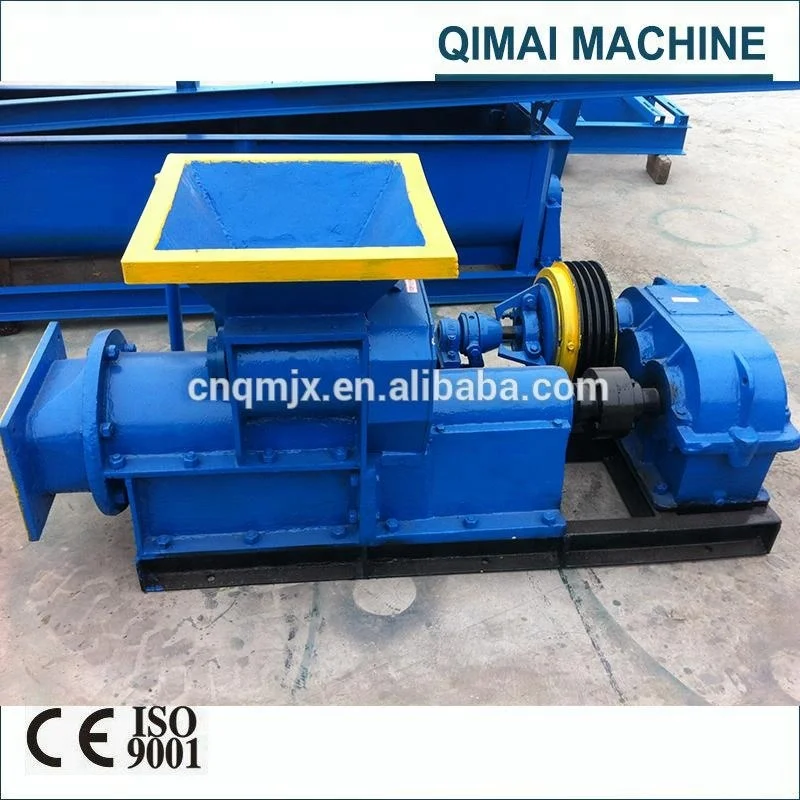

Top Quality chamotte brick shaping maker/red brick machine
Product Description
Description of red brick machine
red brick machine is mainly make the clay,fly ash,shale,soil and mud into brick. the clay moisture 17-30% is ok. if the clay have some big stone,need double stage crusher. if no stone or small size.just use a roller crusher is ok.and the brick shape and size can be different,because different country,the brick shape and size is different,and we can make different mould for customer.and the our brick machine is very popular in Bangladesh, Pakistan,India, Nigeria and Nepal.
Technical date of red brick machine
Type
Date inforamtion
Capacity(pcs/h)
Power (kw)
Dimension(mm)
Weight(t)
D160
Manual type
Pressure:max10kn
Molding time:45s 2pcs/once
180
Manual
1600*600*1500
0.26
D220
Screw diameter:220mm Screw length:220mm
Moistur:12-15%
Extrusion pressure:25mpa
1250-1875
15
1900*900*700
1
D280
Screw diameter:280mm Screw length:280mm
Moistur:12-15%
Extrusion pressure:25mpa
3125-3750
22
2100*1000*900
1.5
D300
Screw diameter:300mm Screw length:300mm
Moistur:12-15%
Extrusion pressure:25mpa
4375-5000
22
2100*1000*1000
1.7
D350
Screw diameter:350mm Screw length:300mm
Moistur:12-15%
Extrusion pressure:25mpa
7500-10000
40
2700*1100*1150
2.8
D400
Screw diameter:400mm Screw length:330mm
Moistur:12-15%
Extrusion pressure:25mpa
15000-18750
55
3600*1500*1350
3.5
Available raw materials for red brick machine
This series clay red brick machine for sale is suitable for materials such as clay, soil,shale, coal gangue, slag, silt, mountain mud, and so on.

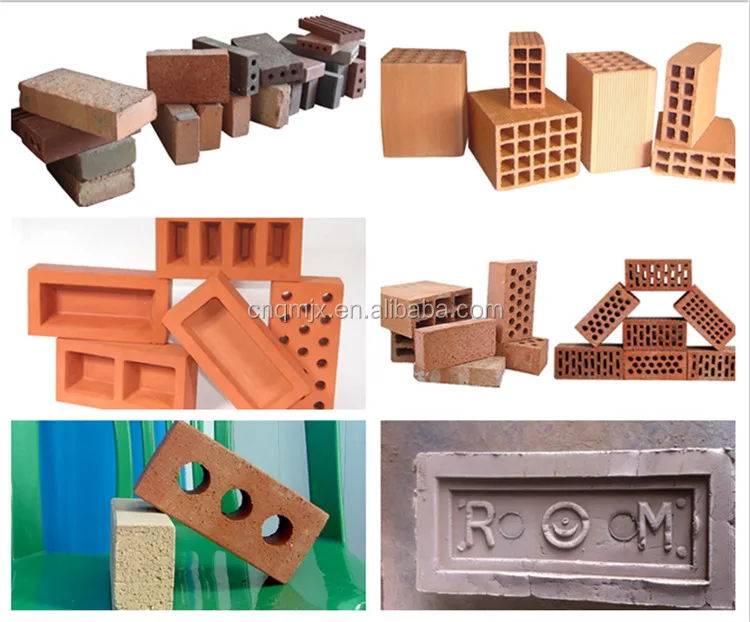

Different materials fired different bricks, especially the color of the final bricks.

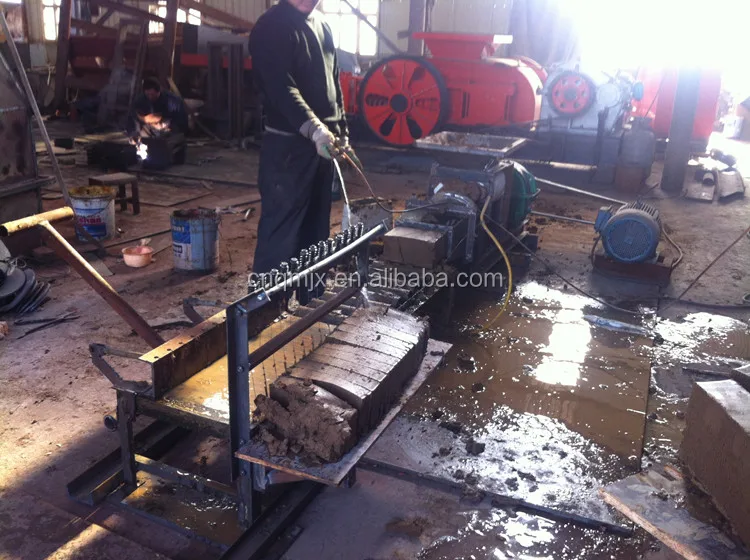

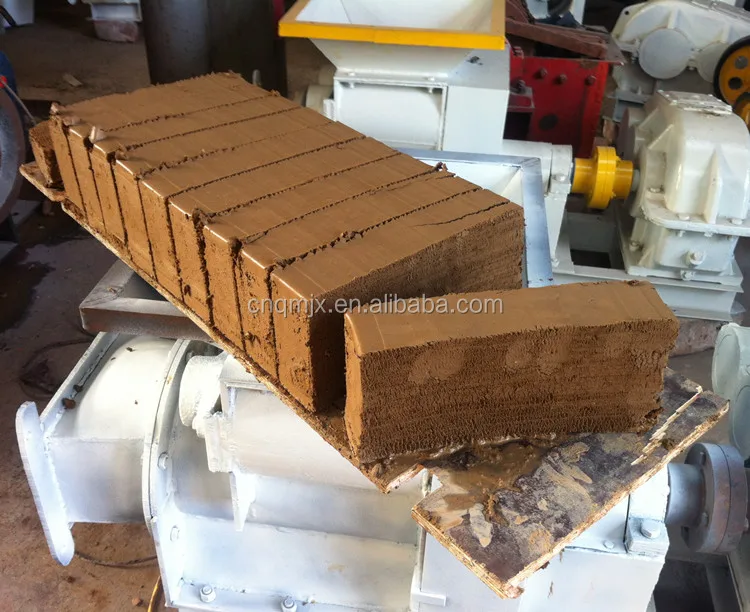

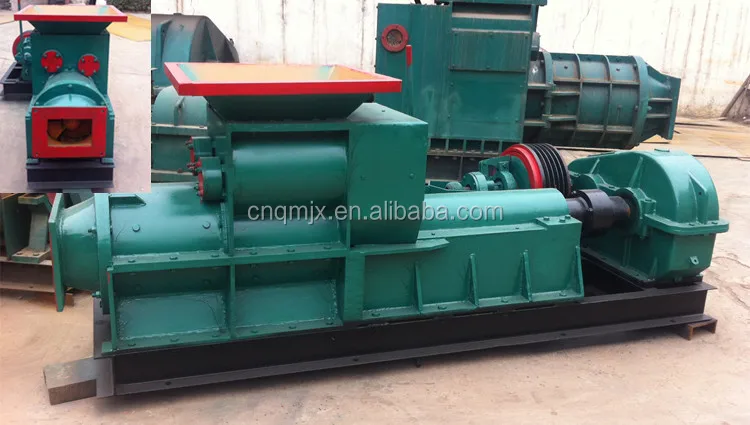

Pictures of red brick machine taken from our factory

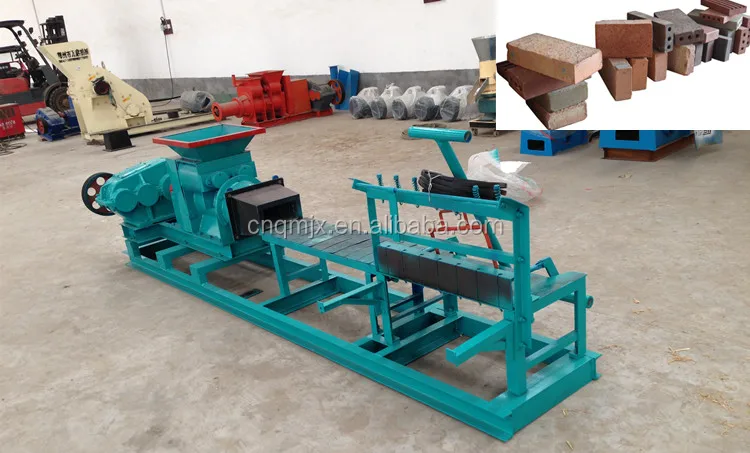

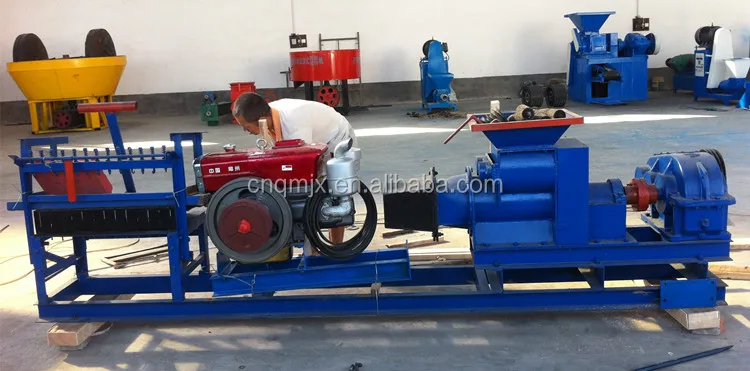

Diesel engine type red brick machine

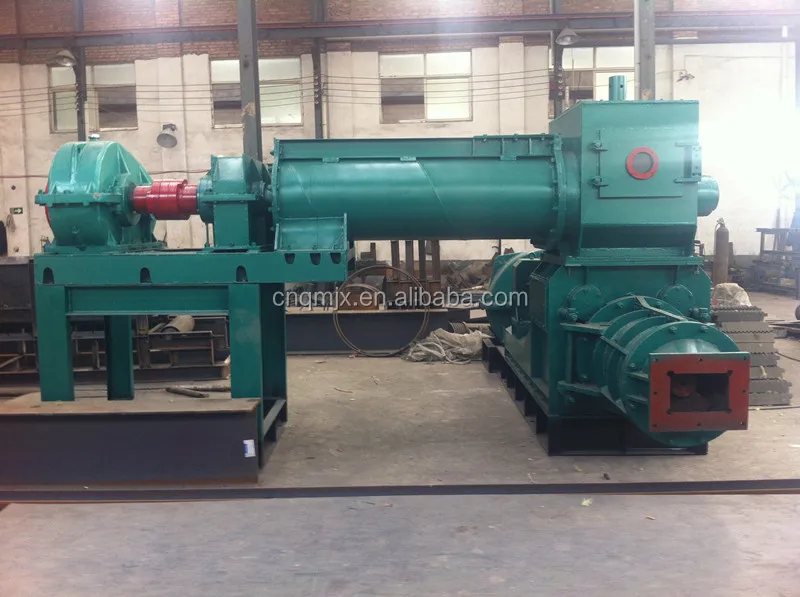

Vacuum brick machine

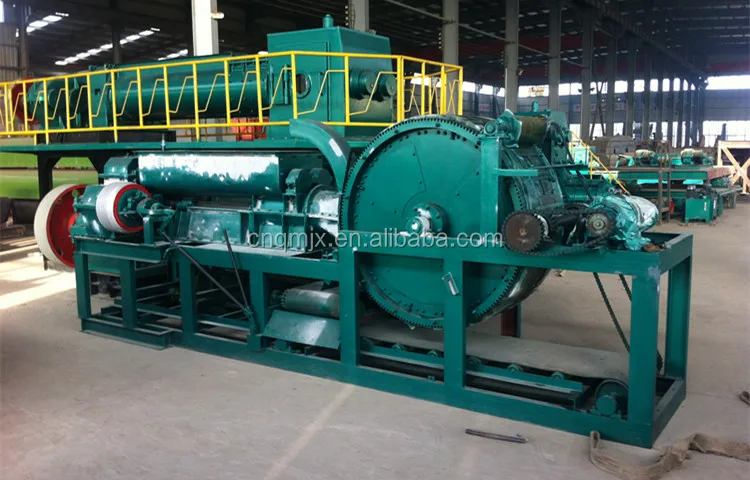

Logo brick machine

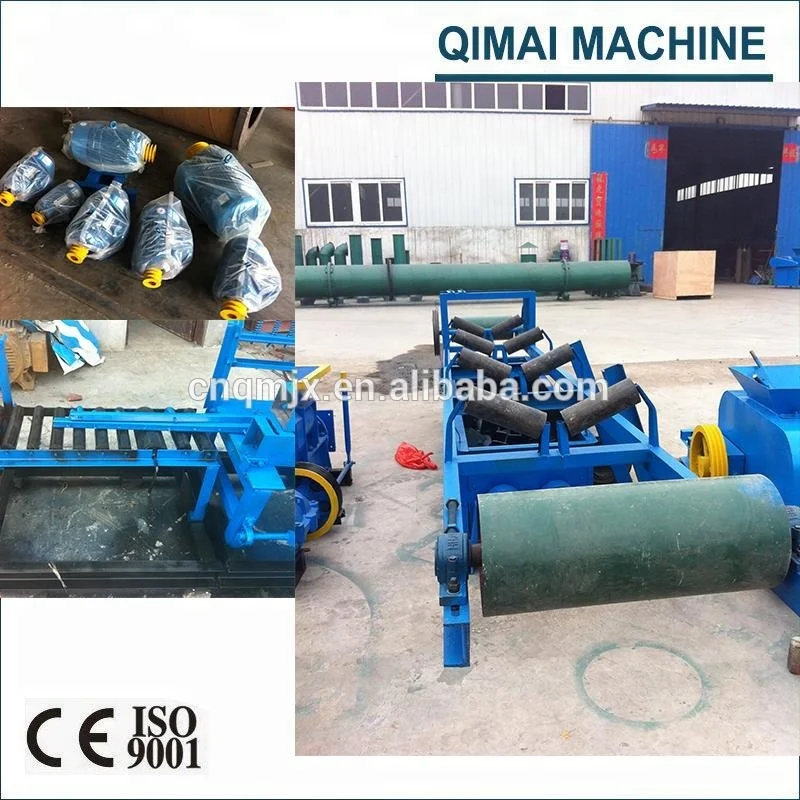

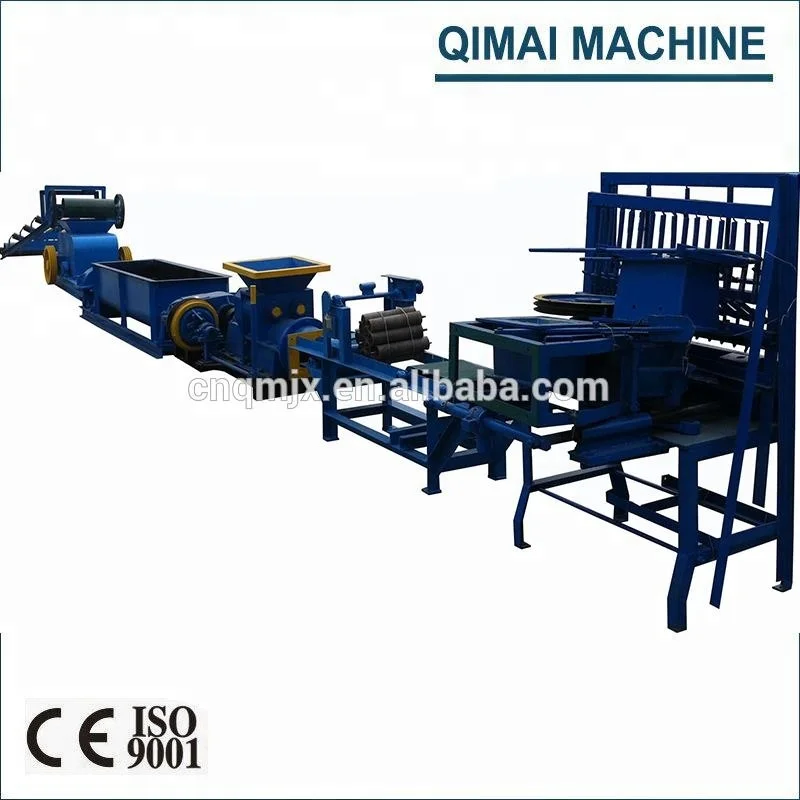

Production line

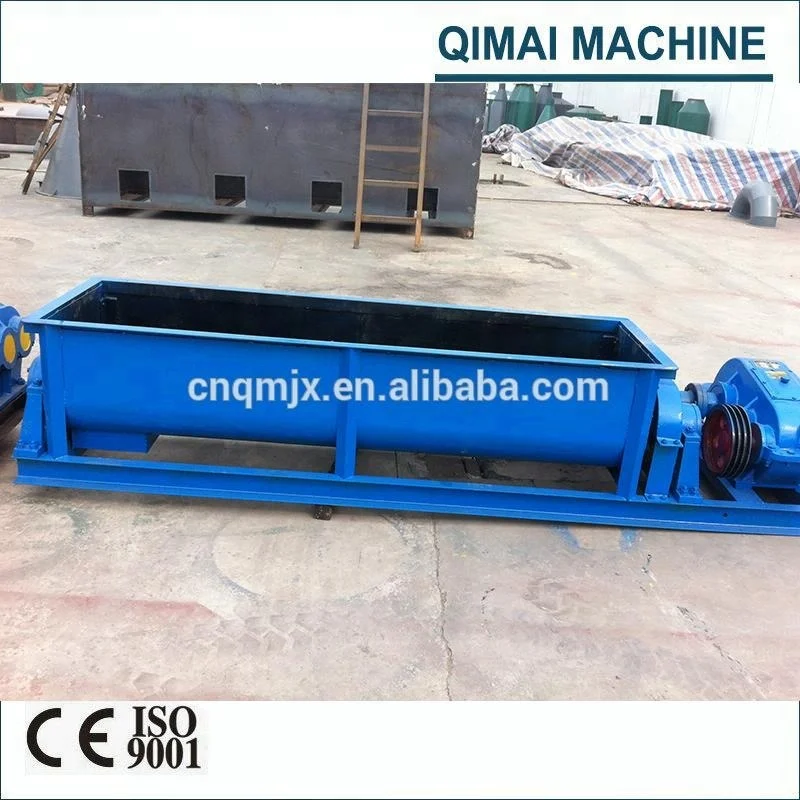

Raw materials ---Box feeder---Double crusher and roller crusher---Double shaft mixer ---Brick machine---Cutting system---Kiln---Finished products
Note:above line just one type, we can match different production lines according to difference material and difference brick shape needed.

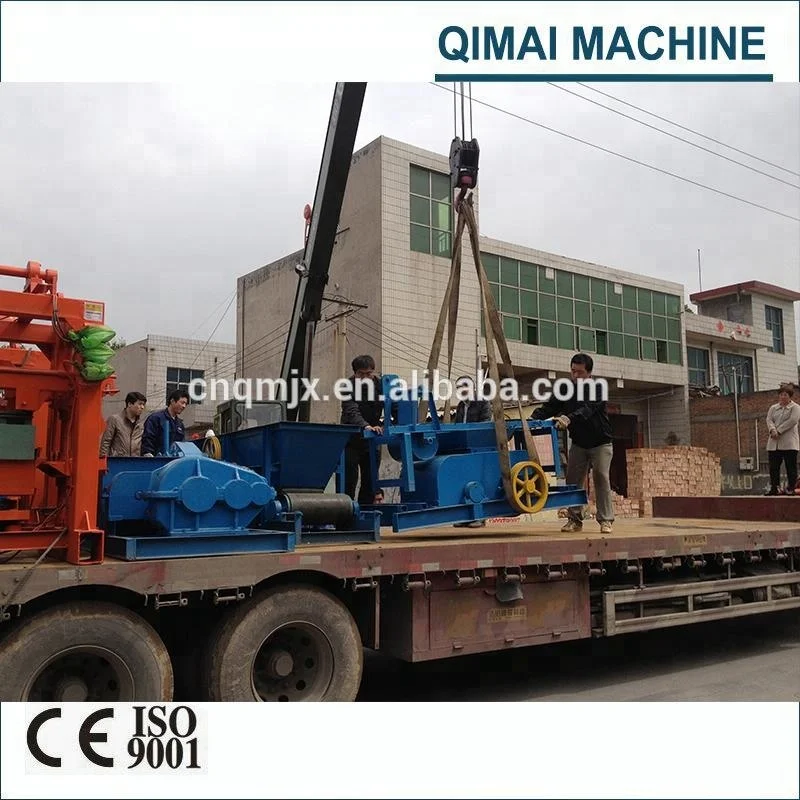

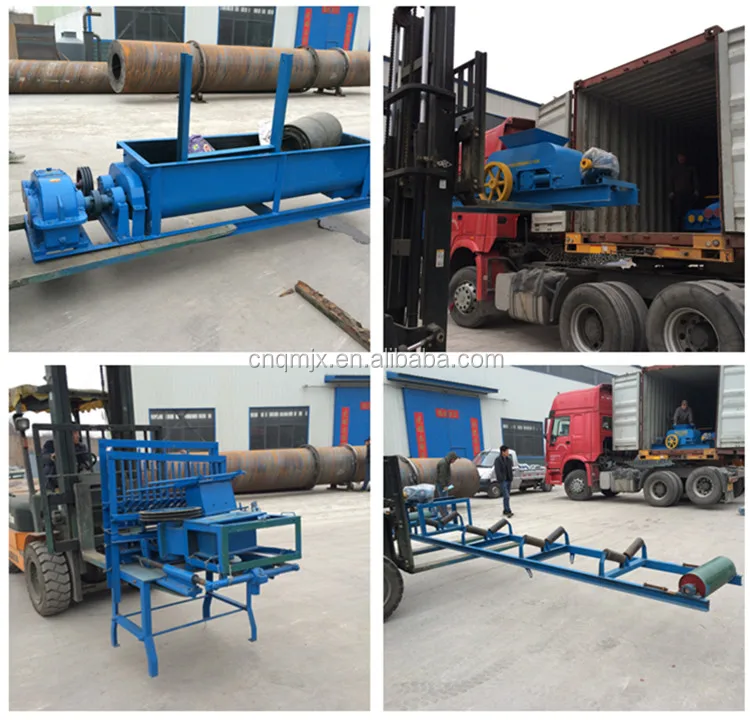

Packaging & Shipping
1.Usual single machine will be packing by fumigation plywood case. 2.Export standard container 20GP, 40GP, 40HQ, etc for production line. 3.Other packaging according to your special requirement.
Company Information
Henan Qimai Mechanical Equipment Co.,Ltd
Our factory is a professional manufacturer of red brick machine charcoal making machine, carbonization furnace,dryer machine, wood working machine and construction machine, etc.Our factory is located in Gongyi City, Henan Province.
With the development and changing market demand, our company also insist on the development of product diversity. The biomass briquette machine, a charcoal briquette machine, a coal briquette machine, shisha charcoal machine are become our popular product in the global market.
Our factory show
Our team show

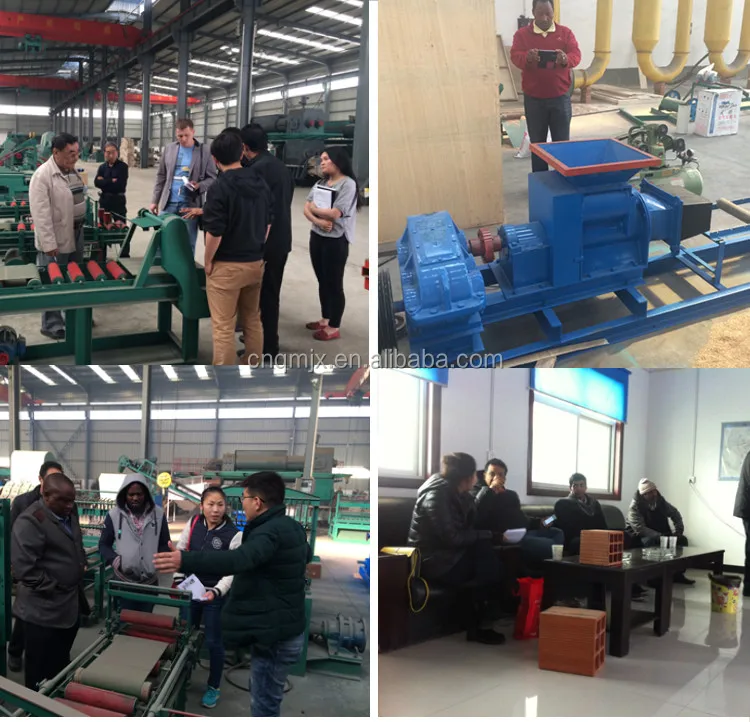

Our customer show
Our Services
1>.Pre-sale services: enthusiasm We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4>.We provideone-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
FAQ
1.What's the raw material for producing bricks?
Answer: clay,mud,fly ash ,coal gangue,shale etc.
2.How much land area for building a new brick plant?
Answer: it need above 20,000 square meters,the land area relate with capacity
3.What you have to mention in your inquiry when you need our proposal and quotation
Answer:please provide daily capacity,the brick size and you want to build a new brick plant or brick making machingery only. so we can give the proposal and offer accordingly.
4.How many countries exported this machinery.
Answer: Russia,Kazakhastan,Uzbekistan,Monglia,Iran,Iraq,Poland,Pakistan,Turkmenistan,India,Nepal,Bangladesh,Vietnam,Malaysia,Egypt,Argentina,SouthAfrica,Libya,Burundi,Uganda,Sudan,Venezuela, Colombia,Peru, Brazil, Center Africa, Mozambique, Bolivia and so on.
